bicgstabl

Syntax

```x = bicgstabl(A,b) x = bicgstabl(afun,b) x = bicgstabl(A,b,tol) x = bicgstabl(A,b,tol,maxit) x = bicgstabl(A,b,tol,maxit,M) x = bicgstabl(A,b,tol,maxit,M1,M2) x = bicgstabl(A,b,tol,maxit,M1,M2,x0) [x,flag] = bicgstabl(A,b,...) [x,flag,relres] = bicgstabl(A,b,...) [x,flag,relres,iter] = bicgstabl(A,b,...) [x,flag,relres,iter,resvec] = bicgstabl(A,b,...) ```

Description

`x = bicgstabl(A,b)` attempts to solve the system of linear equations `A*x=b` for `x`. The `n`-by-`n` coefficient matrix `A` must be square and the right-hand side column vector `b` must have length `n`.

`x = bicgstabl(afun,b)` accepts a function handle `afun` instead of the matrix `A`. `afun(x)` accepts a vector input `x` and returns the matrix-vector product `A*x`. In all of the following syntaxes, you can replace `A` by `afun`.

`x = bicgstabl(A,b,tol)` specifies the tolerance of the method. If `tol` is [] then `bicgstabl` uses the default, 1e-6.

`x = bicgstabl(A,b,tol,maxit)` specifies the maximum number of iterations. If `maxit` is [] then `bicgstabl` uses the default, `min(N,20)`.

`x = bicgstabl(A,b,tol,maxit,M)` and ```x = bicgstabl(A,b,tol,maxit,M1,M2)``` use preconditioner `M` or` M=M1*M2` and effectively solve the system `A*inv(M)*x = b` for x. If `M` is [] then a preconditioner is not applied. `M` may be a function handle returning `M\x`.

`x = bicgstabl(A,b,tol,maxit,M1,M2,x0)` specifies the initial guess. If `x0` is [] then `bicgstabl` uses the default, an all zero vector.

`[x,flag] = bicgstabl(A,b,...)` also returns a convergence `flag`:

Flag

Convergence

`0`

`bicgstabl` converged to the desired tolerance `tol` within `maxit` iterations.

`1`

`bicgstabl` iterated `maxit` times but did not converge.

`2`

Preconditioner `M` was ill-conditioned.

`3`

`bicgstabl` stagnated. (Two consecutive iterates were the same.)

`4`

One of the scalar quantities calculated during `bicgstabl` became too small or too large to continue computing.

`[x,flag,relres] = bicgstabl(A,b,...)` also returns the relative residual `norm(b-A*x)/norm(b)`. If `flag` is `0`, `relres <= tol`.

`[x,flag,relres,iter] = bicgstabl(A,b,...)` also returns the iteration number at which `x` was computed, where ```0 <= iter <= maxit```. `iter` can be `k/4` where `k` is some integer, indicating convergence at a given quarter iteration.

`[x,flag,relres,iter,resvec] = bicgstabl(A,b,...)` also returns a vector of the residual norms at each quarter iteration, including `norm(b-A*x0)`.

Examples

Using bicgstabl with Inputs or with a Function

You can pass inputs directly to `bicgstabl`:

```n = 21; A = gallery('wilk',n); b = sum(A,2); tol = 1e-12; maxit = 15; M = diag([10:-1:1 1 1:10]); x = bicgstabl(A,b,tol,maxit,M);```

You can also use a matrix-vector product function:

```function y = afun(x,n) y = [0; x(1:n-1)] + [((n-1)/2:-1:0)'; (1:(n-1)/2)'].*x+[x(2:n); 0];```

and a preconditioner backsolve function:

```function y = mfun(r,n) y = r ./ [((n-1)/2:-1:1)'; 1; (1:(n-1)/2)'];```

as inputs to `bicgstabl`:

`x1 = bicgstabl(@(x)afun(x,n),b,tol,maxit,@(x)mfun(x,n));`

Using bicgstabl with a Preconditioner

This example demonstrates the use of a preconditioner.

Load `west0479`, a real 479-by-479 nonsymmetric sparse matrix.

```load west0479; A = west0479;```

Define `b` so that the true solution is a vector of all ones.

`b = full(sum(A,2));`

Set the tolerance and maximum number of iterations.

```tol = 1e-12; maxit = 20;```

Use `bicgstabl` to find a solution at the requested tolerance and number of iterations.

`[x0,fl0,rr0,it0,rv0] = bicgstabl(A,b,tol,maxit);`

`fl0` is 1 because `bicgstabl` does not converge to the requested tolerance `1e-12` within the requested 20 iterations. In fact, the behavior of `bicgstabl` is so poor that the initial guess (`x0 = zeros(size(A,2),1)`) is the best solution and is returned as indicated by `it0 = 0`. MATLAB® stores the residual history in `rv0`.

Plot the behavior of `bicgstabl`.

```semilogy(0:0.25:maxit,rv0/norm(b),'-o'); xlabel('Iteration number'); ylabel('Relative residual');``` The plot shows that the solution does not converge. You can use a preconditioner to improve the outcome.

Create a preconditioner with `ilu`, since `A` is nonsymmetric.

```[L,U] = ilu(A,struct('type','ilutp','droptol',1e-5)); ```
```Error using ilu There is a pivot equal to zero. Consider decreasing the drop tolerance or consider using the 'udiag' option. ```

MATLAB cannot construct the incomplete LU as it would result in a singular factor, which is useless as a preconditioner.

You can try again with a reduced drop tolerance, as indicated by the error message.

```[L,U] = ilu(A,struct('type','ilutp','droptol',1e-6)); [x1,fl1,rr1,it1,rv1] = bicgstabl(A,b,tol,maxit,L,U);```

`fl1` is 0 because `bicgstabl` drives the relative residual to `1.0257e-015` (the value of `rr1`). The relative residual is less than the prescribed tolerance of `1e-12` at the sixth iteration (the value of `it1`) when preconditioned by the incomplete LU factorization with a drop tolerance of `1e-6`. The output `rv1(1)` is `norm(b)`, and the output `rv1(9)` is `norm(b-A*x2)` since `bicgstabl` uses quarter iterations.

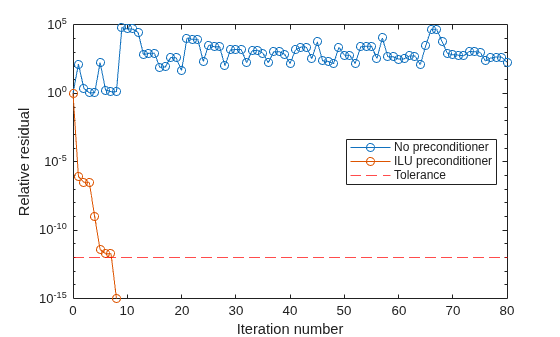

You can follow the progress of `bicgstabl` by plotting the relative residuals at each iteration starting from the initial estimate (iterate number 0).

```semilogy(0:0.25:it1,rv1/norm(b),'-o'); h = gca; h.XTick = 0:0.25:it1; xlabel('Iteration number'); ylabel('Relative residual');```
