# bar3h

Horizontal 3-D bar graph

## Description

`bar3h(`

creates a horizontal 3-D bar graph
for the elements of `y`

)`y`

. Each bar corresponds to an element in
`y`

.

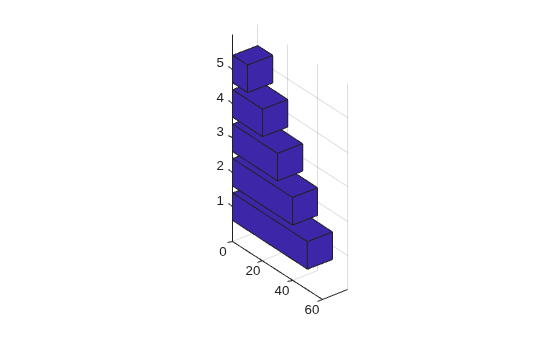

To plot a single series of bars, specify

`y`

as a vector. For a vector of length*m*, the function plots the bars on a*z*-axis ranging from`1`

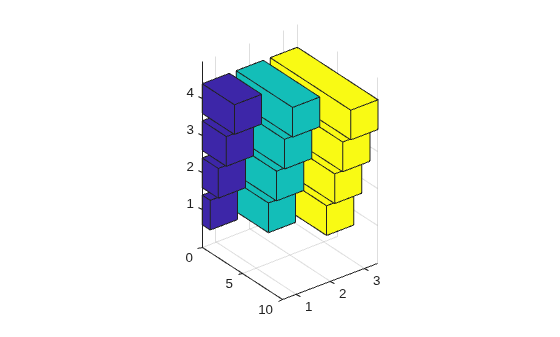

to*m*.To plot multiple series of bars, specify

`y`

as a matrix with one column for each series. For an*m*-by-*n*matrix, the function plots the bars on an*x*-axis ranging from`1`

to*n*and a*z*-axis ranging from`1`

to*m*.

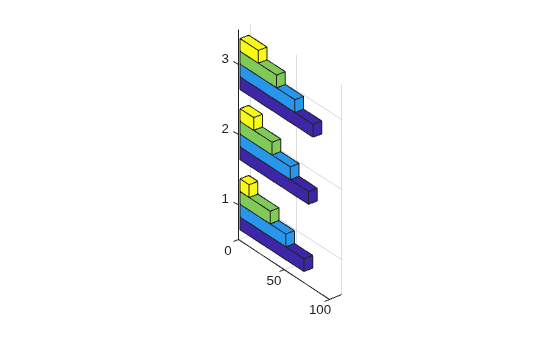

`bar3h(___,`

sets the width of
the bars along the `width`

)*x*- and *z*-axes and controls the
separation of bars within a group. By default, `width`

is
`0.8`

and the bars have a slight separation. If `width`

is `1`

, then the bars within a group do not have any space between them.
Specify `width`

in addition to any of the input argument combinations in
previous syntaxes.

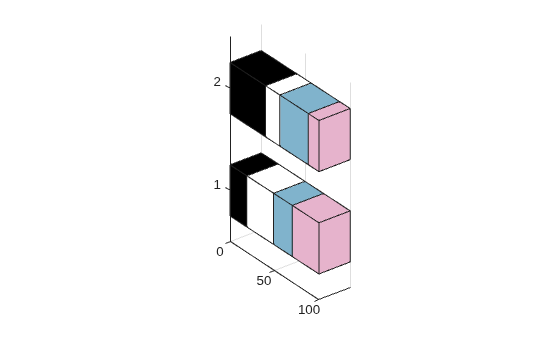

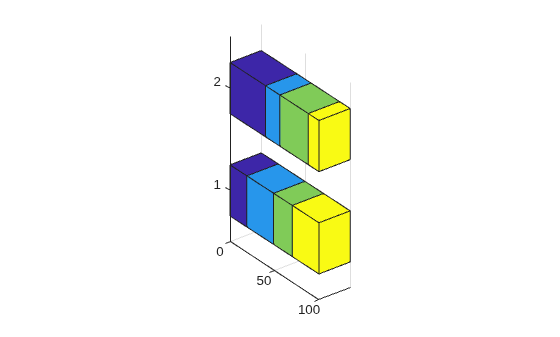

`bar3h(___,`

specifies the
style of the bars, where `style`

)`style`

can be `"detached"`

,
`"grouped"`

, or `"stacked"`

. The default style is
`"detached"`

.

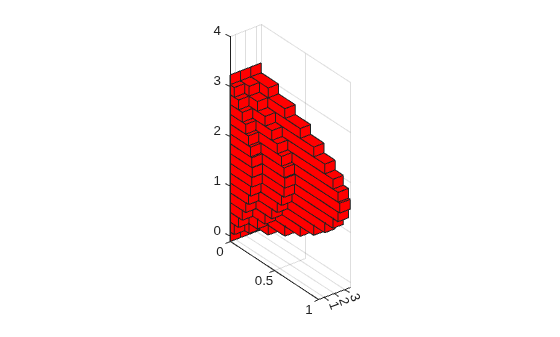

`bar3h(___,`

displays all bars
using the color specified by `color`

)`color`

. For example, use
`"r"`

to specify all red bars.

returns one or more
`h`

= bar3h(___)`Surface`

objects. If `y`

is a vector, then
`bar3h`

creates one `Surface`

object. If
`y`

is a matrix, then `bar3h`

returns a
`Surface`

object for each series. Use `h`

to set
properties of the bars after displaying the bar graph. For a list of properties, see
Surface Properties.

## Examples

## Input Arguments

## Output Arguments

## More About

## Tips

You can modify the plotted bars by altering the properties of the returned

`Surface`

objects. For a list of`Surface`

properties, see Surface Properties.

## Extended Capabilities

## Version History

**Introduced before R2006a**
