viewer3d
Description
creates a
viewer
= viewer3dViewer3D
object in a new web figure. Use viewer
to
query and modify properties of the Viewer3D
object after you create the
object. For a list of properties, see Viewer3D Properties.
creates a viewer
= viewer3d(___,Name=Value
)Viewer3D
object and sets properties of the object using one or
more name-value arguments.
For example,
viewer3d(BackgroundColor="green",BackgroundGradient=false)
creates a
Viewer3D
object in a new web figure with a green background and no
background gradient.
Examples
Change Appearance of 3-D Scene
Create a scene, and specify the appearance of the background and lighting using name-value arguments.
viewer = viewer3d(BackgroundColor="white", ... GradientColor=[0.5 0.5 0.5],Lighting="on")
viewer = Viewer3D with properties: Parent: [1×1 Figure] Position: [0 0 561 421] Children: [0×0 GraphicsPlaceholder] BackgroundColor: [1 1 1] BackgroundGradient: on GradientColor: [0.5000 0.5000 0.5000] OrientationAxes: on ClippingPlanes: [0×4 single] Lighting: on LightPosition: [1 1 1] CameraPosition: [1 1 1] CameraTarget: [0 0 0] CameraUpVector: [0 0 1] CameraZoom: 1 Show all properties

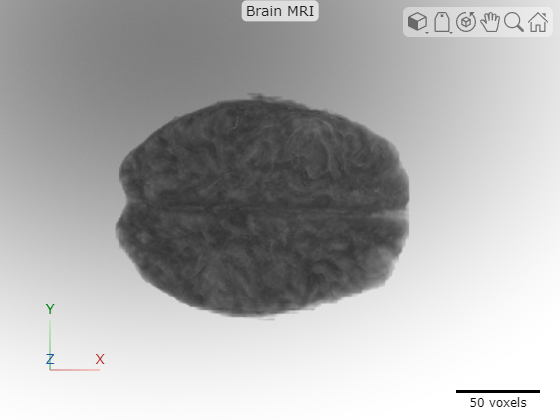

Display a volumetric image in the scene.
load(fullfile(toolboxdir("images"),"imdata", ... "BrainMRILabeled","images","vol_001.mat")); mriVol = volshow(vol,Parent=viewer);
Change the camera perspective of the scene by setting scene properties using dot notation.
viewer.CameraPosition = [120 120 200]; viewer.CameraTarget = [120 120 -10]; viewer.CameraUpVector = [0 1 0]; viewer.CameraZoom = 1.5;
Create Scene in UI Container
Create a grid layout manager whose parent is a figure created using the uifigure
function.
fig = uifigure(Name="MRI Volume");
g = uigridlayout(fig,[1 1],Padding=[0 0 0 0]);

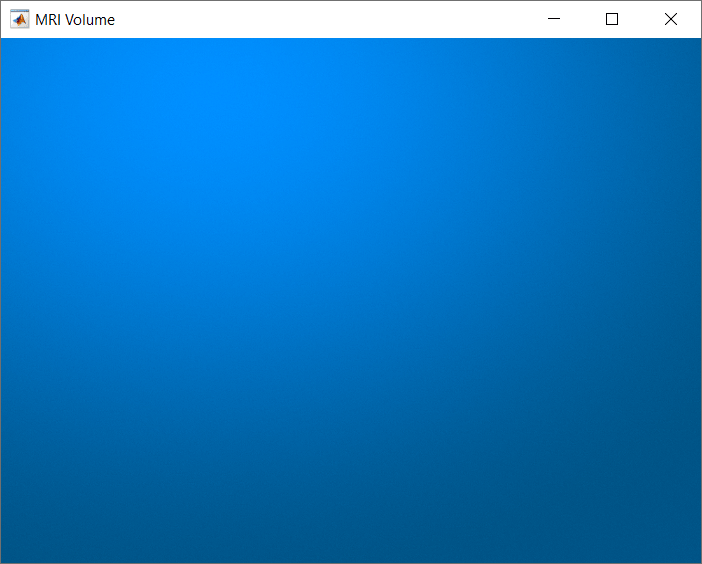

Create a scene with the default appearance in the grid layout manager.
viewer = viewer3d(g);

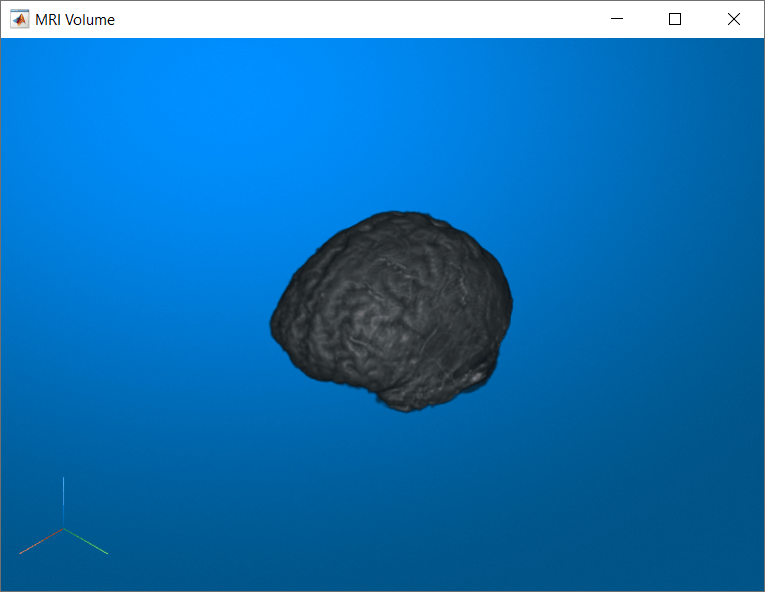

Display a volumetric image in the scene.
load(fullfile(toolboxdir("images"),"imdata", ... "BrainMRILabeled","images","vol_001.mat")); mriVol = volshow(vol,Parent=viewer);
Input Arguments
parent
— Parent of 3-D viewer
Figure
object (default) | Panel
object | GridLayout
object | Tab
object
Parent of the 3-D viewer, specified as a Figure
object created
using the uifigure
function, or a
Panel
, GridLayout
, or Tab
object
whose parent is a figure created using the uifigure
function. You
can use the uipanel
, uigridlayout
, and uitab
functions to create the corresponding objects.
Tip
A GridLayout
object is the recommended parent when you want to
build an app in App Designer, or when you want to add and position other UI components
in a figure with the 3-D viewer.
When the parent is a GridLayout
object, you can adjust the layout
of the 3-D viewer using the Layout
property.
Example: parent = uifigure; viewer = viewer3d(parent);
creates a
parent figure using the uifigure
function
Example: f = uifigure; parent = uipanel(f); viewer =
viewer3d(parent);
creates a parent Panel
object whose
parent is a figure created using the uifigure
function.
Name-Value Arguments
Specify optional pairs of arguments as
Name1=Value1,...,NameN=ValueN
, where Name
is
the argument name and Value
is the corresponding value.
Name-value arguments must appear after other arguments, but the order of the
pairs does not matter.
Example: viewer3d(BackgroundColor="green",BackgroundGradient=false)
creates a Viewer3D
object in a new figure with a green background and no
background gradient.
Note
The properties listed here are only a subset. For a full list, see Viewer3D Properties.
BackgroundColor
— Color of background
RGB triplet | hexadecimal color code | color name | short color name
Color of the background, specified as an RGB triplet, a hexadecimal color code, a
color name, or a short color name. When you select light mode in MATLAB®, the default color is [0 0.329 0.529]
. When you
select dark mode in MATLAB, the default color is [0.1 0.1 0.1]
.
For a custom color, specify an RGB triplet or a hexadecimal color code.
An RGB triplet is a three-element row vector whose elements specify the intensities of the red, green, and blue components of the color. The intensities must be in the range
[0,1]
, for example,[0.4 0.6 0.7]
.A hexadecimal color code is a string scalar or character vector that starts with a hash symbol (
#
) followed by three or six hexadecimal digits, which can range from0
toF
. The values are not case sensitive. Therefore, the color codes"#FF8800"
,"#ff8800"
,"#F80"
, and"#f80"
are equivalent.
Alternatively, you can specify some common colors by name. This table lists the named color options, the equivalent RGB triplets, and hexadecimal color codes.
Color Name | Short Name | RGB Triplet | Hexadecimal Color Code | Appearance |
---|---|---|---|---|
"red" | "r" | [1 0 0] | "#FF0000" | |
"green" | "g" | [0 1 0] | "#00FF00" | |
"blue" | "b" | [0 0 1] | "#0000FF" | |
"cyan"
| "c" | [0 1 1] | "#00FFFF" | |
"magenta" | "m" | [1 0 1] | "#FF00FF" | |
"yellow" | "y" | [1 1 0] | "#FFFF00" | |
"black" | "k" | [0 0 0] | "#000000" | |
"white" | "w" | [1 1 1] | "#FFFFFF" | |
"none" | Not applicable | Not applicable | Not applicable | No color |
Here are the RGB triplets and hexadecimal color codes for the default colors MATLAB uses in many types of plots.
RGB Triplet | Hexadecimal Color Code | Appearance |
---|---|---|
[0 0.4470 0.7410] | "#0072BD" | |
[0.8500 0.3250 0.0980] | "#D95319" | |
[0.9290 0.6940 0.1250] | "#EDB120" | |
[0.4940 0.1840 0.5560] | "#7E2F8E" | |
[0.4660 0.6740 0.1880] | "#77AC30" | |
[0.3010 0.7450 0.9330] | "#4DBEEE" | |
[0.6350 0.0780 0.1840] | "#A2142F" |
Example: BackgroundColor="r"
Example: BackgroundColor="green"
Example: BackgroundColor=[0 0.4470 0.7410]
Example: BackgroundColor="#FF8800"
BackgroundGradient
— Background gradient is present
"on"
(default) | on/off logical value
Background gradient is present, specified as "on"
or "off"
, or as a numeric or logical
1
(true
) or 0
(false
). A value of "on"
is equivalent to
true
, and "off"
is equivalent to
false
. The value is stored as an on/off logical value of type OnOffSwitchState
. This property specifies whether the background is shaded with a gradient
from GradientColor
to BackgroundColor
. When
this property is false
, the GradientColor
property has no effect.
GradientColor
— Color of background gradient shading
RGB triplet | hexadecimal color code | color name | short color name
Color of the background gradient shading, specified as an RGB triplet, a
hexadecimal color code, a color name, or a short color name. When
BackgroundGradient
is true
, the background
is shaded as a gradient from GradientColor
to
BackgroundColor
. When you select light mode in MATLAB, the default color is [0.0 0.561 1.0]
. When you
select dark mode in MATLAB, the default color is [0.3 0.3 0.3]
.
For a custom color, specify an RGB triplet or a hexadecimal color code.
An RGB triplet is a three-element row vector whose elements specify the intensities of the red, green, and blue components of the color. The intensities must be in the range
[0,1]
, for example,[0.4 0.6 0.7]
.A hexadecimal color code is a string scalar or character vector that starts with a hash symbol (
#
) followed by three or six hexadecimal digits, which can range from0
toF
. The values are not case sensitive. Therefore, the color codes"#FF8800"
,"#ff8800"
,"#F80"
, and"#f80"
are equivalent.
Alternatively, you can specify some common colors by name. This table lists the named color options, the equivalent RGB triplets, and hexadecimal color codes.
Color Name | Short Name | RGB Triplet | Hexadecimal Color Code | Appearance |
---|---|---|---|---|
"red" | "r" | [1 0 0] | "#FF0000" | |
"green" | "g" | [0 1 0] | "#00FF00" | |
"blue" | "b" | [0 0 1] | "#0000FF" | |
"cyan"
| "c" | [0 1 1] | "#00FFFF" | |
"magenta" | "m" | [1 0 1] | "#FF00FF" | |
"yellow" | "y" | [1 1 0] | "#FFFF00" | |
"black" | "k" | [0 0 0] | "#000000" | |
"white" | "w" | [1 1 1] | "#FFFFFF" | |
"none" | Not applicable | Not applicable | Not applicable | No color |
Here are the RGB triplets and hexadecimal color codes for the default colors MATLAB uses in many types of plots.
RGB Triplet | Hexadecimal Color Code | Appearance |
---|---|---|
[0 0.4470 0.7410] | "#0072BD" | |
[0.8500 0.3250 0.0980] | "#D95319" | |
[0.9290 0.6940 0.1250] | "#EDB120" | |
[0.4940 0.1840 0.5560] | "#7E2F8E" | |
[0.4660 0.6740 0.1880] | "#77AC30" | |
[0.3010 0.7450 0.9330] | "#4DBEEE" | |
[0.6350 0.0780 0.1840] | "#A2142F" |
Example: GradientColor="r"
Example: GradientColor="green"
Example: GradientColor=[0 0.4470 0.7410]
Example: GradientColor="#FF8800"
Output Arguments
viewer
— 3-D viewer
Viewer3D
object
3-D viewer, returned as a Viewer3D
object.
More About
Events
To receive notification from the
Viewer3D
object when certain events happen, set up
listeners for these events. You can specify a callback function
that executes when one of these events occurs. When the Viewer3D
object
notifies your application through the listener, it returns data specific to the event. Look
at the event class for the specific event to see what is returned.
Event Name | Trigger | Event Data | Event Attributes |
---|---|---|---|
CameraMoving | The camera is being interactively moved. This event does not execute if the camera is programmatically moved. | images.ui.graphics3d.events.CameraMovedEventData |
|
CameraMoved | The camera stops being interactively moved. This event does not execute if the camera is programmatically moved. | images.ui.graphics3d.events.CameraMovedEventData |
|
ClippingPlanesChanging | A global clipping plane is being interactively moved. This event does not execute if the clipping plane is programmatically moved. | images.ui.graphics3d.events.ClippingPlanesChangedEventData |
|
ClippingPlanesChanged | A global clipping plane stops being interactively moved. This event does not execute if the clipping plane is programmatically moved. | images.ui.graphics3d.events.ClippingPlanesChangedEventData |
|
ViewerRefreshed | The viewer has been refreshed. You can refresh a viewer either by reparenting the viewer or by modifying the ancestor hierarchy of the parent object. When you refresh a viewer, the viewer is cleared and no longer contains any child objects. To recreate the scene, you can listen to this event and reconstruct any objects that were parented to the viewer. | event.EventData |
|
Tips
To clear all objects from the scene and delete all data containers previously added to the 3-D viewer,
viewer
, use the command:clear(viewer)
To delete all objects in the scene and the 3-D viewer,
viewer
, use the command:delete(viewer)
Version History
Introduced in R2022b
