JPEG Image Deblocking Using Deep Learning

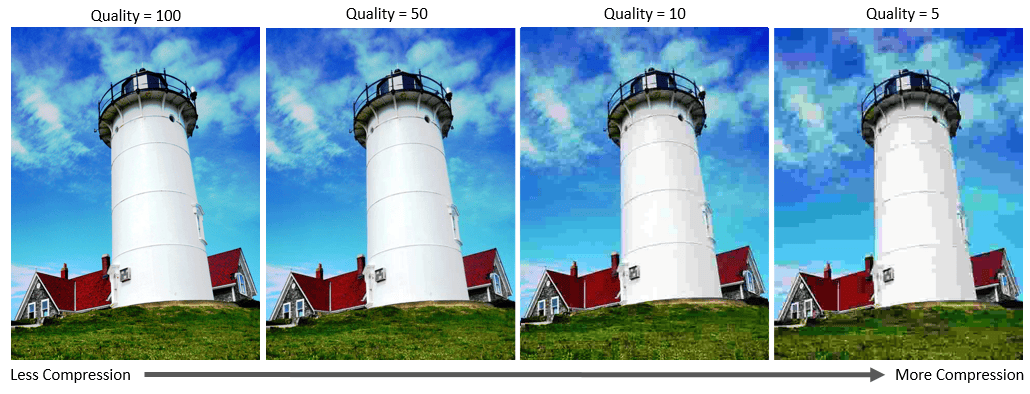

The DnCNN Network

This example uses a built-in deep feed-forward convolutional neural network, called DnCNN. The network was primarily designed to remove noise from images. However, the DnCNN architecture can also be trained to remove JPEG compression artifacts or increase image resolution.

The reference paper [1] employs a residual learning strategy, meaning that the DnCNN network learns to estimate the residual image. A residual image is the difference between a pristine image and a distorted copy of the image. The residual image contains information about the image distortion. For this example, distortion appears as JPEG blocking artifacts.

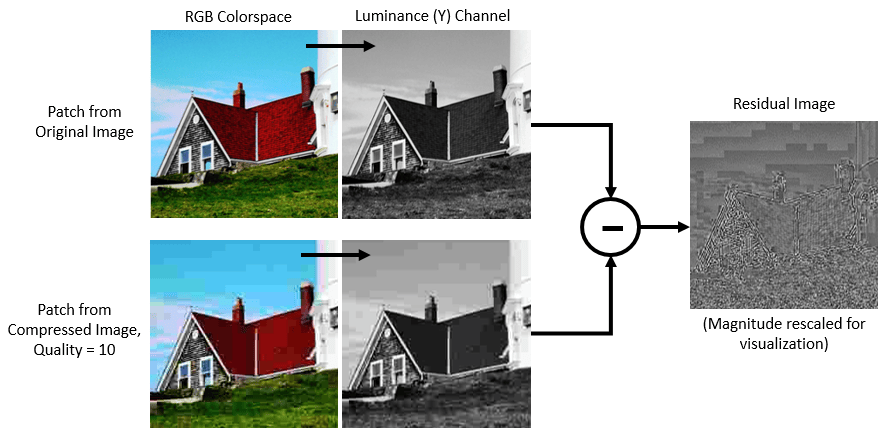

The DnCNN network is trained to detect the residual image from the luminance of a color image. The luminance channel of an image, Y, represents the brightness of each pixel through a linear combination of the red, green, and blue pixel values. In contrast, the two chrominance channels of an image, Cb and Cr, are different linear combinations of the red, green, and blue pixel values that represent color-difference information. DnCNN is trained using only the luminance channel because human perception is more sensitive to changes in brightness than changes in color.

If ${\mathit{Y}}_{\mathrm{Original}}$ is the luminance of the pristine image and ${\mathit{Y}}_{\mathrm{Compressed}}$is the luminance of the image containing JPEG compression artifacts, then the input to the DnCNN network is ${\mathit{Y}}_{\mathrm{Compressed}}$ and the network learns to predict ${\mathit{Y}}_{\mathrm{Residual}}={\mathit{Y}}_{\mathrm{Compressed}}-{\mathit{Y}}_{\mathrm{Original}}$ from the training data.

Once the DnCNN network learns how to estimate a residual image, it can reconstruct an undistorted version of a compressed JPEG image by adding the residual image to the compressed luminance channel, then converting the image back to the RGB color space.

Download Training Data

Download the IAPR TC-12 Benchmark, which consists of 20,000 still natural images [2]. The data set includes photos of people, animals, cities, and more. The size of the data file is ~1.8 GB. If you do not want to download the training data or train the network, then you can load the pretrained DnCNN network by typing load("trainedJPEGDnCNN.mat") at the command line. Then, go directly to the Perform JPEG Deblocking Using DnCNN Network section in this example.

Use the helper function, downloadIAPRTC12Data, to download the data. This function is attached to the example as a supporting file. Specify dataDir as the desired location of the data.

dataDir = tempdir;
downloadIAPRTC12Data(dataDir);

This example will train the network with a small subset of the IAPR TC-12 Benchmark data. Load the imageCLEF training data. All images are 32-bit JPEG color images.

trainImagesDir = fullfile(dataDir,"iaprtc12","images","00");
exts = [".jpg",".bmp",".png"];
imdsPristine = imageDatastore(trainImagesDir,FileExtensions=exts);

List the number of training images.

numel(imdsPristine.Files)

ans = 251

Prepare Training Data

To create a training data set, read in pristine images and write out images in the JPEG file format with various levels of compression.

Specify the JPEG image quality values used to render image compression artifacts. Quality values must be in the range [0, 100]. Small quality values result in more compression and stronger compression artifacts. Use a denser sampling of small quality values so the training data has a broad range of compression artifacts.

JPEGQuality = [5:5:40 50 60 70 80];

The compressed images are stored on disk as MAT files in the directory compressedImagesDir. The computed residual images are stored on disk as MAT files in the directory residualImagesDir. The MAT files are stored as data type double for greater precision when training the network.

compressedImagesDir = fullfile(dataDir,"iaprtc12","JPEGDeblockingData","compressedImages");
residualImagesDir = fullfile(dataDir,"iaprtc12","JPEGDeblockingData","residualImages");

Use the helper function createJPEGDeblockingTrainingSet to preprocess the training data. This function is attached to the example as a supporting file.

For each pristine training image, the helper function writes a copy of the image with quality factor 100 to use as a reference image and copies of the image with each quality factor to use as the network inputs. The function computes the luminance (Y) channel of the reference and compressed images in data type double for greater precision when calculating the residual images. The compressed images are stored on disk as .MAT files in the directory compressedDirName. The computed residual images are stored on disk as .MAT files in the directory residualDirName.

[compressedDirName,residualDirName] = createJPEGDeblockingTrainingSet(imdsPristine,JPEGQuality);

Create Random Patch Extraction Datastore for Training

Use a random patch extraction datastore to feed the training data to the network. This datastore extracts random corresponding patches from two image datastores that contain the network inputs and desired network responses.

In this example, the network inputs are the compressed images. The desired network responses are the residual images. Create an image datastore called imdsCompressed from the collection of compressed image files. Create an image datastore called imdsResidual from the collection of computed residual image files. Both datastores require a helper function, matRead, to read the image data from the image files. This function is attached to the example as a supporting file.

imdsCompressed = imageDatastore(compressedDirName,FileExtensions=".mat",ReadFcn=@matRead);
imdsResidual = imageDatastore(residualDirName,FileExtensions=".mat",ReadFcn=@matRead);

Create an imageDataAugmenter (Deep Learning Toolbox) that specifies the parameters of data augmentation. Use data augmentation during training to vary the training data, which effectively increases the amount of available training data. Here, the augmenter specifies random rotation by 90 degrees and random reflections in the x-direction.

augmenter = imageDataAugmenter( ...
    RandRotation=@()randi([0,1],1)*90, ...
    RandXReflection=true);

Create the randomPatchExtractionDatastore from the two image datastores. Specify a patch size of 50-by-50 pixels. Each image generates 128 random patches of size 50-by-50 pixels. Specify a mini-batch size of 128.

patchSize = 50;
patchesPerImage = 128;
dsTrain = randomPatchExtractionDatastore(imdsCompressed,imdsResidual,patchSize, ...
    PatchesPerImage=patchesPerImage, ...
    DataAugmentation=augmenter);
dsTrain.MiniBatchSize = patchesPerImage;

The random patch extraction datastore dsTrain provides mini-batches of data to the network at iteration of the epoch. Preview the result of reading from the datastore.

inputBatch = preview(dsTrain);
disp(inputBatch)

      InputImage      ResponseImage
    ______________    ______________

    {50×50 double}    {50×50 double}
    {50×50 double}    {50×50 double}
    {50×50 double}    {50×50 double}
    {50×50 double}    {50×50 double}
    {50×50 double}    {50×50 double}
    {50×50 double}    {50×50 double}
    {50×50 double}    {50×50 double}
    {50×50 double}    {50×50 double}

Set up DnCNN Layers

Create the layers of the built-in DnCNN network by using the dnCNNLayers function. By default, the network depth (the number of convolution layers) is 20.

layers = dnCNNLayers

layers =
  1×58 Layer array with layers:

     1   'InputLayer'   Image Input           50×50×1 images
     2   'Conv1'        2-D Convolution       64 3×3×1 convolutions with stride [1  1] and padding [1  1  1  1]
     3   'ReLU1'        ReLU                  ReLU
     4   'Conv2'        2-D Convolution       64 3×3×64 convolutions with stride [1  1] and padding [1  1  1  1]
     5   'BNorm2'       Batch Normalization   Batch normalization with 64 channels
     6   'ReLU2'        ReLU                  ReLU
     7   'Conv3'        2-D Convolution       64 3×3×64 convolutions with stride [1  1] and padding [1  1  1  1]
     8   'BNorm3'       Batch Normalization   Batch normalization with 64 channels
     9   'ReLU3'        ReLU                  ReLU
    10   'Conv4'        2-D Convolution       64 3×3×64 convolutions with stride [1  1] and padding [1  1  1  1]
    11   'BNorm4'       Batch Normalization   Batch normalization with 64 channels
    12   'ReLU4'        ReLU                  ReLU
    13   'Conv5'        2-D Convolution       64 3×3×64 convolutions with stride [1  1] and padding [1  1  1  1]
    14   'BNorm5'       Batch Normalization   Batch normalization with 64 channels
    15   'ReLU5'        ReLU                  ReLU
    16   'Conv6'        2-D Convolution       64 3×3×64 convolutions with stride [1  1] and padding [1  1  1  1]
    17   'BNorm6'       Batch Normalization   Batch normalization with 64 channels
    18   'ReLU6'        ReLU                  ReLU
    19   'Conv7'        2-D Convolution       64 3×3×64 convolutions with stride [1  1] and padding [1  1  1  1]
    20   'BNorm7'       Batch Normalization   Batch normalization with 64 channels
    21   'ReLU7'        ReLU                  ReLU
    22   'Conv8'        2-D Convolution       64 3×3×64 convolutions with stride [1  1] and padding [1  1  1  1]
    23   'BNorm8'       Batch Normalization   Batch normalization with 64 channels
    24   'ReLU8'        ReLU                  ReLU
    25   'Conv9'        2-D Convolution       64 3×3×64 convolutions with stride [1  1] and padding [1  1  1  1]
    26   'BNorm9'       Batch Normalization   Batch normalization with 64 channels
    27   'ReLU9'        ReLU                  ReLU
    28   'Conv10'       2-D Convolution       64 3×3×64 convolutions with stride [1  1] and padding [1  1  1  1]
    29   'BNorm10'      Batch Normalization   Batch normalization with 64 channels
    30   'ReLU10'       ReLU                  ReLU
    31   'Conv11'       2-D Convolution       64 3×3×64 convolutions with stride [1  1] and padding [1  1  1  1]
    32   'BNorm11'      Batch Normalization   Batch normalization with 64 channels
    33   'ReLU11'       ReLU                  ReLU
    34   'Conv12'       2-D Convolution       64 3×3×64 convolutions with stride [1  1] and padding [1  1  1  1]
    35   'BNorm12'      Batch Normalization   Batch normalization with 64 channels
    36   'ReLU12'       ReLU                  ReLU
    37   'Conv13'       2-D Convolution       64 3×3×64 convolutions with stride [1  1] and padding [1  1  1  1]
    38   'BNorm13'      Batch Normalization   Batch normalization with 64 channels
    39   'ReLU13'       ReLU                  ReLU
    40   'Conv14'       2-D Convolution       64 3×3×64 convolutions with stride [1  1] and padding [1  1  1  1]
    41   'BNorm14'      Batch Normalization   Batch normalization with 64 channels
    42   'ReLU14'       ReLU                  ReLU
    43   'Conv15'       2-D Convolution       64 3×3×64 convolutions with stride [1  1] and padding [1  1  1  1]
    44   'BNorm15'      Batch Normalization   Batch normalization with 64 channels
    45   'ReLU15'       ReLU                  ReLU
    46   'Conv16'       2-D Convolution       64 3×3×64 convolutions with stride [1  1] and padding [1  1  1  1]
    47   'BNorm16'      Batch Normalization   Batch normalization with 64 channels
    48   'ReLU16'       ReLU                  ReLU
    49   'Conv17'       2-D Convolution       64 3×3×64 convolutions with stride [1  1] and padding [1  1  1  1]
    50   'BNorm17'      Batch Normalization   Batch normalization with 64 channels
    51   'ReLU17'       ReLU                  ReLU
    52   'Conv18'       2-D Convolution       64 3×3×64 convolutions with stride [1  1] and padding [1  1  1  1]
    53   'BNorm18'      Batch Normalization   Batch normalization with 64 channels
    54   'ReLU18'       ReLU                  ReLU
    55   'Conv19'       2-D Convolution       64 3×3×64 convolutions with stride [1  1] and padding [1  1  1  1]
    56   'BNorm19'      Batch Normalization   Batch normalization with 64 channels
    57   'ReLU19'       ReLU                  ReLU
    58   'Conv20'       2-D Convolution       1 3×3×64 convolutions with stride [1  1] and padding [1  1  1  1]

Create a dlnetwork object from the DnCNN layers. Use an example input to initialize the dlnetwork object.

net = dlnetwork(layers);
exampleInput = preview(dsTrain);
exampleInput = dlarray(exampleInput.InputImage{1},"SSCB");
net = initialize(net,exampleInput);

Select Training Options

Train the network using stochastic gradient descent with momentum (SGDM) optimization. Specify the hyperparameter settings for SGDM by using the trainingOptions (Deep Learning Toolbox) function.

Training a deep network is time-consuming. Accelerate the training by specifying a high learning rate. However, this can cause the gradients of the network to explode or grow uncontrollably, preventing the network from training successfully. To keep the gradients in a meaningful range, enable gradient clipping by setting GradientThreshold to 0.005, and specify GradientThresholdMethod to use the absolute value of the gradients.

maxEpochs = 30;
initLearningRate = 0.1;
l2reg = 0.0001;
batchSize = 64;

options = trainingOptions("sgdm", ...
    Momentum=0.9, ...
    InitialLearnRate=initLearningRate, ...
    LearnRateSchedule="piecewise", ...
    GradientThresholdMethod="absolute-value", ...
    GradientThreshold=0.005, ...
    L2Regularization=l2reg, ...
    MiniBatchSize=batchSize, ...
    MaxEpochs=maxEpochs, ...
    Plots="training-progress", ...
    Verbose=false);

Train the Network

By default, the example loads a pretrained version of the low-light recovery network. The pretrained network enables you to run the entire example without waiting for training to complete.

To train the network, set the doTraining variable in the following code to true. Train the model using the trainnet (Deep Learning Toolbox) function. For regression, use mean squared error loss. By default, the trainnet function uses a GPU if one is available. Training on a GPU requires a Parallel Computing Toolbox™ license and a supported GPU device. For information on supported devices, see GPU Computing Requirements (Parallel Computing Toolbox). Otherwise, the trainnet function uses the CPU. To specify the execution environment, use the ExecutionEnvironment training option. Training takes about 40 hours on an NVIDIA™ Titan X GPU.

doTraining = false;
if doTraining
    [net,info] = trainnet(dsTrain,net,"mean-squared-error",options);
    modelDateTime = string(datetime("now",Format="yyyy-MM-dd-HH-mm-ss"));
    save("trainedJPEGDnCNN_v2-"+modelDateTime+".mat","net");
else
    load("trainedJPEGDnCNN_v2.mat");
end

You can now use the DnCNN network to remove JPEG compression artifacts from images.

Perform JPEG Deblocking Using DnCNN Network

To perform JPEG deblocking using DnCNN, follow the remaining steps of this example:

Create Sample Images with Blocking Artifacts

The test data set, testImages, contains 20 undistorted images shipped in Image Processing Toolbox™. Load the images into an imageDatastore.

fileNames = ["sherlock.jpg","peacock.jpg","fabric.png","greens.jpg", ...
    "hands1.jpg","kobi.png","lighthouse.png","office_4.jpg", ...
    "onion.png","pears.png","yellowlily.jpg","indiancorn.jpg", ...
    "flamingos.jpg","sevilla.jpg","llama.jpg","parkavenue.jpg", ...
    "strawberries.jpg","trailer.jpg","wagon.jpg","football.jpg"];
filePath = fullfile(matlabroot,"toolbox","images","imdata")+filesep;
filePathNames = strcat(filePath,fileNames);
testImages = imageDatastore(filePathNames);

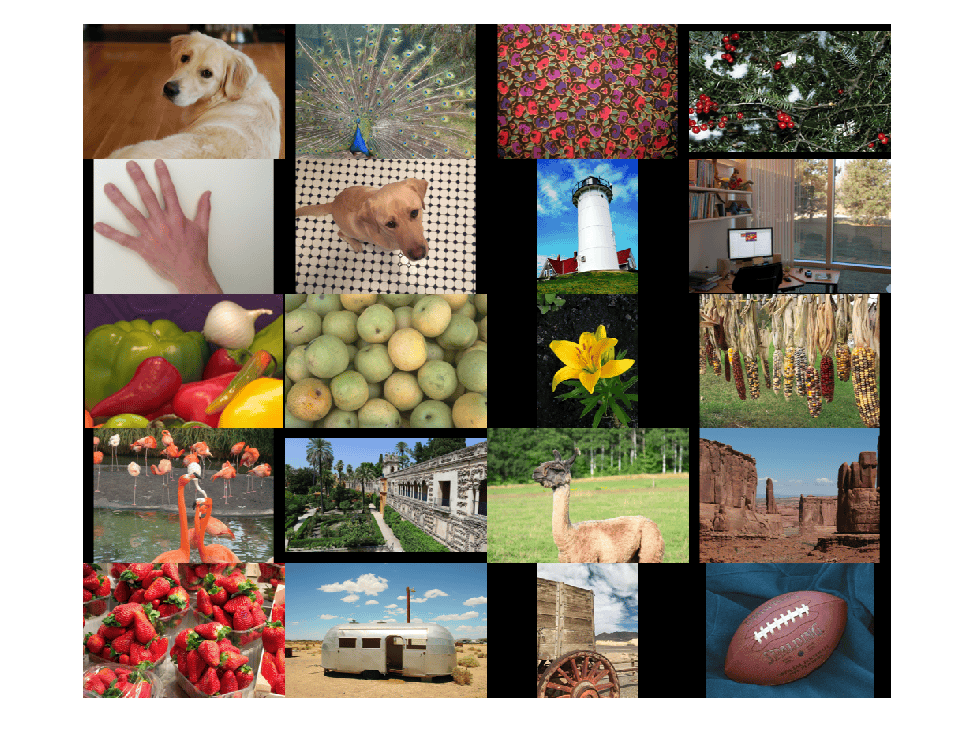

Display the test images as a montage.

montage(testImages)

Select one of the test images to use for testing the JPEG deblocking network.

testImage = "lighthouse.png";
Ireference = imread(testImage);

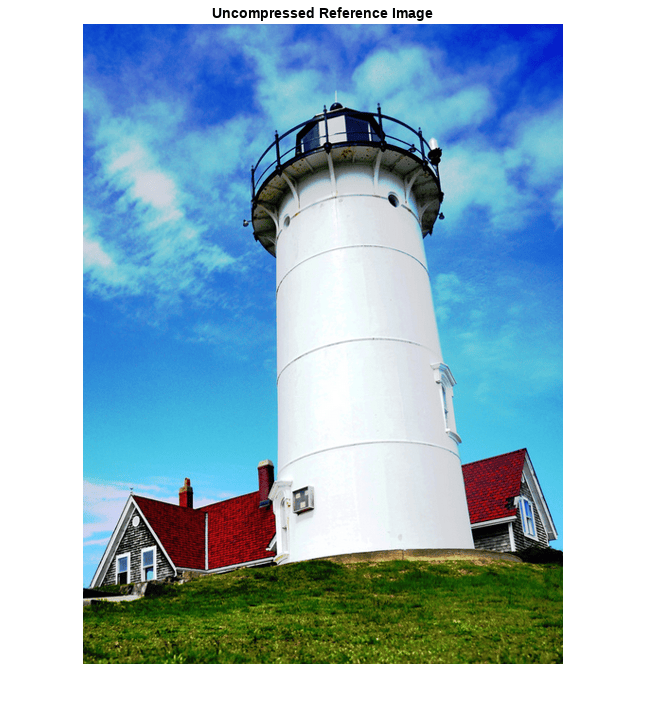

imshow(Ireference)
title("Uncompressed Reference Image")

Create three compressed test images with the JPEG Quality values of 10, 20, and 50.

imwrite(Ireference,fullfile(tempdir,"testQuality10.jpg"),"Quality",10);
imwrite(Ireference,fullfile(tempdir,"testQuality20.jpg"),"Quality",20);
imwrite(Ireference,fullfile(tempdir,"testQuality50.jpg"),"Quality",50);

Preprocess Compressed Images

Read the compressed versions of the image into the workspace.

I10 = imread(fullfile(tempdir,"testQuality10.jpg"));
I20 = imread(fullfile(tempdir,"testQuality20.jpg"));
I50 = imread(fullfile(tempdir,"testQuality50.jpg"));

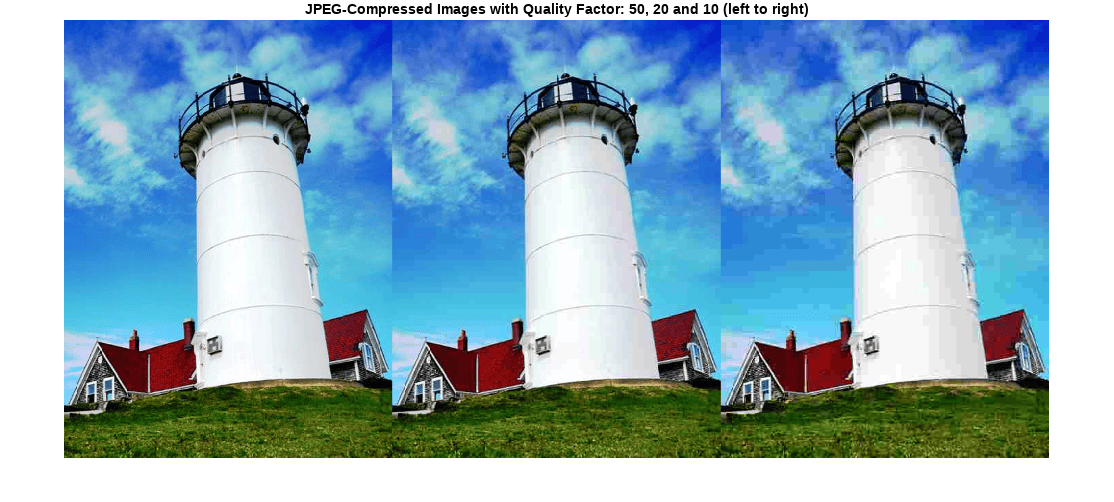

Display the compressed images as a montage.

montage({I50,I20,I10},Size=[1 3])
title("JPEG-Compressed Images with Quality Factor: 50, 20 and 10 (left to right)")

Recall that DnCNN is trained using only the luminance channel of an image because human perception is more sensitive to changes in brightness than changes in color. Convert the JPEG-compressed images from the RGB color space to the YCbCr color space using the rgb2ycbcr function.

I10ycbcr = rgb2ycbcr(I10);
I20ycbcr = rgb2ycbcr(I20);
I50ycbcr = rgb2ycbcr(I50);

Apply the DnCNN Network

In order to perform the forward pass of the network, use the denoiseImage function. This function uses exactly the same training and testing procedures for denoising an image. You can think of the JPEG compression artifacts as a type of image noise.

I10y_predicted = denoiseImage(I10ycbcr(:,:,1),net);
I20y_predicted = denoiseImage(I20ycbcr(:,:,1),net);
I50y_predicted = denoiseImage(I50ycbcr(:,:,1),net);

The chrominance channels do not need processing. Concatenate the deblocked luminance channel with the original chrominance channels to obtain the deblocked image in the YCbCr color space.

I10ycbcr_predicted = cat(3,I10y_predicted,I10ycbcr(:,:,2:3));
I20ycbcr_predicted = cat(3,I20y_predicted,I20ycbcr(:,:,2:3));
I50ycbcr_predicted = cat(3,I50y_predicted,I50ycbcr(:,:,2:3));

Convert the deblocked YCbCr image to the RGB color space by using the ycbcr2rgb function.

I10_predicted = ycbcr2rgb(I10ycbcr_predicted);
I20_predicted = ycbcr2rgb(I20ycbcr_predicted);
I50_predicted = ycbcr2rgb(I50ycbcr_predicted);

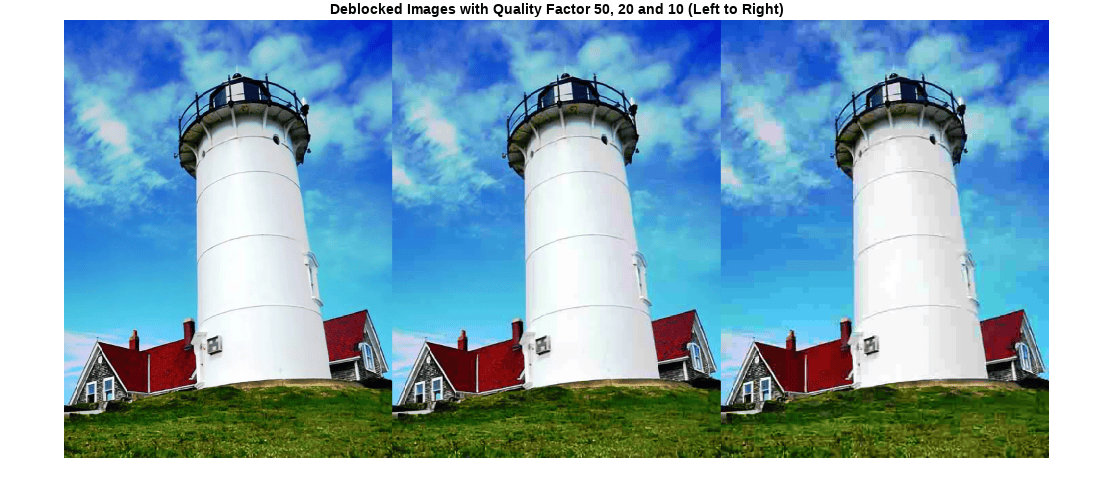

Display the deblocked images as a montage.

montage({I50_predicted,I20_predicted,I10_predicted},Size=[1 3])
title("Deblocked Images with Quality Factor 50, 20 and 10 (Left to Right)")

To get a better visual understanding of the improvements, examine a smaller region inside each image. Specify a region of interest (ROI) using vector roi in the format [x y width height]. The elements define the x- and y-coordinate of the top left corner, and the width and height of the ROI.

roi = [30 440 100 80];

Crop the compressed images to this ROI, and display the result as a montage.

i10 = imcrop(I10,roi);
i20 = imcrop(I20,roi);
i50 = imcrop(I50,roi);
montage({i50 i20 i10},Size=[1 3])
title("Patches from JPEG-Compressed Images with Quality Factor 50, 20 and 10 (Left to Right)")

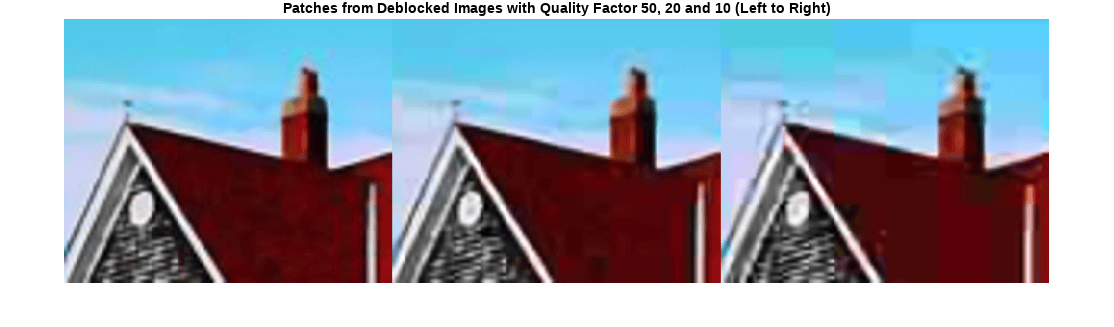

Crop the deblocked images to this ROI, and display the result as a montage.

i10predicted = imcrop(I10_predicted,roi);
i20predicted = imcrop(I20_predicted,roi);
i50predicted = imcrop(I50_predicted,roi);
montage({i50predicted,i20predicted,i10predicted},Size=[1 3])
title("Patches from Deblocked Images with Quality Factor 50, 20 and 10 (Left to Right)")

Quantitative Comparison

Quantify the quality of the deblocked images through four metrics. You can use the jpegDeblockingMetrics helper function to compute these metrics for compressed and deblocked images at the quality factors 10, 20, and 50. This function is attached to the example as a supporting file.

jpegDeblockingMetrics(Ireference,I10,I20,I50,I10_predicted,I20_predicted,I50_predicted)

------------------------------------------
SSIM Comparison
===============
I10: 0.90624    I10_predicted: 0.91549
I20: 0.94904    I20_predicted: 0.95622
I50: 0.97238    I50_predicted: 0.97515
------------------------------------------
PSNR Comparison
===============
I10: 26.6046    I10_predicted: 27.2558
I20: 28.8015    I20_predicted: 29.5105
I50: 31.4512    I50_predicted: 31.9039
------------------------------------------
NIQE Comparison
===============
I10: 7.2194    I10_predicted: 3.873
I20: 4.5158    I20_predicted: 3.2203
I50: 2.8874    I50_predicted: 2.7533
NOTE: Smaller NIQE score signifies better perceptual quality
------------------------------------------
BRISQUE Comparison
==================
I10: 52.372    I10_predicted: 36.2841
I20: 45.3772    I20_predicted: 30.2512
I50: 27.7093    I50_predicted: 23.8529
NOTE: Smaller BRISQUE score signifies better perceptual quality

References

[1] Zhang, K., W. Zuo, Y. Chen, D. Meng, and L. Zhang, "Beyond a Gaussian Denoiser: Residual Learning of Deep CNN for Image Denoising." IEEE® Transactions on Image Processing. Feb 2017.

[2] Grubinger, M., P. Clough, H. Müller, and T. Deselaers. "The IAPR TC-12 Benchmark: A New Evaluation Resource for Visual Information Systems." Proceedings of the OntoImage 2006 Language Resources For Content-Based Image Retrieval. Genoa, Italy. Vol. 5, May 2006, p. 10.
