Generate Reusable Code for Subsystems
HDL Coder™ can generate reusable HDL modules or entities from atomic subsystems—and some virtual subsystems—that are identical or identical except for their mask parameter values. The reusable HDL code is generated as a single file and instantiated multiple times.
Requirements for Generating Reusable Code for Atomic Subsystems
HDL Coder generates reusable HDL modules or entities from atomic subsystems if:
The
DefaultParameterBehavior
model configuration parameter isInlined
. You can set this parameter at the command line by using theset_param
orhdlsetup
function. To specify this setting in the Configuration Parameters dialog box, you must have Simulink® Coder™.Note
Using
hdlsetup
setsInlineParams
property toon
. Enabling this parameter is the same as settingDefaultParameterBehavior
toInlined
. SettingInlineParams
tooff
changesDefaultParameterBehavior
value toTunable
.You do not use signal logging functionalities, such as To Workspace blocks or To File blocks.
The atomic subsystems are identical, or identical except for their mask parameter values.
If the reusable subsystems have mask parameters with different values, the
MaskParameterAsGeneric
configuration parameter must beon
for the relevant subsystems or for the model. This parameter has no effect on virtual subsystems. For more information, see Generate parameterized HDL code from masked subsystem.Tunable parameters must be used only in Constant, Gain, or Compare To Constant blocks.
Mask parameters must be scalar.
Mask parameter data types must be
integer
orfixed-point
with a word length of less than or equal to32
.Port and parameter data types must match.
If you change the value of a tunable mask parameter, the output port data type must not change. If one of the atomic subsystems has a different port data type, the code generated for that subsystem also differs.
Requirements for Generating Reusable Code for Virtual Subsystems
HDL Coder generates reusable HDL modules or entities from virtual subsystems if:
The
DefaultParameterBehavior
configuration parameter isInlined
. You can set this parameter at the command line by using theset_param
orhdlsetup
function. To specify this setting in the Configuration Parameters dialog box, you must have Simulink Coder.Note
Using
hdlsetup
setsInlineParams
property toon
. Enabling this parameter is the same as settingDefaultParameterBehavior
toInlined
. SettingInlineParams
tooff
changesDefaultParameterBehavior
value toTunable
.You do not use signal logging functionalities, such as To Workspace blocks or To File blocks.
The
SubsystemReuse
configuration parameter is set toAtomic and Virtual
.Setting
SubsystemReuse
toAtomic and Virtual
reduces artificial algebraic loop errors and improves the recognition of identical subsystems, irrespective of their topology within the rest of the design. Identification of identical subsystems helps resource sharing.To set these values, in the MATLAB Command Window, enter:
hdlset_param('myHDLModel', 'SubsystemReuse', 'Atomic and Virtual')
Alternatively, you can set this option from the top-level HDL Code Generation pane in the Configuration Parameters dialog box. Under Global Settings > Coding style, change the Code reuse parameter to the required option.
The previous commands set the
SubsystemReuse
option for your model. To set this option for only the current code generation session, enter:makehdl(<DUT system>, 'SubsystemReuse', 'Atomic and Virtual')
The virtual subsystems are identical.
Tunable parameters must be used only in Constant, Gain, or Compare To Constant blocks.
Port and parameter data types must match.
Parameter values must be identical between the subsystems.
Generate Reusable Code for Subsystems
This example shows HDL code generation of a model that has identical subsystems. If your design contains identical subsystems, HDL Coder generates one HDL module or entity for the subsystem and instantiates it multiple times.
Open Model

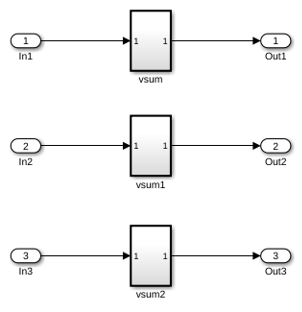

Open the hdlcoder_reusable_code_identical_subsystem
model to see an example of a DUT subsystem containing three identical subsystems.
load_system('hdlcoder_reusable_code_identical_subsystem'); open_system('hdlcoder_reusable_code_identical_subsystem/DUT');
Generate HDL Code
You can generate the HDL code for the model by using makehdl
function. To generate HDL code for DUT
subsystem, run this command:
makehdl('hdlcoder_reusable_code_identical_subsystem/DUT')
### Working on the model <a href="matlab:open_system('hdlcoder_reusable_code_identical_subsystem')">hdlcoder_reusable_code_identical_subsystem</a> ### Generating HDL for <a href="matlab:open_system('hdlcoder_reusable_code_identical_subsystem/DUT')">hdlcoder_reusable_code_identical_subsystem/DUT</a> ### Using the config set for model <a href="matlab:configset.showParameterGroup('hdlcoder_reusable_code_identical_subsystem', { 'HDL Code Generation' } )">hdlcoder_reusable_code_identical_subsystem</a> for HDL code generation parameters. ### Running HDL checks on the model 'hdlcoder_reusable_code_identical_subsystem'. ### Begin compilation of the model 'hdlcoder_reusable_code_identical_subsystem'... ### Working on the model 'hdlcoder_reusable_code_identical_subsystem'... ### Working on... <a href="matlab:configset.internal.open('hdlcoder_reusable_code_identical_subsystem', 'GenerateModel')">GenerateModel</a> ### Begin model generation 'gm_hdlcoder_reusable_code_identical_subsystem'... ### Rendering DUT with optimization related changes (IO, Area, Pipelining)... ### Model generation complete. ### Generated model saved at <a href="matlab:open_system('hdl_prj/hdlsrc/hdlcoder_reusable_code_identical_subsystem/gm_hdlcoder_reusable_code_identical_subsystem.slx')">hdl_prj/hdlsrc/hdlcoder_reusable_code_identical_subsystem/gm_hdlcoder_reusable_code_identical_subsystem.slx</a> ### Generating new validation model: '<a href="matlab:open_system('hdl_prj/hdlsrc/hdlcoder_reusable_code_identical_subsystem/gm_hdlcoder_reusable_code_identical_subsystem_vnl')">gm_hdlcoder_reusable_code_identical_subsystem_vnl</a>'. ### Validation model generation complete. ### Begin VHDL Code Generation for 'hdlcoder_reusable_code_identical_subsystem'. ### Working on hdlcoder_reusable_code_identical_subsystem/DUT/vsum as hdl_prj/hdlsrc/hdlcoder_reusable_code_identical_subsystem/vsum.vhd. ### Working on hdlcoder_reusable_code_identical_subsystem/DUT as hdl_prj/hdlsrc/hdlcoder_reusable_code_identical_subsystem/DUT.vhd. ### Generating package file hdl_prj/hdlsrc/hdlcoder_reusable_code_identical_subsystem/DUT_pkg.vhd. ### Code Generation for 'hdlcoder_reusable_code_identical_subsystem' completed. ### Generating HTML files for code generation report at <a href="matlab:hdlcoder.report.openDdg('/tmp/Bdoc24b_2679053_1564166/tpbd3b45b8/hdlcoder-ex21822210/hdl_prj/hdlsrc/hdlcoder_reusable_code_identical_subsystem/html/hdlcoder_reusable_code_identical_subsystem_codegen_rpt.html')">hdlcoder_reusable_code_identical_subsystem_codegen_rpt.html</a> ### Creating HDL Code Generation Check Report file:///tmp/Bdoc24b_2679053_1564166/tpbd3b45b8/hdlcoder-ex21822210/hdl_prj/hdlsrc/hdlcoder_reusable_code_identical_subsystem/DUT_report.html ### HDL check for 'hdlcoder_reusable_code_identical_subsystem' complete with 0 errors, 0 warnings, and 2 messages. ### HDL code generation complete.
HDL Coder generates a single VHDL® file, vsum.vhd
, for the three subsystems. The generated code for the DUT subsystem, DUT.vhd
, contains three instantiations of the vsum
component.
ARCHITECTURE rtl OF DUT IS
-- Component Declarations COMPONENT vsum PORT( In1 : IN vector_of_std_logic_vector16(0 TO 9); -- int16 [10] Out1 : OUT std_logic_vector(19 DOWNTO 0) -- sfix20 ); END COMPONENT;
-- Component Configuration Statements FOR ALL : vsum USE ENTITY work.vsum(rtl);
-- Signals SIGNAL vsum_out1 : std_logic_vector(19 DOWNTO 0); -- ufix20 SIGNAL vsum1_out1 : std_logic_vector(19 DOWNTO 0); -- ufix20 SIGNAL vsum2_out1 : std_logic_vector(19 DOWNTO 0); -- ufix20
BEGIN
u_vsum : vsum
PORT MAP( In1 => In1, -- int16 [10]
Out1 => vsum_out1 -- sfix20
);
u_vsum1 : vsum
PORT MAP( In1 => In2, -- int16 [10]
Out1 => vsum1_out1 -- sfix20
);
u_vsum2 : vsum
PORT MAP( In1 => In3, -- int16 [10]
Out1 => vsum2_out1 -- sfix20
);
Out1 <= vsum_out1;
Out2 <= vsum1_out1;
Out3 <= vsum2_out1;
END rtl;
Generate Reusable Code for Atomic Subsystems with Tunable Mask Parameters
Using this example, you can generate HDL code for your design containing atomic subsystems that are identical except for their tunable mask parameter values. You can generate one HDL module or entity for the subsystem. In the generated code, the module or entity is instantiated multiple times.
Open Model

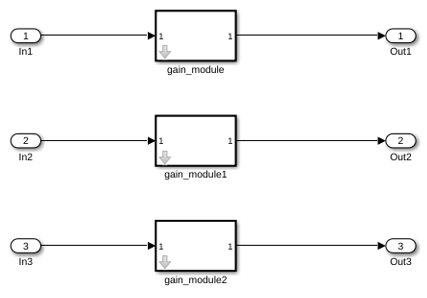

The hdlcoder_reusable_code_parameterized_subsystem
model shows an example of a DUT subsystem containing atomic subsystems that are identical except for their tunable mask parameter values.
load_system('hdlcoder_reusable_code_parameterized_subsystem'); open_system('hdlcoder_reusable_code_parameterized_subsystem/DUT');
In hdlcoder_reusable_code_parameterized_subsystem/DUT
, the gain modules are subsystems with gain values represented by tunable mask parameters. Gain values are: 4
for gain_module
, 5
for gain_module1
, and 7
for gain_module2
.
Generate HDL Code
To generate reusable code for identical atomic subsystems, enable MaskParameterAsGeneric
for the model. By default, MaskParameterAsGeneric
is disabled.
To enable the generation of reusable code for the atomic subsystems with tunable parameters, set MaskParameterAsGeneric
option to on
for a model by using hdlset_param
function.
hdlset_param('hdlcoder_reusable_code_parameterized_subsystem','MaskParameterAsGeneric','on');
Alternatively, in the Configuration Parameters dialog box, in the HDL Code Generation > Global Settings > Coding Style tab, enable the Generate parameterized HDL code from masked subsystem parameter.
You can also enable MaskParameterAsGeneric
by using makehdl
function and generate HDL code for a DUT subsystem.
makehdl('hdlcoder_reusable_code_parameterized_subsystem/DUT','MaskParameterAsGeneric','on',... 'TargetLanguage','Verilog')
### Working on the model <a href="matlab:open_system('hdlcoder_reusable_code_parameterized_subsystem')">hdlcoder_reusable_code_parameterized_subsystem</a> ### Generating HDL for <a href="matlab:open_system('hdlcoder_reusable_code_parameterized_subsystem/DUT')">hdlcoder_reusable_code_parameterized_subsystem/DUT</a> ### Using the config set for model <a href="matlab:configset.showParameterGroup('hdlcoder_reusable_code_parameterized_subsystem', { 'HDL Code Generation' } )">hdlcoder_reusable_code_parameterized_subsystem</a> for HDL code generation parameters. ### Running HDL checks on the model 'hdlcoder_reusable_code_parameterized_subsystem'. ### Begin compilation of the model 'hdlcoder_reusable_code_parameterized_subsystem'... ### Working on the model 'hdlcoder_reusable_code_parameterized_subsystem'... ### Working on... <a href="matlab:configset.internal.open('hdlcoder_reusable_code_parameterized_subsystem', 'GenerateModel')">GenerateModel</a> ### Begin model generation 'gm_hdlcoder_reusable_code_parameterized_subsystem'... ### Copying DUT to the generated model.... ### Model generation complete. ### Generated model saved at <a href="matlab:open_system('hdlsrc/hdlcoder_reusable_code_parameterized_subsystem/gm_hdlcoder_reusable_code_parameterized_subsystem.slx')">hdlsrc/hdlcoder_reusable_code_parameterized_subsystem/gm_hdlcoder_reusable_code_parameterized_subsystem.slx</a> ### Begin Verilog Code Generation for 'hdlcoder_reusable_code_parameterized_subsystem'. ### Working on hdlcoder_reusable_code_parameterized_subsystem/DUT/gain_module as hdlsrc/hdlcoder_reusable_code_parameterized_subsystem/gain_module.v. ### Working on hdlcoder_reusable_code_parameterized_subsystem/DUT as hdlsrc/hdlcoder_reusable_code_parameterized_subsystem/DUT.v. ### Code Generation for 'hdlcoder_reusable_code_parameterized_subsystem' completed. ### Generating HTML files for code generation report at <a href="matlab:hdlcoder.report.openDdg('/tmp/Bdoc24b_2679053_1563133/tp30ea4710/hdlcoder-ex53380017/hdlsrc/hdlcoder_reusable_code_parameterized_subsystem/html/hdlcoder_reusable_code_parameterized_subsystem_codegen_rpt.html')">hdlcoder_reusable_code_parameterized_subsystem_codegen_rpt.html</a> ### Creating HDL Code Generation Check Report file:///tmp/Bdoc24b_2679053_1563133/tp30ea4710/hdlcoder-ex53380017/hdlsrc/hdlcoder_reusable_code_parameterized_subsystem/DUT_report.html ### HDL check for 'hdlcoder_reusable_code_parameterized_subsystem' complete with 0 errors, 0 warnings, and 0 messages. ### HDL code generation complete.
With MaskParameterAsGeneric
enabled, HDL Coder generates a single source file, gain_module.v
, for the three gain module subsystems. The generated code for the DUT subsystem, DUT.v
, contains three instantiations of the gain_module
component.
module DUT
(
In1,
In2,
In3,
Out1,
Out2,
Out3
);
input [7:0] In1; // uint8 input [7:0] In2; // uint8 input [7:0] In3; // uint8 output [31:0] Out1; // uint32 output [31:0] Out2; // uint32 output [31:0] Out3; // uint32
wire [31:0] gain_module_out1; // uint32 wire [31:0] gain_module1_out1; // uint32 wire [31:0] gain_module2_out1; // uint32
gain_module # (.myGain(4) ) u_gain_module (.In1(In1), // uint8 .Out1(gain_module_out1) // uint32 );
assign Out1 = gain_module_out1;
gain_module # (.myGain(5) ) u_gain_module1 (.In1(In2), // uint8 .Out1(gain_module1_out1) // uint32 );
assign Out2 = gain_module1_out1;
gain_module # (.myGain(7) ) u_gain_module2 (.In1(In3), // uint8 .Out1(gain_module2_out1) // uint32 );
assign Out3 = gain_module2_out1;
endmodule // DUT
In gain_module.v
, the myGain
Verilog® parameter is generated for the tunable mask parameter.
module gain_module
(
In1,
Out1
);
input [7:0] In1; // uint8 output [31:0] Out1; // uint32
parameter [31:0] myGain = 4; // ufix32
wire [31:0] kconst; // ufix32 wire [39:0] Gain_mul_temp; // ufix40 wire [31:0] Gain_out1; // uint32
assign kconst = myGain;
assign Gain_mul_temp = kconst * In1; assign Gain_out1 = Gain_mul_temp[31:0];
assign Out1 = Gain_out1;
endmodule // gain_module
If the input model has subsystems that contains mask information such as mask variables and mask initialization code, the mask information of those subsystems is preserved in the generated model. If you do not need this information, you can remove it.
