forecast
Forecast sample paths from Markov-switching dynamic regression model
Syntax
Description
returns optimal point forecasts YF
= forecast(Mdl
,Y
,numPeriods
)YF
of a fully specified Markov-switching dynamic regression model Mdl
over a forecast horizon of length numPeriods
. The forecasted responses represent the continuation of the response data Y
.
uses additional
options specified by one or more name-value arguments. For example, YF
= forecast(Mdl
,Y
,numPeriods
,Name,Value
)'X',X
specifies exogenous data in the forecast horizon to evaluate regression components in the model.
Examples
Compute Optimal Point Forecasts
Forecast a response path from a two-state Markov-switching dynamic regression model for a 1-D response process. This example uses arbitrary parameter values for the data-generating process (DGP).
Create Fully Specified Model for DGP
Create a two-state discrete-time Markov chain model that describes the regime switching mechanism. Label the regimes.
P = [0.9 0.1; 0.3 0.7]; mc = dtmc(P,'StateNames',["Expansion" "Recession"]);
mc
is a fully specified dtmc
object.
For each regime, use arima to create an AR model that describes the response process within the regime. Store the submodels in a vector.
mdl1 = arima('Constant',5,'AR',[0.3 0.2],... 'Variance',2); mdl2 = arima('Constant',-5,'AR',0.1,... 'Variance',1); mdl = [mdl1; mdl2];
mdl1
and mdl2
are fully specified arima
objects.
Create a Markov-switching dynamic regression model from the switching mechanism mc
and the vector of submodels mdl
.
Mdl = msVAR(mc,mdl);
Mdl
is a fully specified msVAR
object.
Simulate Response Data from DGP
forecast requires enough data before the forecast horizon to initialize the model. Simulate 120 observations from the DGP.
rng(1); % For reproducibility
y = simulate(Mdl,120);
y
is a 120-by-1 random path of responses.
Compute Optimal Point Forecasts
Treat the first 100 observations of the simulated response data as the presample for the forecast, and treat the last 20 observations as a holdout sample.
idx0 = 1:100; idx1 = 101:120; y0 = y(idx0); y1 = y(idx1);
Compute 1- through 20-step-ahead optimal point forecasts from the model.
yf = forecast(Mdl,y0,20);
yf
is a 20-by-1 vector of optimal point forecasts.

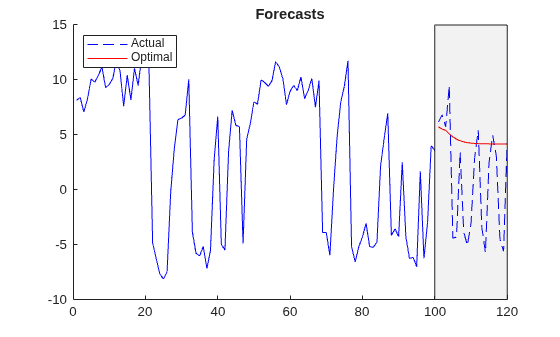

Plot the simulated response data and forecasts.
figure hold on plot(idx0,y0,'b'); h = plot(idx1,y1,'b--'); h1 = plot(idx1,yf,'r'); yfill = [ylim fliplr(ylim)]; xfill = [idx0(end) idx0(end) idx1(end) idx1(end)]; fill(xfill,yfill,'k','FaceAlpha',0.05) legend([h h1],["Actual" "Optimal"],'Location','NorthWest') title('Forecasts') hold off
Compute Estimated Point Forecasts and Forecast Error Variances
Consider the model in Compute Optimal Point Forecasts.
Create Fully Specified Model for DGP
Create the fully specified Markov-switching dynamic regression model.
P = [0.9 0.1; 0.3 0.7]; mc = dtmc(P,'StateNames',["Expansion" "Recession"]); mdl1 = arima('Constant',5,'AR',[0.3 0.2],... 'Variance',2); mdl2 = arima('Constant',-5,'AR',0.1,... 'Variance',1); mdl = [mdl1; mdl2]; Mdl = msVAR(mc,mdl);
Simulate Response Data from DGP
forecast
requires enough data before the forecast horizon to initialize the model. Simulate 120 observations from the DGP.
rng(10); % For reproducibility
y = simulate(Mdl,120);
y
is a 120-by-1 random path of responses.
Compute Monte Carlo Point Forecasts
Treat the first 100 observations of the simulated response data as the presample for the forecast, and treat the last 20 observations as a holdout sample.
idx0 = 1:100; idx1 = 101:120; y0 = y(idx0); y1 = y(idx1);
Compute 1- through 20-step-ahead optimal point forecasts from the model.
yf1 = forecast(Mdl,y0,20);
yf2
is a 20-by-1 vector of optimal point forecasts.
Compute 1- through 20-step-ahead Monte Carlo point forecasts by returning the estimated forecast error variances.
[yf2,estVar] = forecast(Mdl,y0,20);
yf2
is a 20-by-1 vector of Monte Carlo point forecasts. estVAR
is a 20-by-1 vector of corresponding estimated forecast error variances.

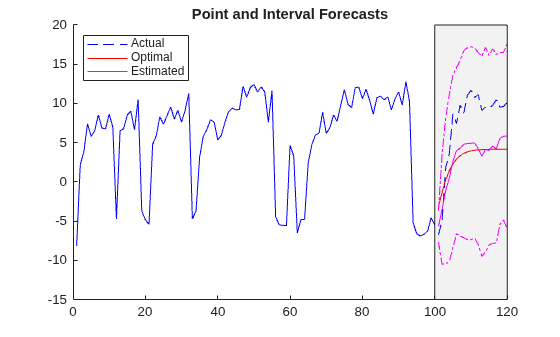

Plot the simulated response data, forecasts, and 95% forecast intervals using the Monte Carlo estimates.
figure hold on plot(idx0,y0,'b'); h = plot(idx1,y1,'b--'); h1 = plot(idx1,yf1,'r'); h2 = plot(idx1,yf2,'m'); ciu = yf2 + 1.96*sqrt(estVar); % Upper 95% confidence level cil = yf2 - 1.96*sqrt(estVar); % Lower 95% confidence level plot(idx1,ciu,'m-.'); plot(idx1,cil,'m-.'); yfill = [ylim,fliplr(ylim)]; xfill = [idx0(end) idx0(end) idx1(end) idx1(end)]; fill(xfill,yfill,'k','FaceAlpha',0.05) legend([h h1 h2],["Actual" "Optimal" "Estimated"],... 'Location',"NorthWest") title("Point and Interval Forecasts") hold off
Specify Number of Paths
forecast
estimates forecasts and corresponding forecast error variances by performing Monte Carlo simulation. You can adjust the number of paths to sample by specifying the 'NumPaths'
name-value pair argument. Consider the model in Compute Optimal Point Forecasts.
Create the fully specified Markov-switching dynamic regression model.
P = [0.9 0.1; 0.3 0.7]; mc = dtmc(P,'StateNames',["Expansion" "Recession"]); mdl1 = arima('Constant',5,'AR',[0.3 0.2],... 'Variance',2); mdl2 = arima('Constant',-5,'AR',0.1,... 'Variance',1); mdl = [mdl1; mdl2]; Mdl = msVAR(mc,mdl);
Simulate 100 observations from the DGP.
rng(10); % For reproducibility
y = simulate(Mdl,100);
Compute 1- through 20-step-ahead Monte Carlo point forecasts by returning the estimated forecast error variances. Specify 1000 sample paths for the Monte Carlo simulation. Treat the observations y
as the presample for the forecast.
[yf,estVar] = forecast(Mdl,y,20,'NumPaths',1000);
yf
is a 20-by-1 vector of Monte Carlo point forecasts. estVAR
is a 20-by-1 vector of corresponding estimated forecast error variances.
Forecast US GDP Rate
Consider a two-state Markov-switching dynamic regression model of the postwar US real GDP growth rate. The model has the parameter estimates presented in [1].
Create Markov-Switching Dynamic Regression Model
Create a fully specified discrete-time Markov chain model that describes the regime switching mechanism. Label the regimes.
P = [0.92 0.08; 0.26 0.74]; mc = dtmc(P,'StateNames',["Expansion" "Recession"]);
Create separate, fully specified AR(0) models for the two regimes.
sigma = 3.34; % Homoscedastic models across states mdl1 = arima('Constant',4.62,'Variance',sigma^2); mdl2 = arima('Constant',-0.48,'Variance',sigma^2); mdl = [mdl1 mdl2];
Create the Markov-switching dynamic regression model from the switching mechanism mc
and the state-specific submodels mdl
.
Mdl = msVAR(mc,mdl);
Mdl
is a fully specified msVAR
object.
Load and Preprocess Data
forecast
requires observations to initialize the model. Load the US GDP data set.
load Data_GDP
Data
contains quarterly measurements of the US real GDP in the period 1947:Q1–2005:Q2. The period of interest in [1] is 1947:Q2–2004:Q2. For more details on the data set, enter Description
at the command line.
Transform the data to an annualized rate series by:
Converting the data to a quarterly rate within the estimation period
Annualizing the quarterly rates
qrate = diff(Data(2:230))./Data(2:229); % Quarterly rate arate = 100*((1 + qrate).^4 - 1); % Annualized rate
The transformation drops the first observation.
Forecast US GDP Rates
Forecast the model over a 12-quarter forecast horizon. Initialize the model by supplying the annualized rate series.
numPeriods = 12; yf = forecast(Mdl,arate,numPeriods);
yf
is a 12-by-1 vector of model forecasts. yf(j)
is the j
-step-ahead optimal point forecast.

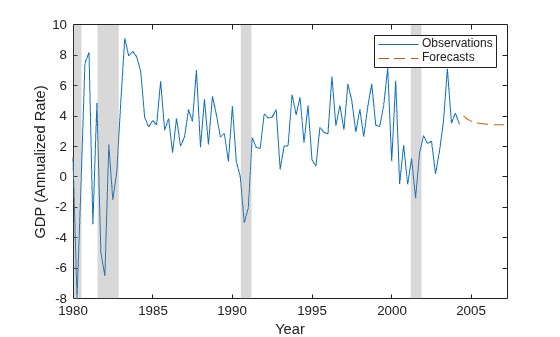

Plot the observed annualized GDP rate from 1980 with the model forecasts.
dates = datetime(dates(3:230),'ConvertFrom','datenum',... 'Format','yyyy:QQQ','Locale','en_US'); dt1980Q1 = datetime("1980:Q1",'InputFormat','yyyy:QQQ',... 'Locale','en_US'); % Specify US date format for 1980:Q1. idx = dates >= dt1980Q1; figure; plot(dates(idx),arate(idx),'k',... dates(end) + calquarters(1:numPeriods),yf,'r--') xlabel("Year") ylabel("GDP (Annualized Rate)") recessionplot legend("Observations","Forecasts")
Forecast Model with VARX Submodels
Compute optimal and estimated forecasts and corresponding forecast error covariance matrices from a three-state Markov-switching dynamic regression model for a 2-D VARX response process. This example uses arbitrary parameter values for the DGP.
Create Fully Specified Model for DGP
Create a three-state discrete-time Markov chain model for the switching mechanism.
P = [10 1 1; 1 10 1; 1 1 10]; mc = dtmc(P);
mc
is a fully specified dtmc
object. dtmc
normalizes the rows of P
so that they sum to 1
.
For each regime, use varm
to create a VAR model that describes the response process within the regime. Specify all parameter values.
% Constants C1 = [1;-1]; C2 = [2;-2]; C3 = [3;-3]; % Autoregression coefficients AR1 = {}; AR2 = {[0.5 0.1; 0.5 0.5]}; AR3 = {[0.25 0; 0 0] [0 0; 0.25 0]}; % Regression coefficients Beta1 = [1;-1]; Beta2 = [2 2;-2 -2]; Beta3 = [3 3 3;-3 -3 -3]; % Innovations covariances Sigma1 = [1 -0.1; -0.1 1]; Sigma2 = [2 -0.2; -0.2 2]; Sigma3 = [3 -0.3; -0.3 3]; % VARX submodels mdl1 = varm('Constant',C1,'AR',AR1,'Beta',Beta1,'Covariance',Sigma1); mdl2 = varm('Constant',C2,'AR',AR2,'Beta',Beta2,'Covariance',Sigma2); mdl3 = varm('Constant',C3,'AR',AR3,'Beta',Beta3,'Covariance',Sigma3); mdl = [mdl1; mdl2; mdl3];
mdl
contains three fully specified varm
model objects.
For the DGP, create a fully specified Markov-switching dynamic regression model from the switching mechanism mc
and the submodels mdl
.
Mdl = msVAR(mc,mdl);
Mdl
is a fully specified msVAR
model.
Forecast Model Ignoring Regression Component
If you do not supply exogenous data, simulate
and forecast
ignore the regression components in the submodels. forecast
requires enough data before the forecast horizon to initialize the model. Simulate 120 observations from the DGP.
rng('default'); % For reproducibility Y = simulate(Mdl,120);
Y
is a 120-by-2 matrix of simulated responses. Rows correspond to time points, and columns correspond to variables in the system.
Treat the first 100 observations of the simulated response data as the presample for the forecast, and treat the last 20 observations as a holdout sample.
idx0 = 1:100; idx1 = 101:120; Y0 = Y(idx0,:); % Forecast sample Y1 = Y(idx1,:); % Holdout sample
Compute 1- through 20-step-ahead optimal and estimated point forecasts from the model. Compute forecast error covariance matrices corresponding to the estimated forecasts.
YF1 = forecast(Mdl,Y0,20); [YF2,EstCov] = forecast(Mdl,Y0,20);
YF1
and YF2
are 20-by-2 matrices of optimal and estimated forecasts, respectively. EstCov
is a 2-by-2-by-20 array of forecast error covariances.
Extract the forecast error variances of each response for each period in the forecast horizon.
estVar1(:) = EstCov(1,1,:); estVar2(:) = EstCov(2,2,:);
estVar1
and estVar2
are 1-by-20 vectors of forecast error variances.

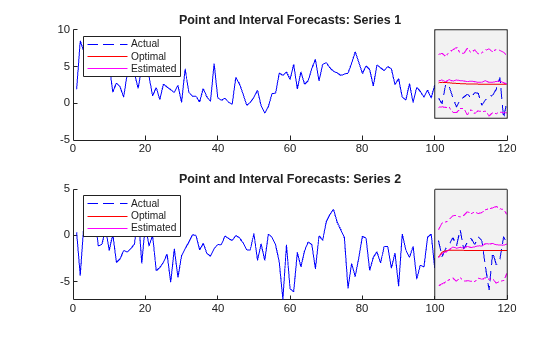

Plot the data, forecasts, and 95% forecast intervals of each variable on separate subplots.
figure subplot(2,1,1) hold on plot(idx0,Y0(:,1),'b'); h = plot(idx1,Y1(:,1),'b--'); h1 = plot(idx1,YF1(:,1),'r'); h2 = plot(idx1,YF2(:,1),'m'); ciu = YF2(:,1) + 1.96*sqrt(estVar1'); % Upper 95% confidence level cil = YF2(:,1) - 1.96*sqrt(estVar1'); % Lower 95% confidence level plot(idx1,ciu,'m-.'); plot(idx1,cil,'m-.'); yfill = [ylim,fliplr(ylim)]; xfill = [idx0(end) idx0(end) idx1(end) idx1(end)]; fill(xfill,yfill,'k','FaceAlpha',0.05) legend([h h1 h2],["Actual" "Optimal" "Estimated"],... 'Location',"NorthWest") title("Point and Interval Forecasts: Series 1") hold off subplot(2,1,2) hold on plot(idx0,Y0(:,2),'b'); h = plot(idx1,Y1(:,2),'b--'); h1 = plot(idx1,YF1(:,2),'r'); h2 = plot(idx1,YF2(:,2),'m'); ciu = YF2(:,2) + 1.96*sqrt(estVar2'); % Upper 95% confidence level cil = YF2(:,2) - 1.96*sqrt(estVar2'); % Lower 95% confidence level plot(idx1,ciu,'m-.'); plot(idx1,cil,'m-.'); yfill = [ylim,fliplr(ylim)]; xfill = [idx0(end) idx0(end) idx1(end) idx1(end)]; fill(xfill,yfill,'k','FaceAlpha',0.05) legend([h h1 h2],["Actual" "Optimal" "Estimated"],... 'Location',"NorthWest") title("Point and Interval Forecasts: Series 2") hold off
Forecast Model Including Regression Component
Simulate exogenous data for the three regressors by generating 120 random observations from the 3-D standard Gaussian distribution.
X = randn(120,3);
Simulate 120 observations from the DGP. Specify the exogenous data for the regression component.
rng('default') Y = simulate(Mdl,120,'X',X);
Treat the first 100 observations of the simulated response and exogenous data as the presample for the forecast, and treat the last 20 observations as a holdout sample.
idx0 = 1:100; idx1 = 101:120; Y0 = Y(idx0,:); Y1 = Y(idx1,:); X1 = X(idx1,:);
Compute 1- through 20-step-ahead optimal and estimated point forecasts from the model. Compute forecast error covariance matrices corresponding to the estimated forecasts. Specify the forecast-period exogenous data for the regression component.
YF1 = forecast(Mdl,Y0,20,'X',X1); [YF2,EstCov] = forecast(Mdl,Y0,20,'X',X1); estVar1(:) = EstCov(1,1,:); estVar2(:) = EstCov(2,2,:);

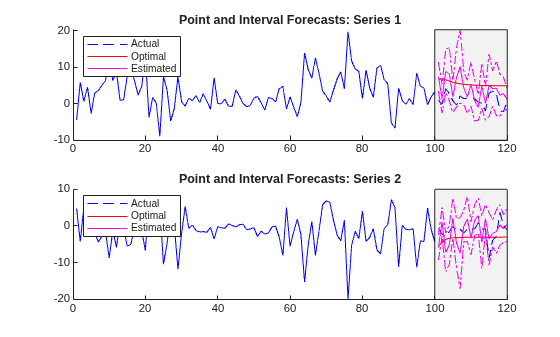

Plot the data, forecasts, and 95% forecast intervals of each variable on separate subplots.
figure subplot(2,1,1) hold on plot(idx0,Y0(:,1),'b'); h = plot(idx1,Y1(:,1),'b--'); h1 = plot(idx1,YF1(:,1),'r'); h2 = plot(idx1,YF2(:,1),'m'); ciu = YF2(:,1) + 1.96*sqrt(estVar1'); % Upper 95% confidence level cil = YF2(:,1) - 1.96*sqrt(estVar1'); % Lower 95% confidence level plot(idx1,ciu,'m-.'); plot(idx1,cil,'m-.'); yfill = [ylim,fliplr(ylim)]; xfill = [idx0(end) idx0(end) idx1(end) idx1(end)]; fill(xfill,yfill,'k','FaceAlpha',0.05) legend([h h1 h2],["Actual" "Optimal" "Estimated"],... 'Location',"NorthWest") title("Point and Interval Forecasts: Series 1") hold off subplot(2,1,2) hold on plot(idx0,Y0(:,2),'b'); h = plot(idx1,Y1(:,2),'b--'); h1 = plot(idx1,YF1(:,2),'r'); h2 = plot(idx1,YF2(:,2),'m'); ciu = YF2(:,2) + 1.96*sqrt(estVar2'); % Upper 95% confidence level cil = YF2(:,2) - 1.96*sqrt(estVar2'); % Lower 95% confidence level plot(idx1,ciu,'m-.'); plot(idx1,cil,'m-.'); yfill = [ylim,fliplr(ylim)]; xfill = [idx0(end) idx0(end) idx1(end) idx1(end)]; fill(xfill,yfill,'k','FaceAlpha',0.05) legend([h h1 h2],["Actual" "Optimal" "Estimated"],... 'Location',"NorthWest") title("Point and Interval Forecasts: Series 2") hold off
Input Arguments
Y
— Response data
numeric matrix
Response data that provides initial values for the forecasts, specified as a numObs
-by-numSeries
numeric matrix.
numObs
is the sample size. numSeries
is the number of response variables (Mdl.NumSeries
).
Rows correspond to observations, and the last row contains the latest observation. Columns correspond to individual response variables.
The forecasts YF
represent the continuation of Y
.
Data Types: double
numPeriods
— Forecast horizon
positive integer
Forecast horizon, or the number of time points in the forecast period, specified as a positive integer.
Data Types: double
Name-Value Arguments
Specify optional pairs of arguments as
Name1=Value1,...,NameN=ValueN
, where Name
is
the argument name and Value
is the corresponding value.
Name-value arguments must appear after other arguments, but the order of the
pairs does not matter.
Before R2021a, use commas to separate each name and value, and enclose
Name
in quotes.
Example: 'X',X
uses the matrix X
as exogenous data in the forecast horizon to evaluate regression components in the model.
S0
— Initial state probabilities
nonnegative numeric vector
Initial state probabilities from which to forecast, specified as the comma-separated pair consisting of 'S0'
and a nonnegative numeric vector of length numStates
. S0
corresponds to the end of the response data sample Y
.
forecast
normalizes S0
to produce a distribution.
By default, forecast
applies smooth
to Y
using default settings, then sets S0
to the terminal distribution of states in the data.
Example: 'S0',[0.2 0.2 0.6]
Example: 'S0',[0 1]
specifies state 2 as the initial state.
Data Types: double
X
— Predictor data
numeric matrix | cell vector of numeric matrices
Predictor data in the forecast horizon used to evaluate regression components in all submodels of Mdl
, specified as the comma-separated pair consisting of 'X'
and a numeric matrix or a cell vector of numeric matrices. The first row of X
contains observations in the period after the period represented by the last observation in Y
.
To use a subset of the same predictors in each state, specify X
as a matrix with numPreds
columns and at least numPeriods
rows. Columns correspond to distinct predictor variables. Submodels use initial columns of the associated matrix, in order, up to the number of submodel predictors. The number of columns in the Beta
property of Mdl.SubModels(
determines the number of exogenous variables in the regression component of submodel j
)
. If the number of rows exceeds j
numPeriods
, then forecast
uses the earliest observations.
To use different predictors in each state, specify a cell vector of such matrices with length numStates
.
By default, forecast
ignores the regression components in Mdl
.
Data Types: double
NumPaths
— Number of sample paths to generate
100
(default) | positive integer
Number of sample paths to generate for the simulation, specified as the comma-separated pair consisting of 'NumPaths'
and a positive integer. If forecast
returns only YF
, it ignores NumPaths
.
Example: 'NumPaths',1000
Data Types: double
Output Arguments
YF
— Point forecasts
numeric matrix
Point forecasts, returned as a numPeriods
-by-numSeries
numeric matrix.
If forecast
returns only YF
, then point forecasts are optimal. Otherwise, forecast
uses Monte Carlo simulation to estimate the point forecasts.
EstCov
— Forecast error covariances
numeric column vector | numeric array
Forecast error covariances, returned as a numeric column vector or numeric array.
If the submodels Mdl.SubModels
represent univariate ARX models, EstCov
is a numPeriods
-by-1 vector. If Mdl.SubModels
represent multivariate VARX models, EstCov
is a numSeries
-by-numSeries
-by-numPeriods
array.
forecast
performs Monte Carlo simulation to compute EstCov
.
Algorithms
Hamilton [2] provides a statistically optimal, one-step-ahead point forecast YF
for a Markov-switching dynamic regression model. forecast
computes YF
iteratively to the forecast horizon when called with a single output. Nonlinearity of the Markov-switching dynamic regression model leads to nonnormal forecast errors, which complicate interval and density forecasts [3]. As a result, forecast
switches to Monte Carlo methods when it returns EstCov
.
References
[1] Chauvet, M., and J. D. Hamilton. "Dating Business Cycle Turning Points." In Nonlinear Analysis of Business Cycles (Contributions to Economic Analysis, Volume 276). (C. Milas, P. Rothman, and D. van Dijk, eds.). Amsterdam: Emerald Group Publishing Limited, 2006.
[2] Hamilton, J. D. "Analysis of Time Series Subject to Changes in Regime." Journal of Econometrics. Vol. 45, 1990, pp. 39–70.
[3] Krolzig, H.-M. Markov-Switching Vector Autoregressions. Berlin: Springer, 1997.
Version History
Introduced in R2019b
MATLAB Command
You clicked a link that corresponds to this MATLAB command:
Run the command by entering it in the MATLAB Command Window. Web browsers do not support MATLAB commands.
Select a Web Site
Choose a web site to get translated content where available and see local events and offers. Based on your location, we recommend that you select: .
You can also select a web site from the following list:
How to Get Best Site Performance
Select the China site (in Chinese or English) for best site performance. Other MathWorks country sites are not optimized for visits from your location.
Americas
- América Latina (Español)
- Canada (English)
- United States (English)
Europe
- Belgium (English)
- Denmark (English)
- Deutschland (Deutsch)
- España (Español)
- Finland (English)
- France (Français)
- Ireland (English)
- Italia (Italiano)
- Luxembourg (English)
- Netherlands (English)
- Norway (English)
- Österreich (Deutsch)
- Portugal (English)
- Sweden (English)
- Switzerland
- United Kingdom (English)
