Service Interfaces

When generating C code from a top model for application deployment, you map model data elements to storage classes. A storage class specifies the appearance and placement of data elements in the generated code. Storage classes apply direct-access data communication. The list of storage classes available for mapping is determined by the Embedded Coder Dictionary that is associated with the model. The dictionary can define default settings, which can simplify the mapping process when the default mappings apply for your model.

When generating code from a component model that uses a C service code interface configuration, you map model data elements to service interfaces. A service interface specifies function prototype information and a data communication method (direct-access, outside-execution, or during-execution) for the generated code as required by the target platform services. The code generator applies constraints when producing service interface code so that it is easier to integrate the code for use in a specific target environment. The list of service interfaces available for mapping is determined by interfaces defined in the shared Embedded Coder Dictionary that is linked to the model. If dictionary default service interfaces align with your target platform service requirements, you need not make mapping changes and can skip to generating and reviewing the component interface code.

If you need to set up a component model to use a data code interface configuration, see the Component Deployment Guidelines for Embedded Coder Support Package.

Receiver and Sender Service Interfaces

Within a target environment, a component receives data from and sends data to other components by calling the target platform receiver and sender services. To represent calls to the receiver and sender services in a component model and configure the relevant data elements for code generation:

  1. In the component model:

    • Represent a data receive request by using a root-level inport (In Bus Element or Inport block).

    • Represent a data send request by using a root-level outport (Out Bus Element or Outport block).

  2. Link your model to a shared Embedded Coder Dictionary that defines a service code interface configuration and open the Embedded Coder app.

  3. Select Code Interface > Component Interface.

  4. In the Code Mappings editor, on the Inports and Outports tabs, inspect the mapping for each root-level inport and outport. If you need to use a service other than the default, select an alternative. For example, a service interface might be available for each data communication method.

  5. Save your interface configuration changes by saving the model.

If you prefer, you can map the root-level inports and outports to receiver and sender service interfaces by using the code mappings programming interface. See coder.mapping.api.CodeMapping.

A best practice is to represent communication I/O ports at the root-level of an application or component model by using In Bus Element and Out Bus Element blocks.

  • As a named signal interface, these blocks reduce wiring in the model and avoid issues with port reordering.

  • As a structured data type, these blocks enable use of arrays of buses.

To represent a bus as a signal interface, use an In Bus Element or Out Bus Element block that has the Bus virtuality attribute set to virtual. Virtual buses provide a way to group signals so that you can access them as a whole or select specific signals. A virtual bus consisting of one signal is equivalent to using an Inport or Outport block.

To enforce the composition of a bus interface, use a bus object. A bus object specifies the architectural properties of a bus, such as element names, hierarchy, order, and data types. A bus object is analogous to a structure definition in C. The object defines members of the bus but does not create the bus.

To reduce the number of function arguments that are passed to a reference model in the generated code, choose one of these options for configuring an In Bus Element:

  • Set the block Bus virtuality attribute to nonvirtual and, in the model code mappings, for the inport, set the storage class.

  • Set the block Bus virtuality attribute to virtual or inherited and, in the model code mappings, for the inport, set the storage class to Default.

If you have a requirement to represent root-level I/O in the generated code as a structured data type, model the inport or outport as a nonvirtual bus. The data type of a nonvirtual bus must be a Simulink.Bus object that is defined in the model base workspace or data dictionary.

Note

For an export-function model, you cannot configure a root-level inport or outport to use a service interface if the port is connected to a signal that is configured with a storage class.

For an example, see Generate Sender and Receiver C Interface Code for Component Deployment.

For more information, see:

Data Transfer Service Interfaces

Within a target environment, callable functions that are within a component exchange data by calling the target platform data transfer service. To represent calls to a platform data transfer service and configure the relevant data elements for code generation:

  1. In the component model, represent a data transfer by using a signal line that connects the communicating functions.

  2. Link your model to a shared Embedded Coder Dictionary that defines a service code interface configuration and open the Embedded Coder app.

  3. Select Code Interface > Component Interface.

  4. In the Code Mappings editor, on the Data Transfers tab, inspect the mapping for data transfer signals. If you need to use a service other than the default, select an alternative. For example, a service interface might be available for each data communication method.

  5. Save your interface configuration changes by saving the model.

If you prefer, you can map the signal lines that represent data transfers to data transfer service interfaces by using the code mappings programming interface. See coder.mapping.api.CodeMapping.

For an example, see Generate C Data Transfer Service Interface Code for Component Deployment.

For more information, see:

Nonvolatile Memory Interfaces

You can choose between two approaches to model interfacing for target environment nonvolatile memory. You can use I/O ports with initialize and terminate functions or a client-server interface.

RequirementI/O Ports with Initialize and Terminate FunctionsClient-Server Interface
Robust handling of memory access by functions that execute concurrentlyX
Multiple instances of a componentX
Use target platform service X

I/O Ports with Initialize and Terminate Functions

For robust handling of memory access by functions that execute concurrently or if you are using multiple instances of a component, model and configure your nonvolatile memory interface as follows:

  1. In the component model:

    • Represent a direct memory read with an inport (Inport or In Bus Element block) connected to an Initialize Function block.

    • Represent a direct memory write with an outport (Outport or Out Bus Element block) connected to a Terminate Function block.

  2. Link your model to a shared Embedded Coder Dictionary that defines a service code interface configuration and open the Embedded Coder app.

  3. Select Code Interface > Component Interface.

  4. In the Code Mappings editor, configure the code interfaces for the Inport and Outport blocks that are connected to the Initialize Function and Terminate Function blocks. Map the Inport and Outport blocks to a service interface that uses the direct-access data communication method.

  5. In the Code Mappings editor, on the Functions tab, inspect the mapping for each initialize and terminate entry-point function. If necessary, adjust the default function prototypes. For more information, see Configure Generated C Function Interface for Model Entry-Point Functions.

  6. Save your interface configuration changes by saving the model.

For more information, see:

Client-Server Interface

Use a centralized client-server interface to access the nonvolatile memory of a target environment when the target environment provides a platform service. To use the client-server approach:

  1. In the model:

    • Represent the target environment service that provides access to nonvolatile memory by using a Simulink Function block.

    • Access the service by using a Function Caller block.

  2. If you have not already done so, link your model to a shared Embedded Coder Dictionary that defines a service code interface configuration and open the Embedded Coder app.

  3. Configure the function prototype generated for the blocks to align with target platform requirements by using the Code Mappings editor. See Configure Entry-Point Function Interfaces for Simulink Function and Function Caller Blocks.

  4. Save your interface configuration changes by saving the model.

For more information, see:

Timer Service Interfaces

For component deployment of aperiodic export-function models, you can generate code that accesses the function clock tick used by the target environment. A function clock tick value is the number of time ticks from the start of program execution to the present time for a function. Generated code for an aperiodic function can access the target platform function clock tick value by calling a function provided by the platform timer service.

You represent requests for the function clock tick in a top model implicitly when you include Discrete Time Integrator and Weighted Sample Time blocks. To configure the code generator to produce code that calls a timer service function, you map the aperiodic functions that use the Discrete Time Integrator and Weighted Sample Time blocks to a timer service interface defined in the Embedded Coder Dictionary that is linked to the model.

The code generator assumes that:

  • The target platform timer service maintains integrity of the function clock tick value, including during concurrent access, for single- and multiprocess target environments and supports the outside-execution and during-execution data communication methods.

  • The clock resolution is the fundamental step size of the model.

This timing diagram shows how the function clock tick service for a target platform communicates data by using the outside-execution and during-execution data communication methods.

Timing diagram that shows calls to a function clock tick service function that use outside-execution and during-execution data access.

In the diagram, functions F1 and F2 represent generated callable functions that are configured to interface with timer service functions. F1, the faster of the two functions, is configured to interface with service function outside_tick_F1, which uses outside-execution data access. Before F1 executes, the service function writes clock tick value eight to a buffer that the target environment maintains. The service holds that value constant until execution of F1 is complete. The diagram shows F1 accessing the clock tick value twice by calling outside_tick_F1. Each function call returns the tick value eight.

F2 is configured to interface with service function during_tick_F2, which uses during-execution data access. Function during_tick_F2 returns the current clock tick value at the time of the service call. When the model uses during-execution data access, the timer service does not save the value in a locked buffer. The value that the service function returns can change as the F2 executes. To maintain data coherency, the first time that F2 calls service function during_tick_task2, F2 creates a buffer to store clock tick value nine and locks it. Subsequent calls to during_tick_F2 access the tick value from the locked buffer maintained by the F2. The diagram shows a second call to the service function, which returns tick value nine.

To represent calls to a platform data transfer service and configure the relevant data elements for code generation:

  1. In the component model, add Discrete Time Integrator and Weighted Sample Time blocks as needed.

  2. Link your model to a shared Embedded Coder Dictionary that defines a service code interface configuration and open the Embedded Coder app.

  3. Select Code Interface > Component Interface.

  4. In the Code Mappings editor, on the Functions tab, inspect the timer service mappings for exported functions. Select the row for an exported function. Click the pencil icon Pencil icon for code mappings editor. In the dialog box that appears, check the setting of the Timer Service. If you need to use a service interface other than the default, set the property to the name of the required timer service interface. For example, a service interface might be available for each data communication method.

  5. Save your interface configuration changes by saving the model.

If you prefer, you can associate a timer service interface with an entry-point function by using the code mappings programming interface. See coder.mapping.api.CodeMapping.

For an example, see Generate C Timer Service Interface Code for Component Deployment.

For more information, see:

Parameter and Parameter Argument Tuning Service Interfaces

Some components require interface support for tunable parameters and parameter arguments. When a parameter or parameter argument is tunable, you can change the value that is stored in memory during program execution. For example, you can use a tunable parameter to determine an optimal value by changing the value and monitoring the results or to adapt an algorithm to different execution conditions. An example of a block parameter value that you might want to be tunable is the Gain parameter of the Gain block.

To represent a parameter or parameter argument in a component model and configure the parameter to be tunable in generated code:

  1. Set up the parameter data for the model by defining the data as parameter object in the model workspace. For parameter argument data, select the Argument property.

  2. Link your model to a shared Embedded Coder Dictionary that defines a service code interface configuration and open the Embedded Coder app.

  3. Select Code Interface > Component Interface.

  4. In the Code Mappings editor, on the Parameters tab, inspect the parameter mappings. If you need to use a service other than the default, change the service setting. If you do not need to tune a parameter, select Not tunable.

  5. Optionally, for each parameter and parameter argument that you want to tune, you can specify an identifier that informs the code generator how to represent the variable in the generated code. In the row for a parameter or parameter argument, select the pencil icon Pencil icon for code mappings editor. In the dialog box that appears, specify a value for the Identifier property.

  6. Save your interface configuration changes by saving the model.

If you prefer, you can map parameters and parameter arguments to parameter tuning and parameter argument tuning service interfaces, by using the code mappings programming interface. See coder.mapping.api.CodeMapping.

After you configure parameter and parameter argument interfaces, you can:

  • Set up and run external mode simulations that use a communication channel between Simulink® on your development computer (host) and your generated executable program that runs on the target platform by using the Run on Custom Hardware app.

  • Generate and customize an ASAP2 file and a Calibration Data Format (CDF) file by using the Generate Calibration Files tool.

  • Use the C application programming interface (API) or Target Language Compiler (TLC) programming interface to tune parameters and parameter arguments.

For an example, see Generate C Parameter Tuning Service Interface Code for Component Deployment.

For more information, see:

Measurement Service Interfaces

Some components require interface support for viewing and analyzing model data (signal, state, and datastore data) during program execution. For example, you can use the Simulation Data Inspector to produce plots and maps of the data for comparing run results that show model behavior.

To represent model data in a component model and configure the data elements for measurement in generated code:

  1. Set up the data elements in the model design.

    Data ElementRepresentation in Model
    SignalOutput port of block
    StateState on block
    DatastoreDatastore Memory block
  2. Link your model to a shared Embedded Coder Dictionary that defines a service code interface configuration and open the Embedded Coder app.

  3. In the Embedded Coder app, open the Code Mappings editor. In the C Code tab, select Code Interface > Individual Code Mappings.

  4. For signals, add the signal lines that you want to measure to the model code mappings.

    1. In the component model, select a signal.

    2. Pause on the ellipsis that appears above or below the signal line to open the action bar. Click the Add Signal button.

      In the Code Mappings editor, on the Signals/States tab, the Signals node expands and lists the signal that you added.

  5. If you need to use a service interface other than the dictionary default for measurement data:

    • On the Signals/States tab, select an alternative measurement service for a selected signal or state. For signals and states that you do not want to measure, select Not measurable.

    • On the Data Stores tab, select an alternative measurement service for a selected data store. For data stores that you do not want to measure, select Not measurable.

  6. For each signal and state, select the pencil icon Pencil icon for code mappings editor. In the dialog box that appears, specify a value for the Identifier property. The identifier informs the code generator how to represent the variable in the generated code.

  7. Save your interface configuration changes by saving the model.

If you prefer, you can map signals, states, and datastores to measurement service interfaces, by using the code mappings programming interface. See coder.mapping.api.CodeMapping.

After you configure measurement interfaces, you can:

  • Set up and run external mode simulations that use a communication channel between Simulink on your development computer (host) and your generated executable program that runs on the target platform by using the Run on Custom Hardware app.

  • Generate and customize an ASAP2 file and a Calibration Data Format (CDF) file by using the Generate Calibration Files tool.

  • Use the C application programming interface (API) or Target Language Compiler (TLC) programming interface to visualize and analyze signal, state, and data store data without using external mode.

For an example, see Generate C Measurement Service Interface Code for Component Deployment.

For more information, see:

Service Interface Constraints and Limitations

When designing and configuring a component model that uses a service code interface configuration, consider constraints that the code generator applies and release-specific limitations.

Constraints

Service interface constraints are product features that are not relevant and are not supported when you are deploying software that uses a service interface configuration.

Modeling styles and patterns that are not supported:

  • Blocks that use continuous state

  • S-function blocks that specify option SS_OPTION_ASYNCHRONOUS, SS_OPTION_ASYNCHRONOUS_INTERRUPT, or SS_OPTION_ASYNCHRONOUS_CUSTOM to change slower task IDs to faster task IDs

  • S-function outports that have a mix of data and function-call elements

  • Use of state ports

  • Classic initialization mode for conditionally executed subsystem initialization values

  • Multirate global datastores

  • Multirate enabled subsystems

  • Multirate S-functions

Model configuration constraints:

  • Cannot select Support continuous time (SupportContinuousTime)

  • Cannot select Support non-inlined S-functions (SupportNonInlinedSFcns)

  • Cannot select Single output/update function (CombineOutputUpdateFcns)

  • Cannot specify external model for parameter tuning and signal monitoring by using XCP transport layer

  • Cannot select Generate an example main program (GenerateSampleERTMain)

  • Cannot select MAT-file logging (MATFileLogging)

  • Cannot select Invalid input data access in chart initialization (SFInvalidInputDataAccessInChartInitDiag)

  • Must select Remove root level I/O zero initialization (ZeroExternalMemoryAtStartup = 'off')

  • Cannot clear Combine signal/state structures (CombineSignalStateStructs)

  • Cannot select Classic call interface (GRTInterface)

  • Cannot select Target supports function prototype control (ModelStepFunctionPrototypeControlCompliant)

  • Cannot specify TLC command line options (TLCOptions) - -aInlineSetEventsForThisBaseRateFcn=TLC_FALSE, -aSuppressMultiTaskScheduler=TLC_FALSE, -aRateBasedStepFcn=TLCFALSE, - (wrapper function)

Receiver and sender service interface constraints:

  • Export-function models that include a signal that is configured with a storage class and is connected to a root-level inport or outport

Other capabilities that are not supported:

  • Function prototype control for Initialize Function, Reset Function, and Terminate Function blocks, component step functions, and private Simulink Function blocks

  • Automatic switching between simulation and code generation variants

  • Subsystem builds

  • Use of external mode for parameter tuning and signal monitoring

R2022b Limitations

In R2022b, these limitations apply when you deploy software that uses a service interface configuration.

Modeling styles and patterns that are not supported for R2022b:

  • Multirate, rate-based models

  • Rate Transition and Reinitialize Function blocks

  • Use of function ports to call Simulink functions in a reference model from another reference model

  • Use of State Reader and State Writer blocks connected to outports or used in functions other than initialize, reset, or terminate functions

  • Message-based communication involving signal connections between root-level inports and outports and Send and Receive blocks

  • Global datastores and local datastores that are configured with a global storage class, such as ExportedGlobal

  • Simulink Function blocks that have the Function visibility parameter set to global

  • Component models that have model configuration parameter Code interface packaging set to Reusable function

  • Component models with a root-level Inport block meeting the following conditions:

    • The Inport block is mapped to a receiver service interface with the data communication method set to During Execution

    • One branch of the Inport block is driving a subsystem whose function interface is not set to Allow arguments (Match graphical interface)

Model configuration R2022b limitations:

  • Cannot set Language (TargetLang) to C++ and Code interface packaging (CodeInterfacePackaging) to C++ class

  • Must set Default parameter behavior (DefaultParameterBehavior) to Inlined

  • Cannot select Support variable-size signals (SupportVariableSizeSignals)

  • Cannot select Support non-inlined S-functions (SupportNoninlinedSFcns)

  • Cannot set Code interface packaging (CodeInterfacePackaging) to Reusable function

R2022b limitations for specific service interfaces:

  • Merge blocks connected to root-level inports or outports, where the inports or outports meet one of the following conditions, and the model is configured with a service interface are not supported:

    • Use during-execution data communication.

    • Use outside-execution data communication and the signal has a scalar data type.

  • Receiver and sender service interfaces that apply to multiple function-call inports connected to a Mux block that feeds the trigger for a function-call subsystem are not supported.

  • Data transfer service interface for a mix of signal types from different exported functions is not supported.

  • Timer service interface for discrete blocks that require time other than Discrete-Time Integrator and Weighted Sample Time blocks is not supported.

Other capabilities that are not supported for R2022b:

  • Conversion of subsystems to reference models when the Copy code mappings option on the Model Reference Conversion Advisor dialog box is selected is not supported.

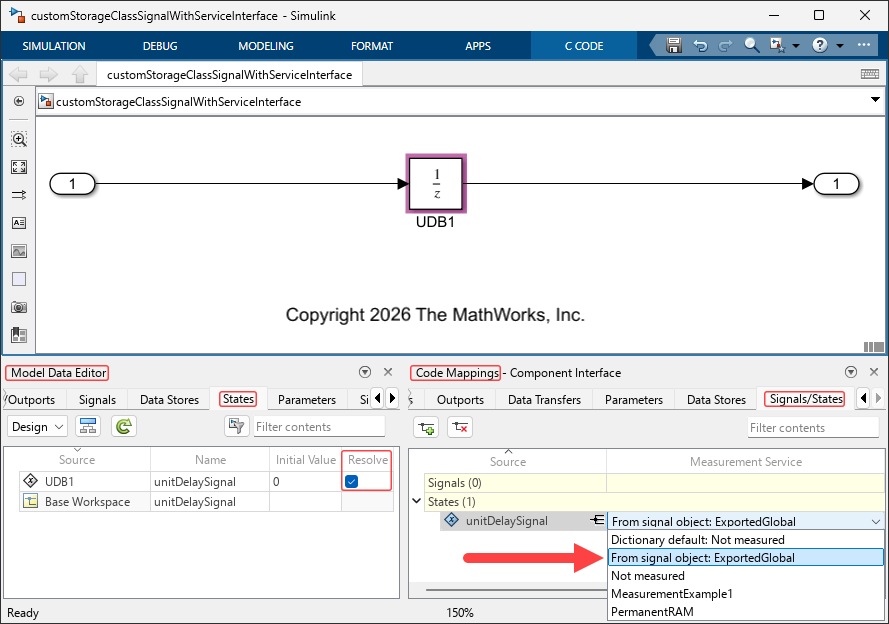

  • Simulink signal objects with non-auto storage class are not supported.
