printToFigure

Print scope window to MATLAB figure

Since R2023b

Syntax

printToFigure(scope)

fig = printToFigure(scope)

fig = printToFigure(scope,Visible=flag)

Description

printToFigure(scope) prints the display window of the scope object to a new MATLAB^® figure. The figure is visible by default.

fig = printToFigure(scope) prints the display window of the scope object to a new MATLAB figure and returns the handle to the figure.

fig = printToFigure(scope,Visible=flag) shows or hides the MATLAB figure.

Examples

Print Spectrum Analyzer Scope Display to MATLAB Figure

Use the printToFigure function to print the spectrumAnalyzer object display window to a new MATLAB® figure.

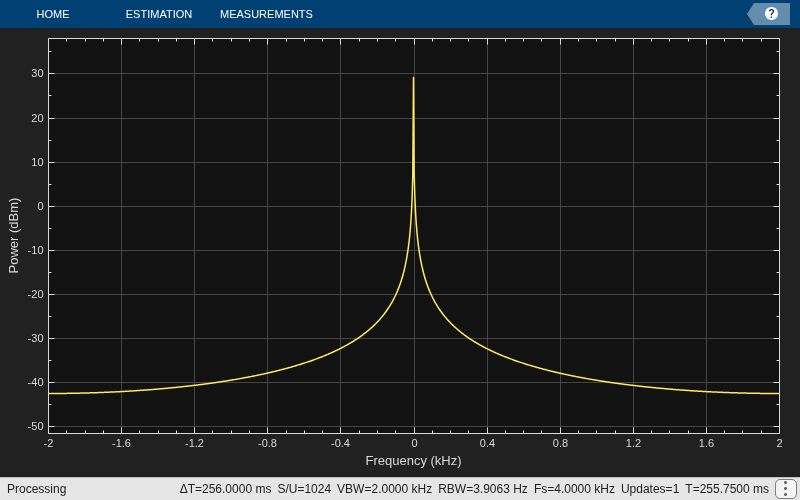

Generate a chirp signal and use the spectrumAnalyzer object to display the spectrum of the chirp. This plot shows the default color and style settings of the spectrumAnalyzer object.

chirp = dsp.Chirp(SweepDirection="Bidirectional", ...
    TargetFrequency=2000, ...
    InitialFrequency=0,...
    TargetTime=400, ...
    SweepTime=400, ...
    SamplesPerFrame=1024, ...
    SampleRate=4000);
scope = spectrumAnalyzer(AveragingMethod="exponential",...
    ForgettingFactor=0,SampleRate=4000);
scope(chirp());

Change the background color and the axes color of the plot to "white". Set the font color and line color to "black".

scope.BackgroundColor = "white";
scope.AxesColor = "white";
scope.FontColor = "black";
scope.LineColor = "black";
show(scope)
release(scope)

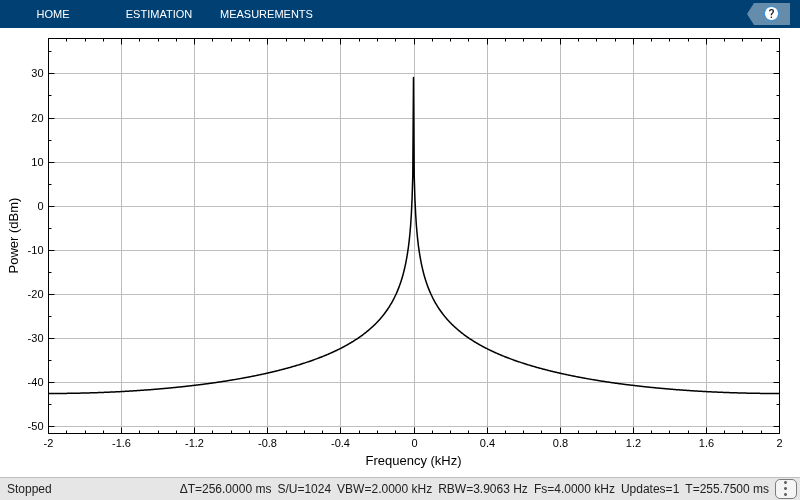

Print the display of the chirp spectrum to a new MATLAB figure. The function returns a handle to the figure.

scopeFig = printToFigure(scope);

The handle to the figure scopeFig lets you modify the appearance and the behavior of the figure window.

Specify a figure name and change the size of the figure to 400-by-250 pixels.

scopeFig.Name="Spectrum of Chirp Signal";
scopeFig.NumberTitle="off";
scopeFig.Position=[1 1 400 250];

When printing to figure, you can make the figure invisible by setting the Visible argument to false.

scopeFig = printToFigure(scope,Visible=false);

Print Array Plot Scope Display to MATLAB Figure

Use the printToFigure function to print the dsp.ArrayPlot object display window to a new MATLAB® figure.

Create a dsp.ArrayPlot object.

scope=dsp.ArrayPlot;

Set ArrayPlot properties to display a Gaussian distribution.

scope.YLimits = [-0.1 1.1];
scope.XOffset = -2.5;
scope.SampleIncrement = 0.1;
scope.Title = "Gaussian distribution";
scope.XLabel = "X";
scope.YLabel = "f(X)";

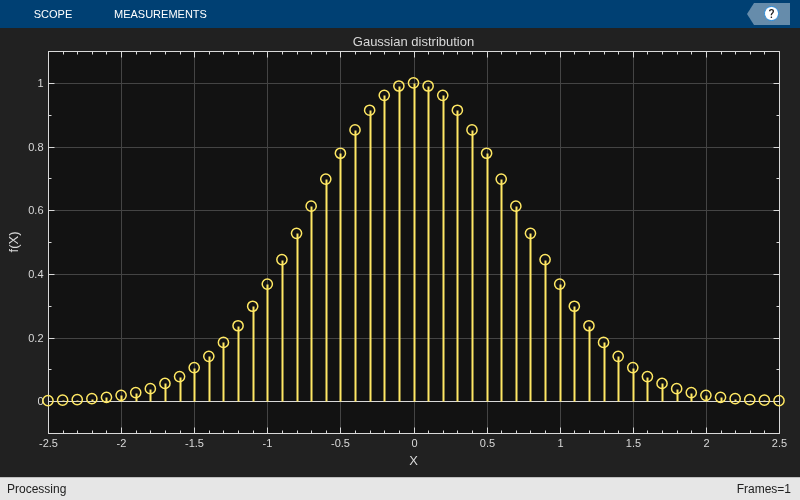

Plot the Gaussian distribution.

scope(exp(-(-2.5:.1:2.5) .* (-2.5:.1:2.5))');

Change the background color and the axes color of the plot to "white". Set the font color to "black" and the line color to "blue".

scope.BackgroundColor = "white";
scope.AxesColor = "white";
scope.FontColor = "black";
scope.LineColor = "blue";
show(scope)
release(scope)

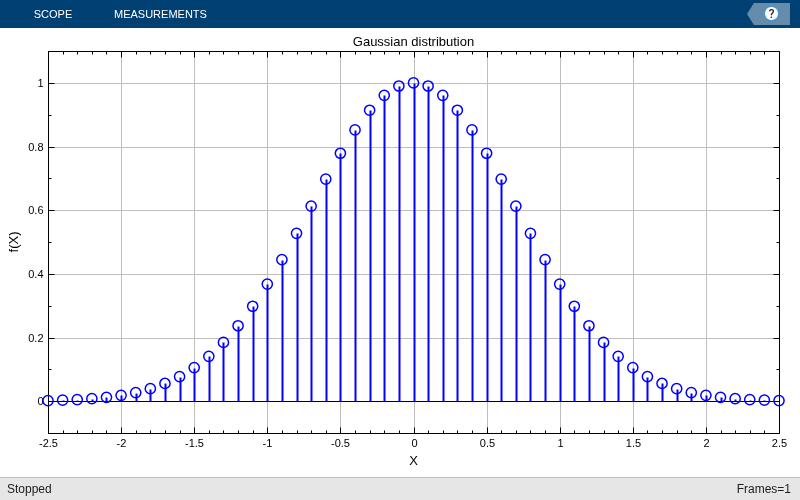

Print the display of the Gaussian distribution to a new MATLAB figure. The function returns a handle to the figure.

scopeFig = printToFigure(scope);

The handle to the figure scopeFig lets you modify the appearance and the behavior of the figure window.

Specify a figure name and change the size of the figure to 400-by-250 pixels.

scopeFig.Name="Gaussian Distribution";
scopeFig.NumberTitle="off";
scopeFig.Position=[1 1 400 250];

When printing to figure, you can make the figure invisible by setting the Visible argument to false.

scopeFig = printToFigure(scope,Visible=false);

Print Time Scope Display to MATLAB Figure

Use the printToFigure function to print the timescope object display window to a new MATLAB® figure.

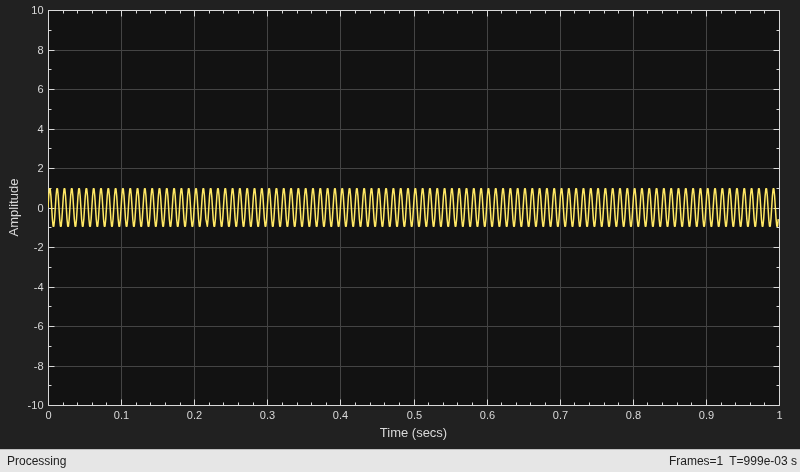

View a sine wave on the time scope. This plot shows the default color and style settings of the timescope object.

f = 100;
fs = 1000;
swv = sin(2.*pi.*f.*(0:1/fs:1-1/fs)).';
scope = timescope(SampleRate=fs,...
    TimeSpanSource="property", ...
    TimeSpan=1);
scope(swv);

Change the background color and the axes color of the plot to "white". Set the font color to "black" and the line color to "blue".

scope.BackgroundColor = "white";
scope.AxesColor = "white";
scope.FontColor = "black";
scope.LineColor = "blue";
show(scope)
release(scope)

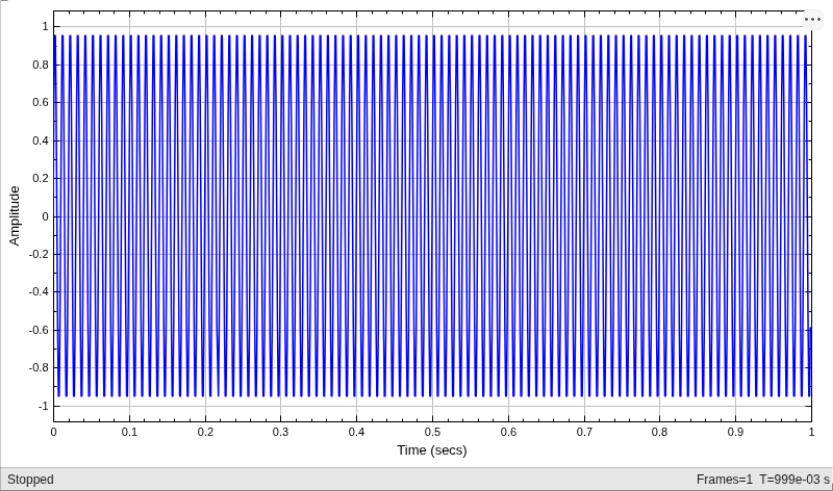

Print the display of the sine wave to a new MATLAB figure. The function returns a handle to the figure.

scopeFig = printToFigure(scope);

The handle to the figure scopeFig lets you modify the appearance and the behavior of the figure window.

Specify a figure name and change the size of the figure to 400-by-250 pixels.

scopeFig.Name="Sine Wave Signal";
scopeFig.NumberTitle="off";
scopeFig.Position=[1 1 400 250];

When printing to figure, you can make the figure invisible by setting the Visible argument to false.

scopeFig = printToFigure(scope,Visible=false);

Print Dynamic Filter Visualizer Display to MATLAB Figure

Use the printToFigure function to print the dsp.DynamicFilterVisualizer object display window to a new MATLAB® figure.

Create a dsp.DynamicFilterVisualizer object.

dfv = dsp.DynamicFilterVisualizer(YLimits=[-120 10]);

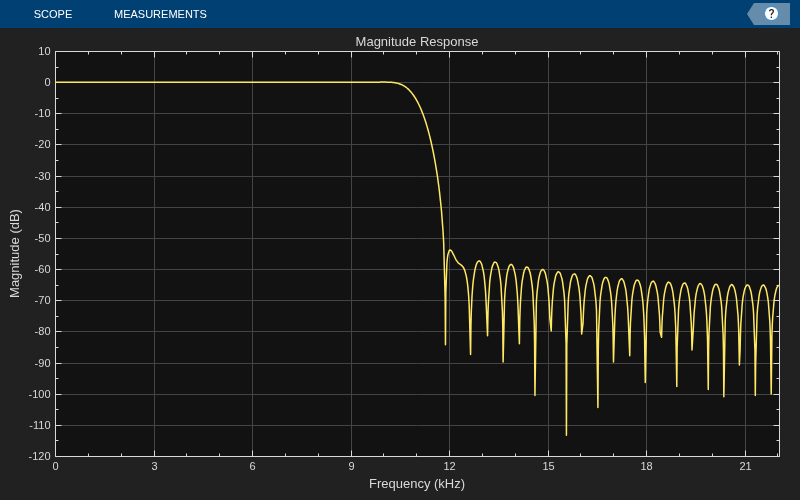

Design FIR filter with varying cutoff frequencies ranging from 0.1 to 0.5. Plot the magnitude response of the filter using the Dynamic Filter Visualizer.

for k = 0.1:0.001:0.5
    b = fir1(90, k);
    dfv(b,1);
end

Change the background color and the axes color of the plot to "white". Set the font color to "black" and the line color to "blue".

dfv.BackgroundColor = "white";
dfv.AxesColor = "white";
dfv.FontColor = "black";
dfv.LineColor = "blue";
show(dfv)
release(dfv)

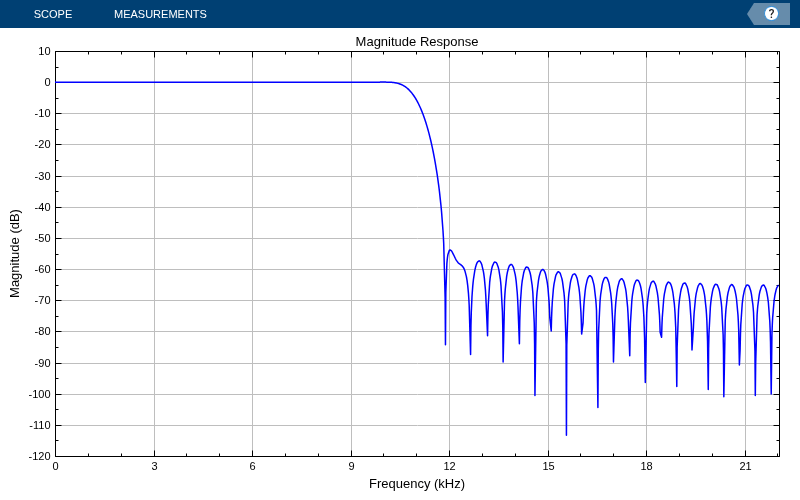

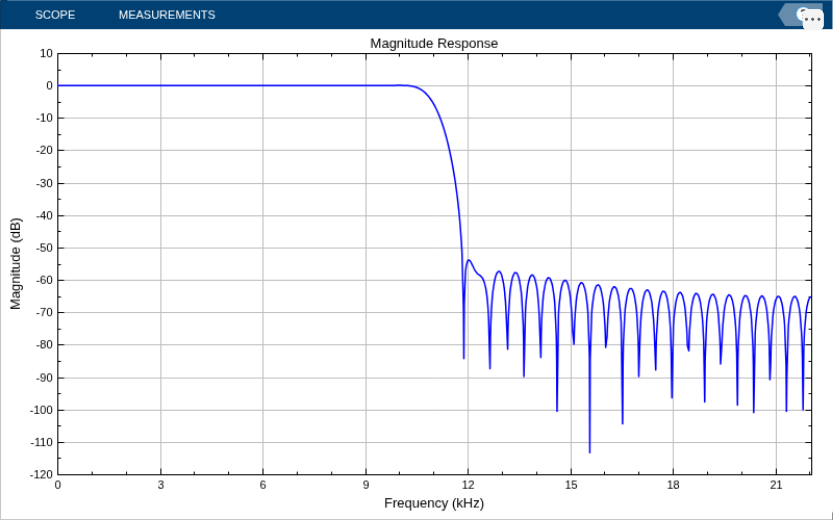

Print the display of the magnitude response to a new MATLAB figure. The function returns a handle to the figure.

scopeFig = printToFigure(dfv);

The handle to the figure scopeFig lets you modify the appearance and the behavior of the figure window.

Specify a figure name and change the size of the figure to 400-by-250 pixels.

scopeFig.Name="Magnitude Response of FIR Filter";
scopeFig.NumberTitle="off";
scopeFig.Position=[1 1 400 250];

When printing to figure, you can make the figure invisible by setting the Visible argument to false.

scopeFig = printToFigure(dfv,Visible=false);

Input Arguments

scope — Scope object

spectrumAnalyzer object | dsp.ArrayPlot object | timescope object | dsp.DynamicFilterVisualizer object

Scope object whose display the function prints to a MATLAB figure, specified as one of the following:

• spectrumAnalyzer object

• dsp.ArrayPlot object

• timescope object

• dsp.DynamicFilterVisualizer object

Visible — Flag to show MATLAB figure

true or 1 (default) | false or 0

Flag to show the MATLAB figure, specified as true or false.

Data Types: logical

Output Arguments

fig — Handle to MATLAB figure

Figure object

Handle to the MATLAB figure, returned as a Figure object. For more information on the properties of this object, see Figure Properties.

Version History

Introduced in R2023b
