dsp.ArrayPlot
Display vectors or arrays
Description
Display vectors or arrays where the data is uniformly spaced along the x-axis.
Creation
Description
scope = dsp.ArrayPlot
creates an Array Plot object,
scope
.
scope = dsp.ArrayPlot(Name=Value)
sets properties using one or
more name-value pairs. For example, scope =
dsp.ArrayPlot(NumInputPorts=3)
Properties
Most properties can be changed from the dsp.ArrayPlot
UI.
Plot Configuration
NumInputPorts
— Number of input ports
1
(default) | integer between [1, 96]
Number of input ports, specified as a positive integer. Each signal coming through a separate input becomes a separate channel in the scope. You must invoke the scope with the same number of inputs as the value of this property.
XDataMode
— Source of the x-data spacing
"Sample increment and X-offset"
(default) | "Custom"
Specify whether to use the SampleIncrement
and XOffset
property values to determine spacing, or specify your own custom spacing. If you
specify "Custom"
, you also must specify the CustomXData
property values.
You can set this property only when creating the object.
Scope Window Use
Open the Scope tab, click Settings, and set X-Data Mode.
Data Types: char
| string
CustomXData
— X-data values
empty vector (default) | vector
Specify the desired x-data values as a row or column vector of length equal to the frame length of the individual inputs. If you use the default (empty vector) value, the x-data is uniformly spaced and set to (0:L–1), where L is the frame length.
You can set this property only when creating the object.
Example: scope =
dsp.ArrayPlot(XDataMode="Custom",CustomXData=logspace(0,log10(44100/2),1024))
Scope Window Use
Open the Scope tab, click Settings, and set X-Data Mode to Custom and specify Custom X-Data.
Dependency
To use this property, set XDataMode
to "Custom"
.
SampleIncrement
— Sample increment of input
1
(default) | finite numeric scalar
Specify the spacing between samples along the x-axis as a
finite numeric scalar. The input signal is only y-axis data.
x-axis data is set automatically based on the XOffset
and
SampleIncrement
properties.
Example: When XOffset
is 0
and
SampleIncrement
is 1
, the
x-axis values are set to 0, 1, 2, 3, 4, …
.
Example: When XOffset
is -1
and
SampleIncrement
is 0.25
, the
x-axis values are set to -1, -0.75, -0.5, -0.25, 0,
…
.
Scope Window Use
Open the Scope tab, click Settings, and set Sample Increment.
Dependency
To use this property, set XDataMode
to 'Sample increment and
X-offset'
.
XOffset
— Display offset of x-axis
0
(default) | scalar
Display offset of x-axis, specified as a numeric scalar.
x-axis data is set automatically based on both the SampleIncrement
and XOffset
values. The x-offset
represents the first value on the x-axis.
Example: When XOffset
is 0 and SampleIncrement
is 1, the x-axis values are set to 0,
1, 2, 3, 4, … .
Example: When XOffset
is -1 and SampleIncrement
is 0.25, the x-axis values are set to
-1, -0.75, -0.5, -0.25, 0, … .
Scope Window Use
Open the Scope tab, click Settings, and set X-Offset.
Dependency
To use this property, set XDataMode
to "Sample increment and
X-offset"
.
XScale
— Scale of x-axis
"Linear"
(default) | "Log"
Specify whether the scale of the x-axis is "Linear"
or "Log"
. If XOffset
is a negative value, you cannot set this property to "Log"
.
Scope Window Use
Open the Scope tab, click Settings, and set X-Scale.
Data Types: char
| string
YScale
— Scale of y-axis
"Linear"
(default) | "Log"
Specify whether the scale of the y-axis is
"Linear"
or "Log"
.
Scope Window Use
Open the Scope tab, click Settings, and set Y-Scale.
Data Types: char
| string
PlotType
— Type of plot
"Stem"
(default) | "Line"
| "Stairs"
| "Bar"
Type of plot to use for all the input signals displayed in the scope window, specified as one of these:
"Stem"
– The scope displays the input signal as circles with vertical lines extending down to the x-axis at each of the sampled values."Line"
– The scope displays the input signal as lines connecting each of the sampled values."Stairs"
– The scope displays the input signal as a stair-step graph. A stair-step graph is made up of only horizontal lines and vertical lines. Each horizontal line represents the signal value for a discrete sample period and is connected to two vertical lines. Each vertical line represents a change in values occurring at a sample. Stair-step graphs are useful for drawing time history graphs of digitally sampled data."Bar"
–– The scope displays the input signal with rectangular bars, where bar lengths are proportional to the signal values. (since R2024b)
Tunable: Yes
Scope Window Use
Open the Scope tab, click Settings, and set Plot Type.
PlotBaseValue
— Baseline value of stem or bar plot
0
(default) | real scalar | -Inf
Since R2024b
Baseline value of the stem or bar plot, specified as a real scalar. If you specify
-Inf
, the minimum value of the bar plot is not constrained to any
value.
Tunable: Yes
Dependencies
To enable this property, set PlotType
to
"Stem"
or "Bar"
.
AxesScaling
— Axes scaling mode
"OnceAtStop"
(default) | "Auto"
| "Manual"
| "Updates"
Specify when the scope scales the axes. Valid values are:
"Auto"
— The scope scales the axes as needed to fit the data, both during and after simulation."Manual"
— The scope does not scale the axes automatically."OnceAtStop"
— The scope scales the axes when the simulation stops."Updates"
— The scope scales the axes once after a set number of visual updates. The number of updates is determined by the value of theAxesScalingNumUpdates
property.
You can set this property only when creating the object.
Scope Window Use
Hover over the array plot to see the zoom , pan , and autoscale buttons. You can also zoom and pan using your mouse.
Data Types: char
| string
AxesScalingNumUpdates
— Number of updates before scaling
100 (default) | real positive integer
Specify the number of updates before scaling as a real, positive scalar integer.
Dependency
To enable this property, set AxesScaling
to
"Updates"
.
Data Types: double
Measurements
MeasurementChannel
— Channel for which to obtain measurements
1
(default) | positive integer
Channel for which to obtain measurements, specified as a positive integer in the range [1 N], where N is the number of input channels.
Scope Window Use
Click the Measurements tab on the Array Plot toolstrip. In the Channel section, select a Channel.
Data Types: double
CursorMeasurements
— Cursor measurements
CursorMeasurementsConfiguration
object
Cursor measurements to display screen or waveform cursors, specified as a CursorMeasurementsConfiguration
object.
All CursorMeasurementsConfiguration
properties are
tunable.
Scope Window Use
Click the Measurements tab on the Array Plot toolstrip and modify the cursor measurements in the Cursors section.
PeakFinder
— Peak finder measurements
PeakFinderConfiguration
object
Peak finder measurements to compute and display the largest calculated peak
values, specified as a PeakFinderConfiguration
object.
All PeakFinderConfiguration
properties are tunable.
Scope Window Use
Click the Measurements tab on the Array Plot toolstrip and modify the peak finder measurements in the Peaks section.
SignalStatistics
— Signal statistics measurements
SignalStatisticsConfiguration
object
Signal statistics measurements to compute and display signal statistics, specified
as a SignalStatisticsConfiguration
object.
All
SignalStatisticsConfiguration
properties are tunable.
Scope Window Use
Click the Measurements tab on the Array Plot toolstrip and modify the signal statistics measurements in the Statistics section.
Visualization
Name
— Window name
'Array Plot'
(default) | character vector | string scalar
Specify the name of the scope. This name appears as the title of the scope's figure window. To
specify a title of a scope plot, use the
Title
property.
Data Types: char
| string
Position
— Scope window position and size in pixels
screen center (default) | [left bottom width height]
Specify, in pixels, the size and location of the scope window as a four-element vector of the form [left
bottom width height]
. By default, the scope window appears in the center of your screen with a width of 800
pixels and height of 450 pixels. The default values for this property may change depending on your screen resolution.
MaximizeAxes
— Maximize axes control
"Auto"
(default) | "On"
| "Off"
Specify whether to display the scope in maximized-axes mode. In this mode, the axes are expanded to fit into the entire display. To conserve space, labels do not appear in each display. Instead, tick-mark values appear on top of the plotted data. You can select one of the following options:
"Auto"
— The axes appear maximized in all displays only if theTitle
andYLabel
properties are empty for every display. If you enter any value in any display for either of these properties, the axes are not maximized."On"
— The axes appear maximized in all displays. Any values entered into theTitle
andYLabel
properties are hidden."Off"
— None of the axes appear maximized.
Scope Window Use
Hover over the array plot to see the maximize axes button .
Data Types: char
| string
LayoutDimensions
— Dimensions of display grid layout
[1 1
] (default) | two-element vector
Since R2024b
Dimensions of the display grid layout, specified as a two-element numeric vector.
The grid can have a maximum of 10 rows and 10 columns. When you specify
[2
2
], for example, the scope shows four displays arranged in a 2-by-2
matrix.
If you create a grid of multiple axes, to modify the settings of the individual
axes, use the ActiveDisplay
property.
Tunable: Yes
Scope Window Use
Open the Scope tab, click Display Grid, and select a layout.
ActiveDisplay
— Active display
1
(default) | integer display number
Since R2024b
Active display, specified as an integer display number. The settings in the
YLimits
, XLabel
,
YLabel
, ShowLegend
,
ShowGrid
, Title
, and
PlotAsMagnitudePhase
properties affect only the active display
that you specify using this property.
The number of the display corresponds to the row-wise placement index of the
display. To control the layout of the display, use the
LayoutDimensions
property.
Tunable: Yes
Scope Window Use
Open the Scope tab, click Settings, and set Active Display.
PlotAsMagnitudePhase
— Plot signal as magnitude and phase
false
(default) | true
true
– The scope plots the magnitude and phase of the input signal on two separate axes within the same active display.false
– The scope plots the real and imaginary parts of the input signal on two separate axes within the same active display.
This property is useful for complex-valued input signals. Turning on this property affects the phase for real-valued input signals. When the amplitude of the input signal is nonnegative, the phase is 0 degrees. When the amplitude of the input signal is negative, the phase is 180 degrees.
Scope Window Use
On the Scope tab, click Settings, and select Magnitude Phase Plot.
Title
— Display title
""
(default) | character vector | string scalar
Specify the display title as a character vector or string.
Scope Window Use
On the Scope tab, click Settings, and set Title.
Data Types: char
| string
XLabel
— x-axis label
""
(default) | character vector | string scalar
Specify the text for the scope to display below the x-axis.
Scope Window Use
On the Scope tab, click Settings, and set X-Label.
Data Types: char
| string
YLabel
— y-axis label
"Amplitude"
(default) | character vector | string scalar
Specify the text for the scope to display to the left of the y-axis.
Dependencies
This property applies only when PlotAsMagnitudePhase
is false
. When PlotAsMagnitudePhase
is true
, the two y-axis labels are read-only values "Magnitude"
and "Phase"
, for the magnitude plot and the phase plot, respectively.
Scope Window Use
On the Scope tab, click Settings, and set Y-Label.
Data Types: char
| string
YLimits
— y-axis limits
[-10,10]
(default) | [ymin, ymax]
Specify the y-axis limits as a two-element numeric vector, [ymin, ymax]
.
If PlotAsMagnitudePhase
is false
, the default is [-10,10]
. If PlotAsMagnitudePhase
is true
, the default is [0,10]
.
Dependencies
When PlotAsMagnitudePhase
is true
, this property specifies the y-axis limits of only the magnitude plot. The y-axis limits of the phase plot are always [-180,180]
.
Scope Window Use
On the Scope tab, click Settings, and set Y-Limits as a two-element numeric vector.
ShowLegend
— Show legend
false
(default) | true
To show a legend with the input names, set this property to true
.
From the legend, you can control which signals are visible. This control is equivalent to changing the visibility in the Style dialog box. In the scope legend, click a signal name to hide the signal in the scope. To show the signal, click the signal name again. To show only one signal, right-click the signal name. To show all signals, press Esc.
Note
The legend only shows the first 20 signals. Any additional signals cannot be viewed or controlled from the legend.
Scope Window Use
On the Scope tab, click Legend. Alternatively, click Settings in the Scope tab, and select Show Legend.
Data Types: logical
ChannelNames
— Channel names
empty cell (default) | cell array of character vectors | array of strings
Specify the input channel names as a cell array of character vectors or an array of strings.
The names appear in the legend, Settings, and
Measurements panels. If you do not specify names, the channels
are labeled as Channel 1
, Channel 2
, etc.
Dependency
To see channel names, set ShowLegend
to true
.
Data Types: char
ShowGrid
— Display grid
true
(default) | false
Set this property to true
to show grid lines on the plot.
Scope Window Use
On the Scope tab, click Settings, and select Show Grid.
Color and Styling
BackgroundColor
— Background color in scope
[33 33 33
]/255
(default) | RGB triplet | hexadecimal color code | "r"
| "g"
| "b"
| ...
Since R2024b
Background color in scope, specified as an RGB triplet, a hexadecimal color code, a color name, or a short name. For more information on all the acceptable values, see Color.
Tunable: Yes
Scope Window Use
On the Scope tab, click Settings, and select a Background color.
Data Types: double
| char
AxesColor
— Color of axes in scope
[18 18 18
]/255
(default) | RGB triplet | hexadecimal color code | "r"
| "g"
| "b"
| ...
Since R2024b
Color of the axes in the scope, specified as an RGB triplet, a hexadecimal color code, a color name, or a short name. For more information on all the acceptable values, see Color.
Tunable: Yes
Scope Window Use
On the Scope tab, click Settings, and select an Axes color.
Data Types: double
| char
FontColor
— Color of labels in scope
[217 217 217
]/255
(default) | RGB triplet | hexadecimal color code | "r"
| "g"
| "b"
| ...
Since R2024b
Colors of the labels in the scope, specified as an RGB triplet, a hexadecimal color code, a color name, or a short name. Use this property to set the color of the scope title, x-axis and y-axis labels, and the axes ticks. For more information on all the acceptable values, see Color.
Tunable: Yes
Scope Window Use
On the Scope tab, click Settings, and select a Labels color.
Data Types: double
| char
FontSize
— Scope font size
8.5
(default) | positive scalar
Since R2024b
Scope font size, specified as a positive scalar. Use this property to set the font size for the ticks, labels, title, and measurements of the scope.
Tunable: Yes
Scope Window Use
On the Scope tab, click Settings, and set the Font Size to one of the available values.
Data Types: single
| double
| int8
| int16
| int32
| int64
| uint8
| uint16
| uint32
| uint64
LineVisible
— Visibility of plot lines in scope
"on"
or 1
(default) | "off"
or 0
| vector of logical values
Since R2024b
Visibility of plot lines in scope, specified as one of these:
"on"
or 1 –– The scope displays the plot line. If you are plotting multiple lines, the scope applies this value to all the lines."off"
or 0 –– The scope hides the plot line. If you are plotting multiple lines, the scope applies this value to all the lines.vector of logical values –– The scope applies the values to the lines in the plot. The length of the vector must equal the number of lines that you are plotting in the scope.
Tunable: Yes
Scope Window Use
On the Scope tab, click Settings, and select the Visible property.
Data Types: logical
LineStyle
— Scope line style
"-"
(default) | "--"
| ":"
| "-."
| "none"
| cell array or array
Since R2024b
Scope line style, specified as one of these options:
"-"
–– Solid line"--"
–– Dashed line":"
–– Dotted line"-."
–– Dash-dotted line"none"
–– No line
If you provide a cell array or an array of these values, then the length of the array must equal the number of lines that you are plotting in the scope.
Tunable: Yes
Scope Window Use
On the Scope tab, click Settings, and set Style.
LineWidth
— Scope line width
1.5
(default) | positive scalar | vector of positive scalar values
Since R2024b
Scope line width, specified as a positive scalar or a vector of positive scalar values in points, where 1 point = 1/72 of an inch. If you specify a scalar value and are plotting multiple lines, then the scope applies the same value to all the lines. If you provide a vector of values, the length of the vector must equal the number of lines that you are plotting.
If the line has markers, then the line width also affects the marker edges. The line width cannot be thinner than the width of a pixel. If you set the line width to a value that is less than the width of a pixel on your system, the line displays as one pixel wide.
Tunable: Yes
Scope Window Use
On the Scope tab, click Settings, and set Width.
Data Types: single
| double
| int8
| int16
| int32
| int64
| uint8
| uint16
| uint32
| uint64
BarWidth
— Relative width of individual bars
0.9
(default) | scalar in the range [0,1]
Since R2024b
Relative width of individual bars in a bar plot, specified as a scalar value in
the range [0
,1
]. Use this property to control
the separation of bars within a group. The default value of 0.9 separates the bars
slightly. If you set this property to 1, then adjacent bars touch.
Tunable: Yes
Dependencies
To enable this property, set PlotType
to
"Bar"
.
Scope Window Use
Open the Scope tab, click Settings, and set Width.
LineColor
— Scope line color
colororder
("default"
) (default) | matrix of RGB triplets | array of color names
Since R2024b
Scope line color, specified as a matrix of RGB triplets or an array of color names.
Tunable: Yes
Matrix of RGB Triplets
Specify an m-by-3 matrix, where each row is an RGB triplet. An RGB triplet is a three-element vector containing the intensities of the red, green, and blue components of a color. The intensities must be in the range [0,1]. For example, this matrix defines the new colors as blue, dark green, and orange.
scope.LineColor = [1.0 0.0 0.0 0.0 0.4 0.0 1.0 0.5 0.0];
Array of Color Names or Hexadecimal Color Codes
Specify any combination of color names, short names, or hexadecimal color codes.
To specify one color, set the line color to a character vector or a string scalar. For example,
scope.LineColor = 'red'
specifies red as the only color in the color order.To specify multiple colors, set
LineColor
to a cell array of character vectors or a string array. For example,scope.LineColor = {'red','green','blue'}
specifies red, green, and blue as the colors.
A hexadecimal color code starts with a hash symbol (#
) followed by
three or six hexadecimal digits, which can range from 0
to
F
. The values are not case sensitive. Thus, the color codes
'#FF8800'
, '#ff8800'
, '#F80'
, and
'#f80'
are equivalent.
This table lists the color names and short names with the equivalent RGB triplets and hexadecimal color codes.
Color Name | Short Name | RGB Triplet | Hexadecimal Color Code | Appearance |
---|---|---|---|---|
"red" | "r" | [1 0 0] | "#FF0000" | |
"green" | "g" | [0 1 0] | "#00FF00" | |
"blue" | "b" | [0 0 1] | "#0000FF" | |
"cyan"
| "c" | [0 1 1] | "#00FFFF" | |
"magenta" | "m" | [1 0 1] | "#FF00FF" | |
"yellow" | "y" | [1 1 0] | "#FFFF00" | |
"black" | "k" | [0 0 0] | "#000000" | |
"white" | "w" | [1 1 1] | "#FFFFFF" |
Scope Window Use
On the Scope tab, click Settings, and set Color.
Data Types: single
| double
| char
| string
| cell
LineMarker
— Scope line marker
"none"
| "o"
| "+"
| "*"
| "."
| ...
Since R2024b
Scope line marker symbol, specified as one of the values listed in this table. By default, the object does not display markers. Specifying a marker symbol adds markers at each data point or vertex.
Tunable: Yes
Scope Window Use
On the Scope tab, click Settings, and set Marker.
Usage
Description
Input Arguments
signal
— Input signal or signals to visualize
scalar | vector | matrix
Specify one or more input signals to visualize in the
dsp.ArrayPlot
. Signals can have a different number of channels and
different frame lengths.
Example: scope(signal1,signal2)
UI Customization
To customize the style of signals on the array plot, open the Settings and use the bottom row of options to select a signal and modify the style, width, color, and marker type.
Data Types: single
| double
| int8
| int16
| int32
| int64
| uint8
| uint16
| uint32
| uint64
| fi
Object Functions
To use an object function, specify the object as the first input argument.
Specific to dsp.ArrayPlot
generateScript | Generate MATLAB script to create scope with current settings |
printToFigure | Print scope window to MATLAB figure |
Specific to Scopes
If you want to restart the simulation from the beginning, call reset
to
clear the scope window displays. Do not call reset
after calling
release
.
Examples
Plot a Gaussian Distribution
Create a new dsp.ArrayPlot
object.
scope = dsp.ArrayPlot;
Configure the properties of the object for a Gaussian distribution. Use a bar plot to plot the distribution.
scope.YLimits = [0 1]; scope.XOffset = -2.5; scope.SampleIncrement = 0.1; scope.Title = "Gaussian distribution"; scope.XLabel = "X"; scope.YLabel = "f(X)"; scope.PlotType = "Bar";
Call the dsp.ArrayPlot
object to plot a Gaussian distribution.
scope(exp(-(-2.5:.1:2.5).*(-2.5:.1:2.5))')
You can scale the y-axis to show the plot on a log scale. In addition, you can change the background color and axes color of the scope to white, and font color to black.
release(scope) scope.YScale = 'Log'; scope.BackgroundColor="white"; scope.AxesColor="white"; scope.FontColor="black"; scope(exp(-(-2.5:.1:2.5).*(-2.5:.1:2.5))')
Print Array Plot Scope Display to MATLAB Figure
Since R2023b
Use the printToFigure
function to print the dsp.ArrayPlot
object display window to a new MATLAB® figure.
Create a dsp.ArrayPlot
object.
scope=dsp.ArrayPlot;
Set ArrayPlot
properties to display a Gaussian distribution.
scope.YLimits = [-0.1 1.1]; scope.XOffset = -2.5; scope.SampleIncrement = 0.1; scope.Title = "Gaussian distribution"; scope.XLabel = "X"; scope.YLabel = "f(X)";
Plot the Gaussian distribution.
scope(exp(-(-2.5:.1:2.5) .* (-2.5:.1:2.5))');
Change the background color and the axes color of the plot to "white"
. Set the font color to "black"
and the line color to "blue"
.
scope.BackgroundColor = "white"; scope.AxesColor = "white"; scope.FontColor = "black"; scope.LineColor = "blue"; show(scope) release(scope)
Print the display of the Gaussian distribution to a new MATLAB figure. The function returns a handle to the figure.
scopeFig = printToFigure(scope);
The handle to the figure scopeFig
lets you modify the appearance and the behavior of the figure window.
Specify a figure name and change the size of the figure to 400-by-250 pixels.
scopeFig.Name="Gaussian Distribution"; scopeFig.NumberTitle="off"; scopeFig.Position=[1 1 400 250];
When printing to figure, you can make the figure invisible by setting the Visible
argument to false
.
scopeFig = printToFigure(scope,Visible=false);
Customize Color and Style Settings of dsp.ArrayPlot
Object
Since R2024b
Create a dsp.ArrayPlot
object. The input to the object is a sinusoidal signal with three channels.
ap = dsp.ArrayPlot(PlotType="line",YLimits=[-2 2],... ChannelNames = ["Sine1","Sine2","Sine3"]); sineSignal = dsp.SineWave(Frequency = [100 200 300],... SamplesPerFrame=800,SampleRate=44.1e3);

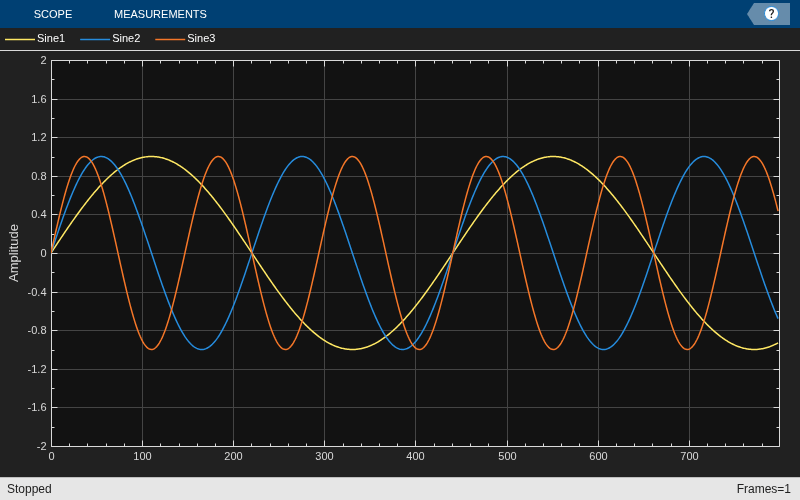

Plot the signal on the array plot. This plot shows the default color and style settings of the object.
input = sineSignal(); ap(input) release(ap);

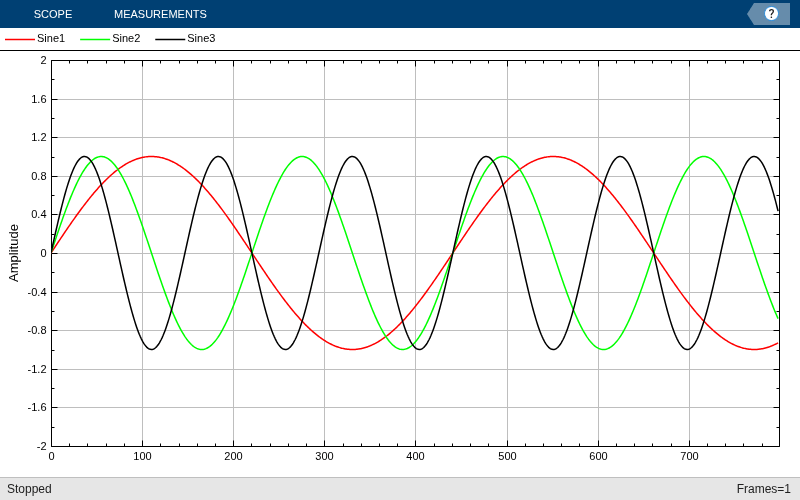

Change the background color and the axes color of the plot to "white"
. Set the font color to "black"
and change the line colors to ["red" "green" "black"]
.
ap.BackgroundColor = "white"; ap.AxesColor = "white"; ap.FontColor = "black"; ap.LineColor = ["red" "green" "black"]; show(ap) release(ap)

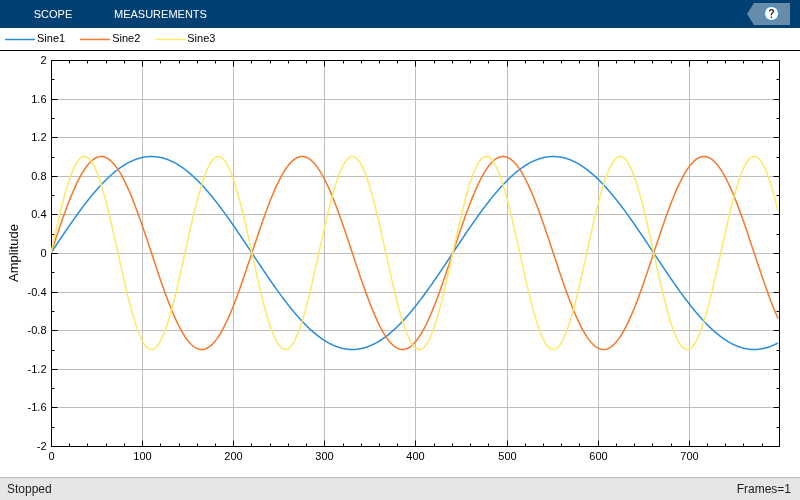

To change the color order, set LineColor
to a different color order. This setting changes the color order palette.
ap.LineColor = colororder("glow");
show(ap)
release(ap)

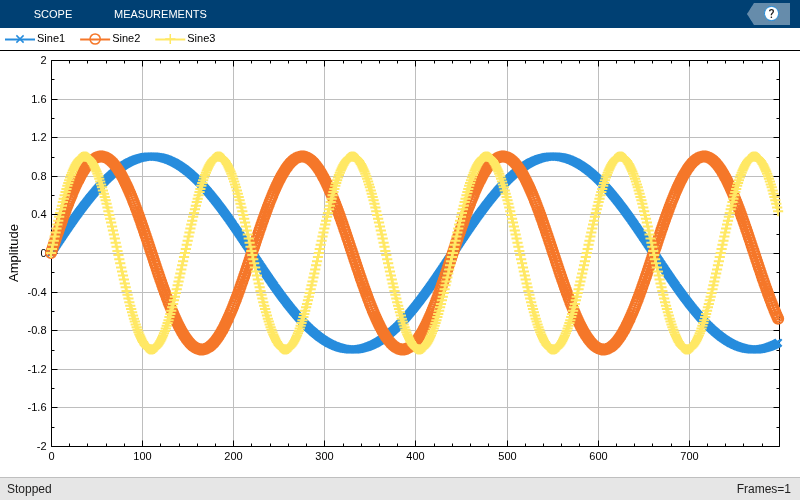

You can further specify a marker for each line and change the corresponding line width.
ap.LineMarker = ["x","o","+"]; ap.LineWidth = 2; show(ap) release(ap)

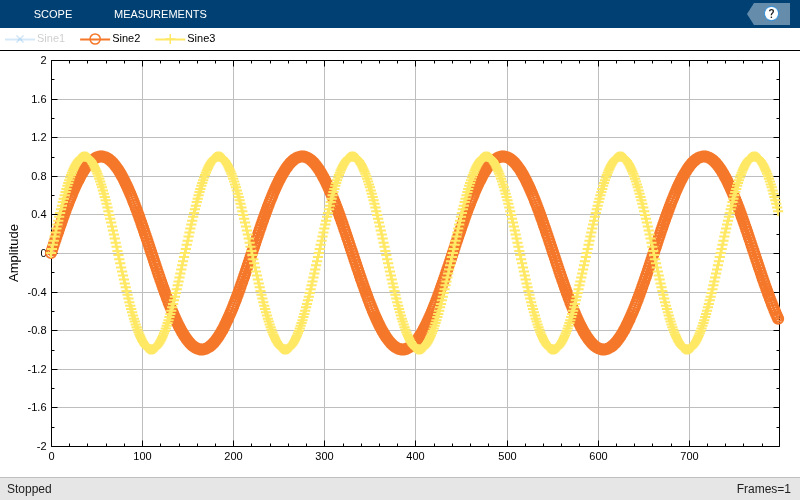

To control the visibility of the plot lines, use the LineVisible
property. When you select "off"
, the plot line becomes invisible.
ap.LineVisible = ["off" "on" "on"]; show(ap) release(ap)
Plot Changing Filter Weights
View least mean squares (LMS) adaptive filter weights on the Array Plot figure. Watch the filter weights change as they adapt to filter a noisy input signal.
Create an LMS adaptive filter System object™.
lmsFilter = dsp.LMSFilter(40,Method="Normalized LMS",... StepSize=0.002);
Create and configure a dsp.AudioFileReader
System object to read the input signal from the specified audio file.
signalSource = dsp.AudioFileReader("dspafxf_8000.wav",... SamplesPerFrame=40, ... PlayCount=Inf,... OutputDataType="double");
Create and configure a dsp.FIRFilter
System object to filter random white noise, creating colored noise.
firFilter = dsp.FIRFilter(Numerator=fir1(39,0.25));
Create and configure a dsp.ArrayPlot
object to display the adaptive filter weights.
scope = dsp.ArrayPlot(XLabel="Filter Tap", ... YLabel="Filter Weight", ... YLimits=[-0.05 0.2]');
Plot the LMS filter weights as they adapt to a desired signal. Read from the audio file, produce random data, and filter the random data. Update the filter weights and plot the filter weights.
numplays = 0; while numplays < 3 [y, eof] = signalSource(); noise = rand(40,1); noisefilt = firFilter(noise); desired = y + noisefilt; [~, ~, wts] = lmsFilter(noise,desired); scope(wts); numplays = numplays + eof; end
Power Spectrum of Multichannel Sinusoidal Signal
Compute the power spectrum of a multichannel sinusoidal signal using the dsp.SpectrumEstimator
System object™. You can get the vector of frequencies at which the spectrum is estimated using the getFrequencyVector
function. To compute the resolution bandwidth of the estimate (RBW), use the getRBW
function.
Generate a three-channel sinusoid sampled at 1 kHz. Specify sinusoidal frequencies of 100, 200, and 300 Hz. The second and third channels have their phases offset from the first by and , respectively.
sineSignal = dsp.SineWave(SamplesPerFrame=1000,SampleRate=1000, ...
Frequency=[100 200 300],PhaseOffset=[0 pi/2 pi/4]);
Estimate and plot the one-sided spectrum of the signal. Use the dsp.SpectrumEstimator
object for the computation and the dsp.ArrayPlot
for the plotting.
estimator = dsp.SpectrumEstimator(FrequencyRange='onesided'); plotter = dsp.ArrayPlot(PlotType='Line',YLimits=[0 0.75], ... YLabel='Power Spectrum (watts)',XLabel='Frequency (Hz)');
Step through to obtain the data streams and display the spectra of the three channels.
y = sineSignal(); pxx = estimator(y); plotter(pxx)
Get the vector of frequencies at which the spectrum is estimated in Hz, using the getFrequencyVector
function.
f = getFrequencyVector(estimator);
Compute the resolution bandwidth (RBW) of the estimate using the getRBW
function.
getRBW(estimator)
ans = 0.0015
The resolution bandwidth of the signal power spectrum is 0.0015 Hz. This frequency is the smallest frequency that can be resolved on the spectrum.
Power and Max-Hold Spectra of Noisy Sine Wave
Generate a sine wave.
sineWave = dsp.SineWave(Frequency=100,... SampleRate=1000, ... SamplesPerFrame=1000);
Use the spectrum estimator to compute the power spectrum and the max-hold spectrum of the sine wave. Use the Array Plot to display the spectra.
SE = dsp.SpectrumEstimator(... SampleRate=sineWave.SampleRate,... SpectrumType='Power',PowerUnits='dBm', ... FrequencyRange='centered',... OutputMaxHoldSpectrum=true); plotter = dsp.ArrayPlot(PlotType='Line',... XOffset=-500, ... YLimits=[-60 30],... Title='Power Spectrum of 100 Hz Sine Wave', ... YLabel='Power Spectrum (dBm)',... XLabel='Frequency (Hz)');
Add random noise to the sine wave. Stream in the data, and plot the power spectrum of the signal.
for ii = 1:10 x = sineWave() + 0.05*randn(1000,1); [Pxx,Pmax] = SE(x); plotter([Pxx Pmax]) end
Limitations
Does not support C/C++ code generation using MATLAB® Coder™. To generate a standalone application, use the MATLAB Compiler™.
Supports MEX code generation by treating the calls to the object as extrinsic.
Tips
Version History
Introduced in R2013aR2024b: New color and styling properties
Using the new color and styling properties, you can customize the plot line, axes, and background settings of the scope through the MATLAB command line.
R2024b: Support for bar plots
The dsp.ArrayPlot
object now supports bar plots. To view data using a
bar plot, set PlotType
to "Bar"
. You can set the
base value of the bar plot using PlotBaseValue
and the relative width
of the bar plot using BarWidth
.
R2024b: Support for multiple displays
Using the LayoutDimensions
property, you can now specify the scope
to show multiple displays. When you specify [2
2
], for example, the scope shows four displays arranged in a 2-by-2
matrix. The display grid can have a maximum of 10 rows and 10 columns.
If you create a grid of multiple axes, to modify the settings of the individual axes,
use the ActiveDisplay
property.
R2024b: Specify active display
You can now specify the active display using the ActiveDisplay
property. The settings in the YLimits
, XLabel
,
YLabel
, ShowLegend
,
ShowGrid
, Title
, and
PlotAsMagnitudePhase
properties affect only the active display
R2024b: Higher display precision in scope UI
You can now increase the display precision to 15 digits using the Display Precision property in the scope settings under Display and Labels. This precision affects all the measurements and data that the scope displays on its status bar.
R2024b: Preserve Colors is now available in scope toolstrip
The Preserve colors for copy to clipboard property has been renamed to Preserve Colors and is now available in the scope toolstrip under Copy Display.
R2024a: Plot tab has been renamed as Scope tab
The Plot tab in array plot has been renamed as Scope tab.
R2023b: Support for printToFigure
function
You can print the dsp.ArrayPlot
object display window to a MATLAB figure using the new printToFigure
function.
R2022b: Channel names support array of strings
Starting in R2022b, you can specify the ChannelNames
property of
the dsp.ArrayPlot
object as an array of strings.
ap = dsp.ArrayPlot(ChannelNames=["Input", "Noisy Output"]);
MATLAB Command
You clicked a link that corresponds to this MATLAB command:
Run the command by entering it in the MATLAB Command Window. Web browsers do not support MATLAB commands.
Select a Web Site
Choose a web site to get translated content where available and see local events and offers. Based on your location, we recommend that you select: .
You can also select a web site from the following list:
How to Get Best Site Performance
Select the China site (in Chinese or English) for best site performance. Other MathWorks country sites are not optimized for visits from your location.
Americas
- América Latina (Español)
- Canada (English)
- United States (English)
Europe
- Belgium (English)
- Denmark (English)
- Deutschland (Deutsch)
- España (Español)
- Finland (English)
- France (Français)
- Ireland (English)
- Italia (Italiano)
- Luxembourg (English)
- Netherlands (English)
- Norway (English)
- Österreich (Deutsch)
- Portugal (English)
- Sweden (English)
- Switzerland
- United Kingdom (English)
