Save spectrum data shown in spectrum analyzer



spectrumTable = getSpectrumData(scope) returns the spectrum and spectrogram displayed on the spectrum analyzer along with additional statistics about the spectrum.


collapse all

Create a Spectrum Analyzer object and generate data.

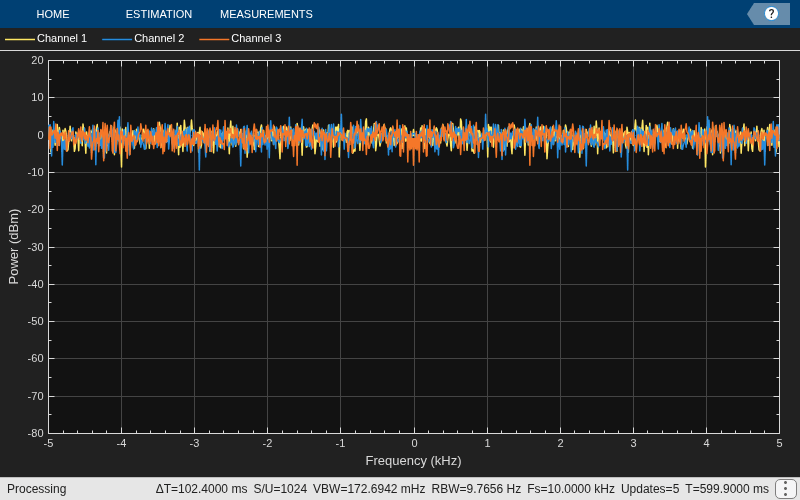

scope = spectrumAnalyzer;

Save data from the last spectrum shown in the Spectrum Analyzer to a table.

specTable = getSpectrumData(scope)
specTable =

  1x3 table

    SimulationTime       Spectrum        FrequencyVector
    ______________    _______________    _______________

        0.5999        {1024x3 double}    {1024x1 double}

Input Arguments

collapse all

Spectrum Analyzer you want to query, specified as one of the following:

Output Arguments

collapse all

A spectrum table is returned containing the following fields:

SimulationTimeSimulation time
SpectrumPower, power density, or RMS spectrum data
SpectrogramSpectrogram data
MinHoldTraceMinimum hold trace data
MaxHoldTraceMaximum hold trace data
FrequencyVectorFrequency vector

Version History

Introduced in R2017b

expand all

Not recommended starting in R2022a
