iirlp2bpc
Transform IIR lowpass filter to complex bandpass filter
Description
[
transforms an IIR lowpass filter to a complex bandpass filter.num
,den
,allpassNum
,allpassDen
] =
iirlp2bpc(b
,a
,wo
,wt
)
The function transforms a real lowpass prototype filter, specified as the
numerator and denominator coefficients b
and
a
respectively, to a complex bandpass filter by applying a
first-order real lowpass to complex bandpass frequency transformation.
The function returns the numerator and denominator coefficients of the transformed
complex bandpass filter. The function also returns the numerator and denominator
coefficients of the allpass mapping filter, allpassNum
and
allpassDen
respectively.
For more details on the transformation, see IIR Lowpass to Complex Bandpass Transformation.
Examples
Transform Lowpass Filter to Complex Bandpass Filter
Transform a lowpass IIR filter to a complex bandpass filter using the iirlp2bpc
function.
Input Lowpass IIR Filter

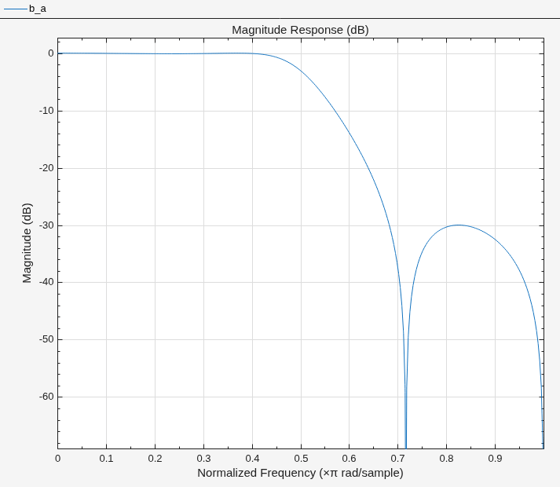

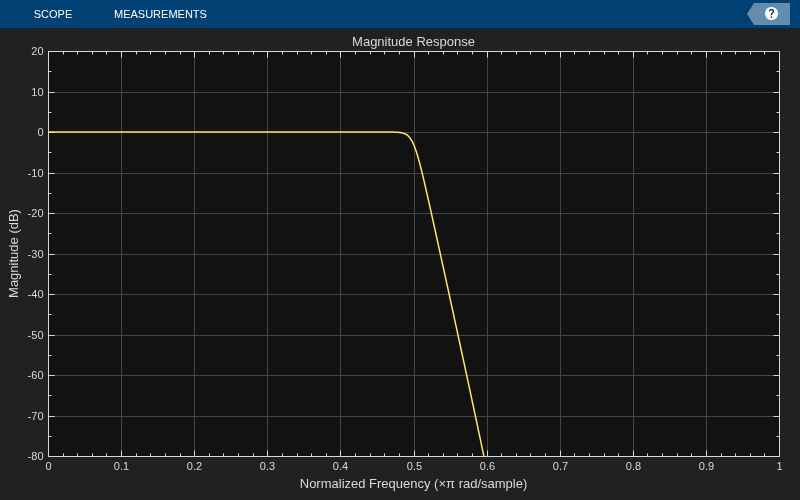

Design a prototype real IIR lowpass elliptic filter with a gain of about –3 dB at 0.5π rad/sample.
[b,a] = ellip(3,0.1,30,0.409); filterAnalyzer(b,a)
Transform Filter Using iirlp2bpc
Transform the prototype lowpass filter into a complex bandpass filter by placing the cutoff frequencies of the prototype filter at 0.25π and 0.75π.
Specify the prototype filter as a vector of numerator and denominator coefficients, b
and a
respectively.
[num,den] = iirlp2bpc(b,a,0.5,[0.25 0.75]);

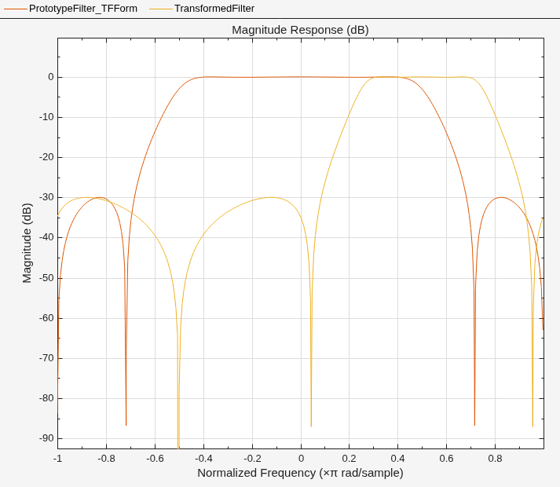

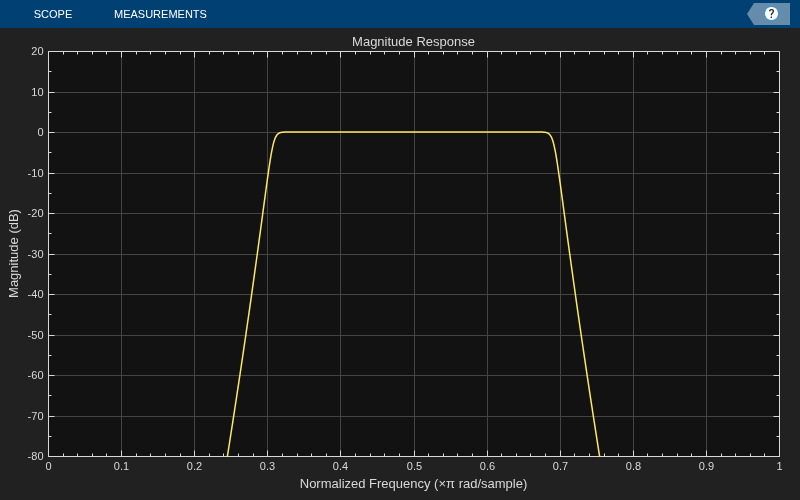

Compare the magnitude response of the filters.
filterAnalyzer(b,a,num,den,FrequencyRange="centered",... FilterNames=["PrototypeFilter_TFForm",... "TransformedFilter"]);
Alternatively, you can also specify the input lowpass IIR filter as a matrix of coefficients. Pass the second order section coefficient matrices as inputs.
ss = tf2sos(b,a); [num2,den2] = iirlp2bpc(ss(:,1:3),ss(:,4:6),0.5,[0.25 0.75]);
Use the sos2ctf
function to convert the second-order section matrices to the cascaded transfer function form.
[b_ctf,a_ctf] = sos2ctf(ss);

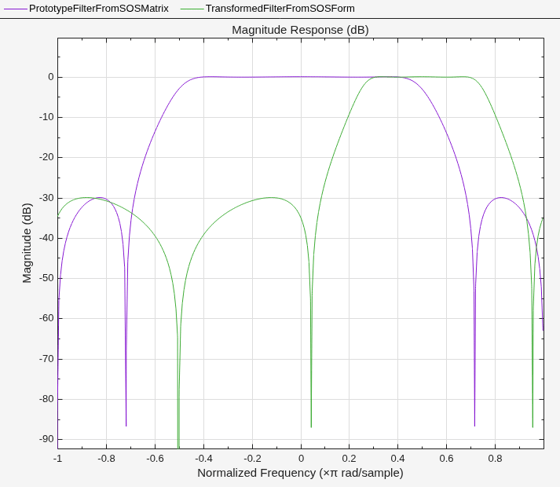

Compare the magnitude response of the filters.
filterAnalyzer(b_ctf,a_ctf,num2,den2,FrequencyRange="centered",... FilterNames=["PrototypeFilterFromSOSMatrix", ... "TransformedFilterFromSOSForm"]);
Copyright 2012–2024 The MathWorks, Inc.
Input Arguments
b
— Numerator coefficients of prototype lowpass IIR filter
row vector | matrix
Numerator coefficients of the prototype lowpass IIR filter, specified as either:
Row vector –– Specifies the values of [b0, b1, …, bn], given this transfer function form:
where n is the order of the filter.
Matrix –– Specifies the numerator coefficients in the form of an P-by-(Q+1) matrix, where P is the number of filter sections and Q is the order of each filter section. If Q = 2, the filter is a second-order section filter. For higher-order sections, make Q > 2.
In the transfer function form, the numerator coefficient matrix bik of the IIR filter can be represented using the following equation:
where,
a –– Denominator coefficients matrix. For more information on how to specify this matrix, see
a
.k –– Row index.
i –– Column index.
When specified in the matrix form, b and a matrices must have the same number of rows (filter sections) Q.
Data Types: single
| double
Complex Number Support: Yes
a
— Denominator coefficients of prototype lowpass IIR filter
row vector | matrix
Denominator coefficients for a prototype lowpass IIR filter, specified as one of these options:
Row vector –– Specifies the values of [a0, a1, …, an], given this transfer function form:
where n is the order of the filter.
Matrix –– Specifies the denominator coefficients in the form of an P-by-(Q+1) matrix, where P is the number of filter sections and Q is the order of each filter section. If Q = 2, the filter is a second-order section filter. For higher-order sections, make Q > 2.
In the transfer function form, the denominator coefficient matrix aik of the IIR filter can be represented using the following equation:
where,
b –– Numerator coefficients matrix. For more information on how to specify this matrix, see
b
.k –– Row index.
i –– Column index.
When specified in the matrix form, a and b matrices must have the same number of rows (filter sections) P.
Data Types: single
| double
Complex Number Support: Yes
wo
— Frequency value to transform from prototype filter
scalar
Frequency value to transform from the prototype filter, specified as a
real scalar. Frequency wo
should be normalized to be
between 0
and 1
, with
1
corresponding to half the sample rate.
Data Types: single
| double
wt
— Desired frequency locations in transformed target filter
two-element vector
Desired frequency locations in the transformed target filter, specified as
a two-element vector. Frequencies in wt
should be
normalized to be between -1
and 1
,
with 1
corresponding to half the sample rate.
Data Types: single
| double
Output Arguments
num
— Numerator coefficients of transformed complex bandpass filter
row vector | matrix
Numerator coefficients of the transformed complex bandpass filter, returned as one of the following:
Row vector of length n+1, where n is the order of the input filter. The
num
output is a row vector when the input coefficientsb
anda
are row vectors.P-by-(Q+1) matrix, where P is the number of filter sections and Q is the order of each section of the transformed filter. The
num
output is a matrix when the input coefficientsb
anda
are matrices.
Data Types: single
| double
Complex Number Support: Yes
den
— Denominator coefficients of transformed complex bandpass filter
row vector | matrix
Denominator coefficients of the transformed complex bandpass filter, returned as one of the following:
Row vector of length n+1, where n is the order of the input filter. The
den
output is a row vector when the input coefficientsb
anda
are row vectors.P-by-(Q+1) matrix, where P is the number of filter sections and Q is the order of each section of the transformed filter. The
den
output is a matrix when the input coefficientsb
anda
are matrices.
Data Types: single
| double
Complex Number Support: Yes
allpassNum
— Numerator coefficients of mapping filter
row vector
Numerator of the mapping filter, returned as a row vector.
Data Types: single
| double
Complex Number Support: Yes
allpassDen
— Denominator coefficients of mapping filter
row vector
Denominator of the mapping filter, returned as a row vector.
Data Types: single
| double
Complex Number Support: Yes
More About
IIR Lowpass to Complex Bandpass Transformation
IIR lowpass to complex bandpass transformation effectively places
one feature of the original filter, located at frequency
−wo
, at the required target
frequency location, wt1
, and the second
feature, originally at wo
, at the new
location, wt2
. It is assumed that
wt2
is greater than
wt1
.
Relative positions of other features of the original filter do not change in the target filter. This means that it is possible to select two features of an original filter, F1 and F2, with F1 preceding F2. Feature F1 will still precede F2 after the transformation. However, the distance between F1 and F2 will not be the same before and after the transformation.
Choice of the feature subject to the lowpass to bandpass transformation is not restricted only to the cutoff frequency of an original lowpass filter. You can choose to transform any feature of the original filter like stopband edge, DC, deep minimum in the stopband, or others.
Lowpass to bandpass transformation can also be used to transform other types of filters, for example real notch filters or resonators can be doubled and positioned at two distinct desired frequencies at any place around the unit circle, forming a pair of complex notches or resonators. You can use this transformation to design bandpass filters for radio receivers from the high-quality prototype lowpass filter.
Extended Capabilities
C/C++ Code Generation
Generate C and C++ code using MATLAB® Coder™.
Version History
Introduced in R2011a
