dsp.FilterCascade

Create cascade of filter System objects

Description

The dsp.FilterCascade object creates a multistage System object™ that enables cascading of filter System objects and scalar gains. This object operates similar to the cascade function. However, the cascade function does not support delay as a filter stage.

You can pass the dsp.FilterCascade System object as a stage to another dsp.FilterCascade System object. You can also pass dsp.FilterCascade System object as an input to the cascade function.

When you call the object, the size, data type, and complexity of the input signal must be supported by all of the stages in the filter cascade. This object supports variable-size signals if the filter stages within the object support variable-size signals.

To filter a signal with a cascade of filters:

  1. Create the dsp.FilterCascade object and set its properties.

  2. Call the object with arguments, as if it were a function.

To learn more about how System objects work, see What Are System Objects?

Alternatively, you can generate a MATLAB® function from the filter cascade object, and call that function to filter a signal. The generated function supports C/C++ code generation. For more details, see the generateFilteringCode function.

Creation

Description

FC = dsp.FilterCascade returns a System object, FC that has a single stage, a dsp.FIRFilter System object with default properties.

example

FC = dsp.FilterCascade(filt1,filt2,...,filtn) returns a multistage System object, FC, with the first stage set to filt1, the second stage set to filt2, and so on. Each stage can be a filter System object or a scalar gain value.

For example, create a filter cascade that includes a lowpass filter, a highpass filter, and a gain stage.

lpFilt = dsp.LowpassFilter(StopbandFrequency=15000,...
                           PassbandFrequency=12000);
hpFilt = dsp.HighpassFilter(StopbandFrequency=5000,...
                            PassbandFrequency=8000);
gain = 2;
bpFilt = dsp.FilterCascade(lpFilt,hpFilt,2);

Properties

expand all

Unless otherwise indicated, properties are nontunable, which means you cannot change their values after calling the object. Objects lock when you call them, and the release function unlocks them.

If a property is tunable, you can change its value at any time.

For more information on changing property values, see System Design in MATLAB Using System Objects.

Filter stage, specified as a filter System object or a scalar gain value. To see which System objects you can add to a filter cascade, use:

dsp.FilterCascade.helpSupportedSystemObjects
You can modify an existing stage by modifying the associated property. For example:
FC = dsp.FilterCascade(dsp.FIRFilter,5)

FC =

  dsp.FilterCascade with properties:

    Stage1: [1×1 dsp.FIRFilter]
    Stage2: 5

K>> FC.Stage2 = dsp.FIRDecimator

FC =

  dsp.FilterCascade with properties:

    Stage1: [1×1 dsp.FIRFilter]
    Stage2: [1×1 dsp.FIRDecimator]
To change the number of stages in a cascade, use the addStage and removeStage functions.

Usage

Syntax

Description

example

y = FC(x) filters input signal x by using the filter cascade defined in FC and returns filtered output y. The size, data type, and complexity of the input signal must be supported by all of the stages in the filter cascade. This object supports variable-size signals if the filter stages within the object support variable-size signals.

Input Arguments

expand all

Data input, specified as a vector or a matrix. When the input is a matrix, each column of the matrix represents an independent data channel.

Data Types: single | double
Complex Number Support: Yes

Output Arguments

expand all

Filtered output data, returned as a vector or a matrix. The size, data type, and complexity of the output signal matches that of the input signal.

Data Types: double | single
Complex Number Support: Yes

Object Functions

To use an object function, specify the System object as the first input argument. For example, to release system resources of a System object named obj, use this syntax:

release(obj)

expand all

addStageAdd filter stage to cascade
generateFilteringCodeGenerate MATLAB code for a filter cascade
getNumStagesGet number of stages in filter cascade
releaseStagesRelease locked state of all stages in cascade
removeStageRemove stage from filter cascade
outputDelayDetermine output delay of single-rate or multirate filter
stepRun System object algorithm
releaseRelease resources and allow changes to System object property values and input characteristics
resetReset internal states of System object

Examples

collapse all

Design a bandpass filter by cascading:

  • A highpass filter with a stopband frequency of 5000 Hz and a passband frequency of 8000 Hz

  • A lowpass filter with a passband frequency of 12,000 Hz and a stopband frequency of 15,000 Hz

Visualize the frequency response using fvtool.

lpFilt = dsp.LowpassFilter(StopbandFrequency=15000,...
    PassbandFrequency=12000);
hpFilt = dsp.HighpassFilter(StopbandFrequency=5000,...
    PassbandFrequency=8000);

bpFilt = dsp.FilterCascade(lpFilt,hpFilt);

hvft = fvtool(bpFilt);
legend(hvft,'Bandpass filter');

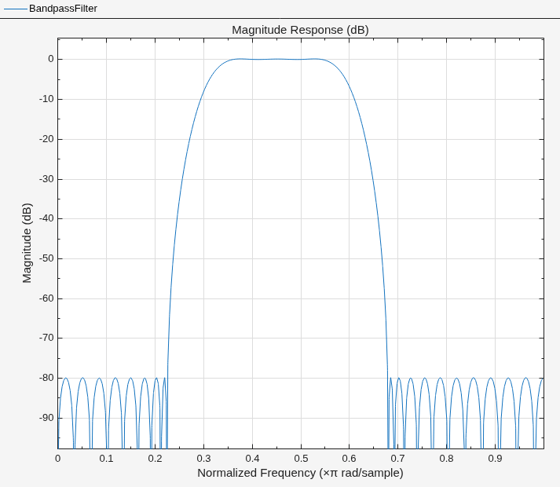

Figure Figure 1: Magnitude Response (dB) contains an axes object. The axes object with title Magnitude Response (dB), xlabel Normalized Frequency ( times pi blank rad/sample), ylabel Magnitude (dB) contains an object of type line. This object represents Bandpass filter.

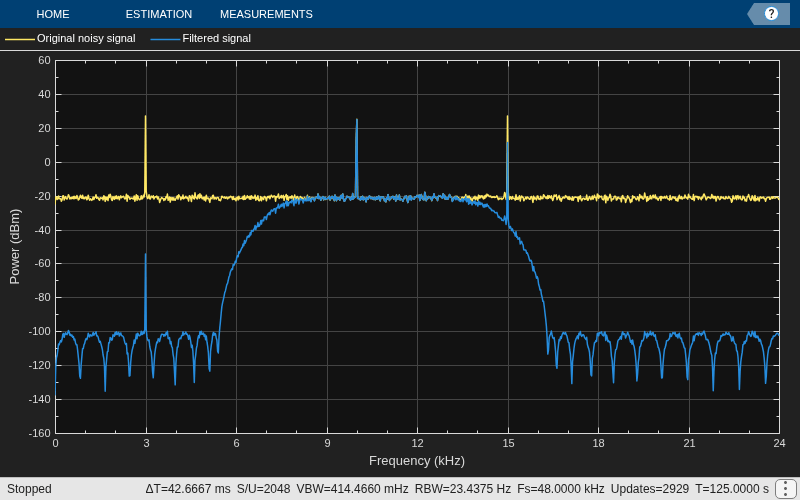

Pass a noisy sine wave as the input to the bandpass filter. The input is a sum of three sine waves with frequencies at 3 kHz, 10 kHz, and 15 kHz. The sampling frequency is 48 kHz. View the input and the filtered output on a spectrum analyzer.

The tones at 3 kHz and 15 kHz are attenuated, and the tone at 10 kHz is preserved by the bandpass filter.

Sine1 = dsp.SineWave(Frequency=3e3,...
    SampleRate=48e3,...
    SamplesPerFrame=6000);
Sine2 = dsp.SineWave(Frequency=10e3,...
    SampleRate=48e3,...
    SamplesPerFrame=6000);
Sine3 = dsp.SineWave(Frequency=15e3,...
    SampleRate=48e3,...
    SamplesPerFrame=6000);

SpecAna = spectrumAnalyzer(...
    PlotAsTwoSidedSpectrum=false,...
    SampleRate=Sine1.SampleRate, ...
    ShowLegend=true, ...
    YLimits=[-160,60]);

SpecAna.ChannelNames = {'Original noisy signal','Filtered signal'};

for i = 1:1000
    x = Sine1()+Sine2()+Sine3()+0.1.*randn(Sine1.SamplesPerFrame,1);
    y = bpFilt(x);
    SpecAna(x,y);

end
release(SpecAna)

Create a CIC decimator. Cascade the decimator with a gain.

cicdecim = dsp.CICDecimator(...
    DecimationFactor=6,...
    NumSections=6);
decimcasc = dsp.FilterCascade(cicdecim,...
    1/gain(cicdecim));

Design a compensation decimator and cascade it with the filter cascade, decimcasc. This operation nests a dsp.FilterCascade object as a stage in another filter cascade. The CIC compensation decimator has an inherent gain, gain(cicdecim). The factor of 1/gain(cicdecim) from the decimation filter cascade, decimcasc, compensates for the compensation filter gain.

% Sample rate of input of compensation decimator
fs = 16e3;
% Passband frequency
fPass = 4e3;
% Stopband frequency
fStop = 4.5e3;
ciccomp = dsp.CICCompensationDecimator(cicdecim,...
    DecimationFactor=2, ...
    PassbandFrequency=fPass, ...
    StopbandFrequency=fStop, ...
    SampleRate=fs);
filtchain = dsp.FilterCascade(decimcasc,ciccomp);

Visualize the frequency response of the cascade of cascades.

f = fvtool(decimcasc,ciccomp,...
    filtchain,Fs=[fs*6,fs,fs*6],...
    Arithmetic="fixed");
legend(f,'CIC Decimator',...
    'CIC Compensation Decimator',...
    'Overall Response');

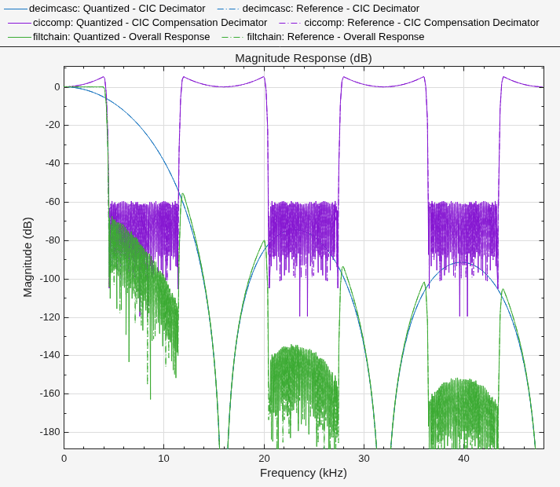

Figure Figure 1: Magnitude Response (dB) contains an axes object. The axes object with title Magnitude Response (dB), xlabel Frequency (kHz), ylabel Magnitude (dB) contains 6 objects of type line. These objects represent CIC Decimator: Quantized, CIC Decimator: Reference, CIC Compensation Decimator: Quantized, CIC Compensation Decimator: Reference, Overall Response: Quantized, Overall Response: Reference.

Design a two-stage decimator with a 100-Hz transition width, a 2-kHz sampling frequency, and 60-dB attenuation in the stopband. The decimator needs to downsample by a factor of 4.

filtCasc = designMultistageDecimator(4,2000,100,60)
filtCasc =
  dsp.FilterCascade with properties:

         Stage1: [1x1 dsp.FIRDecimator]
         Stage2: [1x1 dsp.FIRDecimator]
    CloneStages: false

Verify your design by using fvtool.

 info(filtCasc)
ans =
    'Discrete-Time Filter Cascade
     ----------------------------
     Number of stages: 2
     Stage cloning: disabled

     Stage1: dsp.FIRDecimator
     -------
     Discrete-Time FIR Multirate Filter (real)
     -----------------------------------------
     Filter Structure   : Direct-Form FIR Polyphase Decimator
     Decimation Factor  : 2
     Polyphase Length   : 10
     Filter Length      : 19
     Stable             : Yes
     Linear Phase       : Yes (Type 1)

     Arithmetic         : double


     Stage2: dsp.FIRDecimator
     -------
     Discrete-Time FIR Multirate Filter (real)
     -----------------------------------------
     Filter Structure   : Direct-Form FIR Polyphase Decimator
     Decimation Factor  : 2
     Polyphase Length   : 18
     Filter Length      : 35
     Stable             : Yes
     Linear Phase       : Yes (Type 1)

     Arithmetic         : double

     '

 fvtool(filtCasc)

Figure Figure 1: Magnitude Response (dB) contains an axes object. The axes object with title Magnitude Response (dB), xlabel Frequency (Hz), ylabel Magnitude (dB) contains 2 objects of type line.

Generate code to filter data using this design. You cannot generate C/C++ code from the dsp.FilterCascade object directly, but you can generate C/C++ code from the generated function. The function defines the filter stages and calls them in sequence. The function is saved in a file called myDecimator.m in the current directory.

 generateFilteringCode(filtCasc,'myDecimator');

The myDecimator function creates a filter cascade and calls each stage object in turn.

 type myDecimator
function y = myDecimator(x)
%MYDECIMATOR Construct a filter cascade and process its stages

% MATLAB Code
% Generated by MATLAB(R) 23.2 and DSP System Toolbox 23.2.
% Generated on: 19-Aug-2023 11:58:12

% To generate C/C++ code from this function use the codegen command.
% Type 'help codegen' for more information.
%#codegen

%% Construction
persistent firdn1 firdn2
if isempty(firdn1)
    firdn1 = dsp.FIRDecimator(  ...
        Numerator=[0.0021878514650437138 0 -0.010189095418136306 0 0.031140395225498142 0 -0.082785931644222849 0 0.30979571849010856 0.5 0.30979571849010856 0 -0.082785931644222849 0 0.031140395225498142 0 -0.010189095418136306 0 0.0021878514650437138]);
    firdn2 = dsp.FIRDecimator(  ...
        Numerator=[0.0011555011750488237 0 -0.0027482166351233102 0 0.0057681982289523072 0 -0.010736374060960912 0 0.018592020073668478 0 -0.031093723586671229 0 0.052603914610235683 0 -0.099130756073130377 0 0.31592697826202448 0.5 0.31592697826202448 0 -0.099130756073130377 0 0.052603914610235683 0 -0.031093723586671229 0 0.018592020073668478 0 -0.010736374060960912 0 0.0057681982289523072 0 -0.0027482166351233102 0 0.0011555011750488237]);
end

%% Process
y1 = firdn1(x);
y = firdn2(y1);
