# Solve PDE Using Fourier Neural Operator

This example shows how to train a Fourier neural operator (FNO) neural network that outputs the solution of a partial differential equation (PDE).

A *neural operator* [1] is a type of neural network that maps between function spaces. For example, it can learn to output the solution to a PDE when given the initial conditions for the system. A *Fourier neural operator* (FNO) [2] is a neural operator that can learn these mappings more efficiently by leveraging Fourier transforms. In particular, for an input function $$f$$ in the spatial domain, the layers in the neural network learn the transformation $$\mathcal{F}$$ such that $$\mathcal{F}(f)=\underset{}{\overset{\u02c6}{f}}$$, where $$\underset{}{\overset{\u02c6}{f}}$$ is the Fourier transform of $$f$$. The FNO can then operate in the frequency domain. Using a neural network to predict the solutions of a PDE can be faster than computing the solutions numerically.

This diagram illustrates the flow of data through an FNO.

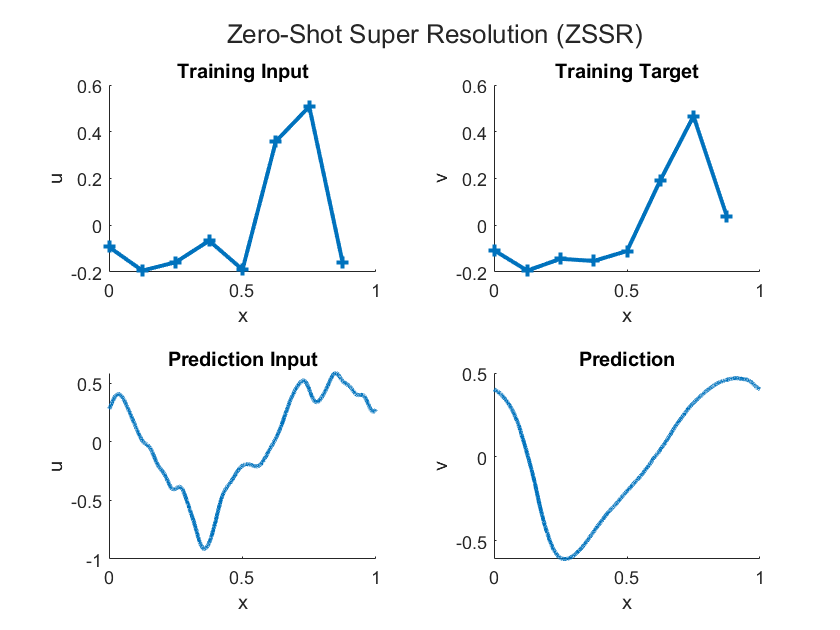

Because an FNO learns mappings between function spaces, you can evaluate the output function at a higher resolution than that of the training data. This functionality is known as zero-shot super-resolution (ZSSR). That is, ZSSR is the ability to enhance the resolution of the input and output data beyond the original training data, without the need for additional high-resolution examples. This diagram illustrates the differences between low-resolution training data and high-resolution inputs and outputs for prediction.

This example trains an FNO to output the solutions to the 1-D Burgers' equation.

### Load Training Data

Load the data for the 1-D Burgers' equation.

The Burgers' equation is a PDE that arises in different areas of applied mathematics, for example, in fluid mechanics, nonlinear acoustics, gas dynamics, and traffic flows. The PDE is:

$$\frac{\partial u}{\partial t}+u\frac{\partial u}{\partial x}=\frac{1}{Re}\frac{{\partial}^{2}u}{\partial {x}^{2}},x\in (0,1),t\in (0,1),$$

where $$Re$$ is the Reynolds number. The initial conditions are:

$$u(x,0)={u}_{0}(x),x\in (0,1)$$

The equation imposes periodic boundary conditions across the spatial domain with the initial condition $${u}_{0}$$ to the solution at time $$t=1:{u}_{0}\u27fcu(x,1)$$.

Load the data for the 1-D Burgers' equation from `burgers_data_R10.mat`

, which contains initial velocities $${u}_{0}$$ and solutions $$u(x,1)$$ of the Burgers' equation.

dataFile = "burgers_data_R10.mat"; if ~exist(dataFile,"file") location = "https://ssd.mathworks.com/supportfiles/nnet/data/burgers1d/burgers_data_R10.mat"; websave(dataFile,location); end data = load(dataFile,"a","u"); u0 = data.a; u1 = data.u;

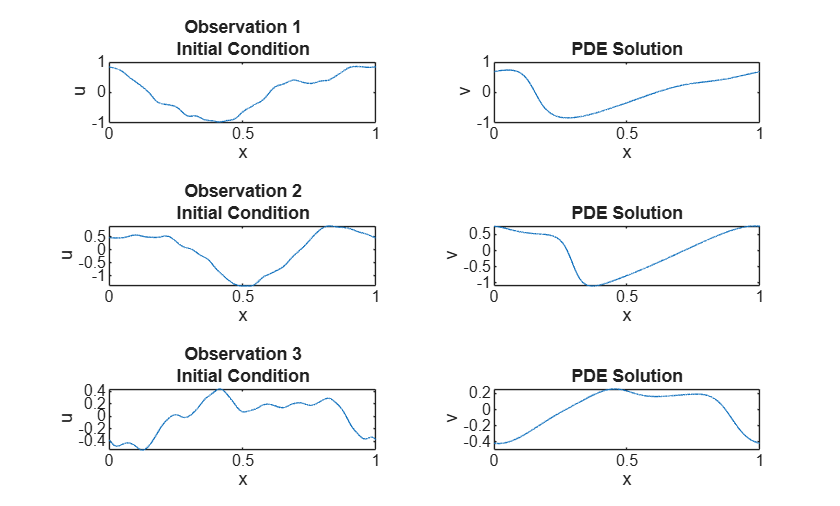

View some of the training data.

numPlots = 3; gridSize = size(u0,2); figure tiledlayout(numPlots,2) for i = 1:numPlots nexttile plot(linspace(0,1,gridSize),u0(i,:)); title("Observation " + i + newline + "Initial Condition") xlabel("x") ylabel("u") nexttile plot(linspace(0,1,gridSize),u1(i,:)); title("PDE Solution") xlabel("x") ylabel("v") end

### Prepare Training Data

Split the training and test data using the `trainingPartitions`

function, attached to the example as a supporting file. To access this function, open the example as a live script. Use 80% of the data for training, 10% for validation, and the remaining 10% for testing.

numObservations = size(u0,1); [idxTrain,idxValidation,idxTest] = trainingPartitions(numObservations,[0.8 0.1 0.1]); U0Train = u0(idxTrain,:); U1Train = u1(idxTrain,:); U0Validation = u0(idxValidation,:); U1Validation = u1(idxValidation,:); U0Test = u0(idxTest,:);

To reduce the amount of processing in the FNO, downsample the training and validation data so that it has a grid size of 1024.

gridSizeDownsampled = 1024; downsampleFactor = floor(gridSize./gridSizeDownsampled); U0Train = U0Train(:,1:downsampleFactor:end); U1Train = U1Train(:,1:downsampleFactor:end); U0Validation = U0Validation(:,1:downsampleFactor:end); U1Validation = U1Validation(:,1:downsampleFactor:end);

The FNO requires the input data to have a channel that corresponds to the spatial coordinates (the grid). Create the grid and concatenate it with the input data.

xMin = 0; xMax = 1; xGrid = linspace(xMin,xMax,gridSizeDownsampled); xGridTrain = repmat(xGrid, [numel(idxTrain) 1]); xGridValidation = repmat(xGrid, [numel(idxValidation) 1]); U0Train = cat(3,U0Train,xGridTrain); U0Validation = cat(3,U0Validation,xGridValidation);

View the sizes of the training and validation sets. The first, second, and third dimensions are the batch, spatial, and channel dimensions, respectively.

size(U0Train)

`ans = `*1×3*
1638 1024 2

size(U0Validation)

`ans = `*1×3*
204 1024 2

### Define Neural Network Architecture

Define the neural network architecture. The network consists of multiple Fourier layers and convolution layers.

#### Define Fourier Layer

Define a function that creates a network layer that operates in the frequency domain.

The layer processes the input by applying convolutions and spectral convolutions and sums the outputs. This diagram illustrates the architecture of the layer.

A spectral convolutional layer applies convolutions in the frequency domain and is particularly useful for solving PDEs as it allows the network to learn complex spatial dependencies. To apply the spectral convolution operation, the Fourier layer uses the custom layer `spectralConvolution1dLayer`

, attached to this example as a supporting file. To access this layer, open the example as a live script.

function layer = fourierLayer(spatialWidth,numModes,args) arguments spatialWidth numModes args.Name = "" end name = args.Name; net = dlnetwork; layers = [ identityLayer(Name="in") spectralConvolution1dLayer(spatialWidth,numModes,Name="specConv") additionLayer(2,Name="add")]; net = addLayers(net,layers); layer = convolution1dLayer(1,spatialWidth,Name="fc"); net = addLayers(net,layer); net = connectLayers(net,"in","fc"); net = connectLayers(net,"fc","add/in2"); layer = networkLayer(net,Name=name); end

#### Create Neural Network

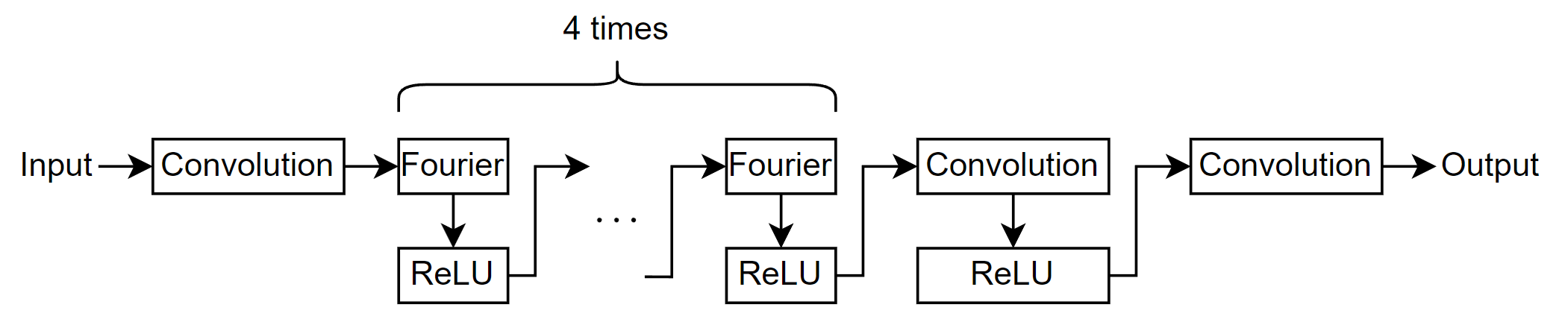

Define the neural network architecture. The network in this example consists of multiple Fourier-ReLU blocks connected in series.

Specify these options:

For the Fourier layers, specify 16 modes with a spatial width of 16.

Use an input layer of size

`[NaN spatialWidth 2]`

, with format`"BSC"`

(batch, spatial, channel), where`spatialWidth`

is the spatial width of the Fourier layers.Specify 128 1-by-1 filters for the convolution-ReLU block.

For the final convolutional layer, specify one 1-by-1 filter.

numModes = 16; spatialWidth = 64; layers = [ inputLayer([NaN spatialWidth 2],"BSC"); convolution1dLayer(1,spatialWidth,Name="fc0") fourierLayer(spatialWidth,numModes,Name="fourier1"); reluLayer fourierLayer(spatialWidth,numModes,Name="fourier2") reluLayer fourierLayer(spatialWidth,numModes,Name="fourier3") reluLayer fourierLayer(spatialWidth,numModes,Name="fourier4") reluLayer convolution1dLayer(1,128) reluLayer convolution1dLayer(1,1)];

### Training Options

Specify the training options. Choosing among the options requires empirical analysis. To explore different training option configurations by running experiments, you can use the Experiment Manager app.

Train using the SGDM solver.

Train using a piecewise learning schedule, with an initial learning rate of 0.001 and a drop factor of 0.5.

Train for 30 epochs and with a mini-batch size of 20.

Shuffle the data every epoch.

Because the input data has dimensions that correspond to batch, spatial, and channel dimensions, specify the input data format as

`"BSC"`

.Monitor the training progress in a plot and specify the validation data.

Disable the verbose output.

schedule = piecewiseLearnRate(DropFactor=0.5); options = trainingOptions("sgdm", ... InitialLearnRate=1e-3, ... LearnRateSchedule=schedule, ... MaxEpochs=30, ... MiniBatchSize=20, ... Shuffle="every-epoch", ... InputDataFormats="BSC", ... Plots="training-progress", ... ValidationData={U0Validation,U1Validation}, ... Verbose=false);

#### Define Relative $${L}_{2}$$ Loss Function

Create the function `relativeL2Loss`

, which takes the predictions and targets as input and returns the relative $${L}_{2}$$ loss. The relative $${L}_{2}$$ loss function is a variation of the $${L}_{2}$$ loss function that accounts for scale by using the Euclidean norm of the difference between the predictions and targets and divides it by the Euclidean norm of the targets:

$$RelativeL2(Y,T)=\sum _{n=1}^{N}\frac{\Vert {T}_{n}-{Y}_{n}{\Vert}_{2}}{\Vert {T}_{n}{\Vert}_{2}}$$

where:

$$Y$$ denotes the predictions.

$$T$$ denotes the targets.

$$N$$ denotes the number of observations.

function loss = relativeL2Loss(Y,T) Y = stripdims(Y,"BSC"); T = stripdims(T,"BSC"); p = vecnorm(T-Y,2,2); q = vecnorm(T,2,2); loss = sum(p./q, 1); end

### Train Network

Train the neural network using the `trainnet`

function. Use the custom loss function `relativeL2Loss`

. By default, the `trainnet`

function uses a GPU if one is available. Using a GPU requires a Parallel Computing Toolbox™ license and a supported GPU device. For information on supported devices, see GPU Computing Requirements (Parallel Computing Toolbox). Otherwise, the function uses the CPU. To select the execution environment manually, use the `ExecutionEnvironment`

training option.

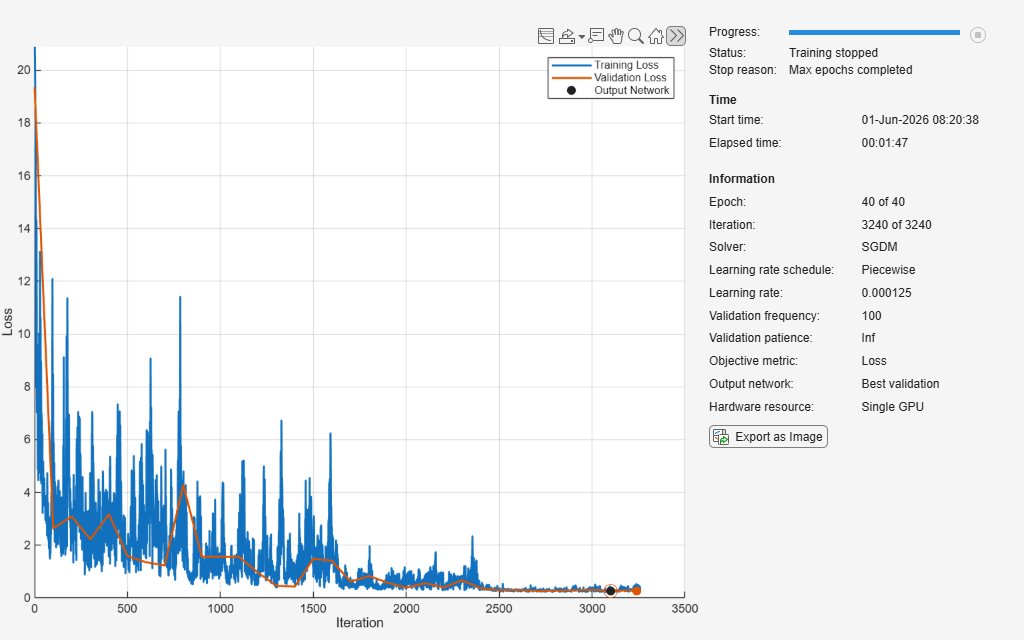

net = trainnet(U0Train,U1Train,layers,@relativeL2Loss,options);

### Test Network

Test the prediction performance of the model by comparing the predictions on a held-out test set with the true labels and calculating the root mean squared error (RMSE).

Downsample the test data and concatenate the grid using the same steps as used for the training data.

xGridTest = repmat(xGrid, [numel(idxTest) 1]); U0Test = U0Test(:,1:downsampleFactor:end); U0Test = cat(3,U0Test,xGridTest); U1Test = u1(idxTest,:); U1Test = U1Test(:,1:downsampleFactor:end);

Test the neural network using the `testnet`

function. By default, the `testnet`

function uses a GPU if one is available. Otherwise, the function uses the CPU. To select the execution environment manually, use the `ExecutionEnvironment`

argument of the `testnet`

function.

`rmseTest = testnet(net,U0Test,U1Test,"rmse")`

rmseTest = 0.0112

To evaluate the accuracy of the ZSSR, test the network using the test data without downsampling it.

```
xGridZSSR = linspace(xMin,xMax,gridSize);
xGridTestZSSR = repmat(xGridZSSR, [numel(idxTest) 1]);
U0TestZSSR = u0(idxTest,:);
U0TestZSSR = cat(3,U0TestZSSR,xGridTestZSSR);
U1TestZSSR = u1(idxTest,:);
rmseTestZSSR = testnet(net,U0TestZSSR,U1TestZSSR,"rmse")
```

rmseTestZSSR = 0.0113

### Make Predictions with New Data

Use the neural network to make a prediction.

Load the new data. For example purposes, use the first three test observations.

dataNew = u0(idxTest(1:3),:); numObservationsNew = size(dataNew,1);

Calculate the grid size and concatenate it with the data.

gridSizeNew = size(dataNew,2); xGridNew = linspace(xMin,xMax,gridSizeNew); xGridNew = repmat(xGridNew, [size(dataNew,1) 1]); U0New = cat(3,dataNew,xGridNew);

Make predictions using the `minibatchpredict`

function. By default, the `minibatchpredict`

function uses a GPU if one is available. Otherwise, the function uses the CPU. To select the execution environment manually, use the `ExecutionEnvironment`

option.

Y = minibatchpredict(net,U0New);

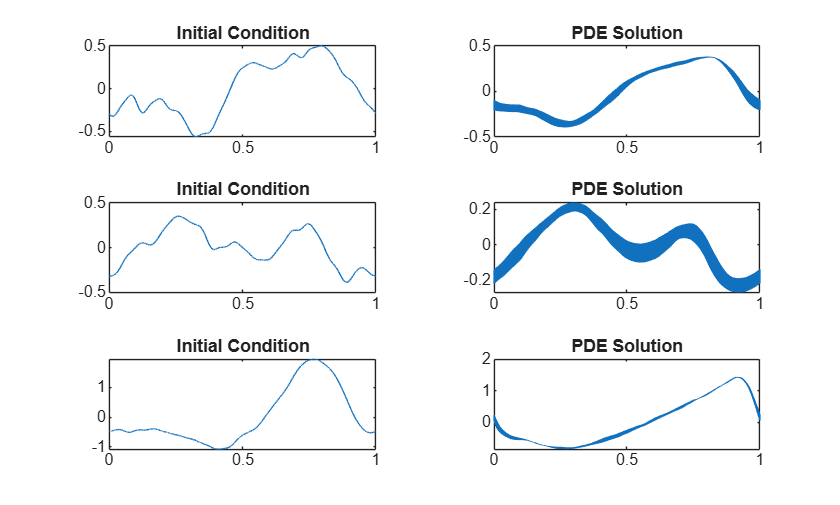

Visualize the predictions in a plot.

figure tiledlayout("flow") for i = 1:numObservationsNew nexttile plot(xGridNew(i,:),dataNew(i,:)) title("Initial Condition") nexttile plot(xGridNew(i,:),Y(i,:)) title("PDE Solution") end

### References

Li, Zongyi, Nikola Kovachki, Kamyar Azizzadenesheli, Burigede Liu, Kaushik Bhattacharya, Andrew Stuart, and Anima Anandkumar. “Neural Operator: Graph Kernel Network for Partial Differential Equations.” arXiv, March 6, 2020. http://arxiv.org/abs/2003.03485.

Li, Zongyi, Nikola Kovachki, Kamyar Azizzadenesheli, Burigede Liu, Kaushik Bhattacharya, Andrew Stuart, and Anima Anandkumar. “Fourier Neural Operator for Parametric Partial Differential Equations,” 2020. https://openreview.net/forum?id=c8P9NQVtmnO.
