prepareCurveData

Prepare data inputs for curve fitting

Description

[XOut,YOut] = prepareCurveData(XIn,YIn) transforms data, if necessary, for curve fitting with the fit function. The prepareCurveData function transforms data as follows:

  • Return data as columns regardless of the input shapes. Error if the number of elements do not match. Warn if the number of elements match, but the sizes differ.

  • Convert complex to real (remove imaginary parts) and warn of this conversion.

  • Remove NaN or Inf from data and warn of this removal.

  • Convert nondouble to double and warn of this conversion.

Specify XIn as empty if you want to fit curves to y data against the index. If XIn is empty, then XOut is a vector of indices into YOut. The fit function can use the vector XOut for the x data when there is only y data.

example

[XOut,YOut,WOut] = prepareCurveData(XIn,YIn,WIn) transforms data including weights (WIn) for curve fitting with the fit function.

When you generate code from the Curve Fitter app, the generated code includes a call to prepareCurveData (or prepareSurfaceData for surface fits). You can call the generated file from the command line with your original data or new data as input arguments, to recreate your fits and plots. If you call the generated file with new data, the prepareCurveData function ensures you can use any data that you can fit in the Curve Fitter app, by reshaping if necessary to column doubles and removing NaNs, Infs, or the imaginary parts of complex numbers.

Examples

collapse all

The following commands load the example titanium data in which x and y are row vectors. Attempting to use rows as inputs to the fit function produces an error. The prepareCurveData function reshapes x and y to columns for use with the fit function.

[x,y] = titanium();
[x,y] = prepareCurveData(x,y);

Create and plot a fit using the reshaped data.

f = fit(x,y,'smoothingspline');
plot(f,x,y)

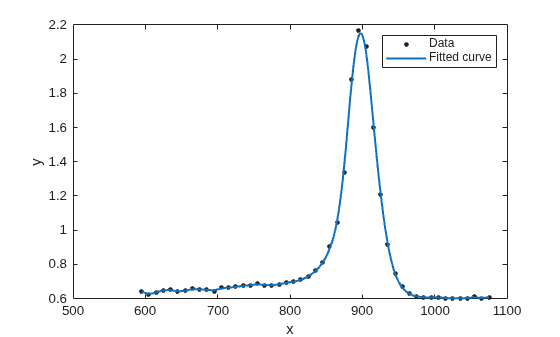

Figure contains an axes object. The axes object with xlabel x, ylabel y contains 2 objects of type line. One or more of the lines displays its values using only markers These objects represent Data, Fitted curve.

Input Arguments

collapse all

X data variable for curve fitting, specified as a scalar, a vector or a matrix. XIn can be empty. Specify empty ([ ]) when you want to fit curves to y data against index (x=1:length( y )). See YOut.

Data Types: double

Y data variable for curve fitting, specified as a scalar, a vector or a matrix.

Data Types: double

Weights variable for curve fitting specified, as a scalar, a vector or a matrix.

Data Types: double

Output Arguments

collapse all

X data column variable prepared for curve fitting, returned as a vector.

If XIn is empty, then XOut is a vector of indices into YOut. The fit function can use the vector XOut for the x data when there is only y data.

Data Types: double

Y data column variable prepared for curve fitting, returned as a vector.

Data Types: double

Weights column variable prepared for curve fitting, returned as a vector.

Data Types: double

Version History

Introduced in R2013a
