DBPSK Modulator Baseband
Modulate using differential binary phase shift keying method
Library
PM, in Digital Baseband sublibrary of Modulation
Description

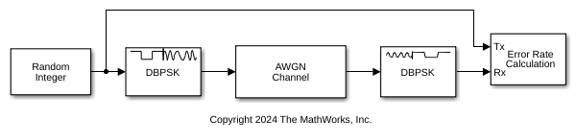

The DBPSK Modulator Baseband block modulates using the differential binary phase shift keying method. The output is a baseband representation of the modulated signal.
This block accepts a scalar or column vector input signal. The input must be a discrete-time binary-valued signal. For information about the data types each block port supports, see Supported Data Types.
The following rules govern this modulation method when the Phase rotation parameter is θ:
If the first input bit is 0 or 1, respectively, then the first modulated symbol is exp(jθ) or -exp(jθ), respectively.
If a successive input bit is 0 or 1, respectively, then the modulated symbol is the previous modulated symbol multiplied by exp(jθ) or -exp(jθ), respectively.
Dialog Box
- Phase rotation (rad)
The phase difference between the previous and current modulated symbols when the input is zero.
- Output Data type
The output data type can be either
single
ordouble
. By default, the block sets this todouble
.
Supported Data Types
Port | Supported Data Types |
---|---|
Input |
|
Output |
|
Pair Block
Extended Capabilities
Version History
Introduced before R2006a
