removeHoles
Description
removes holes with area less than the provided tolerance from the shape and returns a
polygon object.s
= removeHoles(shapeobject
,holetol
)
Examples
Remove Holes from Rectangular Shape of Antenna
Create two rectangular shapes with different dimensions.
rect1 = antenna.Rectangle; rect2 = antenna.Rectangle(Length=1e-7, Width=0.5);

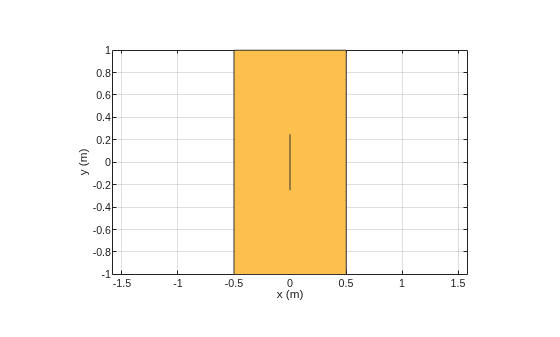

Carve out rectangle2 from rectangle1 and view the resultant shape.
rect3 = rect1 - rect2; show(rect3)

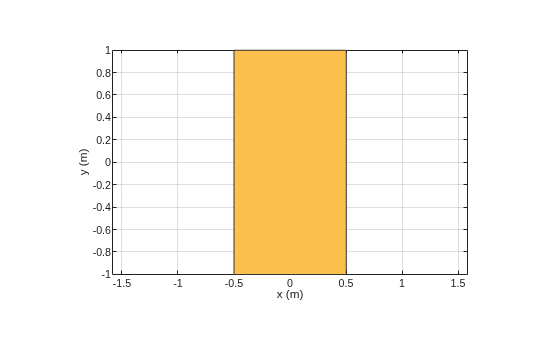

Remove holes from the resultant rectangle.
rect4 = removeHoles(rect3,1e-6); show(rect4)
Input Arguments
shapeobject
— Shape with sliver outlier
2-D shape object
2-D shape with sliver outlier, specified as either:
antenna.Rectangle
,antenna.Circle
,antenna.Ellipse
,antenna.Polygon
, orantenna.Triangle
object.Object created using
shapes
function.shape.Rectangle
,shape.Circle
,shape.Ellipse
, orshape.Polygon
object.
Data Types: function
holetol
— Hole tolerance
nonnegative scalar
Hole tolerance, specified as a nonnegative scalar.
Data Types: double
Version History
Introduced in R2020b
