# intersect

Intersection of shape1 and shape2

## Syntax

``intersect(shape1,shape2)``
``c = intersect(shape1,shape2)``

## Description

````intersect(shape1,shape2)` plots a shape generated by intersecting the`shape1` and `shape2`. Alternatively, you can also use the `'&'` operator to intersect the shapes (```shape1 & shape2```).```

example

````c = intersect(shape1,shape2)` generates the shape obtained by intersecting `shape1` and `shape2` and returns a polygon object for resultant 2-D shape or a custom 3-D object for resultant 3-D shape. Alternatively, you can also use the `'&'` operator to intersect the shapes (```c = shape1 & shape2```).```

example

## Examples

collapse all

Create a default rectangle.

`r = antenna.Rectangle;`

Create a default circle.

`c = antenna.Circle;`

Use `intersect` to combine the shared surfaces of the rectangle and the circle.

`rc = intersect(r,c)`
```rc = Polygon with properties: Name: 'mypolygon' Vertices: [12x3 double] ```
```show(rc) axis equal```

This example shows how to create a custom shape using a 3-D trapezoid and sphere.

Create and view a 3-D trapezoid.

```a = shape.Custom3D(Color=[0.9290 0.6940 0.1250]); show(a)```

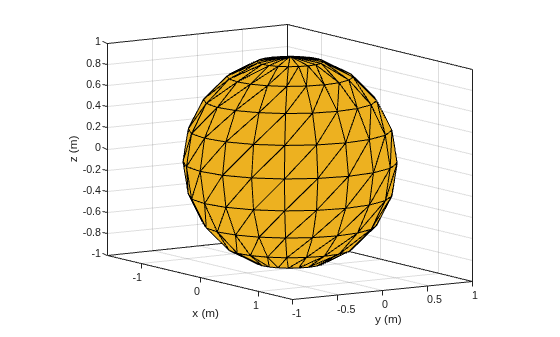

Create and view a sphere.

```b = shape.Sphere(Color=[0.9290 0.6940 0.1250]); show(b)```

Intersect the 3-D trapezoid with the sphere and view the resultant shape.

`intersect(a,b);`

## Input Arguments

collapse all

2-D and 3-D geometric shapes created using shape objects in Custom 2-D and 3-D Antenna.

Example: `antenna.Rectangle,antenna.Circle`

Example: `shape.Custom3D,shape.Sphere`

## Output Arguments

collapse all

Shape obtained after intersecting two 2-D or 3-D shapes.

Example: `antenna.Polygon`

Example: `shape.Polygon`

Example: `shape.Custom3D`

## Version History

Introduced in R2017a
