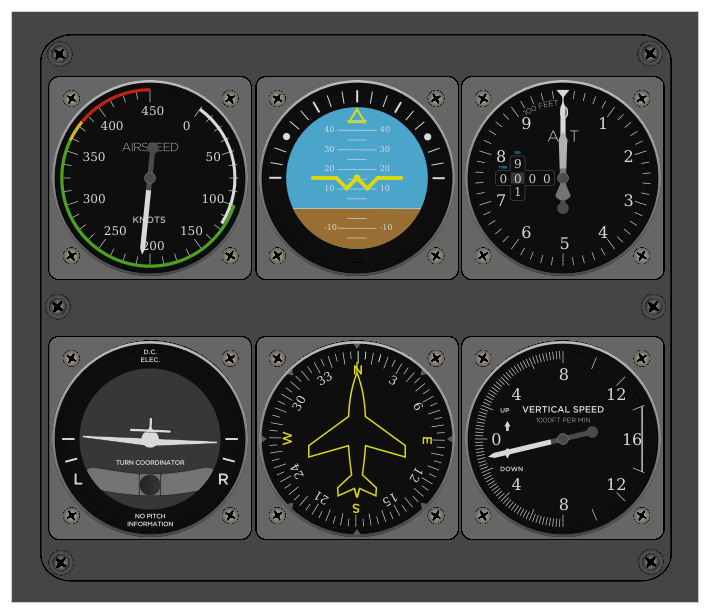

Use cockpit instrument blocks to display flight status information from your model.
|Airspeed Indicator||Display measurements for aircraft airspeed|
|Altimeter||Display measurements for aircraft altitude|
|Artificial Horizon||Represent aircraft attitude relative to horizon|
|Climb Rate Indicator||Display measurements for aircraft climb rate|
|Exhaust Gas Temperature (EGT) Indicator||Display measurements for engine exhaust gas temperature (EGT)|
|Heading Indicator||Display measurements for aircraft heading|
|Revolutions Per Minute (RPM) Indicator||Display measurements for engine revolutions per minute (RPM) in percentage of RPM|
|Turn Coordinator||Display measurements on turn coordinator and inclinometer|
- Flight Instrument Gauges
Use the blocks for flight instrument gauges to visualize navigation variables, such as altitude and heading.
- Display Measurements with Cockpit Instruments
View signal data using any flight instrument blocks.
- Programmatically Interact with Gauge Band Colors
Programmatically interact with flight instrument gauge band colors.
