Build Wavelet Tree Objects

The following sections explain how to extend the toolbox with new objects through four examples.

Building a Wavelet Tree Object (WTREE)

This example creates a new class of objects: WTREE.

Starting from the class DTREE and overloading the methods split and merge, we define a wavelet tree class.

To plot a WTREE, the DTREE plot method is used.

The definition of the new class is described below.

Class WTREE (parent class: DTREE)

Fields

dtree

Parent object

dwtMode

DWT extension mode

wavInfo

Structure (wavelet information)

wavInfo Structure information

wavName

Wavelet Name

Lo_D

Low Decomposition filter

Hi_D

High Decomposition filter

Lo_R

Low Reconstruction filter

Hi_R

High Reconstruction filter

Methods

wtree

Constructor for the class WTREE.

merge

Merge (recompose) the data of a node.

split

Split (decompose) the data of a terminal node.

Working With Wavelet Tree Objects (WTREE)

1-D Object

Load a signal.

load noisbloc
x = noisbloc;

Define the level and the wavelet.

lev = 3;
wav = 'db2';

Create the wavelet tree.

t = wtree(x,lev,wav);

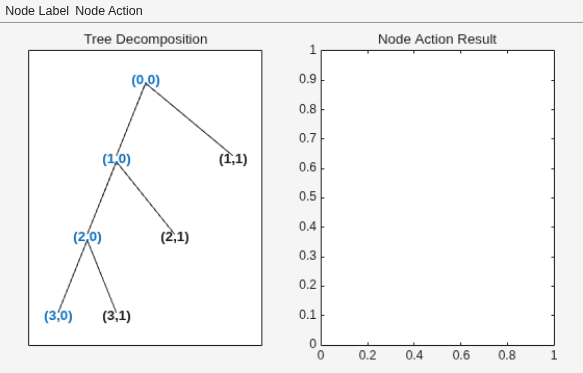

Plot the wavelet tree. The approximations are labeled in yellow and the details are labeled in red. The detail nodes cannot be split.

plot(t)

Change Node Label from Visualize to Split-Merge, and then click node (7), to get this figure:

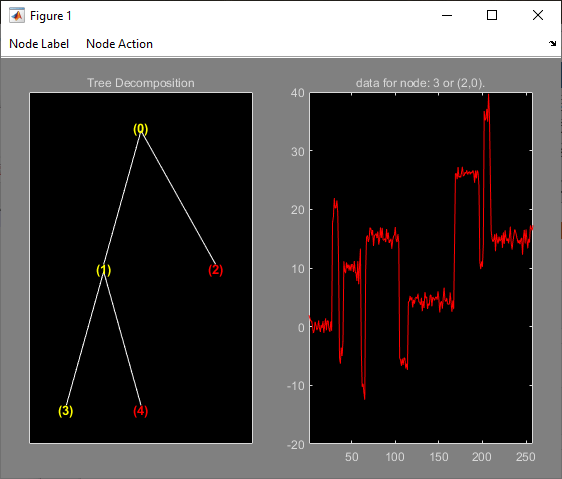

Change Node Action from Visualize to Split-Merge, and merge node (3). Then change Node Action from Split-Merge to Visualize, and click node (3) to get this figure:


2-D Object

Load an image.

load woman

Define the level and the wavelet.

lev = 2;
wav = 'db2';

Create the wavelet tree.

t = wtree(X,lev,wav);

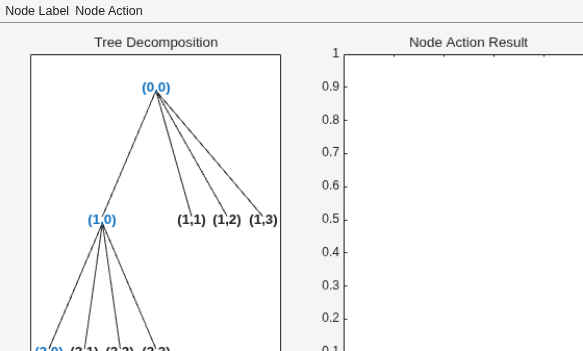

Plot the tree.

plot(t)

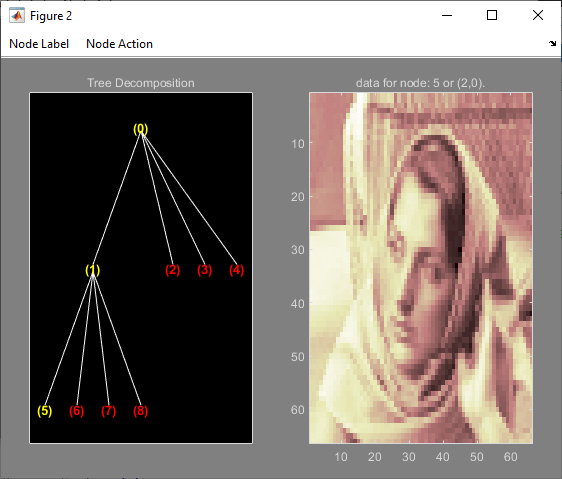

Change Node Label from Depth_Position to Index. Click the node (5). You get the following plot.

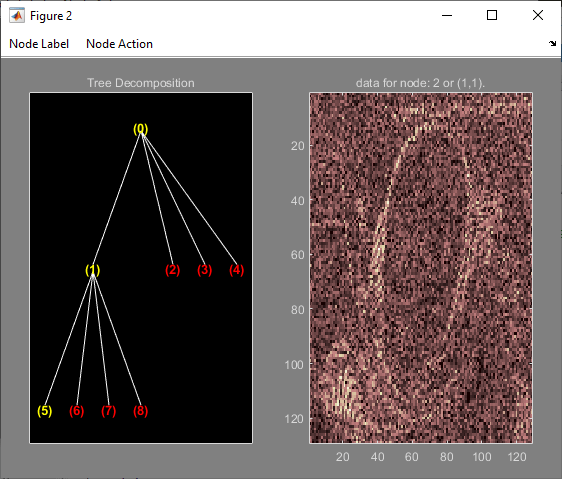

Click the node (2). You obtain the following plot.

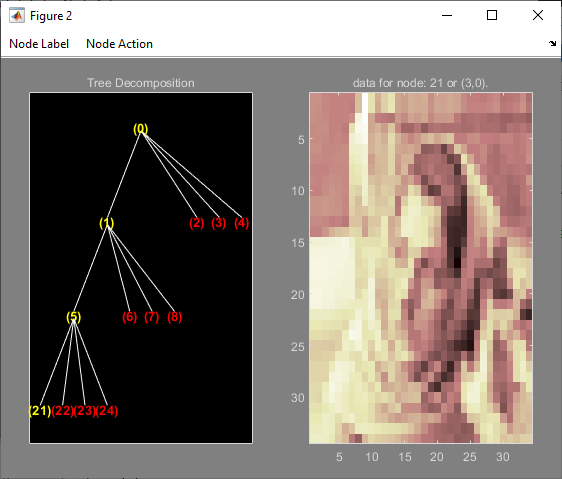

Change Node Action from Visualize to Split-Merge. Split the node (5). Change Node Action from Split-Merge to Visualize. Click the node (21). You obtain the following plot.


Building a Right Wavelet Tree Object (RWVTREE)

This example creates a new class of objects: RWVTREE.

We define a right wavelet tree class starting from the class WTREE and overloading the methods split, merge, and plot (inherited from DTREE).

The plot method shows how to add Node Labels.

The definition of the new class is described below.

Class RWVTREE (parent class: WTREE)

Fields

dummy

Not used

wtree

Parent object

Methods

rwvtree

Constructor for the class RWVTREE.

merge

Merge (recompose) the data of a node.

plot

Plot RWVTREE object.

split

Split (decompose) the data of a terminal node.

Working With Right Wavelet Tree Objects (RWVTREE)

1-D Object

Load a signal.

load noisbloc
x = noisbloc;

Define the level and the wavelet.

lev = 3;
wav = 'db2';

Create the wavelet tree.

t = rwvtree(x,lev,wav);

Plot the tree. The approximations are labeled in yellow and the details are labeled in red. The detail nodes cannot be split.

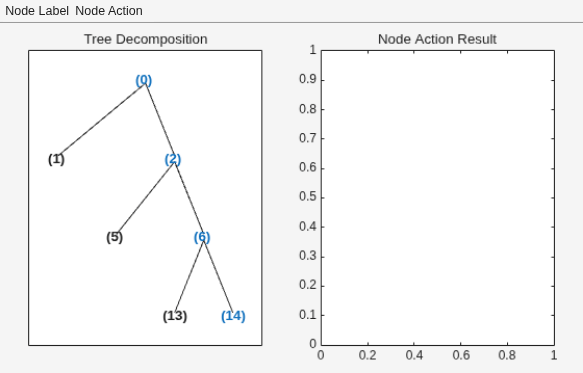

plot(t)

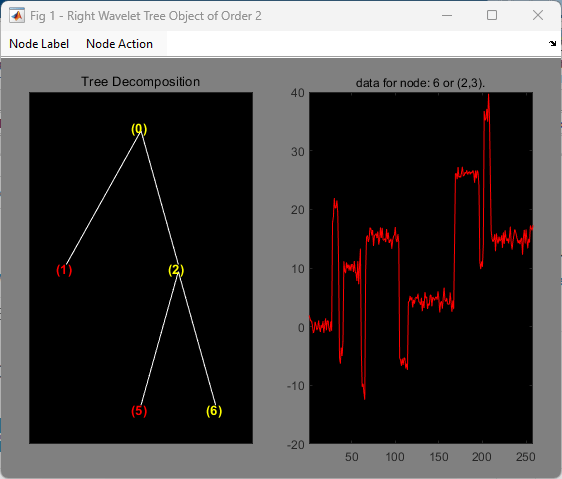

Change Node Action from Visualize to Split-Merge. Merge the node (6). Change Node Action from Split-Merge to Visualize. Click the node (6). You obtain the following plot.

2-D Object

Load an image.

load mask

Define the level and the wavelet.

lev = 2;
wav = 'db2';

Create the wavelet tree.

t = wtree(X,lev,wav);

Plot the tree.

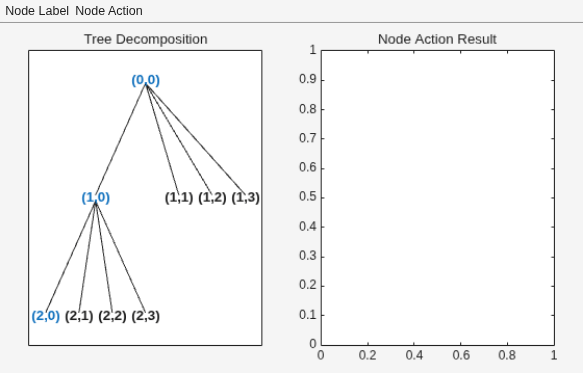

plot(t)

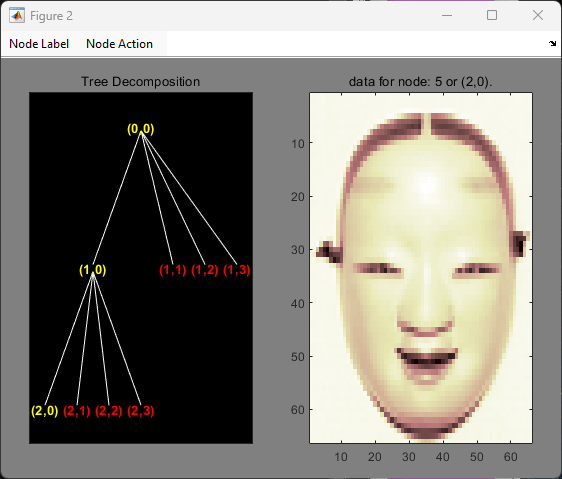

Click the node (2,0). You get the following plot.

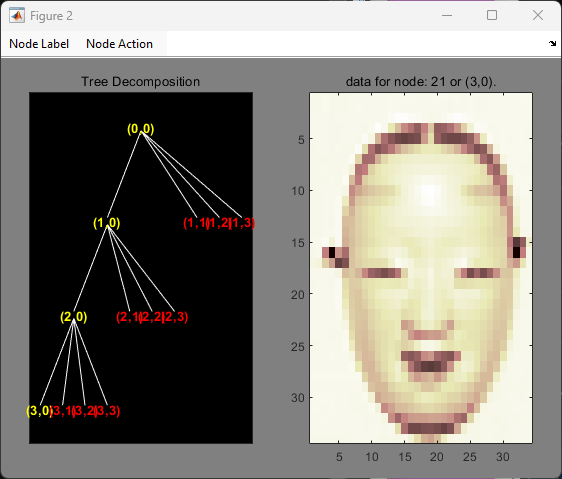

Change Node Action from Visualize to Split-Merge. Split the node (2,0). Change Node Action from Split-Merge to Visualize. Click the node (3,0). You obtain the following plot.

Building a Wavelet Tree Object (WVTREE)

This example creates a new class of objects: WVTREE.

We define a wavelet tree class starting from the class WTREE and overloading the methods get, plot, and recons (all inherited from DTREE).

The split and merge methods of the class WTREE are used.

The plot method shows how to add Node Labels and Node Actions.

The definition of the new class is described below.

Class WVTREE (parent class: WTREE)

Fields

dummy

Not used

wtree

Parent object

Methods

wvtree

Constructor for the class WVTREE.

get

Get WVTREE object field contents.

plot

Plot WVTREE object.

recons

Reconstruct node coefficients.

Working With Wavelet Tree Objects (WVTREE)

1-D Object

Load the signal.

 load noisbloc
 x = noisbloc;

Define the level and the wavelet.

lev = 3;
wav = 'db2';

Create the wavelet tree.

t = wvtree(x,lev,wav);

Plot the tree. The approximations are labeled in yellow and the details are labeled in red. The detail nodes cannot be split.

 plot(t)

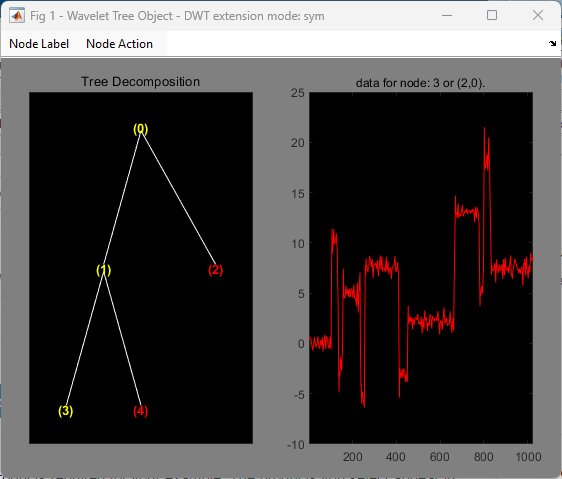

Change Node Action from Visualize to Split-Merge. Merge the node (3). Change Node Action from Split-Merge to Reconstruct. Click the node (3). You obtain the following plot.

2-D Object

Load an image.

load mask

Define the level and the wavelet.

lev = 2;
wav = 'db1';

Create the wavelet tree.

t = wvtree(X,lev,wav);

Plot the tree.

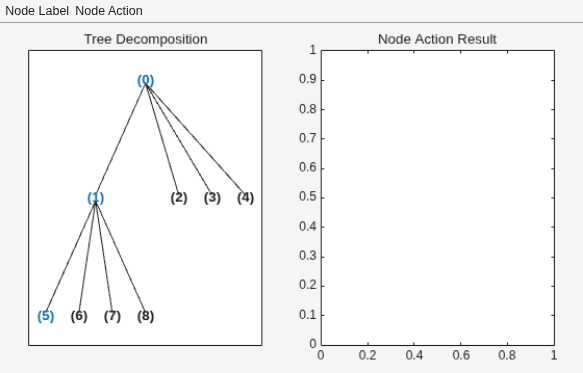

plot(t)

Click the node (5). You get the following plot.

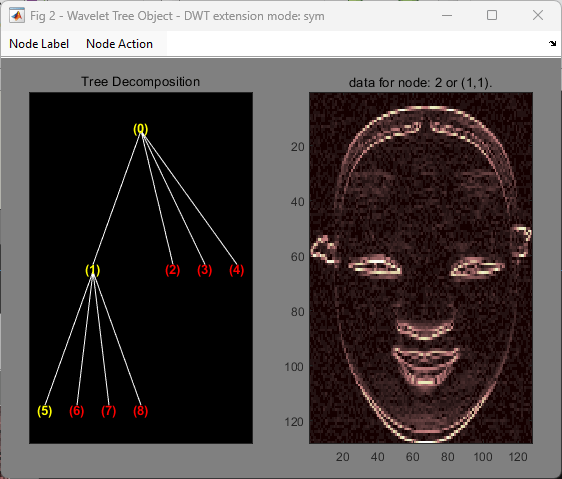

Click the node (2). You obtain the following plot.

Change Node Action from Visualize to Split-Merge. Split the node (5). Change Node Action from Split-Merge to Reconstruct. Click the node (21). You obtain the following plot.

Building a Wavelet Tree Object (EDWTTREE)

This example creates a new class of objects: EDWTTREE.

We define an ε-DWT tree class starting from the class DTREE and overloading the methods merge, plot, recons, and split.

For more information on the ε-DWT, see the section ε-Decimated DWT.

The plot method shows how to add Node Labels, Node Actions, and Tree Actions.

The definition of the new class is described below.

Class EDWTTREE (parent class: DTREE)

Fields

dtree

Parent object

dwtMode

DWT extension mode

wavInfo

Structure (wavelet information)

Fields Description

wavInfo

wavName

Wavelet Name

Lo_D

Low Decomposition filter

Hi_D

High Decomposition filter

Lo_R

Low Reconstruction filter

Hi_R

High Reconstruction filter

Methods

edwttree

Constructor for the class EDWTTREE.

merge

Merge (recompose) the data of a node.

plot

Plot EDWTTREE object.

recons

Reconstruct node coefficients.

split

Split (decompose) the data of a terminal node.

Working With Wavelet Tree Object (EDWTTREE)

Load the signal.

load noisbloc
x = noisbloc;

Define the level and the wavelet.

lev = 2;
wav = 'haar';

Create the wavelet tree.

t = edwttree(x,lev,wav);

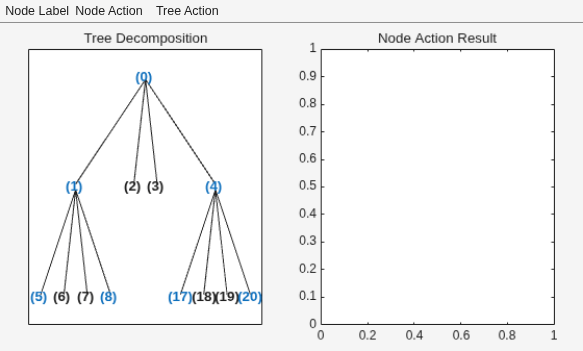

Plot the tree. The approximations are labeled in yellow and the details are labeled in red. The detail nodes cannot be split. The title of the figure contains the DWT extension mode used ('per' in the present example) and the name of the denoising method.

plot(t)

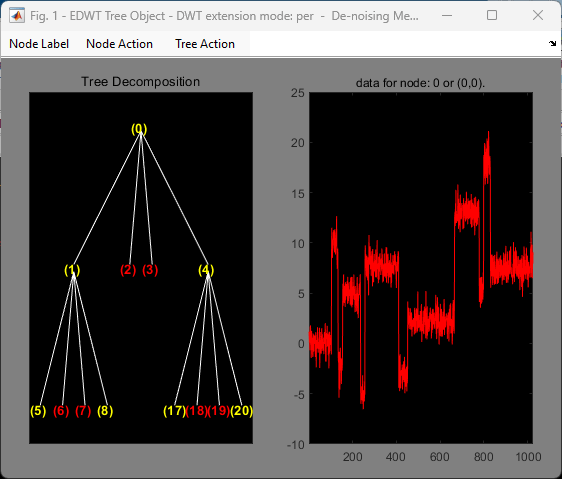

Click the node (0). You obtain the following plot.

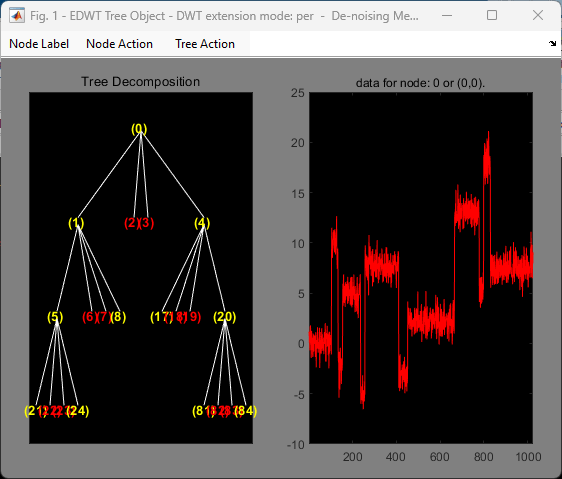

Change Node Action from Visualize to Split-Merge. Split the nodes (5) and (20).

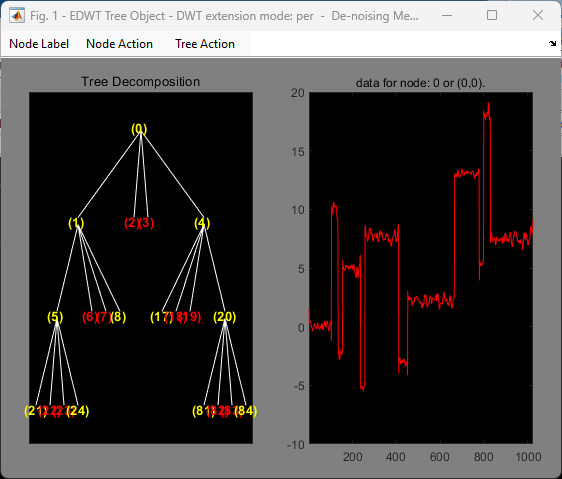

Select Tree Action: De-noise. Click the node (0). You obtain the following plot.
