wbmpen

Penalized threshold for wavelet 1-D or 2-D denoising

    Description

    example

    thr = wbmpen(c,l,sigma,alpha) returns the global threshold thr for denoising. c,l is the wavelet decomposition structure of the signal or image to be denoised. sigma is the standard deviation of the zero mean Gaussian white noise in the denoising model (see wnoisest for more information). alpha is a tuning parameter for the penalty term.

    thr = wbmpen(c,l,sigma,alpha,ARG) computes the global threshold and plots three curves:

    • 2×sigma^2×t×(alpha + log(n/t))

    • sum(c(k)^2,k≤t)

    • crit(t)

    where n is the number of coefficients and

    crit(t) = -sum(c(k)^2,k≤t) + 2×sigma^2×t×(alpha + log(n/t)).

    For more information, see Penalized Criterion.

    Examples

    collapse all

    Load the noisy bumps signal.

    load noisbump
    x = noisbump;

    Perform a wavelet decomposition of the signal at level 5 using the sym6 wavelet.

    wname = "sym6";
    lev = 5;
    [c,l] = wavedec(x,lev,wname);

    Estimate the noise standard deviation from the detail coefficients at level 1, using wnoisest.

    sigma = wnoisest(c,l,1);

    Use wbmpen to obtain a global threshold for signal thresholding, using the tuning parameter.

    alpha = 2;
    thr = wbmpen(c,l,sigma,alpha)
    thr = 2.7681


    Use wdencmp for denoising the signal using the threshold with soft thresholding and approximation kept.

    keepapp = 1;
    xd = wdencmp("gbl",c,l,wname,lev,thr,"s",keepapp);

    Plot the original and denoised signals.

    tiledlayout(2,1)
    nexttile
    plot(x)
    axis tight
    title("Original Signal")
    nexttile
    plot(xd)
    axis tight
    title("Denoised Signal")

    Load an image.

    load flower
    img = flower.Noisy;

    Perform a wavelet decomposition of the image at level 3 using the coif2 wavelet.

    wname = "coif2";
    lev = 3;
    [c,s] = wavedec2(img,lev,wname);

    Estimate the noise standard deviation from the detail coefficients at level 1.

    det1 = detcoef2("compact",c,s,1);
    sigma = median(abs(det1))/0.6745;

    Use wbmpen for selecting a global threshold for image denoising.

    alpha = 1.2;
    thr = wbmpen(c,s,sigma,alpha)
    thr = 0.2288


    Use wdencmp for denoising the image using the threshold with soft thresholding and approximation kept.

    keepapp = 1;
    xd = wdencmp("gbl",c,s,wname,lev,thr,"s",keepapp);

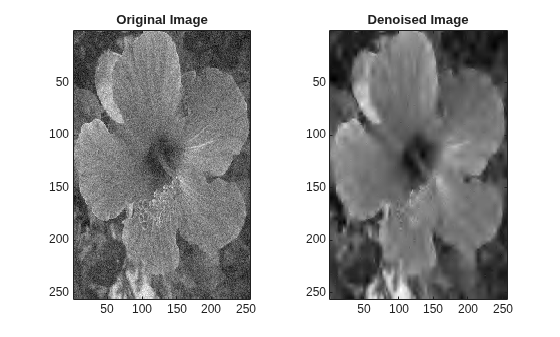

    Plot the original and denoised images.

    tiledlayout(1,2)
    colormap(gray)
    nexttile
    imagesc(img)
    title("Original Image")
    nexttile
    imagesc(xd)
    title("Denoised Image")

    Input Arguments

    collapse all

    Wavelet decomposition structure of a signal or image, specified by the vectors c and l. The vector c contains the wavelet coefficients. The bookkeeping vector l contains the number of coefficients by level. For more information, see wavedec and wavedec2.

    Data Types: double

    Standard deviation of the zero mean Gaussian white noise in the denoising model, specified as a scalar. For more information, see wnoisest and Penalized Criterion.

    Data Types: double

    Tuning parameter for the penalty term, specified as a scalar greater than 1. The sparsity of the wavelet representation of the denoised signal or image grows with alpha. Typically, alpha = 2. For more information, see Penalized Criterion.

    Data Types: double

    Output Arguments

    collapse all

    Global threshold for denoising, returned as a scalar. thr is obtained by a wavelet coefficients selection rule using a penalization method provided by Birgé-Massart. For more information, see Penalized Criterion.

    More About

    collapse all

    Penalized Criterion

    The global threshold thr is obtained by a wavelet coefficients selection rule using a penalization method provided by Birgé-Massart.

    The global threshold minimizes the penalized criterion given by the following:

    Let t* be the minimizer of

    crit(t) = -sum(c(k)^2,k≤t) + 2×sigma^2×t×(alpha + log(n/t)),

    where c(k) are the wavelet coefficients sorted in decreasing order of their absolute value and n is the number of coefficients; then thr = |c(t*)|.

    References

    [1] Birgé, Lucien, and Pascal Massart. “From Model Selection to Adaptive Estimation.” In Festschrift for Lucien Le Cam, edited by David Pollard, Erik Torgersen, and Grace L. Yang, 55–87. New York, NY: Springer New York, 1997. https://doi.org/10.1007/978-1-4612-1880-7_4.

    Version History

    Introduced before R2006a
