# modwtcorr

Multiscale correlation using the maximal overlap discrete wavelet transform

## Syntax

## Description

returns
the wavelet correlation by scale for the maximal overlap discrete
wavelet transforms (MODWTs) specified in `wcorr`

= modwtcorr(`w1`

,`w2`

)`w1`

and `w2`

. `wcorr`

is
an *M*-by-1 vector of correlation coefficients, where *M* is
the number of levels with nonboundary wavelet coefficients. If the
final level has enough nonboundary coefficients, `modwtcorr`

returns
the scaling correlation in the final row of `wcorr`

.

returns
an `wcorrtable`

= modwtcorr(___,'table')*M*-by-6 table with the correlation, confidence
bounds, p-value, and adjusted p-value. The table also lists the number
of nonboundary coefficients by level. The row names of the table `wcorrtable`

designate
the type and level of each estimate. For example, `D1`

designates
that the row corresponds to a wavelet or detail estimate at level
1 and `S6`

designates that the row corresponds to
the scaling estimate at level 6. The scaling correlation is only computed
for the final level of the MODWT and only when there are nonboundary
scaling coefficients. You can specify the `'table'`

flag
anywhere after the input transforms `w1`

and `w2`

.
You must enter the entire character vector `'table'`

.
If you specify `'table'`

, `modwtcorr`

only
outputs one argument.

`[___] = modwtcorr(___,'reflection')`

reduces the
number of wavelet and scaling coefficients at each scale by half before computing the
correlation. Use this option only when you obtain the MODWT of `w1`

and
`w2`

were obtained using the `'reflection' `

boundary
condition. You must enter the entire character vector `'reflection'`

. If you
added a wavelet named `'reflection'`

using the wavelet manager, you must
rename that wavelet prior to using this option.

`modwtcorr`

supports only unbiased estimates of the wavelet correlation.
For these estimates, the algorithm must remove the extra coefficients obtained using the
`'reflection'`

boundary condition. Specifying the
`'reflection'`

option in `modwtcorr`

is identical to first
obtaining the MODWT of `w1`

and `w2`

using the default
`'periodic' `

boundary handling and then computing the wavelet correlation
estimates.

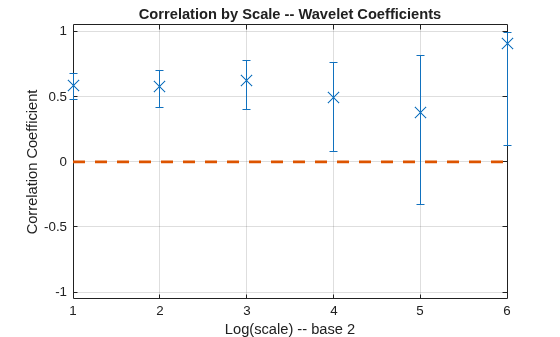

`modwtcorr(___)`

with no output
arguments plots the wavelet correlations by scale with lower and upper
confidence bounds. By default, the coverage probability is 0.95. Scales
with NaNs for the confidence bounds and the scaling correlation are
excluded.

## Examples

## Input Arguments

## Output Arguments

## References

[1] Percival, D. B., and A. T. Walden. *Wavelet Methods for Time Series
Analysis*. Cambridge, UK: Cambridge University Press, 2000.

[2] Whitcher, B., P. Guttorp, and D. B. Percival. “Wavelet analysis of covariance
with application to atmospheric time series.” *Journal of Geophysical
Research*, Vol. 105, pp. 14941–14962, 2000.

[3] Benjamini, Y., and Yekutieli, D.
“The Control of the False Discovery Rate in Multiple Testing Under Dependency.”
*Annals of Statistics*, Vol. 29, Number 4, pp. 1165–1188,
2001.

## Version History

**Introduced in R2015b**
