lwtcoef

Extract or reconstruct 1-D LWT wavelet coefficients and orthogonal projections

    Description

    y = lwtcoef(ca,cd) returns the level 1 approximation coefficients that correspond to the approximation and detail coefficients, ca and cd, respectively. ca and cd are outputs of lwt.

    example

    y = lwtcoef(ca,cd,Name,Value) specifies options using one or more name-value arguments. For example, y = lwtcoef(ca,cd,'OutputType','coefficients') specifies coefficients output.

    Examples

    collapse all

    Load a 1-D signal of length 2048. Plot the signal.

    load wecg
    plot(wecg)
    title('Signal')
    ylabel('Amplitude')
    axis tight

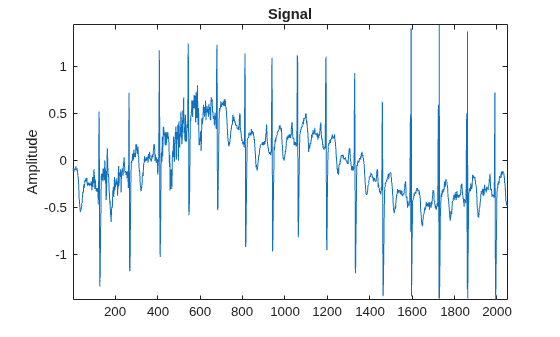

    Figure contains an axes. The axes with title Signal contains an object of type line.

    Create a lifting scheme associated with the db4 wavelet. Use the lifting scheme to obtain the wavelet decomposition of the signal to the maximum level. Confirm the length of the detail coefficients cell array equals floor(log2(N)), where N is the length of the signal.

    wv = 'db4';
    lsc = liftingScheme('Wavelet',wv);
    [ca,cd] = lwt(wecg,'LiftingScheme',lsc);
    [length(cd) floor(log2(length(wecg)))]
    ans = 1×2

        11    11



    Extract and plot the approximation coefficients at level 3. Confirm the length of the extraction is one-eighth the length of the original signal.

    approxCf = lwtcoef(ca,cd,'LiftingScheme',lsc,'OutputType','coefficients','Level',3);
    [2048/(2^3) length(approxCf)]
    ans = 1×2

       256   256


    plot(approxCf)
    title('Level 3 Approximation Coefficients')
    ylabel('Amplitude')
    axis tight

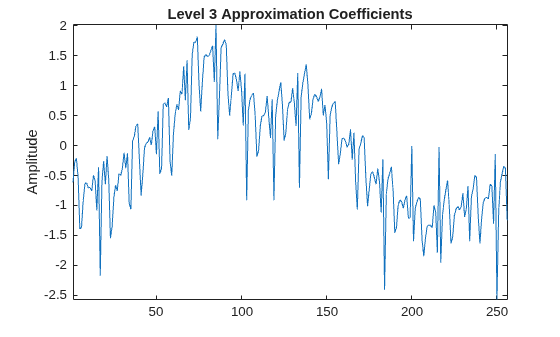

    Figure contains an axes. The axes with title Level 3 Approximation Coefficients contains an object of type line.

    Obtain the orthogonal projection of the level 3 approximation coefficients. Also obtain the orthogonal projections of the detail coefficients at levels 1, 2, and 3. Plot the results.

    approx3 = lwtcoef(ca,cd,'LiftingScheme',lsc,'OutputType','projection','Level',3);
    det3 = lwtcoef(ca,cd,'LiftingScheme',lsc,'OutputType','projection','Level',3,'Type','detail');
    det2 = lwtcoef(ca,cd,'LiftingScheme',lsc,'OutputType','projection','Level',2,'Type','detail');
    det1 = lwtcoef(ca,cd,'LiftingScheme',lsc,'OutputType','projection','Level',1,'Type','detail');
    subplot(4,1,1)
    plot(approx3)
    title('Projection - Approximation')
    axis tight
    subplot(4,1,2)
    plot(det3)
    title('Projection - Level 3 Details')
    axis tight
    subplot(4,1,3)
    plot(det2)
    title('Projection - Level 2 Details')
    axis tight
    subplot(4,1,4)
    plot(det1)
    title('Projection - Level 1 Details')
    axis tight

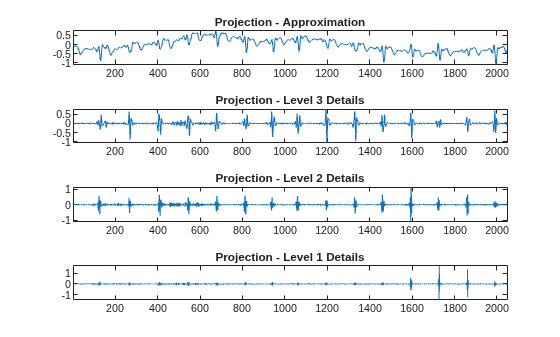

    Figure contains 4 axes. Axes 1 with title Projection - Approximation contains an object of type line. Axes 2 with title Projection - Level 3 Details contains an object of type line. Axes 3 with title Projection - Level 2 Details contains an object of type line. Axes 4 with title Projection - Level 1 Details contains an object of type line.

    Confirm the sum of the four projections equals the original signal.

    max(abs(wecg-(approx3+det3+det2+det1)))
    ans = 1.3323e-15


    Input Arguments

    collapse all

    Approximation (lowpass) coefficients at the coarsest level, specified as a scalar, vector, or matrix. The coefficients are the output of lwt.

    Data Types: single | double
    Complex Number Support: Yes

    Detail coefficients, specified as an L-by-1 cell array, where L is the level of the transform. The elements of cd are in order of decreasing resolution. The coefficients are the output of lwt.

    Data Types: single | double
    Complex Number Support: Yes

    Name-Value Pair Arguments

    Specify optional comma-separated pairs of Name,Value arguments. Name is the argument name and Value is the corresponding value. Name must appear inside quotes. You can specify several name and value pair arguments in any order as Name1,Value1,...,NameN,ValueN.

    Example: y = lwtcoef(ca,cd,'LiftingScheme',lsc,'OutputType','coefficients','Level',2) uses the lifting scheme lsc to extract the approximation coefficients at level 2.

    Orthogonal or biorthogonal wavelet, specified as a character vector or string scalar. See the Wavelet property of liftingScheme for the list of supported wavelets. For perfect reconstruction, the specified wavelet must be the same wavelet that was used to obtain the coefficients ca and cd.

    You cannot specify 'Wavelet' and 'LiftingScheme' name-value arguments at the same time.

    Lifting scheme to use, specified as a liftingScheme object. For perfect reconstruction, the specified lifting scheme must be the same lifting scheme that was used to obtain the coefficients ca and cd.

    You cannot specify 'Wavelet' and 'LiftingScheme' name-value arguments at the same time.

    Output type, specified as one of:

    • 'coefficients' — Extract the approximation or details coefficients

    • 'projection' — Return the projection (reconstruction) of the approximation or details coefficients

    Example: y = lwtcoef(ca,cd,'OutputType','projection','Type','detail') returns the projection corresponding to the detail coefficients at the finest scale.

    Type of coefficients to extract or reconstruct, specified as 'approximation' or 'detail'.

    Example: y = lwtcoef(ca,cd,'Type','detail') extracts the detail coefficients at the finest scale.

    Level of coefficients to extract or reconstruct, specified as an integer in the range [1,N], where N is the length of cd.

    Example: y = lwtcoef(ca,cd,'LiftingScheme',lsc,'Level',3) uses the lifting scheme lsc to extract the approximation coefficients at level 3.

    Data Types: double

    Output Arguments

    collapse all

    Extracted coefficients or projection, returned as a vector or matrix. If ca is a scalar or vector, and the elements of cd are vectors, then y is a vector. If ca and the elements of cd are matrices, then y is a matrix, where each column is the extraction or projection of the corresponding columns in ca and cd.

    Data Types: single | double

    Compatibility Considerations

    expand all

    Behavior changed in R2021a
