Train Object Detector Using R-CNN Deep Learning

This example uses:

Open Live Script

This example shows how to train an object detector using deep learning and R-CNN (Regions with Convolutional Neural Networks).

Overview

This example shows how to train an R-CNN object detector for detecting stop signs. R-CNN is an object detection framework, which uses a convolutional neural network (CNN) to classify image regions within an image [1]. Instead of classifying every region using a sliding window, the R-CNN detector only processes those regions that are likely to contain an object. This greatly reduces the computational cost incurred when running a CNN.

To illustrate how to train an R-CNN stop sign detector, this example follows the transfer learning workflow that is commonly used in deep learning applications. In transfer learning, a network trained on a large collection of images, such as ImageNet [2], is used as the starting point to solve a new classification or detection task. The advantage of using this approach is that the pretrained network has already learned a rich set of image features that are applicable to a wide range of images. This learning is transferable to the new task by fine-tuning the network. A network is fine-tuned by making small adjustments to the weights such that the feature representations learned for the original task are slightly adjusted to support the new task.

The advantage of transfer learning is that the number of images required for training and the training time are reduced. To illustrate these advantages, this example trains a stop sign detector using the transfer learning workflow. First a CNN is pretrained using the CIFAR-10 data set, which has 50,000 training images. Then this pretrained CNN is fine-tuned for stop sign detection using just 41 training images. Without pretraining the CNN, training the stop sign detector would require many more images.

Note: This example requires Computer Vision Toolbox™, Image Processing Toolbox™, Deep Learning Toolbox™, and Statistics and Machine Learning Toolbox™.

Using a CUDA-capable NVIDIA™ GPU is highly recommended for running this example. Use of a GPU requires the Parallel Computing Toolbox™. For information about the supported compute capabilities, see GPU Computing Requirements (Parallel Computing Toolbox).

Download CIFAR-10 Image Data

Download the CIFAR-10 data set [3]. This dataset contains 50,000 training images that will be used to train a CNN.

Download CIFAR-10 data to a temporary directory

cifar10Data = tempdir;

url = 'https://www.cs.toronto.edu/~kriz/cifar-10-matlab.tar.gz';

helperCIFAR10Data.download(url,cifar10Data);

Load the CIFAR-10 training and test data.

[trainingImages,trainingLabels,testImages,testLabels] = helperCIFAR10Data.load(cifar10Data);

Each image is a 32x32 RGB image and there are 50,000 training samples.

size(trainingImages)
ans = 1×4

          32          32           3       50000

CIFAR-10 has 10 image categories. List the image categories:

numImageCategories = 10;
categories(trainingLabels)
ans = 10×1 cell
    {'airplane'  }
    {'automobile'}
    {'bird'      }
    {'cat'       }
    {'deer'      }
    {'dog'       }
    {'frog'      }
    {'horse'     }
    {'ship'      }
    {'truck'     }

You can display a few of the training images using the following code.

figure
thumbnails = trainingImages(:,:,:,1:100);
montage(thumbnails)

Create A Convolutional Neural Network (CNN)

A CNN is composed of a series of layers, where each layer defines a specific computation. The Deep Learning Toolbox™ provides functionality to easily design a CNN layer-by-layer. In this example, the following layers are used to create a CNN:

The network defined here is similar to the one described in [4] and starts with an imageInputLayer. The input layer defines the type and size of data the CNN can process. In this example, the CNN is used to process CIFAR-10 images, which are 32x32 RGB images:

% Create the image input layer for 32x32x3 CIFAR-10 images.
[height,width,numChannels, ~] = size(trainingImages);

imageSize = [height width numChannels];
inputLayer = imageInputLayer(imageSize)
inputLayer =
  ImageInputLayer with properties:

                      Name: ''
                 InputSize: [32 32 3]
   Hyperparameters
          DataAugmentation: 'none'
             Normalization: 'zerocenter'
    NormalizationDimension: 'auto'
                      Mean: []

Next, define the middle layers of the network. The middle layers are made up of repeated blocks of convolutional, ReLU (rectified linear units), and pooling layers. These 3 layers form the core building blocks of convolutional neural networks. The convolutional layers define sets of filter weights, which are updated during network training. The ReLU layer adds non-linearity to the network, which allow the network to approximate non-linear functions that map image pixels to the semantic content of the image. The pooling layers downsample data as it flows through the network. In a network with lots of layers, pooling layers should be used sparingly to avoid downsampling the data too early in the network.

% Convolutional layer parameters
filterSize = [5 5];
numFilters = 32;

middleLayers = [

% The first convolutional layer has a bank of 32 5x5x3 filters. A
% symmetric padding of 2 pixels is added to ensure that image borders
% are included in the processing. This is important to avoid
% information at the borders being washed away too early in the
% network.
convolution2dLayer(filterSize,numFilters,'Padding',2)

% Note that the third dimension of the filter can be omitted because it
% is automatically deduced based on the connectivity of the network. In
% this case because this layer follows the image layer, the third
% dimension must be 3 to match the number of channels in the input
% image.

% Next add the ReLU layer:
reluLayer()

% Follow it with a max pooling layer that has a 3x3 spatial pooling area
% and a stride of 2 pixels. This down-samples the data dimensions from
% 32x32 to 15x15.
maxPooling2dLayer(3,'Stride',2)

% Repeat the 3 core layers to complete the middle of the network.
convolution2dLayer(filterSize,numFilters,'Padding',2)
reluLayer()
maxPooling2dLayer(3, 'Stride',2)

convolution2dLayer(filterSize,2 * numFilters,'Padding',2)
reluLayer()
maxPooling2dLayer(3,'Stride',2)

]
middleLayers =
  9x1 Layer array with layers:

     1   ''   Convolution   32 5x5 convolutions with stride [1  1] and padding [2  2  2  2]
     2   ''   ReLU          ReLU
     3   ''   Max Pooling   3x3 max pooling with stride [2  2] and padding [0  0  0  0]
     4   ''   Convolution   32 5x5 convolutions with stride [1  1] and padding [2  2  2  2]
     5   ''   ReLU          ReLU
     6   ''   Max Pooling   3x3 max pooling with stride [2  2] and padding [0  0  0  0]
     7   ''   Convolution   64 5x5 convolutions with stride [1  1] and padding [2  2  2  2]
     8   ''   ReLU          ReLU
     9   ''   Max Pooling   3x3 max pooling with stride [2  2] and padding [0  0  0  0]

A deeper network may be created by repeating these 3 basic layers. However, the number of pooling layers should be reduced to avoid downsampling the data prematurely. Downsampling early in the network discards image information that is useful for learning.

The final layers of a CNN are typically composed of fully connected layers and a softmax loss layer.

finalLayers = [

% Add a fully connected layer with 64 output neurons. The output size of
% this layer will be an array with a length of 64.
fullyConnectedLayer(64)

% Add an ReLU non-linearity.
reluLayer

% Add the last fully connected layer. At this point, the network must
% produce 10 signals that can be used to measure whether the input image
% belongs to one category or another. This measurement is made using the
% subsequent loss layers.
fullyConnectedLayer(numImageCategories)

% Add the softmax loss layer and classification layer. The final layers use
% the output of the fully connected layer to compute the categorical
% probability distribution over the image classes. During the training
% process, all the network weights are tuned to minimize the loss over this
% categorical distribution.
softmaxLayer
classificationLayer
]
finalLayers =
  5x1 Layer array with layers:

     1   ''   Fully Connected         64 fully connected layer
     2   ''   ReLU                    ReLU
     3   ''   Fully Connected         10 fully connected layer
     4   ''   Softmax                 softmax
     5   ''   Classification Output   crossentropyex

Combine the input, middle, and final layers.

layers = [
    inputLayer
    middleLayers
    finalLayers
    ]
layers =
  15x1 Layer array with layers:

     1   ''   Image Input             32x32x3 images with 'zerocenter' normalization
     2   ''   Convolution             32 5x5 convolutions with stride [1  1] and padding [2  2  2  2]
     3   ''   ReLU                    ReLU
     4   ''   Max Pooling             3x3 max pooling with stride [2  2] and padding [0  0  0  0]
     5   ''   Convolution             32 5x5 convolutions with stride [1  1] and padding [2  2  2  2]
     6   ''   ReLU                    ReLU
     7   ''   Max Pooling             3x3 max pooling with stride [2  2] and padding [0  0  0  0]
     8   ''   Convolution             64 5x5 convolutions with stride [1  1] and padding [2  2  2  2]
     9   ''   ReLU                    ReLU
    10   ''   Max Pooling             3x3 max pooling with stride [2  2] and padding [0  0  0  0]
    11   ''   Fully Connected         64 fully connected layer
    12   ''   ReLU                    ReLU
    13   ''   Fully Connected         10 fully connected layer
    14   ''   Softmax                 softmax
    15   ''   Classification Output   crossentropyex

Initialize the first convolutional layer weights using normally distributed random numbers with standard deviation of 0.0001. This helps improve the convergence of training.

layers(2).Weights = 0.0001 * randn([filterSize numChannels numFilters]);

Train CNN Using CIFAR-10 Data

Now that the network architecture is defined, it can be trained using the CIFAR-10 training data. First, set up the network training algorithm using the trainingOptions (Deep Learning Toolbox) function. The network training algorithm uses Stochastic Gradient Descent with Momentum (SGDM) with an initial learning rate of 0.001. During training, the initial learning rate is reduced every 8 epochs (1 epoch is defined as one complete pass through the entire training data set). The training algorithm is run for 40 epochs.

Note that the training algorithm uses a mini-batch size of 128 images. If using a GPU for training, this size may need to be lowered due to memory constraints on the GPU.

% Set the network training options
opts = trainingOptions('sgdm', ...
    'Momentum', 0.9, ...
    'InitialLearnRate', 0.001, ...
    'LearnRateSchedule', 'piecewise', ...
    'LearnRateDropFactor', 0.1, ...
    'LearnRateDropPeriod', 8, ...
    'L2Regularization', 0.004, ...
    'MaxEpochs', 40, ...
    'MiniBatchSize', 128, ...
    'Verbose', true);

Train the network using the trainNetwork (Deep Learning Toolbox) function. This is a computationally intensive process that takes 20-30 minutes to complete. To save time while running this example, a pretrained network is loaded from disk. If you wish to train the network yourself, set the doTraining variable shown below to true.

Note that a CUDA-capable NVIDIA™ GPU is highly recommended for training.

% A trained network is loaded from disk to save time when running the
% example. Set this flag to true to train the network.
doTraining = false;

if doTraining
    % Train a network.
    cifar10Net = trainNetwork(trainingImages, trainingLabels, layers, opts);
else
    % Load pre-trained detector for the example.
    load('rcnnStopSigns.mat','cifar10Net')
end

Validate CIFAR-10 Network Training

After the network is trained, it should be validated to ensure that training was successful. First, a quick visualization of the first convolutional layer's filter weights can help identify any immediate issues with training.

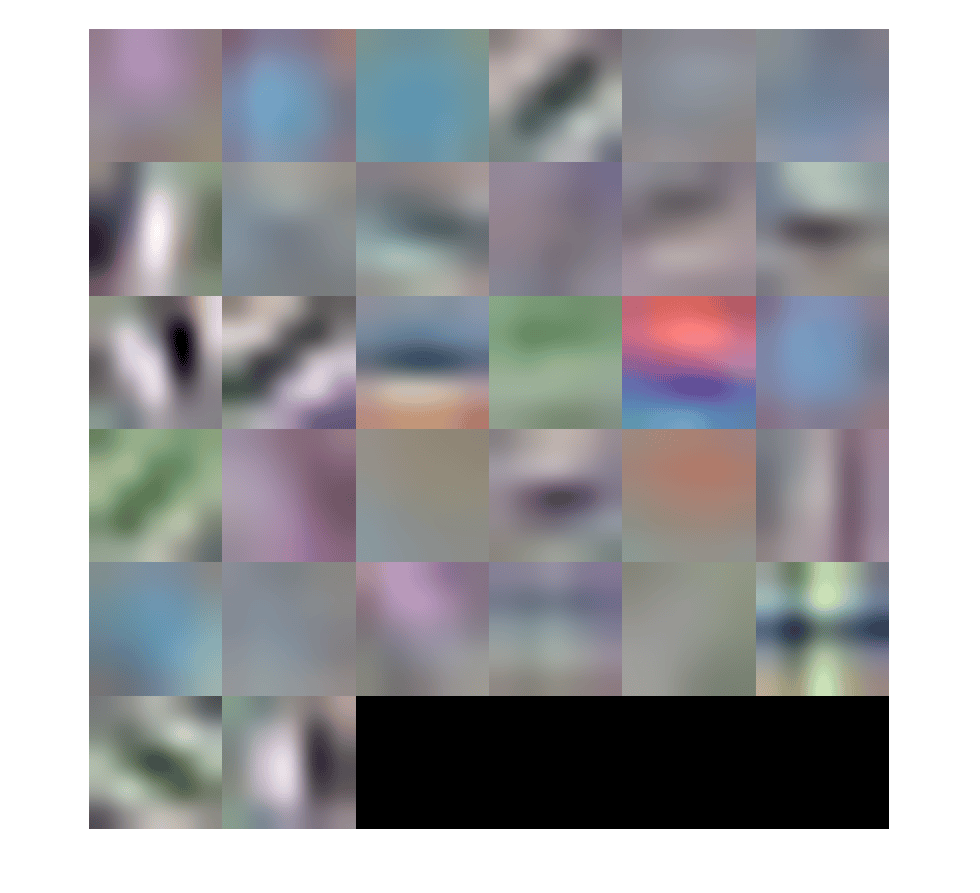

% Extract the first convolutional layer weights
w = cifar10Net.Layers(2).Weights;

% rescale the weights to the range [0, 1] for better visualization
w = rescale(w);

figure
montage(w)

The first layer weights should have some well defined structure. If the weights still look random, then that is an indication that the network may require additional training. In this case, as shown above, the first layer filters have learned edge-like features from the CIFAR-10 training data.

To completely validate the training results, use the CIFAR-10 test data to measure the classification accuracy of the network. A low accuracy score indicates additional training or additional training data is required. The goal of this example is not necessarily to achieve 100% accuracy on the test set, but to sufficiently train a network for use in training an object detector.

% Run the network on the test set.
YTest = classify(cifar10Net, testImages);

% Calculate the accuracy.
accuracy = sum(YTest == testLabels)/numel(testLabels)
accuracy = 0.7456

Further training will improve the accuracy, but that is not necessary for the purpose of training the R-CNN object detector.

Load Training Data

Now that the network is working well for the CIFAR-10 classification task, the transfer learning approach can be used to fine-tune the network for stop sign detection.

Start by loading the ground truth data for stop signs.

% Load the ground truth data
data = load('stopSignsAndCars.mat', 'stopSignsAndCars');
stopSignsAndCars = data.stopSignsAndCars;

% Update the path to the image files to match the local file system
visiondata = fullfile(toolboxdir('vision'),'visiondata');
stopSignsAndCars.imageFilename = fullfile(visiondata, stopSignsAndCars.imageFilename);

% Display a summary of the ground truth data
summary(stopSignsAndCars)
Variables:
    imageFilename: 41×1 cell array of character vectors
    stopSign: 41×1 cell
    carRear: 41×1 cell
    carFront: 41×1 cell

The training data is contained within a table that contains the image filename and ROI labels for stop signs, car fronts, and rears. Each ROI label is a bounding box around objects of interest within an image. For training the stop sign detector, only the stop sign ROI labels are needed. The ROI labels for car front and rear must be removed:

% Only keep the image file names and the stop sign ROI labels
stopSigns = stopSignsAndCars(:, {'imageFilename','stopSign'});

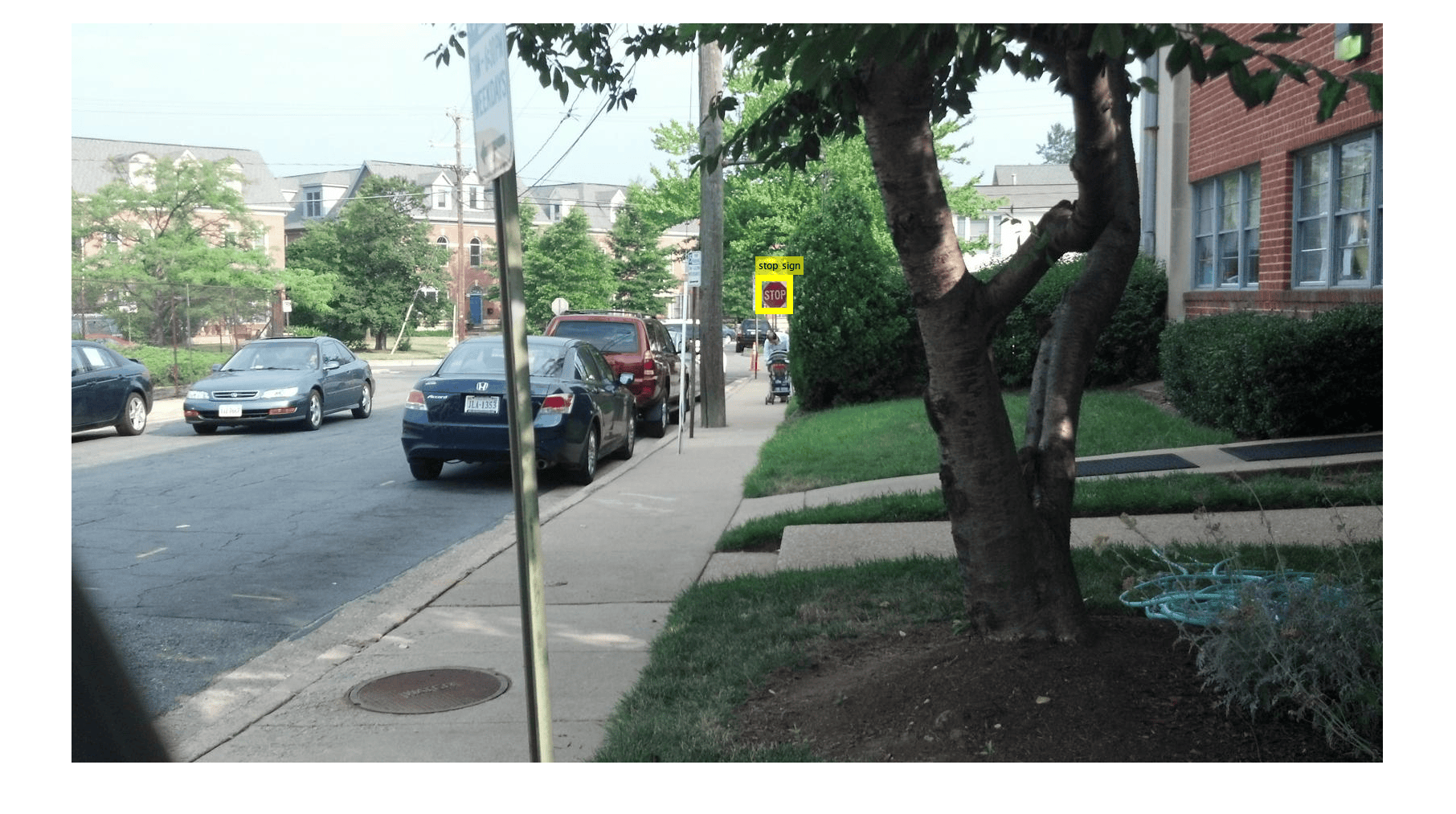

% Display one training image and the ground truth bounding boxes
I = imread(stopSigns.imageFilename{1});
I = insertObjectAnnotation(I,'Rectangle',stopSigns.stopSign{1},'stop sign','LineWidth',8);

figure
imshow(I)

Note that there are only 41 training images within this data set. Training an R-CNN object detector from scratch using only 41 images is not practical and would not produce a reliable stop sign detector. Because the stop sign detector is trained by fine-tuning a network that has been pre-trained on a larger dataset (CIFAR-10 has 50,000 training images), using a much smaller dataset is feasible.

Train R-CNN Stop Sign Detector

Finally, train the R-CNN object detector using trainRCNNObjectDetector. The input to this function is the ground truth table which contains labeled stop sign images, the pre-trained CIFAR-10 network, and the training options. The training function automatically modifies the original CIFAR-10 network, which classified images into 10 categories, into a network that can classify images into 2 classes: stop signs and a generic background class.

During training, the input network weights are fine-tuned using image patches extracted from the ground truth data. The 'PositiveOverlapRange' and 'NegativeOverlapRange' parameters control which image patches are used for training. Positive training samples are those that overlap with the ground truth boxes by 0.5 to 1.0, as measured by the bounding box intersection over union metric. Negative training samples are those that overlap by 0 to 0.3. The best values for these parameters should be chosen by testing the trained detector on a validation set.

For R-CNN training, the use of a parallel pool of MATLAB workers is highly recommended to reduce training time. trainRCNNObjectDetector automatically creates and uses a parallel pool based on your Computer Vision Toolbox Preferences. Ensure that the use of the parallel pool is enabled prior to training.

To save time while running this example, a pretrained network is loaded from disk. If you wish to train the network yourself, set the doTraining variable shown below to true.

Note that a CUDA-capable NVIDIA™ GPU is highly recommended for training.

% A trained detector is loaded from disk to save time when running the
% example. Set this flag to true to train the detector.
doTraining = false;

if doTraining

    % Set training options
    options = trainingOptions('sgdm', ...
        'MiniBatchSize', 128, ...
        'InitialLearnRate', 1e-3, ...
        'LearnRateSchedule', 'piecewise', ...
        'LearnRateDropFactor', 0.1, ...
        'LearnRateDropPeriod', 100, ...
        'MaxEpochs', 100, ...
        'Verbose', true);

    % Train an R-CNN object detector. This will take several minutes.
    rcnn = trainRCNNObjectDetector(stopSigns, cifar10Net, options, ...
    'NegativeOverlapRange', [0 0.3], 'PositiveOverlapRange',[0.5 1])
else
    % Load pre-trained network for the example.
    load('rcnnStopSigns.mat','rcnn')
end

Test R-CNN Stop Sign Detector

The R-CNN object detector can now be used to detect stop signs in images. Try it out on a test image:

% Read test image
testImage = imread('stopSignTest.jpg');

% Detect stop signs
[bboxes,score,label] = detect(rcnn,testImage,'MiniBatchSize',128)
bboxes = 1×4

   419   147    31    20


score = single
    0.9955

label = 1×1 categorical
     stopSign

The R-CNN object detect method returns the object bounding boxes, a detection score, and a class label for each detection. The labels are useful when detecting multiple objects, e.g. stop, yield, or speed limit signs. The scores, which range between 0 and 1, indicate the confidence in the detection and can be used to ignore low scoring detections.

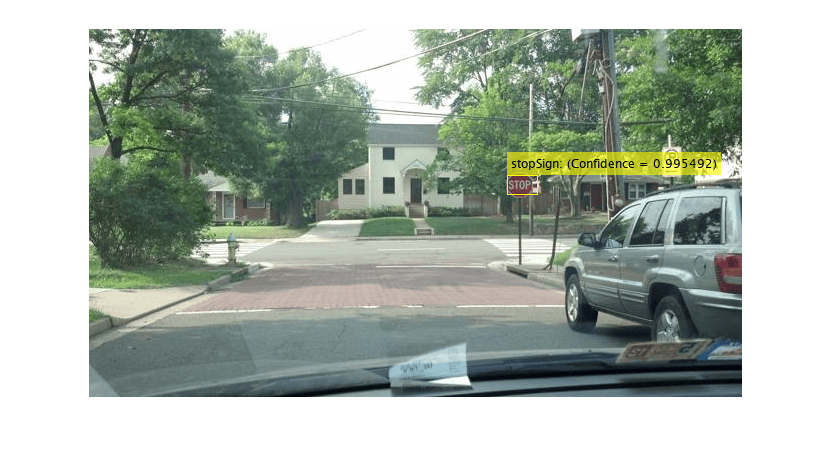

% Display the detection results
[score, idx] = max(score);

bbox = bboxes(idx, :);
annotation = sprintf('%s: (Confidence = %f)', label(idx), score);

outputImage = insertObjectAnnotation(testImage, 'rectangle', bbox, annotation);

figure
imshow(outputImage)

Debugging Tips

The network used within the R-CNN detector can also be used to process the entire test image. By directly processing the entire image, which is larger than the network's input size, a 2-D heat-map of classification scores can be generated. This is a useful debugging tool because it helps identify items in the image that are confusing the network, and may help provide insight into improving training.

% The trained network is stored within the R-CNN detector
rcnn.Network
ans =
  SeriesNetwork with properties:

    Layers: [15×1 nnet.cnn.layer.Layer]

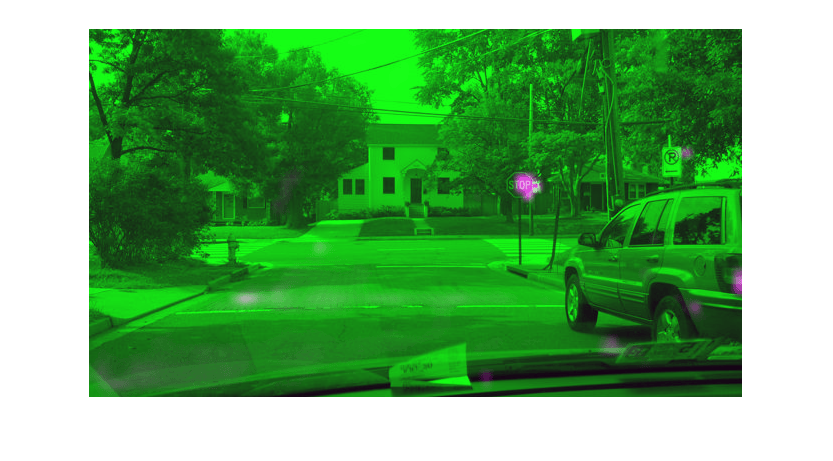

Extract the activations (Deep Learning Toolbox) from the softmax layer, which is the 14th layer in the network. These are the classification scores produced by the network as it scans the image.

featureMap = activations(rcnn.Network, testImage, 14);

% The softmax activations are stored in a 3-D array.
size(featureMap)
ans = 1×3

    43    78     2

The 3rd dimension in featureMap corresponds to the object classes.

rcnn.ClassNames
ans = 2×1 cell
    {'stopSign'  }
    {'Background'}

The stop sign feature map is stored in the first channel.

stopSignMap = featureMap(:, :, 1);

The size of the activations output is smaller than the input image due to the downsampling operations in the network. To generate a nicer visualization, resize stopSignMap to the size of the input image. This is a very crude approximation that maps activations to image pixels and should only be used for illustrative purposes.

% Resize stopSignMap for visualization
[height, width, ~] = size(testImage);
stopSignMap = imresize(stopSignMap, [height, width]);

% Visualize the feature map superimposed on the test image.
featureMapOnImage = imfuse(testImage, stopSignMap);

figure
imshow(featureMapOnImage)

The stop sign in the test image corresponds nicely with the largest peak in the network activations. This helps verify that the CNN used within the R-CNN detector has effectively learned to identify stop signs. Had there been other peaks, this may indicate that the training requires additional negative data to help prevent false positives. If that's the case, then you can increase 'MaxEpochs' in the trainingOptions and re-train.

Summary

This example showed how to train an R-CNN stop sign object detector using a network trained with CIFAR-10 data. Similar steps may be followed to train other object detectors using deep learning.

References

[1] Girshick, R., J. Donahue, T. Darrell, and J. Malik. "Rich Feature Hierarchies for Accurate Object Detection and Semantic Segmentation." Proceedings of the 2014 IEEE Conference on Computer Vision and Pattern Recognition. Columbus, OH, June 2014, pp. 580-587.

[2] Deng, J., W. Dong, R. Socher, L.-J. Li, K. Li, and L. Fei-Fei. "ImageNet: A Large-Scale Hierarchical Image Database." Proceedings of the 2009 IEEE Conference on Computer Vision and Pattern Recognition. Miami, FL, June 2009, pp. 248-255.

[3] Krizhevsky, A., and G. Hinton. "Learning multiple layers of features from tiny images." Master's Thesis, University of Toronto. Toronto, Canada, 2009.

[4] https://code.google.com/p/cuda-convnet/

See Also

| (Deep Learning Toolbox) | | (Deep Learning Toolbox) | | (Deep Learning Toolbox)

Related Topics
