insertShape

Insert shapes in image or video

Syntax

RGB = insertShape(I,shape,position)

RGB = insertShape(___,Name=Value)

Description

RGB = insertShape(I,shape,position) insert the specified shape into the truecolor or grayscale image I. The function draws the shapes by overwriting pixel values, and returns a truecolor image.

RGB = insertShape(___,Name=Value) specifies options using one or more name-value arguments in addition to the input arguments from the input arguments from the previous syntax. For example, LineWidth=5 sets the line width value to 5 of the inserted shapes.

Examples

Insert Circle and Filled Shapes onto Image

Read an image into the workspace.

I = imread("peppers.png");

Place a circle on the image with a border line width of 5 pixels.

RGB = insertShape(I,"circle",[150 280 35],LineWidth=5);

Place a filled triangle and a filled hexagon on the image.

pos_triangle = [183 297 302 250 316 297];
pos_hexagon = [340 163 305 186 303 257 334 294 362 255 361 191];
RGB = insertShape(RGB,"filled-polygon",{pos_triangle pos_hexagon}, ...
    ShapeColor=["white","green"],Opacity=0.7);

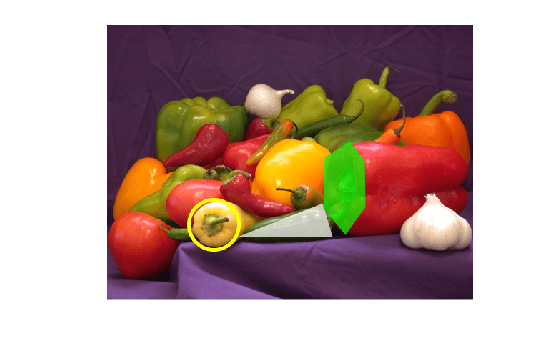

Display the resulting image.

imshow(RGB)

Input Arguments

I — Input image

M-by-N-by-3 truecolor image | M-by-N grayscale image

Input image, specified as an M-by-N-by-3 truecolor or an M-by-N grayscale image.

Data Types: single | double | int16 | uint8 | uint16

shape — Type of shape

"rectangle" | "filled-rectangle" | "line" | "polygon" | "filled-polygon" | "circle" | "filled-circle" | "projected-cuboid"

Type of shape, specified as "rectangle", "filled-rectangle", "line", "polygon", "filled-polygon", "circle", "filled-circle", or "projected-cuboid".

Data Types: char | string

position — Position of shape

matrix | vector | cell array

Position of shape, specified according to the type of shape, as described in the table.

Shape	Position	Example
rectangle filled-rectangle	For one or more axis-aligned rectangles or filled rectangles, specify as an M-by-4 numeric matrix, where each row specifies a rectangle of the form $$\left[\begin{array}{cccc}x& y& width& height\end{array}\right]$$. M is the number of axis-aligned rectangles. x and y specify the upper-left corner of the rectangle. w specifies the width of the rectangle, which is its length along the x-axis. h specifies the height of the rectangle, which is its length along the y-axis. $$\left[\begin{array}{cccc}{x}_1& y_1& widt{h}_1& heigh{t}_1\\ x_2& y_2& widt{h}_2& heigh{t}_2\\ ⋮& ⋮& ⋮& ⋮\\ x_M& y_M& widt{h}_M& heigh{t}_M\end{array}\right]$$
	For one or more rotated rectangles, specify in spatial coordinates as an M-by-5 numeric matrix, where each row specifies a rotated rectangle of the form [xctr yctr w h yaw]. M is the number of rotated rectangles. xctr and yctr specify the center of the rectangle. w specifies the width of the rectangle, which is its length along the x-axis before rotation. h specifies the height of the rectangle, which is its length along the y-axis before rotation. yaw specifies the rotation angle in degrees. The rotation is clockwise-positive around the center of the rectangle.
circle filled-circle	For one or more circles, specify spatial coordinates as an M-by-3 numeric matrix, where each row specifies a circle of the form [xctr yctr radius]. M is the number of circles. xctr and yctr specify the center of the circle. radius specifies the radius of the circle. $$\left[\begin{array}{ccc}xct{r}_1& yct{r}_1& radiu{s}_1\\ xct{r}_2& yct{r}_2& radiu{s}_2\\ ⋮& ⋮& ⋮\\ xct{r}_M& yct{r}_M& radiu{s}_M\end{array}\right]$$
line	For one or more lines, specify spatial coordinates using one of these formats to specify a single line with connected endpoints, multiple lines with the same number of endpoints, or multiple lines with different numbers of endpoints. Single lines with connected endpoints — Specify as a P-by-2 matrix, where each row specifies an endpoint in the form [x y], and the endpoint in one row connects directly to the endpoint in the next. P is the number of endpoints in the line. Multiple lines with the same number of endpoints — Specify as an M-by-2P matrix, where each row specifies the consecutive endpoints of a single line in the form [x1 y1 x2 y2 ... xp yp]. Each [x y] pair is the coordinates of a single endpoint. M is the number of specified lines, and P is the number of endpoints per line. Multiple lines with different numbers of endpoints — Specify as an M-by-1 cell array, where each cell contains the endpoints for a single line as a P-by-2 matrix or a 1-by-2P vector]. M is the number of specified lines, and P is the number of endpoints for each line
polygon filled-polygon	For one or more polygons, specify in spatial coordinates as an M-by-1 cell array, where each cell contains an L-by-2 matrix of [x y] vertex locations or a 1-by-2L vector of consecutive vertex locations of the form [x1, y1, x2,y2, … xL,yL ]. M is the number of polygons. Each [x y] pair describes a vertex location or endpoint. L is the number of vertices in a polygon or endpoints in a line. Each polygon or line can have a different number of vertices or endpoints.
projected-cuboid	For one or more projected cuboids, specify in spatial coordinates as an 8-by-2-by-M array or an M-by-8 matrix, where M is the number of projected cuboids. When specified as an 8-by-2-by-M array, each row must contain the [x y] location of a projected cuboid vertex. The vertices connect to form a cuboid with six faces. The order of the input vertices must match the order shown in the diagram. When specified as an M-by-8 matrix, each row specifies the dimensions of the front-facing and rear-facing sides of a projected cuboid in the form, [x1 y1 w1 h1 x2 y2 w2 h2], where [x1 y1] and [x2 y2] specify the upper-left coordinates of the front-facing and rear-facing sides, respectively, and [w1 h1] and [w2 h2] specify the corresponding widths and heights.

Data Types: single | double | cell | int8 | int16 | int32 | int64 | uint8 | uint16 | uint32 | uint64

Name-Value Arguments

Specify optional pairs of arguments as Name1=Value1,...,NameN=ValueN, where Name is the argument name and Value is the corresponding value. Name-value arguments must appear after other arguments, but the order of the pairs does not matter.

Example: insertShape(I,"circle",position,Color="yellow") sets the shape color to yellow.

Before R2021a, use commas to separate each name and value, and enclose Name in quotes.

Example: insertShape(I,"circle",position,"Color","yellow") sets the shape color to yellow.

LineWidth — Shape border line width

1 (default) | positive integer

Shape border line width, specified as a positive integer, in pixels. This argument applies to only the "Rectangle", "Line", "Polygon", and "Circle" shapes.

Data Types: uint8 | uint16 | int16 | double | single

ShapeColor — Shape color

"green" (default) | short color name | color name | vector of color names | three-column matrix of RGB triplets

Shape color, specified as a short color name, color name, vector of color names, three-column matrix of RGB triplets.

The supported colors table lists RGB intensities in the range [0, 1], but you must specify RGB triplets in the range of your selected data type. For example, if specifying this argument as a matrix of uint8 values, you must convert each intensity value to the range [0, 255]. To convert the listed intensity values to a uint8 data type, use the code uint8(255*intensity), where intensity is an RGB triplet value listed in the table.

You can specify a different color for each shape or one color for all shapes. To specify one color for all markers, specify ShapeColor as a color name or an [R G B] vector.

Specification	Format	Example
Specify one color for all shapes (or markers)	Short color name or color name	"r" "red"
	RGB triplet	[1 0 0]
Specify a color for each shape (or marker)	Vector of color names	["red","yellow","blue"]
	Three-column matrix of RGB triplets	[1 0 0 0 1 1 1 0 1 1 1 1]

This table lists the supported shape colors.

Color Name	Short Name	RGB Triplet	Appearance
"red"	"r"	[1 0 0]
"green"	"g"	[0 1 0]
"blue"	"b"	[0 0 1]
"cyan"	"c"	[0 1 1]
"magenta"	"m"	[1 0 1]
"yellow"	"y"	[1 1 0]
"black"	"k"	[0 0 0]
"white"	"w"	[1 1 1]

Data Types: logical | uint8 | uint16 | int16 | double | single | cell

Opacity — Opacity of filled shape

0.6 (default) | scalar in range [0,1]

Opacity of a filled shape, specified as a scalar in the range [0 1]. The Opacity argument applies to only the "filled-rectangle", "filled-polygon", and "filled-circle" shapes.

Data Types: double | single | int8 | int16 | int32 | int64 | uint8 | uint16 | uint32 | uint64

SmoothEdges — Smooth shape edges

true or 1 (default) | false or 0

Smooth shape edges, specified as a logical 1 (true) or 0 (false). A true value enables an antialiasing filter to smooth shape edges. This value applies to only nonrectangular shapes. When you enable antialiasing requires additional time to draw the shapes.

Data Types: logical

Output Arguments

RGB — Output image

M-by-N-by-3 truecolor image

Output image, returned as an M-by-N-by-3 truecolor image.

Extended Capabilities

C/C++ Code Generation

Generate C and C++ code using MATLAB® Coder™.

Usage notes and limitations:

• The Color and SmoothEdges name-value arguments must be compile-time constants.

• Code generation requires a C++ compiler. For a list of supported compilers, see Supported and Compatible Compilers

Version History

Introduced in R2014a

R2023b: Specify RGB color in the range [0,1]

Starting in R2023b, you can specify marker color with RGB values in the range [0,1].

R2023b: Rotated rectangle support for bounding box

You can specify a rotated rectangle bounding box using the form [xctr yctr width height yaw].

R2023b: Show orientation of rectangle of bounding box

You can now specify the ShowOrientation name-value argument to display the orientation and angle of a rotated rectangle bounding box.

R2022b: Visualize projected cuboids

Added support to visualize projected cuboids.
