Steering
R2026bThe steering blocks use the steering angle or steering torque to calculate wheel angles that you can input to the suspension blocks. The dynamic block accounts for dynamic effects, including idealized power assist, steering column inertia, and friction. Select Ackerman, rack and pinion, or parallel steering.
Blocks
 | Kinematic Steering | Kinematic steering for Ackerman, rack-and-pinion, and parallel steering mechanisms |
 | Mapped Steering | Mapped steering with speed-dependent option |
 | Steering System | Steering system for Ackermann and rack-and-pinion steering mechanisms (Since R2022b) |
Topics
- Slowly Increasing Steering Maneuver
Analyze vehicle ride and handling, including lateral vehicle dynamics and steering, using this reference application.
- Swept-Sine Steering Maneuver
Analyze vehicle ride and handling, including the dynamic steering response, using this reference application.
- Coordinate Systems in Vehicle Dynamics Blockset
Understand coordinate systems used for vehicle dynamics calculations and for actor transformations in the 3D environment.
Featured Examples

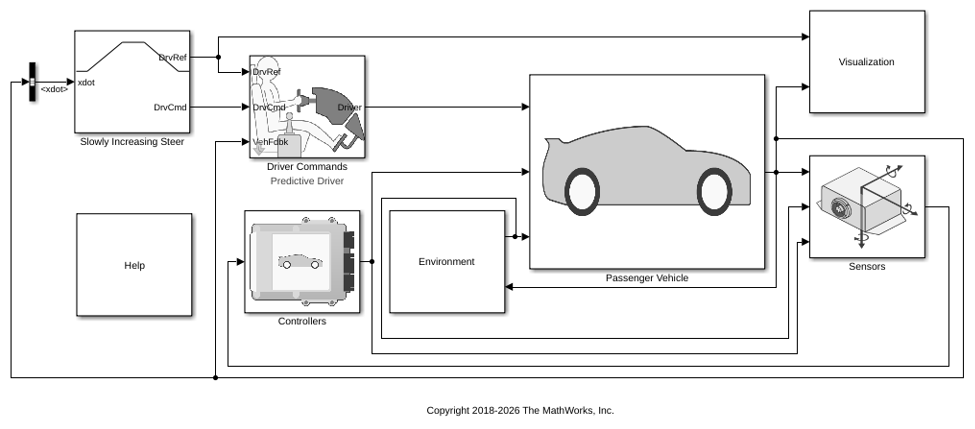

Increasing Steering Reference Application
Simulate a full vehicle dynamics model undergoing a slowly increasing steering maneuver according to standard SAE J266. Use for lateral vehicle dynamics ride and handling analysis and chassis controls development, including the steering response.

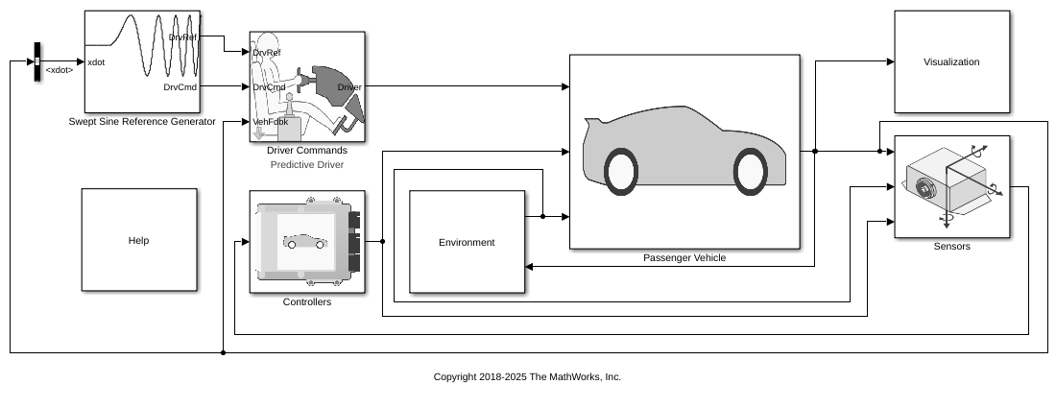

Swept-Sine Steering Reference Application
Simulate a full vehicle dynamics model undergoing a swept sine steering maneuver. Use for vehicle dynamics ride and handling analysis and chassis controls development, including the dynamic steering response.
