## Solve a System of Differential Equations

Solve a system of several ordinary differential equations in several variables by using the `dsolve` function, with or without initial conditions. To solve a single differential equation, see Solve Differential Equation.

### Solve System of Differential Equations

Solve this system of linear first-order differential equations.

`$\begin{array}{l}\frac{du}{dt}=3u+4v,\\ \frac{dv}{dt}=-4u+3v.\end{array}$`

First, represent u and v by using `syms` to create the symbolic functions `u(t)` and `v(t)`.

`syms u(t) v(t)`

Define the equations using `==` and represent differentiation using the `diff` function.

```ode1 = diff(u) == 3*u + 4*v; ode2 = diff(v) == -4*u + 3*v; odes = [ode1; ode2]```
```odes(t) = diff(u(t), t) == 3*u(t) + 4*v(t) diff(v(t), t) == 3*v(t) - 4*u(t)```

Solve the system using the `dsolve` function which returns the solutions as elements of a structure.

`S = dsolve(odes)`
```S = struct with fields: v: [1×1 sym] u: [1×1 sym]```

If `dsolve` cannot solve your equation, then try solving the equation numerically. See Solve a Second-Order Differential Equation Numerically.

To access `u(t)` and `v(t)`, index into the structure `S`.

```uSol(t) = S.u vSol(t) = S.v```
```uSol(t) = C2*cos(4*t)*exp(3*t) + C1*sin(4*t)*exp(3*t) vSol(t) = C1*cos(4*t)*exp(3*t) - C2*sin(4*t)*exp(3*t)```

Alternatively, store `u(t)` and `v(t)` directly by providing multiple output arguments.

`[uSol(t), vSol(t)] = dsolve(odes)`
```uSol(t) = C2*cos(4*t)*exp(3*t) + C1*sin(4*t)*exp(3*t) vSol(t) = C1*cos(4*t)*exp(3*t) - C2*sin(4*t)*exp(3*t)```

The constants `C1` and `C2` appear because no conditions are specified. Solve the system with the initial conditions `u(0) == 0` and `v(0) == 0`. The `dsolve` function finds values for the constants that satisfy these conditions.

```cond1 = u(0) == 0; cond2 = v(0) == 1; conds = [cond1; cond2]; [uSol(t), vSol(t)] = dsolve(odes,conds)```
```uSol(t) = sin(4*t)*exp(3*t) vSol(t) = cos(4*t)*exp(3*t)```

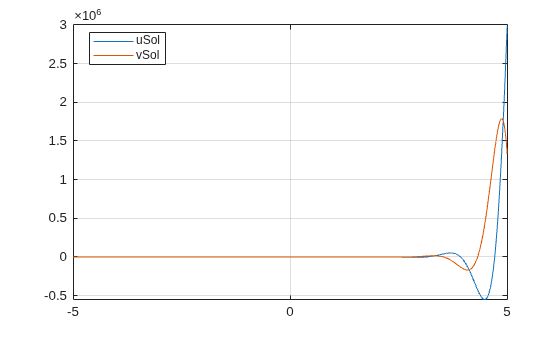

Visualize the solution using `fplot`.

```fplot(uSol) hold on fplot(vSol) grid on legend('uSol','vSol','Location','best')``` ### Solve Differential Equations in Matrix Form

Solve differential equations in matrix form by using `dsolve`.

Consider this system of differential equations.

`$\begin{array}{l}\frac{dx}{dt}=x+2y+1,\\ \frac{dy}{dt}=-x+y+t.\end{array}$`

The matrix form of the system is

`$\left[\begin{array}{c}x\text{'}\\ y\text{'}\end{array}\right]=\left[\begin{array}{cc}1& 2\\ -1& 1\end{array}\right]\left[\begin{array}{c}x\\ y\end{array}\right]+\left[\begin{array}{c}1\\ t\end{array}\right].$`

Let

`$Y=\left[\begin{array}{c}x\\ y\end{array}\right],A=\left[\begin{array}{cc}1& 2\\ -1& 1\end{array}\right],B=\left[\begin{array}{c}1\\ t\end{array}\right].$`

The system is now Y′ = AY + B.

Define these matrices and the matrix equation.

```syms x(t) y(t) A = [1 2; -1 1]; B = [1; t]; Y = [x; y]; odes = diff(Y) == A*Y + B```
```odes(t) = diff(x(t), t) == x(t) + 2*y(t) + 1 diff(y(t), t) == t - x(t) + y(t)```

Solve the matrix equation using `dsolve`. Simplify the solution by using the `simplify` function.

```[xSol(t), ySol(t)] = dsolve(odes); xSol(t) = simplify(xSol(t)) ySol(t) = simplify(ySol(t))```
```xSol(t) = (2*t)/3 + 2^(1/2)*C2*exp(t)*cos(2^(1/2)*t) + 2^(1/2)*C1*exp(t)*sin(2^(1/2)*t) + 1/9 ySol(t) = C1*exp(t)*cos(2^(1/2)*t) - t/3 - C2*exp(t)*sin(2^(1/2)*t) - 2/9```

The constants `C1` and `C2` appear because no conditions are specified.

Solve the system with the initial conditions u(0) = 2 and v(0) = –1. When specifying equations in matrix form, you must specify initial conditions in matrix form too. `dsolve` finds values for the constants that satisfy these conditions.

```C = Y(0) == [2; -1]; [xSol(t), ySol(t)] = dsolve(odes,C)```
```xSol(t) = (2*t)/3 + (17*exp(t)*cos(2^(1/2)*t))/9 - (7*2^(1/2)*exp(t)*sin(2^(1/2)*t))/9 + 1/9 ySol(t) = - t/3 - (7*exp(t)*cos(2^(1/2)*t))/9 - (17*2^(1/2)*exp(t)*sin(2^(1/2)*t))/18 - 2/9```

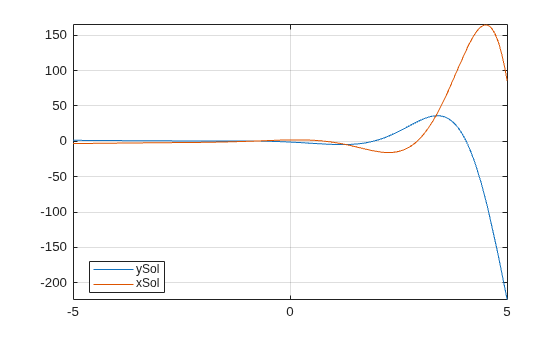

Visualize the solution using `fplot`.

```clf fplot(ySol) hold on fplot(xSol) grid on legend('ySol','xSol','Location','best')```
