Customize and Extend Simscape Libraries for a Custom DC Motor

Create custom-equation-based components for the Simscape™ library using the Symbolic Math Toolbox™.

Introduction

The Symbolic Math Toolbox provides a flexible way to develop models from first engineering principles in any spatial dimension. You can develop mathematical models for steady state or transient physics.

You can develop and solve the equations required to represent the physics necessary for your component; and perform your own reduced-order model mapping between the inputs x and a quantity of interest f(x).

Here f is the custom component which can represent governing equations in the form of:

Mathematical formulas
Numerical simulations of ODEs and PDEs

The steps in this examples are

Parameterizing a Simscape™ component using symReadSSCVariables
Define custom equations for your Simscape component using diff
Solve steady-state equations analytically using solve and subs
Solve time-dependent equations numerically in MATLAB® by using matlabFunction and ode45
Create a Simscape component using symWriteSSC

To run this example, you must have licenses for Simscape and Symbolic Math Toolbox.

DC Motor Model

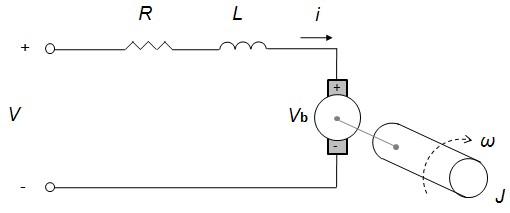

A DC motor is a device for converting electrical energy into mechanical energy and vice versa. A schematic of a DC motor is shown below (left figure). Blocks that simulate DC motors are provided in Simscape Electrical™ (right figure), which is an optional product for Simscape.

In this example, we will derive a reduced-order model representation of a DC Motor using the governing Ordinary Differential Equations (ODEs). For a DC motor, the electrical voltage and current is derived from Kirchhoff’s laws and the formula of the mechanical torque is derived from Newton’s laws. Using these equations we can implement a custom and parametric Simscape component.

$(\begin{matrix} J \frac{\partial}{\partial t} w (t) = Ki I (t) - Dr w (t) \\ L \frac{\partial}{\partial t} I (t) + R I (t) = V (t) - Kb w (t) \end{matrix})$

Import Parameters and Variables of Template Component

Suppose you have a Simscape component MyMotorTemplate.ssc in your current folder or on the default MATLAB path. This component has no equations yet. The template records the parameters and variables which will be used to develop our motor. You can use type to provide a preview of that template.

type MyMotorTemplate.ssc

component MyMotorTemplate
% Custom DC Motor
% This block implements a custom DC motor
  nodes
    p = foundation.electrical.electrical; % +:left
    n = foundation.electrical.electrical; % -:left
    r = foundation.mechanical.rotational.rotational; % R:right
    c = foundation.mechanical.rotational.rotational; % C:right
  end
  parameters
      R = {3.9, 'Ohm'};                 %Armature resistance
      L = {0.000012, 'H'};              %Armature inductance
      J = {0.000001, 'kg*m^2'};         %Inertia
      Dr = {0.000003, '(N*m*s)/rad'};   %Rotor damping
      Ki = {0.000072, '(N*m)/A'};       %Torque constant
      Kb = {0.000072, '(V*s)/rad'};     %Back-emf constant
  end
  variables
      torque = {0, 'N*m'};  %Total Torque
      tau = {0, 'N*m'};     %Electric Torque
      w = {0, 'rad/s'};     %Angular Velocity
      I = {0, 'A'};         %Current
      V = {0, 'V'};         %Applied voltage
      Vb = {0, 'V'};        %Counter electromotive force
  end
  function setup
    if(R<=0)
        error('Winding resistance must be greater than 0.');
    end
  end
  branches
    torque : r.t -> c.t; % Through variable tau from r to c
    I   : p.i -> n.i; % Through variable i from p to n
  end
  equations
    w == r.w -c.w; % Across variable w from r to c
    V == p.v -n.v; % Across variable v from p to n
  end
end

Read the names, values, and units of the parameters from the template component.

[parNames, parValues, parUnits] = symReadSSCParameters('MyMotorTemplate');

Display the parameters, their values, and the corresponding units as vectors.

vpa([parNames; parValues; parUnits],10)

ans =
 $(\begin{array}{c} Dr & J & Kb & Ki & L & R \\ 0.000003 & 0.000001 & 0.000072 & 0.000072 & 0.000012 & 3.9 \\ \frac{N "newton - a physical unit of force." m "meter - a physical unit of length." s "second - a physical unit of time."}{rad "radian - a physical unit of plane angle."} & kg "kilogram - a physical unit of mass." {m "meter - a physical unit of length."}^{2} & \frac{V "volt - a physical unit of electric potential." s "second - a physical unit of time."}{rad "radian - a physical unit of plane angle."} & \frac{N "newton - a physical unit of force." m "meter - a physical unit of length."}{A "ampere - a physical unit of electric current."} & H "henry - a physical unit of inductance." & Ω "ohm - a physical unit of resistance." \end{array})$

Add the parameter names to the MATLAB Workspace by using the syms function. Parameters appear as symbolic variables in the workspace. You can use who to list variables in the workspace.

syms(parNames)
syms

Your symbolic variables are:

Dr   J    Kb   Ki   L    R    ans

Read and display the names of the component variables. Use ReturnFunction to simultaneously convert these variables to functions of the variable t.

[varFuns, varValues, varUnits] = symReadSSCVariables('MyMotorTemplate', 'ReturnFunction', true);
vpa([varFuns; varValues; varUnits],10)

ans =
 $(\begin{array}{c} I (t) & V (t) & Vb (t) & τ (t) & torque (t) & w (t) \\ 0 & 0 & 0 & 0 & 0 & 0 \\ A "ampere - a physical unit of electric current." & V "volt - a physical unit of electric potential." & V "volt - a physical unit of electric potential." & N "newton - a physical unit of force." m "meter - a physical unit of length." & N "newton - a physical unit of force." m "meter - a physical unit of length." & \frac{rad "radian - a physical unit of plane angle."}{s "second - a physical unit of time."} \end{array})$

Add the variable names to the MATLAB Workspace by using the syms function. Variables appear as symbolic functions in the workspace. Verify that you have declared all required symbolic variables and functions using syms.

syms(varFuns)
syms

Your symbolic variables are:

Dr      I       J       Kb      Ki      L       R       V       Vb      ans     t       tau     torque  w

Define System of Equations for Modeling DC Motor

The differential equations for the mechanical torque are defined as eq1 and eq2. I(t) represents the current and w(t) the angular velocity.

eq1 = torque + J*diff(w(t)) == -Dr*w(t) + tau(t)

eq1(t) =
 $J \frac{\partial}{\partial t} w (t) + torque (t) = τ (t) - Dr w (t)$

eq2 = tau(t) == Ki*I(t)

eq2 =  $τ (t) = Ki I (t)$

The equations for the electrical voltage and current are eq3 and eq4. V(t) and Vb(t) represent the applied voltage and counter electromotive force respectively.

eq3 = L*diff(I(t)) + R*I(t) == V(t) - Vb(t)

eq3 =
 $L \frac{\partial}{\partial t} I (t) + R I (t) = V (t) - Vb (t)$

eq4 = Vb(t) == Kb*w(t)

eq4 =  $Vb (t) = Kb w (t)$

We can list them together. Here, the motor’s torque is assumed to be proportional to the current.

eqs = formula([eq1; eq2; eq3; eq4])

eqs =
 $(\begin{array}{c} J \frac{\partial}{\partial t} w (t) + torque (t) = τ (t) - Dr w (t) \\ τ (t) = Ki I (t) \\ L \frac{\partial}{\partial t} I (t) + R I (t) = V (t) - Vb (t) \\ Vb (t) = Kb w (t) \end{array})$

Extract the left and right sides of the equations.

operands = children(eqs);
operList = [ operands{:} ];
lhs = operList(1:2:end)

lhs=1×4 cell array
    {[J*diff(w(t), t) + torque(t)]}    {[tau(t)]}    {[L*diff(I(t), t) + R*I(t)]}    {[Vb(t)]}

rhs = operList(2:2:end)

rhs=1×4 cell array
    {[tau(t) - Dr*w(t)]}    {[Ki*I(t)]}    {[V(t) - Vb(t)]}    {[Kb*w(t)]}

The second and fourth equations define the values tau(t) and Vb(t). To simplify the system of four equations to a system of two equations, substitute these values into the first and third equation.

equations(1) = subs(eqs(1), lhs(2), rhs(2))

equations =
 $J \frac{\partial}{\partial t} w (t) + torque (t) = Ki I (t) - Dr w (t)$

equations(2) = subs(eqs(3), lhs(4), rhs(4))

equations =
 $(\begin{array}{c} J \frac{\partial}{\partial t} w (t) + torque (t) = Ki I (t) - Dr w (t) & L \frac{\partial}{\partial t} I (t) + R I (t) = V (t) - Kb w (t) \end{array})$

equations.'

ans =
 $(\begin{array}{c} J \frac{\partial}{\partial t} w (t) + torque (t) = Ki I (t) - Dr w (t) \\ L \frac{\partial}{\partial t} I (t) + R I (t) = V (t) - Kb w (t) \end{array})$

Before solving the equations, substitute parameters with their numeric values. Also, use V(t) = 1.

equations = subs(equations, [parNames,V(t)], [parValues,1]);
equations = subs(equations, torque, 0);
vpa(equations.',10)

ans =
 $(\begin{array}{c} 0.000001 \frac{\partial}{\partial t} w (t) = 0.000072 I (t) - 0.000003 w (t) \\ 0.000012 \frac{\partial}{\partial t} I (t) + 3.9 I (t) = 1.0 - 0.000072 w (t) \end{array})$

Solve Equations for Steady State

For this, remove the time dependency for the functions w(t) and I(t). For example, substitute them with symbolic variables ww and ii.

syms ww ii
equations_steady = subs(equations, [w(t),I(t)], [ww,ii]);

result = solve(equations_steady,ww,ii);
steadyStateW = vpa(result.ww,10)

steadyStateW =  $6.151120734$

steadyStateI = vpa(result.ii,10)

steadyStateI =  $0.2562966973$

Numerically Simulate Symbolic Expression in MATLAB by Using `matlabFunction` and `ode45`

Create a valid input for ode45 from the symbolic equations. Use odeToVectorField to create the MATLAB procedure which represents the dynamical system $\frac{dY}{dt} = f (t, Y)$ with the initial condition $Y (t_{0}) = Y_{0}$ .

[vfEquations, tVals] = odeToVectorField(equations)

vfEquations =
 $(\begin{array}{c} \frac{147573952589676412928}{1770887431076117} - 6 Y_{2} - \frac{2877692075498690052096 Y_{1}}{8854437155380585} \\ \frac{83010348331692984375 Y_{1}}{1152921504606846976} - \frac{27670116110564328125 Y_{2}}{9223372036854775808} \end{array})$

tVals =
 $(\begin{array}{c} I \\ w \end{array})$

M = matlabFunction(vfEquations,'Vars', {'t','Y'})

M = function_handle with value:
    @(t,Y)[Y(1).*(-3.25e+5)-Y(2).*6.0+8.333333333333333e+4;Y(1).*7.2e+1-Y(2).*3.0]

Solve the differential equation using the initial conditions w(0) = 0 and I(0) = 0.

solution = ode45(M,[0 3],[0 0])

solution = struct with fields:
     solver: 'ode45'
    extdata: [1x1 struct]
          x: [0 2.4114e-09 1.4468e-08 7.4754e-08 3.7618e-07 1.8833e-06 4.0507e-06 6.6351e-06 9.6952e-06 1.3333e-05 1.7740e-05 2.3237e-05 3.0371e-05 4.0045e-05 5.2842e-05 6.2514e-05 7.2187e-05 8.3013e-05 9.4295e-05 1.0467e-04 ... ] (1x293775 double)
          y: [2x293775 double]
      stats: [1x1 struct]
      idata: [1x1 struct]

Evaluate the solution at the following points in time t=[0.5,0.75,1]. The first value is the current I(t) and the second value is the angular velocity w(t). We see that the solution for the angular velocity is starting to approach a steady state steadyStateW.

deval(solution,0.5), deval(solution,.75), deval(solution,1)

ans = 2×1

    0.2563
    4.7795

ans = 2×1

    0.2563
    5.5034

ans = 2×1

    0.2563
    5.8453

steadyStateW

steadyStateW =  $6.151120734$

Plot the solution.

time  = linspace(0,2.5);
iValues = deval(solution, time, 1);
wValues = deval(solution, time, 2);
steadyStateValuesI = vpa(steadyStateI*ones(1,100),10);
steadyStateValuesW = vpa(steadyStateW*ones(1,100),10);

figure;
plot1 = subplot(2,1,1);
plot2 = subplot(2,1,2);

plot(plot1, time, wValues, 'blue',  time, steadyStateValuesW, '--red', 'LineWidth', 1)
plot(plot2, time, iValues, 'green', time, steadyStateValuesI, '--red', 'LineWidth', 1)

title(plot1, 'DC Motor - angular velocity')
title(plot2, 'DC Motor - current')
ylabel(plot1, 'Angular velocity [rad/s]')
ylabel(plot2, 'Current [A]')
xlabel(plot1, 'time [s]')
xlabel(plot2, 'time [s]')
legend(plot1, 'w(t)', 'w(t): steady state', 'Location', 'northeastoutside')
legend(plot2, 'I(t)', 'I(t): steady state', 'Location', 'northeastoutside')

Figure contains 2 axes objects. Axes object 1 with title DC Motor - angular velocity, xlabel time [s], ylabel Angular velocity [rad/s] contains 2 objects of type line. These objects represent w(t), w(t): steady state. Axes object 2 with title DC Motor - current, xlabel time [s], ylabel Current [A] contains 2 objects of type line. These objects represent I(t), I(t): steady state.

Save Your Mathematical Model for Use in Simscape

Generate Simscape code using the original equations eqs.

symWriteSSC('MyMotor.ssc', 'MyMotorTemplate.ssc', eqs, ...
    'H1Header', '% Custom DC Motor', ...
    'HelpText', {'% This block implements a custom DC motor'})

Display the generated component by using the type command.

type MyMotor.ssc

component MyMotor
% Custom DC Motor
% This block implements a custom DC motor
  nodes
    p = foundation.electrical.electrical; % +:left
    n = foundation.electrical.electrical; % -:left
    r = foundation.mechanical.rotational.rotational; % R:right
    c = foundation.mechanical.rotational.rotational; % C:right
  end
  parameters
      R = {3.9, 'Ohm'};                 %Armature resistance
      L = {0.000012, 'H'};              %Armature inductance
      J = {0.000001, 'kg*m^2'};         %Inertia
      Dr = {0.000003, '(N*m*s)/rad'};   %Rotor damping
      Ki = {0.000072, '(N*m)/A'};       %Torque constant
      Kb = {0.000072, '(V*s)/rad'};     %Back-emf constant
  end
  variables
      torque = {0, 'N*m'};  %Total Torque
      tau = {0, 'N*m'};     %Electric Torque
      w = {0, 'rad/s'};     %Angular Velocity
      I = {0, 'A'};         %Current
      V = {0, 'V'};         %Applied voltage
      Vb = {0, 'V'};        %Counter electromotive force
  end
  function setup
    if(R<=0)
        error('Winding resistance must be greater than 0.');
    end
  end
  branches
    torque : r.t -> c.t; % Through variable tau from r to c
    I   : p.i -> n.i; % Through variable i from p to n
  end
  equations
    w == r.w -c.w; % Across variable w from r to c
    V == p.v -n.v; % Across variable v from p to n
    torque+J*w.der == tau-Dr*w;
    tau == Ki*I;
    L*I.der+R*I == V-Vb;
    Vb == Kb*w;
  end
end

Build a Simscape library from the generated component.

if ~isdir('+MyLib')
    mkdir +MyLib;
end
copyfile MyMotor.ssc +MyLib;
ssc_build MyLib;

Generating Simulink library 'MyLib_lib' in the current directory '/tmp/Bdoc24b_2725827_2837746/tp4a472100/symbolic-ex98670381' ...
