templateEnsemble
Ensemble learning template
Syntax
Description
t = templateEnsemble(Method,NLearn,Learners)Method, NLearn learning cycles, and
weak learners Learners.
All other options of the template (t) specific
to ensemble learning appear empty, but the software uses their corresponding
default values during training.
t = templateEnsemble(Method,NLearn,Learners,Name,Value)
For example, you can specify the number of predictors in each
random subspace learner, learning rate for shrinkage, or the target
classification error for RobustBoost.
If you display t in the Command Window, then
all options appear empty ([]), except those options
that you specify using name-value pair arguments. During training,
the software uses default values for empty options.
Examples
Create an Ensemble Learning Template
Use templateEnsemble to specify an ensemble learning template. You must specify the ensemble method, the number of learning cycles, and the type of weak learners. For this example, specify the AdaBoostM1 method, 100 learners, and classification tree weak learners.
t = templateEnsemble('AdaBoostM1',100,'tree')
t =
Fit template for classification AdaBoostM1.
Type: 'classification'
Method: 'AdaBoostM1'
LearnerTemplates: 'Tree'
NLearn: 100
LearnRate: []
All properties of the template object are empty except for Method, Type, LearnerTemplates, and NLearn. When trained on, the software fills in the empty properties with their respective default values. For example, the software fills the LearnRate property with 1.
t is a plan for an ensemble learner, and no computation takes place when you specify it. You can pass t to fitcecoc to specify ensemble binary learners for ECOC multiclass learning.
Create an Ensemble Template for ECOC Multiclass Learning
Create an ensemble template for use in fitcecoc.
Load the arrhythmia data set.
load arrhythmia
tabulate(categorical(Y)); Value Count Percent
1 245 54.20%
2 44 9.73%
3 15 3.32%
4 15 3.32%
5 13 2.88%
6 25 5.53%
7 3 0.66%
8 2 0.44%
9 9 1.99%
10 50 11.06%
14 4 0.88%
15 5 1.11%
16 22 4.87%
rng(1); % For reproducibilitySome classes have small relative frequencies in the data.
Create a template for a AdaBoostM1 ensemble of classification trees, and specify to use 100 learners and a shrinkage of 0.1. By default, boosting grows stumps (i.e., one node having a set of leaves). Since there are classes with small frequencies, the trees must be leafy enough to be sensitive to the minority classes. Specify the minimum number of leaf node observations to 3.
tTree = templateTree('MinLeafSize',20); t = templateEnsemble('AdaBoostM1',100,tTree,'LearnRate',0.1);
All properties of the template objects are empty except for Method and Type, and the corresponding properties of the name-value pair argument values in the function calls. When you pass t to the training function, the software fills in the empty properties with their respective default values.
Specify t as a binary learner for an ECOC multiclass model. Train using the default one-versus-one coding design.
Mdl = fitcecoc(X,Y,'Learners',t);Mdlis aClassificationECOCmulticlass model.Mdl.BinaryLearnersis a 78-by-1 cell array ofCompactClassificationEnsemblemodels.Mdl.BinaryLearners{j}.Trainedis a 100-by-1 cell array ofCompactClassificationTreemodels, forj= 1,...,78.

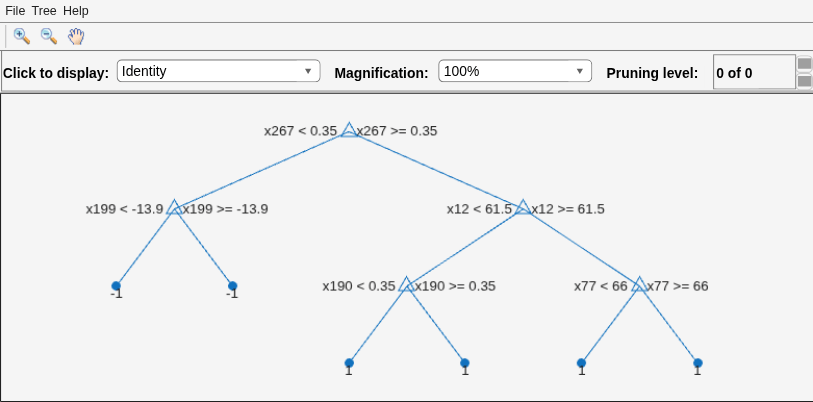

You can verify that one of the binary learners contains a weak learner that isn't a stump by using view.
view(Mdl.BinaryLearners{1}.Trained{1},'Mode','graph')
Display the in-sample (resubstitution) misclassification error.
L = resubLoss(Mdl,'LossFun','classiferror')
L = 0.0819
Speed Up Training ECOC Classifiers Using Binning and Parallel Computing
Train a one-versus-all ECOC classifier using a GentleBoost ensemble of decision trees with surrogate splits. To speed up training, bin numeric predictors and use parallel computing. Binning is valid only when fitcecoc uses a tree learner. After training, estimate the classification error using 10-fold cross-validation. Note that parallel computing requires Parallel Computing Toolbox™.
Load Sample Data
Load and inspect the arrhythmia data set.
load arrhythmia
[n,p] = size(X)n = 452
p = 279
isLabels = unique(Y); nLabels = numel(isLabels)
nLabels = 13
tabulate(categorical(Y))
Value Count Percent
1 245 54.20%
2 44 9.73%
3 15 3.32%
4 15 3.32%
5 13 2.88%
6 25 5.53%
7 3 0.66%
8 2 0.44%
9 9 1.99%
10 50 11.06%
14 4 0.88%
15 5 1.11%
16 22 4.87%
The data set contains 279 predictors, and the sample size of 452 is relatively small. Of the 16 distinct labels, only 13 are represented in the response (Y). Each label describes various degrees of arrhythmia, and 54.20% of the observations are in class 1.
Train One-Versus-All ECOC Classifier
Create an ensemble template. You must specify at least three arguments: a method, a number of learners, and the type of learner. For this example, specify 'GentleBoost' for the method, 100 for the number of learners, and a decision tree template that uses surrogate splits because there are missing observations.
tTree = templateTree('surrogate','on'); tEnsemble = templateEnsemble('GentleBoost',100,tTree);
tEnsemble is a template object. Most of its properties are empty, but the software fills them with their default values during training.
Train a one-versus-all ECOC classifier using the ensembles of decision trees as binary learners. To speed up training, use binning and parallel computing.
Binning (
'NumBins',50) — When you have a large training data set, you can speed up training (a potential decrease in accuracy) by using the'NumBins'name-value pair argument. This argument is valid only whenfitcecocuses a tree learner. If you specify the'NumBins'value, then the software bins every numeric predictor into a specified number of equiprobable bins, and then grows trees on the bin indices instead of the original data. You can try'NumBins',50first, and then change the'NumBins'value depending on the accuracy and training speed.Parallel computing (
'Options',statset('UseParallel',true)) — With a Parallel Computing Toolbox license, you can speed up the computation by using parallel computing, which sends each binary learner to a worker in the pool. The number of workers depends on your system configuration. When you use decision trees for binary learners,fitcecocparallelizes training using Intel® Threading Building Blocks (TBB) for dual-core systems and above. Therefore, specifying the'UseParallel'option is not helpful on a single computer. Use this option on a cluster.
Additionally, specify that the prior probabilities are 1/K, where K = 13 is the number of distinct classes.
options = statset('UseParallel',true); Mdl = fitcecoc(X,Y,'Coding','onevsall','Learners',tEnsemble,... 'Prior','uniform','NumBins',50,'Options',options);
Starting parallel pool (parpool) using the 'local' profile ... Connected to the parallel pool (number of workers: 6).
Mdl is a ClassificationECOC model.
Cross-Validation
Cross-validate the ECOC classifier using 10-fold cross-validation.
CVMdl = crossval(Mdl,'Options',options);Warning: One or more folds do not contain points from all the groups.
CVMdl is a ClassificationPartitionedECOC model. The warning indicates that some classes are not represented while the software trains at least one fold. Therefore, those folds cannot predict labels for the missing classes. You can inspect the results of a fold using cell indexing and dot notation. For example, access the results of the first fold by entering CVMdl.Trained{1}.

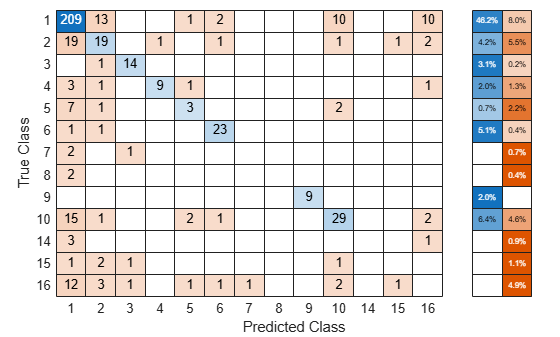

Use the cross-validated ECOC classifier to predict validation-fold labels. You can compute the confusion matrix by using confusionchart. Move and resize the chart by changing the inner position property to ensure that the percentages appear in the row summary.
oofLabel = kfoldPredict(CVMdl,'Options',options); ConfMat = confusionchart(Y,oofLabel,'RowSummary','total-normalized'); ConfMat.InnerPosition = [0.10 0.12 0.85 0.85];
Reproduce Binned Data
Reproduce binned predictor data by using the BinEdges property of the trained model and the discretize function.
X = Mdl.X; % Predictor data Xbinned = zeros(size(X)); edges = Mdl.BinEdges; % Find indices of binned predictors. idxNumeric = find(~cellfun(@isempty,edges)); if iscolumn(idxNumeric) idxNumeric = idxNumeric'; end for j = idxNumeric x = X(:,j); % Convert x to array if x is a table. if istable(x) x = table2array(x); end % Group x into bins by using the discretize function. xbinned = discretize(x,[-inf; edges{j}; inf]); Xbinned(:,j) = xbinned; end
Xbinned contains the bin indices, ranging from 1 to the number of bins, for numeric predictors. Xbinned values are 0 for categorical predictors. If X contains NaNs, then the corresponding Xbinned values are NaNs.
Input Arguments
Output Arguments
Tips
NLearncan vary from a few dozen to a few thousand. Usually, an ensemble with good predictive power requires from a few hundred to a few thousand weak learners. However, you do not have to train an ensemble for that many cycles at once. You can start by growing a few dozen learners, inspect the ensemble performance and then, if necessary, train more weak learners usingresumefor classification problems, orresumefor regression problems.Ensemble performance depends on the ensemble setting and the setting of the weak learners. That is, if you specify weak learners with default parameters, then the ensemble can perform. Therefore, like ensemble settings, it is good practice to adjust the parameters of the weak learners using templates, and to choose values that minimize generalization error.
If you specify to resample using
Resample, then it is good practice to resample to entire data set. That is, use the default setting of1forFResample.In classification problems (that is,
Typeis'classification'):If the ensemble aggregation method (
Method) is'bag'and:The misclassification cost is highly imbalanced, then, for in-bag samples, the software oversamples unique observations from the class that has a large penalty.
The class prior probabilities are highly skewed, the software oversamples unique observations from the class that has a large prior probability.
For smaller sample sizes, these combinations can result in a very low relative frequency of out-of-bag observations from the class that has a large penalty or prior probability. Consequently, the estimated out-of-bag error is highly variable and it might be difficult to interpret. To avoid large estimated out-of-bag error variances, particularly for small sample sizes, set a more balanced misclassification cost matrix using the
Costname-value pair argument of the fitting function, or a less skewed prior probability vector usingPriorname-value pair argument of the fitting function.Because the order of some input and output arguments correspond to the distinct classes in the training data, it is good practice to specify the class order using the
ClassNamesname-value pair argument of the fitting function.To quickly determine the class order, remove all observations from the training data that are unclassified (that is, have a missing label), obtain and display an array of all the distinct classes, and then specify the array for
ClassNames. For example, suppose the response variable (Y) is a cell array of labels. This code specifies the class order in the variableclassNames.Ycat = categorical(Y); classNames = categories(Ycat)
categoricalassigns<undefined>to unclassified observations andcategoriesexcludes<undefined>from its output. Therefore, if you use this code for cell arrays of labels or similar code for categorical arrays, then you do not have to remove observations with missing labels to obtain a list of the distinct classes.To specify that order should be from lowest-represented label to most-represented, then quickly determine the class order (as in the previous bullet), but arrange the classes in the list by frequency before passing the list to
ClassNames. Following from the previous example, this code specifies the class order from lowest- to most-represented inclassNamesLH.Ycat = categorical(Y); classNames = categories(Ycat); freq = countcats(Ycat); [~,idx] = sort(freq); classNamesLH = classNames(idx);
Algorithms
For details of ensemble aggregation algorithms, see Ensemble Algorithms.
If you specify
Methodto be a boosting algorithm andLearnersto be decision trees, then the software grows stumps by default. A decision stump is one root node connected to two terminal, leaf nodes. You can adjust tree depth by specifying theMaxNumSplits,MinLeafSize, andMinParentSizename-value pair arguments usingtemplateTree.The software generates in-bag samples by oversampling classes with large misclassification costs and undersampling classes with small misclassification costs. Consequently, out-of-bag samples have fewer observations from classes with large misclassification costs and more observations from classes with small misclassification costs. If you train a classification ensemble using a small data set and a highly skewed cost matrix, then the number of out-of-bag observations per class might be very low. Therefore, the estimated out-of-bag error can have a large variance and might be difficult to interpret. The same phenomenon can occur for classes with large prior probabilities.
For the RUSBoost ensemble aggregation method (
Method), the name-value pair argumentRatioToSmallestspecifies the sampling proportion for each class with respect to the lowest-represented class. For example, suppose that there are 2 classes in the training data, A and B. A have 100 observations and B have 10 observations. Also, suppose that the lowest-represented class hasmobservations in the training data.If you set
'RatioToSmallest',2, thens*m2*10=20. Consequently, the software trains every learner using 20 observations from class A and 20 observations from class B. If you set'RatioToSmallest',[2 2], then you will obtain the same result.If you set
'RatioToSmallest',[2,1], thens1*m2*10=20ands2*m1*10=10. Consequently, the software trains every learner using 20 observations from class A and 10 observations from class B.
For ensembles of decision trees, and for dual-core systems and above,
fitcensembleandfitrensembleparallelize training using Intel® Threading Building Blocks (TBB). For details on Intel TBB, see https://www.intel.com/content/www/us/en/developer/tools/oneapi/onetbb.html.
Version History
Introduced in R2014b
