resubPredict
Predict response of regression tree by resubstitution
Syntax
Description
Examples
Compute the In-Sample MSE
Load the carsmall
data set. Consider Displacement
, Horsepower
, and Weight
as predictors of the response MPG
.
load carsmall
X = [Displacement Horsepower Weight];
Grow a regression tree using all observations.
Mdl = fitrtree(X,MPG);
Compute the resubstitution MSE.
Yfit = resubPredict(Mdl); mean((Yfit - Mdl.Y).^2)
ans = 4.8952
You can get the same result using resubLoss
.
resubLoss(Mdl)
ans = 4.8952
Estimate In-Sample Responses for Each Subtree
Load the carsmall
data set. Consider Weight
as a predictor of the response MPG
.
load carsmall
idxNaN = isnan(MPG + Weight);
X = Weight(~idxNaN);
Y = MPG(~idxNaN);
n = numel(X);
Grow a regression tree using all observations.
Mdl = fitrtree(X,Y);
Compute resubstitution fitted values for the subtrees at several pruning levels.
m = max(Mdl.PruneList);
pruneLevels = 1:4:m; % Pruning levels to consider
z = numel(pruneLevels);
Yfit = resubPredict(Mdl,Subtrees=pruneLevels);
Yfit
is an n
-by-z
matrix of fitted values in which the rows correspond to observations and the columns correspond to a subtree.

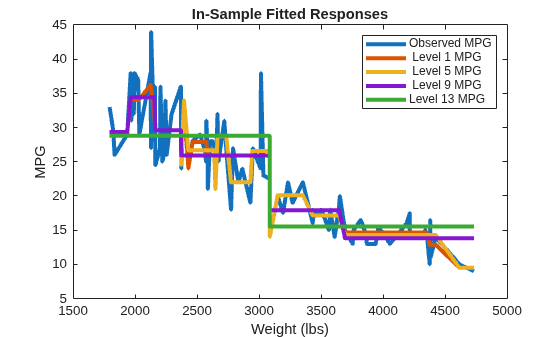

Plot several columns of Yfit
and Y
against X
.
sortDat = sortrows([X Y Yfit],1); % Sort all data with respect to X plot(repmat(sortDat(:,1),1,size(Yfit,2)+1),sortDat(:,2:end)) % Vectorize for efficiency lev = num2str((pruneLevels)',"Level %d MPG"); legend(["Observed MPG"; lev]) title("In-Sample Fitted Responses") xlabel("Weight (lbs)") ylabel("MPG") h = findobj(gcf); set(h(4:end),LineWidth=3) % Widen all lines
The values of Yfit
for lower pruning levels tend to follow the data more closely than higher levels. Higher pruning levels tend to be flat for large X
intervals.
Input Arguments
tree
— Regression tree model
RegressionTree
model object
Regression tree model, specified as a RegressionTree
model object trained with fitrtree
.
subtrees
— Pruning level
0
(default) | vector of nonnegative integers | "all"
Pruning level, specified as a vector of nonnegative integers in ascending
order or "all"
.
If you specify a vector, then all elements must be at least
0
and at most max(tree.PruneList)
.
0
indicates the full, unpruned tree, and
max(tree.PruneList)
indicates the completely pruned
tree (in other words, just the root node).
If you specify "all"
, then
resubPredict
operates on all subtrees (in other
words, the entire pruning sequence). This specification is equivalent to
using 0:max(tree.PruneList)
.
resubPredict
prunes tree
to each
level specified by subtrees
, and then estimates the
corresponding output arguments. The size of subtrees
determines the size of some output arguments.
For the function to invoke subtrees
, the properties
PruneList
and PruneAlpha
of
tree
must be nonempty. In other words, grow
tree
by setting Prune="on"
when
you use fitrtree
, or by pruning
tree
using prune
.
Data Types: single
| double
| char
| string
Output Arguments
Yfit
— Predicted resubstitution response values
numeric vector | numeric matrix
Predicted resubstitution response values for the training data, returned
as a numeric vector or a numeric matrix. Yfit
has the
same data type as the training response data
tree.Y
.
If subtrees
is a numeric scalar, then
Yfit
is returned as a numeric column vector.
Otherwise, Yfit
is returned as a numeric matrix with
m
columns, where m
is the number
of subtrees. Each column represents the predictions of the corresponding
subtree.
node
— Node numbers
numeric column vector | numeric matrix
Node numbers for the predicted classes, returned as a numeric column vector or numeric matrix.
If subtrees
is a scalar or is not specified, then
resubPredict
returns node
as a numeric column
vector with n
rows, the same number of rows as
tree.X
.
If subtrees
contains m
> 1
entries, then node
is an n
-by-m
numeric matrix. Each column represents the node predictions of the corresponding
subtree.
Extended Capabilities
GPU Arrays
Accelerate code by running on a graphics processing unit (GPU) using Parallel Computing Toolbox™.
This function fully supports GPU arrays. For more information, see Run MATLAB Functions on a GPU (Parallel Computing Toolbox).
Version History
Introduced in R2011a
