# fscnca

Feature selection using neighborhood component analysis for classification

## Syntax

``mdl = fscnca(X,Y)``
``mdl = fscnca(X,Y,Name,Value)``

## Description

example

````mdl = fscnca(X,Y)` performs feature selection for classification using the predictors in `X` and responses in `Y`.`fscnca` learns the feature weights by using a diagonal adaptation of neighborhood component analysis (NCA) with regularization.```

example

````mdl = fscnca(X,Y,Name,Value)` performs feature selection for classification with additional options specified by one or more name-value pair arguments.```

## Examples

collapse all

Generate toy data where the response variable depends on the 3rd, 9th, and 15th predictors.

```rng(0,'twister'); % For reproducibility N = 100; X = rand(N,20); y = -ones(N,1); y(X(:,3).*X(:,9)./X(:,15) < 0.4) = 1;```

Fit the neighborhood component analysis model for classification.

`mdl = fscnca(X,y,'Solver','sgd','Verbose',1);`
``` o Tuning initial learning rate: NumTuningIterations = 20, TuningSubsetSize = 100 |===============================================| | TUNING | TUNING SUBSET | LEARNING | | ITER | FUN VALUE | RATE | |===============================================| | 1 | -3.755936e-01 | 2.000000e-01 | | 2 | -3.950971e-01 | 4.000000e-01 | | 3 | -4.311848e-01 | 8.000000e-01 | | 4 | -4.903195e-01 | 1.600000e+00 | | 5 | -5.630190e-01 | 3.200000e+00 | | 6 | -6.166993e-01 | 6.400000e+00 | | 7 | -6.255669e-01 | 1.280000e+01 | | 8 | -6.255669e-01 | 1.280000e+01 | | 9 | -6.255669e-01 | 1.280000e+01 | | 10 | -6.255669e-01 | 1.280000e+01 | | 11 | -6.255669e-01 | 1.280000e+01 | | 12 | -6.255669e-01 | 1.280000e+01 | | 13 | -6.255669e-01 | 1.280000e+01 | | 14 | -6.279210e-01 | 2.560000e+01 | | 15 | -6.279210e-01 | 2.560000e+01 | | 16 | -6.279210e-01 | 2.560000e+01 | | 17 | -6.279210e-01 | 2.560000e+01 | | 18 | -6.279210e-01 | 2.560000e+01 | | 19 | -6.279210e-01 | 2.560000e+01 | | 20 | -6.279210e-01 | 2.560000e+01 | o Solver = SGD, MiniBatchSize = 10, PassLimit = 5 |==========================================================================================| | PASS | ITER | AVG MINIBATCH | AVG MINIBATCH | NORM STEP | LEARNING | | | | FUN VALUE | NORM GRAD | | RATE | |==========================================================================================| | 0 | 9 | -5.658450e-01 | 4.492407e-02 | 9.290605e-01 | 2.560000e+01 | | 1 | 19 | -6.131382e-01 | 4.923625e-02 | 7.421541e-01 | 1.280000e+01 | | 2 | 29 | -6.225056e-01 | 3.738784e-02 | 3.277588e-01 | 8.533333e+00 | | 3 | 39 | -6.233366e-01 | 4.947901e-02 | 5.431133e-01 | 6.400000e+00 | | 4 | 49 | -6.238576e-01 | 3.445763e-02 | 2.946188e-01 | 5.120000e+00 | Two norm of the final step = 2.946e-01 Relative two norm of the final step = 6.588e-02, TolX = 1.000e-06 EXIT: Iteration or pass limit reached. ```

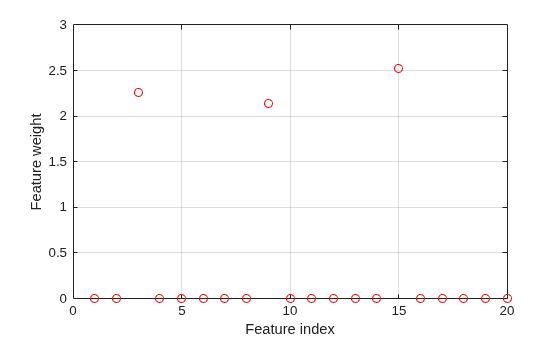

Plot the selected features. The weights of the irrelevant features should be close to zero.

```figure() plot(mdl.FeatureWeights,'ro') grid on xlabel('Feature index') ylabel('Feature weight')```

`fscnca` correctly detects the relevant features.

```load ovariancancer; whos```
``` Name Size Bytes Class Attributes grp 216x1 25056 cell obs 216x4000 3456000 single ```

This example uses the high-resolution ovarian cancer data set that was generated using the WCX2 protein array. After some preprocessing steps, the data set has two variables: `obs` and `grp`. The `obs` variable consists 216 observations with 4000 features. Each element in `grp` defines the group to which the corresponding row of `obs` belongs.

Divide data into training and test sets

Use `cvpartition` to divide data into a training set of size 160 and a test set of size 56. Both the training set and the test set have roughly the same group proportions as in `grp`.

```rng(1); % For reproducibility cvp = cvpartition(grp,'holdout',56)```
```cvp = Hold-out cross validation partition NumObservations: 216 NumTestSets: 1 TrainSize: 160 TestSize: 56 ```
```Xtrain = obs(cvp.training,:); ytrain = grp(cvp.training,:); Xtest = obs(cvp.test,:); ytest = grp(cvp.test,:);```

Determine if feature selection is necessary

Compute generalization error without fitting.

```nca = fscnca(Xtrain,ytrain,'FitMethod','none'); L = loss(nca,Xtest,ytest)```
```L = 0.0893 ```

This option computes the generalization error of the neighborhood component analysis (NCA) feature selection model using the initial feature weights (in this case the default feature weights) provided in `fscnca`.

Fit NCA without regularization parameter (Lambda = 0)

```nca = fscnca(Xtrain,ytrain,'FitMethod','exact','Lambda',0,... 'Solver','sgd','Standardize',true); L = loss(nca,Xtest,ytest)```
```L = 0.0714 ```

The improvement on the loss value suggests that feature selection is a good idea. Tuning the $\lambda$ value usually improves the results.

Tune the regularization parameter for NCA using five-fold cross-validation

Tuning $\lambda$ means finding the $\lambda$ value that produces the minimum classification loss. To tune $\lambda$ using cross-validation:

1. Partition the training data into five folds and extract the number of validation (test) sets. For each fold, `cvpartition` assigns four-fifths of the data as a training set, and one-fifth of the data as a test set.

```cvp = cvpartition(ytrain,'kfold',5); numvalidsets = cvp.NumTestSets;```

Assign $\lambda$ values and create an array to store the loss function values.

```n = length(ytrain); lambdavals = linspace(0,20,20)/n; lossvals = zeros(length(lambdavals),numvalidsets);```

2. Train the NCA model for each $\lambda$ value, using the training set in each fold.

3. Compute the classification loss for the corresponding test set in the fold using the NCA model. Record the loss value.

4. Repeat this process for all folds and all $\lambda$ values.

```for i = 1:length(lambdavals) for k = 1:numvalidsets X = Xtrain(cvp.training(k),:); y = ytrain(cvp.training(k),:); Xvalid = Xtrain(cvp.test(k),:); yvalid = ytrain(cvp.test(k),:); nca = fscnca(X,y,'FitMethod','exact', ... 'Solver','sgd','Lambda',lambdavals(i), ... 'IterationLimit',30,'GradientTolerance',1e-4, ... 'Standardize',true); lossvals(i,k) = loss(nca,Xvalid,yvalid,'LossFunction','classiferror'); end end```

Compute the average loss obtained from the folds for each $\lambda$ value.

`meanloss = mean(lossvals,2);`

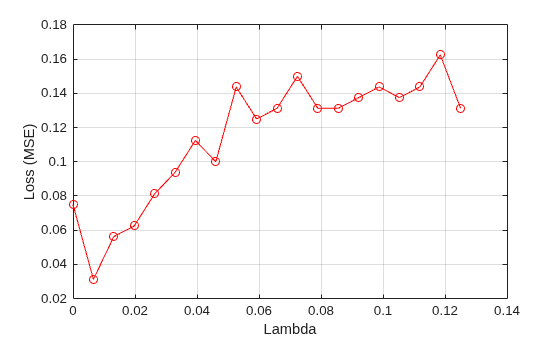

Plot the average loss values versus the $\lambda$ values.

```figure() plot(lambdavals,meanloss,'ro-') xlabel('Lambda') ylabel('Loss (MSE)') grid on```

Find the best lambda value that corresponds to the minimum average loss.

`[~,idx] = min(meanloss) % Find the index`
```idx = 2 ```
`bestlambda = lambdavals(idx) % Find the best lambda value`
```bestlambda = 0.0066 ```
`bestloss = meanloss(idx)`
```bestloss = 0.0313 ```

Fit the nca model on all data using best $\lambda$ and plot the feature weights

Use the solver lbfgs and standardize the predictor values.

```nca = fscnca(Xtrain,ytrain,'FitMethod','exact','Solver','sgd',... 'Lambda',bestlambda,'Standardize',true,'Verbose',1);```
``` o Tuning initial learning rate: NumTuningIterations = 20, TuningSubsetSize = 100 |===============================================| | TUNING | TUNING SUBSET | LEARNING | | ITER | FUN VALUE | RATE | |===============================================| | 1 | 2.403497e+01 | 2.000000e-01 | | 2 | 2.275050e+01 | 4.000000e-01 | | 3 | 2.036845e+01 | 8.000000e-01 | | 4 | 1.627647e+01 | 1.600000e+00 | | 5 | 1.023512e+01 | 3.200000e+00 | | 6 | 3.864283e+00 | 6.400000e+00 | | 7 | 4.743816e-01 | 1.280000e+01 | | 8 | -7.260138e-01 | 2.560000e+01 | | 9 | -7.260138e-01 | 2.560000e+01 | | 10 | -7.260138e-01 | 2.560000e+01 | | 11 | -7.260138e-01 | 2.560000e+01 | | 12 | -7.260138e-01 | 2.560000e+01 | | 13 | -7.260138e-01 | 2.560000e+01 | | 14 | -7.260138e-01 | 2.560000e+01 | | 15 | -7.260138e-01 | 2.560000e+01 | | 16 | -7.260138e-01 | 2.560000e+01 | | 17 | -7.260138e-01 | 2.560000e+01 | | 18 | -7.260138e-01 | 2.560000e+01 | | 19 | -7.260138e-01 | 2.560000e+01 | | 20 | -7.260138e-01 | 2.560000e+01 | o Solver = SGD, MiniBatchSize = 10, PassLimit = 5 |==========================================================================================| | PASS | ITER | AVG MINIBATCH | AVG MINIBATCH | NORM STEP | LEARNING | | | | FUN VALUE | NORM GRAD | | RATE | |==========================================================================================| | 0 | 9 | 4.016078e+00 | 2.835465e-02 | 5.395984e+00 | 2.560000e+01 | | 1 | 19 | -6.726156e-01 | 6.111354e-02 | 5.021138e-01 | 1.280000e+01 | | 1 | 29 | -8.316555e-01 | 4.024186e-02 | 1.196031e+00 | 1.280000e+01 | | 2 | 39 | -8.838656e-01 | 2.333416e-02 | 1.225834e-01 | 8.533333e+00 | | 3 | 49 | -8.669034e-01 | 3.413162e-02 | 3.421902e-01 | 6.400000e+00 | | 3 | 59 | -8.906936e-01 | 1.946295e-02 | 2.232511e-01 | 6.400000e+00 | | 4 | 69 | -8.778630e-01 | 3.561290e-02 | 3.290645e-01 | 5.120000e+00 | | 4 | 79 | -8.857135e-01 | 2.516638e-02 | 3.902979e-01 | 5.120000e+00 | Two norm of the final step = 3.903e-01 Relative two norm of the final step = 6.171e-03, TolX = 1.000e-06 EXIT: Iteration or pass limit reached. ```

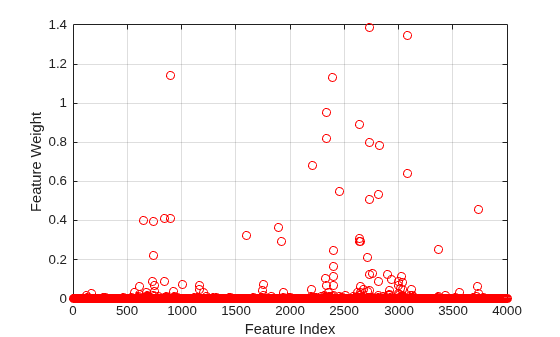

Plot the feature weights.

```figure() plot(nca.FeatureWeights,'ro') xlabel('Feature index') ylabel('Feature weight') grid on```

Select features using the feature weights and a relative threshold.

```tol = 0.02; selidx = find(nca.FeatureWeights > tol*max(1,max(nca.FeatureWeights)))```
```selidx = 72×1 565 611 654 681 737 743 744 750 754 839 ⋮ ```

Compute the classification loss using the test set.

`L = loss(nca,Xtest,ytest)`
```L = 0.0179 ```

Classify observations using the selected features

Extract the features with feature weights greater than 0 from the training data.

`features = Xtrain(:,selidx);`

Apply a support vector machine classifier using the selected features to the reduced training set.

`svmMdl = fitcsvm(features,ytrain);`

Evaluate the accuracy of the trained classifier on the test data which has not been used for selecting features.

`L = loss(svmMdl,Xtest(:,selidx),ytest)`
```L = single 0 ```

## Input Arguments

collapse all

Predictor variable values, specified as an n-by-p matrix, where n is the number of observations and p is the number of predictor variables.

Data Types: `single` | `double`

Class labels, specified as a categorical vector, logical vector, numeric vector, string array, cell array of character vectors of length n, or character matrix with n rows, where n is the number of observations. Element i or row i of `Y` is the class label corresponding to row i of `X` (observation i).

Data Types: `single` | `double` | `logical` | `char` | `string` | `cell` | `categorical`

### Name-Value Pair Arguments

Specify optional comma-separated pairs of `Name,Value` arguments. `Name` is the argument name and `Value` is the corresponding value. `Name` must appear inside quotes. You can specify several name and value pair arguments in any order as `Name1,Value1,...,NameN,ValueN`.

Example: `'Solver','sgd','Weights',W,'Lambda',0.0003` specifies the solver as the stochastic gradient descent, the observation weights as the values in the vector `W`, and sets the regularization parameter at 0.0003.
Fitting Options

collapse all

Method for fitting the model, specified as the comma-separated pair consisting of `'FitMethod'` and one of the following:

• `'exact'` — Performs fitting using all of the data.

• `'none'` — No fitting. Use this option to evaluate the generalization error of the NCA model using the initial feature weights supplied in the call to fscnca.

• `'average'` — Divides the data into partitions (subsets), fits each partition using the `exact` method, and returns the average of the feature weights. You can specify the number of partitions using the `NumPartitions` name-value pair argument.

Example: `'FitMethod','none'`

Number of partitions to split the data for using with `'FitMethod','average'` option, specified as the comma-separated pair consisting of `'NumPartitions'` and an integer value between 2 and n, where n is the number of observations.

Example: `'NumPartitions',15`

Data Types: `double` | `single`

Regularization parameter to prevent overfitting, specified as the comma-separated pair consisting of `'Lambda'` and a nonnegative scalar.

As the number of observations n increases, the chance of overfitting decreases and the required amount of regularization also decreases. See Identify Relevant Features for Classification and Tune Regularization Parameter to Detect Features Using NCA for Classification to learn how to tune the regularization parameter.

Example: `'Lambda',0.002`

Data Types: `double` | `single`

Width of the kernel, specified as the comma-separated pair consisting of `'LengthScale'` and a positive real scalar.

A length scale value of 1 is sensible when all predictors are on the same scale. If the predictors in `X` are of very different magnitudes, then consider standardizing the predictor values using `'Standardize',true` and setting `'LengthScale',1`.

Example: `'LengthScale',1.5`

Data Types: `double` | `single`

Initial feature weights, specified as the comma-separated pair consisting of `'InitialFeatureWeights'` and a p-by-1 vector of real positive scalars, where p is the number of predictors in the training data.

The regularized objective function for optimizing feature weights is nonconvex. As a result, using different initial feature weights can give different results. Setting all initial feature weights to 1 generally works well, but in some cases, random initialization using `rand(p,1)` can give better quality solutions.

Data Types: `double` | `single`

Observation weights, specified as the comma-separated pair consisting of `'ObservationWeights'` and an n-by-1 vector of real positive scalars. Use observation weights to specify higher importance of some observations compared to others. The default weights assign equal importance to all observations.

Data Types: `double` | `single`

Prior probabilities for each class, specified as the comma-separated pair consisting of `'Prior'` and one of the following:

• `'empirical'``fscnca` obtains the prior class probabilities from class frequencies.

• `'uniform'``fscnca` sets all class probabilities equal.

• Structure with two fields:

• `ClassProbs` — Vector of class probabilities. If these are numeric values with a total greater than 1, `fsnca` normalizes them to add up to 1.

• `ClassNames` — Class names corresponding to the class probabilities in `ClassProbs`.

Example: `'Prior','uniform'`

Indicator for standardizing the predictor data, specified as the comma-separated pair consisting of `'Standardize'` and either `false` or `true`. For more information, see Impact of Standardization.

Example: `'Standardize',true`

Data Types: `logical`

Verbosity level indicator for the convergence summary display, specified as the comma-separated pair consisting of `'Verbose'` and one of the following:

• 0 — No convergence summary

• 1 — Convergence summary, including norm of gradient and objective function values

• > 1 — More convergence information, depending on the fitting algorithm

When using `'minibatch-lbfgs'` solver and verbosity level > 1, the convergence information includes iteration the log from intermediate mini-batch LBFGS fits.

Example: `'Verbose',1`

Data Types: `double` | `single`

Solver type for estimating feature weights, specified as the comma-separated pair consisting of `'Solver'` and one of the following:

• `'lbfgs'` — Limited memory Broyden-Fletcher-Goldfarb-Shanno (LBFGS) algorithm

• `'sgd'` — Stochastic gradient descent (SGD) algorithm

• `'minibatch-lbfgs'` — Stochastic gradient descent with LBFGS algorithm applied to mini-batches

Default is `'lbfgs'` for n ≤ 1000, and `'sgd'` for n > 1000.

Example: `'solver','minibatch-lbfgs'`

Loss function, specified as the comma-separated pair consisting of `'LossFunction'` and one of the following.

• `'classiferror'` — Misclassification error

`$l\left({y}_{i},{y}_{j}\right)=\left\{\begin{array}{cc}1& \text{if}\text{\hspace{0.17em}}{y}_{i}\ne {y}_{j,}\\ 0& \text{otherwise}\text{.}\end{array}$`

• `@lossfun` — Custom loss function handle. A loss function has this form.

```function L = lossfun(Yu,Yv) % calculation of loss ...```
`Yu` is a u-by-1 vector and `Yv` is a v-by-1 vector. `L` is a u-by-v matrix of loss values such that `L(i,j)` is the loss value for `Yu(i)` and `Yv(j)`.

The objective function for minimization includes the loss function l(yi,yj) as follows:

`$f\left(w\right)=\frac{1}{n}\sum _{i=1}^{n}\sum _{j=1,j\ne i}^{n}{p}_{ij}l\left({y}_{i},{y}_{j}\right)+\lambda \sum _{r=1}^{p}{w}_{r}^{2},$`

where w is the feature weight vector, n is the number of observations, and p is the number of predictor variables. pij is the probability that xj is the reference point for xi. For details, see NCA Feature Selection for Classification.

Example: `'LossFunction',@lossfun`

Memory size, in MB, to use for objective function and gradient computation, specified as the comma-separated pair consisting of `'CacheSize'` and an integer.

Example: `'CacheSize',1500MB`

Data Types: `double` | `single`

LBFGS Options

collapse all

Size of history buffer for Hessian approximation for the `'lbfgs'` solver, specified as the comma-separated pair consisting of `'HessianHistorySize'` and a positive integer. At each iteration the function uses the most recent `HessianHistorySize` iterations to build an approximation to the inverse Hessian.

Example: `'HessianHistorySize',20`

Data Types: `double` | `single`

Initial step size for the `'lbfgs'` solver, specified as the comma-separated pair consisting of `'InitialStepSize'` and a positive real scalar. By default, the function determines the initial step size automatically.

Data Types: `double` | `single`

Line search method, specified as the comma-separated pair consisting of `'LineSearchMethod'` and one of the following:

• `'weakwolfe'` — Weak Wolfe line search

• `'strongwolfe'` — Strong Wolfe line search

• `'backtracking'` — Backtracking line search

Example: `'LineSearchMethod','backtracking'`

Maximum number of line search iterations, specified as the comma-separated pair consisting of `'MaxLineSearchIterations'` and a positive integer.

Example: `'MaxLineSearchIterations',25`

Data Types: `double` | `single`

Relative convergence tolerance on the gradient norm for solver `lbfgs`, specified as the comma-separated pair consisting of `'GradientTolerance'` and a positive real scalar.

Example: `'GradientTolerance',0.000002`

Data Types: `double` | `single`

SGD Options

collapse all

Initial learning rate for the `'sgd'` solver, specified as the comma-separated pair consisting of `'InitialLearningRate'` and a positive real scalar.

When using solver type `'sgd'`, the learning rate decays over iterations starting with the value specified for `'InitialLearningRate'`.

The default `'auto'` means that the initial learning rate is determined using experiments on small subsets of data. Use the `NumTuningIterations` name-value pair argument to specify the number of iterations for automatically tuning the initial learning rate. Use the `TuningSubsetSize` name-value pair argument to specify the number of observations to use for automatically tuning the initial learning rate.

For solver type `'minibatch-lbfgs'`, you can set `'InitialLearningRate'` to a very high value. In this case, the function applies LBFGS to each mini-batch separately with initial feature weights from the previous mini-batch.

To make sure the chosen initial learning rate decreases the objective value with each iteration, plot the `Iteration` versus the `Objective` values saved in the `mdl.FitInfo` property.

You can use the `refit` method with `'InitialFeatureWeights'` equal to `mdl.FeatureWeights` to start from the current solution and run additional iterations

Example: `'InitialLearningRate',0.9`

Data Types: `double` | `single`

Number of observations to use in each batch for the `'sgd'` solver, specified as the comma-separated pair consisting of `'MiniBatchSize'` and a positive integer from 1 to n.

Example: `'MiniBatchSize',25`

Data Types: `double` | `single`

Maximum number of passes through all n observations for solver `'sgd'`, specified as the comma-separated pair consisting of `'PassLimit'` and a positive integer. Each pass through all of the data is called an epoch.

Example: `'PassLimit',10`

Data Types: `double` | `single`

Frequency of batches for displaying convergence summary for the `'sgd'` solver , specified as the comma-separated pair consisting of `'NumPrint'` and a positive integer. This argument applies when the `'Verbose'` value is greater than 0. `NumPrint` mini-batches are processed for each line of the convergence summary that is displayed on the command line.

Example: `'NumPrint',5`

Data Types: `double` | `single`

Number of tuning iterations for the `'sgd'` solver, specified as the comma-separated pair consisting of `'NumTuningIterations'` and a positive integer. This option is valid only for `'InitialLearningRate','auto'`.

Example: `'NumTuningIterations',15`

Data Types: `double` | `single`

Number of observations to use for tuning the initial learning rate, specified as the comma-separated pair consisting of `'TuningSubsetSize'` and a positive integer value from 1 to n. This option is valid only for `'InitialLearningRate','auto'`.

Example: `'TuningSubsetSize',25`

Data Types: `double` | `single`

SGD or LBFGS Options

collapse all

Maximum number of iterations, specified as the comma-separated pair consisting of `'IterationLimit'` and a positive integer. The default is 10000 for SGD and 1000 for LBFGS and mini-batch LBFGS.

Each pass through a batch is an iteration. Each pass through all of the data is an epoch. If the data is divided into k mini-batches, then every epoch is equivalent to k iterations.

Example: `'IterationLimit',250`

Data Types: `double` | `single`

Convergence tolerance on the step size, specified as the comma-separated pair consisting of `'StepTolerance'` and a positive real scalar. The `'lbfgs'` solver uses an absolute step tolerance, and the `'sgd'` solver uses a relative step tolerance.

Example: `'StepTolerance',0.000005`

Data Types: `double` | `single`

Mini-Batch LBFGS Options

collapse all

Maximum number of iterations per mini-batch LBFGS step, specified as the comma-separated pair consisting of `'MiniBatchLBFGSIterations'` and a positive integer.

Example: `'MiniBatchLBFGSIterations',15`

Mini-batch LBFGS algorithm is a combination of SGD and LBFGS methods. Therefore, all of the name-value pair arguments that apply to SGD and LBFGS solvers also apply to the mini-batch LBFGS algorithm.

Data Types: `double` | `single`

## Output Arguments

collapse all

Neighborhood component analysis model for classification, returned as a `FeatureSelectionNCAClassification` object.

Introduced in R2016b
