plotSurvival

Plot survival function of Cox proportional hazards model

Description

example

plotSurvival(coxMdl) plots the baseline survival function of a Cox proportional hazards model coxMdl. The survival function at time t is the estimated probability of survival until time t. The term baseline refers to the survival function at the determined baseline of the predictors. This value is stored in coxMdl.Baseline, and the default value is the mean of the data set used for training.

example

plotSurvival(coxMdl,X) plots the survival function when the predictors have the values in X. The plot includes one line for each row of X.

example

plotSurvival(coxMdl,X,Stratification) plots the survival function for the given value of the stratification variable Stratification. You must have one row in Stratification for each row in X.

Note

When you train coxMdl using stratification variables and pass predictor variables X, plotSurvival also requires you to pass stratification variables.

example

plotSurvival(coxMdl,ax,___) plots in the specified graphics axes ax using any of the input argument combinations in the previous syntaxes.

example

plotSurvival(___,'Time',T) plots the survival function at times listed in T.

graphics = plotSurvival(___) returns an array of Stair graphics objects. See Stair Properties.

Examples

collapse all

Perform a Cox proportional hazards regression on the lightbulb data set, which contains simulated lifetimes of light bulbs. The first column of the light bulb data contains the lifetime (in hours) of two different types of bulbs. The second column contains a binary variable indicating whether the bulb is fluorescent or incandescent; 0 indicates the bulb is fluorescent, and 1 indicates it is incandescent. The third column contains the censoring information, where 0 indicates the bulb was observed until failure, and 1 indicates the observation was censored.

Fit a Cox proportional hazards model for the lifetime of the light bulbs, accounting for censoring. The predictor variable is the type of bulb.

load lightbulb
coxMdl = fitcox(lightbulb(:,2),lightbulb(:,1), ...
    'Censoring',lightbulb(:,3));

Plot the baseline survival function as a function of time t, meaning the probability that a lightbulb fails after time t. By default, the baseline is calculated for the mean of the predictor, which in this case is mean(lightbulb(:,2)) = 0.5.

plotSurvival(coxMdl)

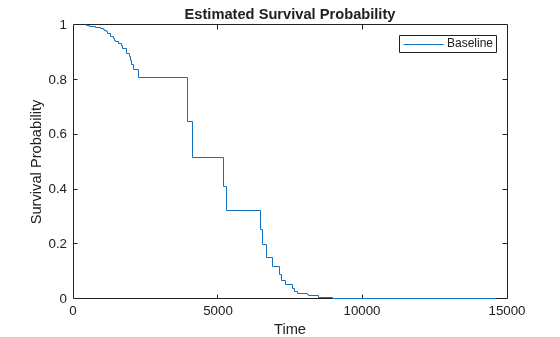

Figure contains an axes. The axes with title Estimated Survival Probability contains an object of type stair. This object represents Baseline.

Plot the survival for fluorescent bulbs (predictor = 0) and incandescent bulbs (predictor = 1).

plotSurvival(coxMdl,[0;1])

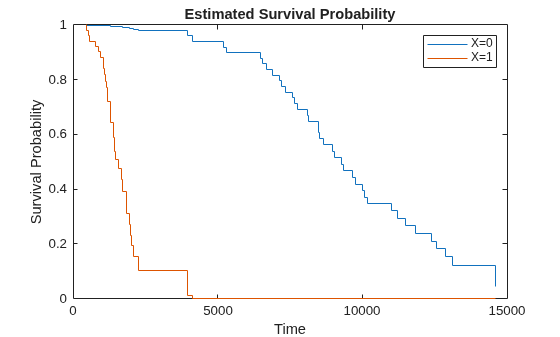

Figure contains an axes. The axes with title Estimated Survival Probability contains 2 objects of type stair. These objects represent X=0, X=1.

To calculate the survival without plotting, use survival.

Load the coxModel data. (This simulated data is generated in the example Cox Proportional Hazards Model Object.) The model named coxMdl has three stratification levels (1, 2, and 3) and a predictor X with three categorical values (1, 1/20, and 1/100).

load coxModel

Plot the survival for X = 1 at the three stratification levels.

c1 = categorical(1);
X = [c1;c1;c1];
stratification = [1;2;3];
plotSurvival(coxMdl,X,stratification)
xlim([1,30])

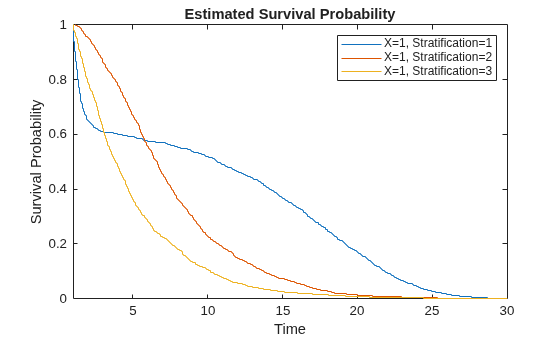

Figure contains an axes. The axes with title Estimated Survival Probability contains 3 objects of type stair. These objects represent X=1, Stratification=1, X=1, Stratification=2, X=1, Stratification=3.

Load the coxModel data. (This simulated data is generated in the example Cox Proportional Hazards Model Object.) The model named coxMdl has three stratification levels (1, 2, and 3) and a predictor X with three categorical values (1, 1/20, and 1/100).

load coxModel

To enable programmatic editing of a survival plot, create an axes.

h = figure;
axes1 = axes('Parent',h);

Plot the survival function for the X predictor value categorical(1) and stratification level 3. This stratification level represents a constant hazard rate. When log-scaled, the resulting survival plot should, therefore, be close to a straight line. Plot for times 1 through 30.

oo = categorical(1);
plotSurvival(coxMdl,axes1,oo,3,'Time',linspace(1,30,300));
axes1.YScale = 'log';

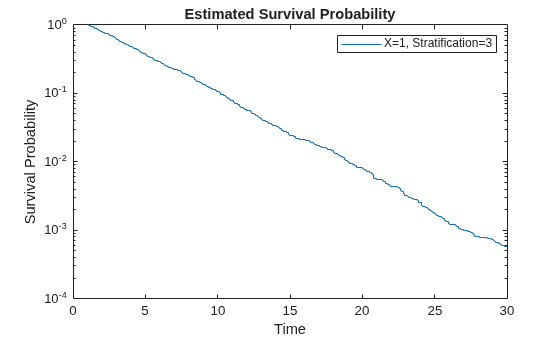

Figure contains an axes. The axes with title Estimated Survival Probability contains an object of type stair. This object represents X=1, Stratification=3.

Input Arguments

collapse all

Fitted Cox proportional hazards model, specified as a CoxModel object. Create coxMdl using fitcox.

Predictors for the model, specified as an array of predictors of the same type used for training coxMdl. Each row of X represents one set of predictors.

Data Types: double | table | categorical

Stratification level, specified as a variable or variables of the same type used for training coxMdl. Specify the same number of rows in Stratification as in X.

Data Types: single | double | logical | char | string | table | cell | categorical

Axes for plotting, specified as a graphics axes object.

Times for survival estimates, specified as a real vector. plotSurvival sorts the specified times and converts them to a column vector, if necessary. The resulting values are linearly interpolated from times in the training data.

Example: 0:40

Data Types: double

Introduced in R2021a
