Andrews plot

`andrewsplot(X)`

andrewsplot(X,...,'Standardize',* standopt*)

andrewsplot(X,...,'Quantile',alpha)

andrewsplot(X,...,'Group',group)

andrewsplot(X,...,

`'PropName'`

`PropVal`

andrewsplot(ax,X,...)

h = andrewsplot(X,...)

`andrewsplot(X)`

creates an Andrews plot
of the multivariate data in the matrix `X`

. The rows
of `X`

correspond to observations, the columns to
variables. Andrews plots represent each observation by a function *f*(*t*)
of a continuous dummy variable *t* over the interval
[0,1]. *f*(*t*) is defined for the *i*th
observation in `X`

as

$$f(t)=X(i,1)/\sqrt{2}+X(i,2)\mathrm{sin}(2\pi t)+X(i,3)\mathrm{cos}(2\pi t)+\dots $$

`andrewsplot`

treats `NaN`

values
in `X`

as missing values and ignores the corresponding
rows.

`andrewsplot(X,...,'Standardize',`

creates
an Andrews plot where * standopt*)

`standopt`

`'on'`

— scales each column of`X`

to have mean`0`

and standard deviation`1`

before making the plot.`'PCA'`

— creates an Andrews plot from the principal component scores of`X`

, in order of decreasing eigenvalue. (See`pca`

.)`'PCAStd'`

— creates an Andrews plot using the standardized principal component scores. (See`pca`

.)

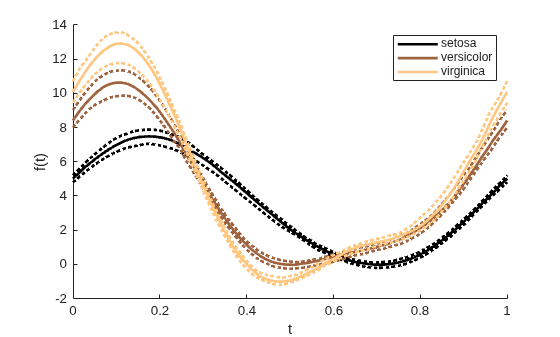

`andrewsplot(X,...,'Quantile',alpha)`

plots
only the median and the `alpha`

and (1 – `alpha`

)
quantiles of *f*(*t*) at each value
of *t*. This is useful if `X`

contains
many observations.

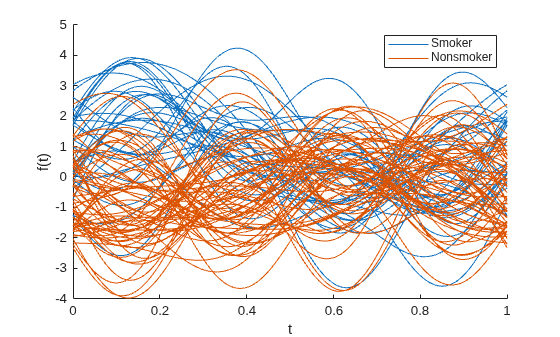

`andrewsplot(X,...,'Group',group)`

plots the data in different groups with
different colors. Groups are defined by `group`

, a numeric array
containing a group index for each observation. `group`

can also be a
categorical array, character matrix, string array, or cell array of character vectors
containing a group name for each observation.

`andrewsplot(X,...,`

sets optional * 'PropName'*,

`PropVal`

`Line`

object properties to the
specified values for all `Line`

objects created
by `andrewsplot`

. (See Line Properties.)`andrewsplot(ax,X,...)`

uses the plot axes
specified in `ax`

, an `Axes`

object. (See `axes`

.)
Specify `ax`

as the first input argument
followed by any of the input argument combinations in the
previous syntaxes.

`h = andrewsplot(X,...)`

returns a column vector of handles to the
`Line`

objects created by
`andrewsplot`

, one handle per row
of `X`

. If you use the
`'Quantile'`

input parameter,
`h`

contains one handle for each of
the three `Line`

objects created. If you use
both the `'Quantile'`

and the
`'Group'`

input parameters,
`h`

contains three handles for each
group.
