setTunedValue
Set current value of tuned variable in slTuner
interface
Description
setTunedValue
lets you initialize
or modify the current value of a tuned variable within an slTuner
interface.
An slTuner
interface parameterizes each tuned block as a Control
Design Block, or a generalized parametric model of type genmat
or genss
.
This parameterization specifies the tuned variables for commands such
as systune
.
Examples
Set Value of Single Tunable Element within Custom Parameterization

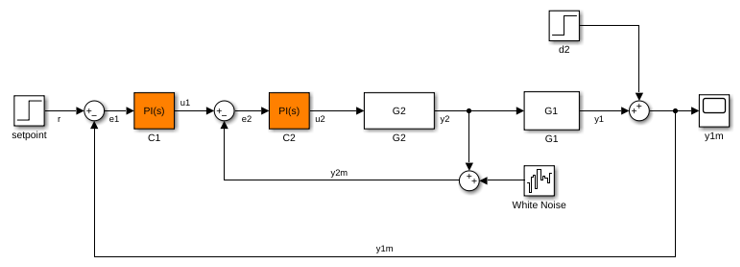

Create an slTuner
interface for the scdcascade
model.
open_system('scdcascade') st = slTuner('scdcascade',{'C1','C2'});
Set a custom parameterization for one of the tunable blocks.
C1CustParam = realp('Kp',1) + tf(1,[1 0]) * realp('Ki',1); setBlockParam(st,'C1',C1CustParam);
These commands set the parameterization of the C1
controller block to a generalized state-space (genss
) model containing two tunable parameters, Ki
and Kp
.
Initialize the value of Ki
to 10
without changing the value of Kp.
setTunedValue(st,'Ki',10);
Set Value of Multiple Tunable Elements within Custom Parameterization
Create an slTuner
interface for the scdcascade
model.
open_system('scdcascade') st = slTuner('scdcascade',{'C1','C2'});
Set a custom parameterization for one of the tunable blocks.
C1CustParam = realp('Kp',1) + tf(1,[1 0]) * realp('Ki',1); setBlockParam(st,'C1',C1CustParam);
These commands set the parameterization of the C1
controller block to a generalized state-space (genss
) model containing two tunable parameters, Ki
and Kp
.
Create a structure of tunable element values, setting Kp
to 5
and Ki
to 10
.
S = struct('Kp',5,'Ki',10);
Set the values of the tunable elements in st
.
setTunedValue(st,S);
Set Value of Tuned Block Parameterization Using Generalized State-Space Model
Convert an slTuner
interface for the Simulink® model rct_diskdrive
to a genss
model to tune the model blocks using hinfstruct
. After tuning, update the slTuner
interface with the tuned parameters and write the parameter values to the Simulink model for validation.
Use of hinfstruct
requires a Robust Control Toolbox™ license.
Create an slTuner
interface for rct_diskdrive
. Add C
and F
as tuned blocks of the interface.
open_system('rct_diskdrive'); st = slTuner('rct_diskdrive',{'C','F'});
The default parameterization of the transfer function block, F
, is a transfer function with two free parameters. Because F
is a low-pass filter, you must constrain its coefficients. To do so, specify a custom parameterization of F
with filter coefficient a
.
a = realp('a',1); setBlockParam(st,'F',tf(a,[1 a]));
Convert st
to a genss
model.
m = getIOTransfer(st,{'r','n'},{'y','e'});
Typically, for tuning with hinfstruct
, you append weighting functions to the genss
model that depend on your design requirements. You then tune the augmented model. For more information, see Fixed-Structure H-infinity Synthesis with hinfstruct (Robust Control Toolbox).
For this example, instead of tuning the model, manually adjust the tuned variable values.
m.Blocks.C.Kp.Value = 0.00085; m.Blocks.C.Ki.Value = 0.01; m.Blocks.a.Value = 5500;
After tuning, update the block parameterization values in st
.
setTunedValue(st,m);
This is equivalent to setBlockValue(st,m.Blocks)
.
To validate the tuning result in Simulink, first update the Simulink model with the tuned values.
writeBlockValue(st);
Input Arguments
st
— Interface for tuning control systems modeled in Simulink®
slTuner
interface
Interface for tuning control systems modeled in Simulink,
specified as an slTuner
interface.
var
— Tuned variable
character vector | string
Tuned variable within st
, specified as
a character vector or string. A tuned variable is any Control Design
Block, such realp
, tunableSS
,
or tunableGain
, involved in the parameterization
of a tuned Simulink block, either directly or through a generalized
parametric model. To get a list of all tuned variables within st
,
use getTunedValue(st)
.
var
can refer to the following:
For a block parameterized by a Control Design Block, the name of the block. For example, if the parameterization of the block is
C = tunableSS('C')
then set
var
='C'
.For a block parameterized by a
genmat
/genss
model,M
, the name of any Control Design Block listed inM.Blocks
. For example, if the parameterization of the block isa = realp('a',1); C = tf(a,[1 a]);
then set
var
='a'
.
value
— Value of tuned variable
numeric scalar | numeric array | state-space model
Value of tuned variable in st
, specified
as a numeric scalar, a numeric array or a state-space model that is
compatible with the tuned variable. For example, if var
is
a scalar element such as a PID gain, value
must
be a scalar. If var
is a 2–by–2 tunableGain
, then value
must
be a 2–by–2 scalar array.
varValues
— Values of multiple tuned variables
structure
Values of multiple tuned variables in st
,
specified as a structure with fields specified as numeric scalars,
numeric arrays, or state-space models. The field names are the names
of tuned variables in st
. Only blocks common
to st
and varValues
are
updated, while all other blocks in st
remain
unchanged.
To specify varValues
, you can retrieve
and modify the tuned variable structure from st
.
varValues = getTunedValue(st); varValues.Ki = 10;
model
— Tuned model
generalized LTI model
Tuned model that has some parameters in common with st
,
specified as a Generalized LTI Model.
Only variables common to st
and model
are
updated, while all other variables in st
remain
unchanged.
More About
Tuned Blocks
Tuned blocks, used by
the slTuner
interface, identify blocks in a Simulink model
whose parameters are to be tuned to satisfy tuning goals. You can
tune most Simulink blocks that represent linear elements such
as gains, transfer functions, or state-space models. (For the complete
list of blocks that support tuning, see How Tuned Simulink Blocks Are Parameterized).
You can also tune more complex blocks such as SubSystem or S-Function
blocks by specifying an equivalent tunable
linear model.
Use tuning commands such as systune
to
tune the parameters of tuned blocks.
You must specify tuned blocks (for example, C1
and C2
)
when you create an slTuner
interface.
st = slTuner('scdcascade',{'C1','C2'})
You can modify the list of tuned blocks using addBlock
and removeBlock
.
To interact with the tuned blocks use:
getBlockParam
,getBlockValue
, andgetTunedValue
to access the tuned block parameterizations and their current values.setBlockParam
,setBlockValue
, andsetTunedValue
to modify the tuned block parameterizations and their values.writeBlockValue
to update the blocks in a Simulink model with the current values of the tuned block parameterizations.
Tuned Variables
Within an slTuner
interface, tuned
variables are any Control Design Blocks involved
in the parameterization of a tuned Simulink block, either directly
or through a generalized parametric model. Tuned variables are the
parameters manipulated by tuning commands such as systune
.
For Simulink blocks parameterized by a generalized model or a tunable surface:
getBlockValue
provides access to the overall value of the block parameterization. To access the values of the tuned variables within the block parameterization, usegetTunedValue
.setBlockValue
cannot be used to modify the block value. To modify the values of tuned variables within the block parameterization, usesetTunedValue
.
For Simulink blocks parameterized by a Control Design Block,
the block itself is the tuned variable. To modify the block value,
you can use either setBlockValue
or setTunedValue
.
Similarly, you can retrieve the block value using either getBlockValue
or getTunedValue
.
Version History
Introduced in R2015b
