# Linearization Using Different Rate Conversion Methods

This example shows how to specify the rate conversion method for the linearization of a multirate model. The choice of rate conversion methodology can affect the resulting linearized model. This example illustrates the extraction of a discrete linear time invariant model using two different rate conversion methods.

### Example Problem

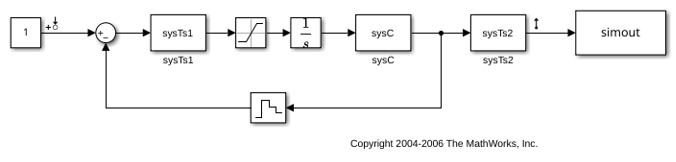

In the Simulink model `scdmrate.mdl` there are three different sample rates specified in five blocks. These blocks are

• `sysC` - a continuous linear block,

• `Integrator` - a continuous integrator,

• `sysTs1` - a block that has a sample time of 0.01 seconds,

• `sysTs2` - a block that has a sample time of 0.025 seconds, and

• `Zero-Order Hold` - a block that samples the incoming signal at 0.01 seconds.

```scdmrate ``` In this example, you linearize the model between the output of the block `sysTs1` and the block `Zero-Order Hold`. Additionally, you add a loop opening at the block `Zero-Order Hold` to extract the plant model for the system.

```model = 'scdmrate'; io(1) = linio('scdmrate/sysTs1',1,'input'); io(2) = linio('scdmrate/Zero-Order Hold',1,'openoutput'); ```

Using these linearization points the linearization effectively results in the linearization of the model `scdmrate_ol`.

```scdmrate_ol ``` When linearizing a model that contains both continuous and discrete signals, the software first converts the continuous signals to discrete signals, using a rate conversion method. The default rate conversion method is zero-order hold. To view or change the rate conversion method, use the `RateConversionMethod` property in the linearizeOptions function. The following command shows that `RateConversionMethod` is set to the default setting, `zoh`:

```opt = linearizeOptions ```
``` Options for LINEARIZE: LinearizationAlgorithm : blockbyblock SampleTime (-1 Auto Detect) : -1 UseFullBlockNameLabels (on/off): off UseBusSignalLabels (on/off) : off StoreOffsets (true/false) : false StoreAdvisor (true/false) : false Options for 'blockbyblock' algorithm BlockReduction (on/off) : on IgnoreDiscreteStates (on/off) : off RateConversionMethod (zoh/tustin/prewarp/ : zoh upsampling_zoh/ upsampling_tustin/ upsampling_prewarp PreWarpFreq : 10 UseExactDelayModel (on/off) : off AreParamsTunable (true/false) : true Options for 'numericalpert' algorithm NumericalPertRel : 1.000000e-05 NumericalXPert : [] NumericalUPert : [] ```

The following command performs a linearization using the zero-order hold method. Because the linearization includes the `Zero-Order Hold` block, the sample time of the linearization is 0.01.

```sys_zoh = linearize(model,io,opt); ```

The following commands change the rate conversion method to the Tustin (Bilinear transformation) method and then linearize using this method. The sample time of this linearized model is also 0.01.

```opt.RateConversionMethod = 'tustin'; sys_tust = linearize(model,io,opt); ```

It is also possible to create a continuous-time linearized model by specifying the sample time as 0 in the options object. The rate conversion method still creates a discrete-time linearized model but then converts the discrete-time model to a continuous-time model.

```opt.SampleTime = 0; sys_c = linearize(model,io,opt); ```

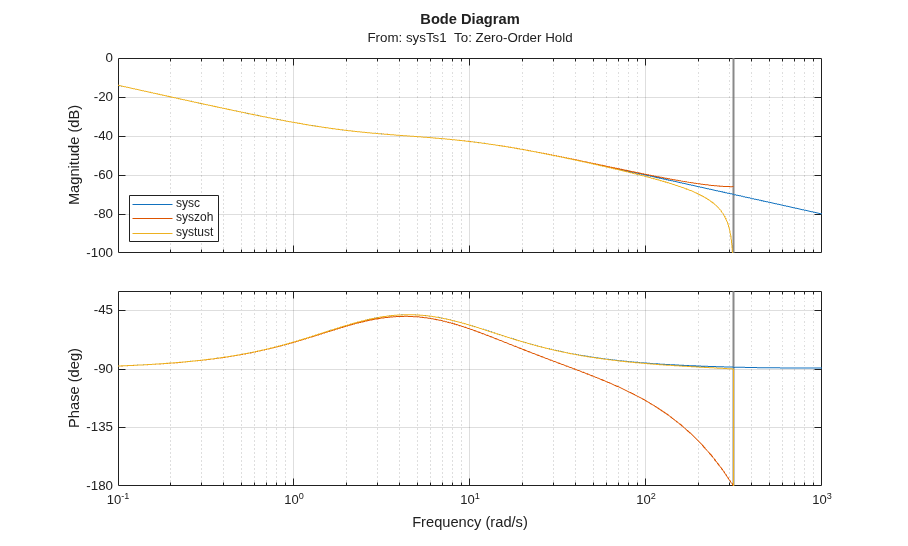

The Bode plots for the three linearizations show the effects of the two rate conversion methods. In this example, the Tustin rate conversion method gives the most accurate representation of the phase response of the continuous system and the zero-order hold gives the best match to the magnitude response.

```p = bodeoptions('cstprefs'); p.YLimMode = {'manual'}; p.YLim = {[-100 0];[-180 -30]}; p.Grid = 'on'; bodeplot(sys_c,sys_zoh,sys_tust,p); h = legend('sys_c','sys_zoh','sys_tust','Location','SouthWest'); h.Interpreter = 'none'; ``` Close the models:

```bdclose('scdmrate'); bdclose('scdmrate_ol'); ```
