sim3d.graphics.Text
Description
Use the sim3d.graphics.Text
object to create an actor object with
N number of text elements in the 3D environment for annotation and
displaying relevant information data during simulation. After you create a
sim3d.graphics.Text
object, you can modify the aspects of the text actor by
setting property values.
Creation
Description
creates a
default text actor object in the 3D environment.text
= sim3d.graphics.Text()
specifies options using one or more name-value arguments. For example, to create a text
actor at the position (0,1,1), set text
= sim3d.graphics.Text(Name=Value
)Translation
to [0 1
1]
.
Input Arguments
Specify optional pairs of arguments as
Name1=Value1,...,NameN=ValueN
, where Name
is
the argument name and Value
is the corresponding value.
Name-value arguments must appear after other arguments, but the order of the
pairs does not matter.
Example: text = sim3d.graphics.Text(ActorName='Text',Translation=[0 1
1],Color=[1 1 0],String="Hello")
creates an actor object with one text
element, the specified actor name, position, color, and string.
Example: texts = sim3d.graphics.Text(ActorName='Texts',Translation=[0 -1 1; 0
0 1; 0 1 1],Color=[1 1 0; 1 0 0; 0 1 0],String=["Hello"; "3D"; "World"])
creates an actor object with three text elements by specifying the actor name and setting
the positions, colors, and texts to display.
ActorName
— Name of actor
autogenerated name (default) | character array | string
Name of actor, specified as a character array or string. If you do not specify an actor name,
then the software assigns the actor an autogenerated name. Use
this argument to set the name of the
sim3d.graphics.Text
object.
Note
If you specify the same name as an actor that already exists, then the software appends actor name you specify with a unique identifier.
Translation
— Relative translation
[0 0 0]
(default) | real N-by-3 array
Relative translation
(x,y,z) of the actor object to its
parent actor, specified as a real N-by-3 array, in m. N
specifies the number of elements created using the sim3d.graphics.Text
object. When
you add an actor to the 3D environment, the default parent actor is the Scene
Origin
at (0,0,0)
.
Example: Translation=[3 4 3]
Example: Translation=[3 2 3; 3 5 3; 3 3 3]
Data Types: double
Rotation
— Relative rotation
[0 0 0]
(default) | real N-by-3 array
Relative rotation (roll, pitch, yaw) of the actor object to its parent actor, specified as a real N-by-3 array, in rad.
Example: Rotation=[0 pi/2 -pi/4]
Example: Rotation=[0 pi/2 -pi/4; 0 pi/2 -pi/4; 0 pi/2
-pi/4]
Data Types: double
Color
— Base color of actor
[1 0 0]
(default) | real N-by-3 array
Base color of actor, specified as real N-by-3 array of RGB triplet values. An RGB triplet is a three-element row vector whose elements specify the intensities of the red, green, and blue components of the color. The intensities must be in the range [0, 1].
Example: Color=[0 1 0]
Example: Color=[1 0 0; 0 0 1; 1 1 0]
Data Types: double
String
— Text to display
" " (default) | string N-by-1 vector
Text to display in 3D environment, specified as string
N-by-1 vector. The default value is an empty string
""
.
Example: String="Hello"
Example: String=["Hello"; "3D"; "World"]
Data Types: string
FontSize
— Horizontal and vertical scale of text
1
(default) | real positive N-by-1 vector
Horizontal and vertical scale of text, specified as real
positive N-by-1 vector. The default value 1
represents the
original size of the text. A value greater than or less than 1
increases or
decreases the size of the text, respectively.
Example: FontSize=2
Example: FontSize=[1.5; 1.5; 1.5]
Data Types: double
Hidden
— Option to hide actor
0
or false
(default) | 1
or true
| logical N-by-1 vector
Option to hide the actor from the 3D environment scene,
specified as 0
(false
) if the actor is visible in the
scene or 1
(true
) if the actor is hidden in the scene. For
N number of elements, specify as a logical N-by-1
vector.
Example: Hidden=1
Example: Hidden=[1; 0; 1]
Properties
Parent
— Parent of actor
handle to parent actor object
Parent of actor, specified as a handle to the parent actor object. After you add an actor to
the sim3d.World
object, the default parent actor is the
Scene Origin
at (0,0,0)
. Use this property to
set any actor in the 3D environment as the parent actor of a
sim3d.graphics.Text
object.
Children
— Children of actor
structure
This property is read-only.
Children of actor, specified as a structure. Each field of the structure contains a handle to
the child of a sim3d.graphics.Text
object.
ParentWorld
— Parent world
handle to parent world object
Parent world, specified as a handle to the parent sim3d.World
object. You can use this property only if the sim3d.graphics.Text
object is
added to the parent sim3d.World
object.
CoordinateSystem
— Actor orientation
'Default'
(default) | 'MATLAB'
| 'ISO8855'
| 'AERO'
| 'VRML'
| 'SAE'
Actor orientation representation in the 3D environment, specified as one of the listed values. The values are not case-sensitive.
'Default'
– World coordinate system'MATLAB'
– MATLAB® coordinate system'ISO8855'
– ISO 8855 standard coordinate system'AERO'
– SAE coordinate system'VRML'
– X3D ISO standard coordinate system'SAE'
– SAE coordinate system
To display the actor transformation in the specified coordinate system,
set this property first, and then set the transform properties
Translation
, Rotation
, and
Scale
. For more details on the different coordinate systems, see
Coordinate Systems in Simulink 3D Animation.
Data Types: string
Translation
— Relative translation
[0 0 0]
(default) | real N-by-3 array
Relative translation
(x,y,z) of the actor object to its
parent actor, specified as a real N-by-3 array, in m. N
specifies the number of elements created using the sim3d.graphics.Text
object. When
you add an actor to the 3D environment, the default parent actor is the Scene
Origin
at (0,0,0)
.
Example: text.Translation = [1 2 1]
Example: texts.Translation = [1 4 2; 1 3 2; 1 2 2]
Rotation
— Relative rotation
[0 0 0]
(default) | real N-by-3 array
Relative rotation (roll, pitch, yaw) of the actor object to its parent actor, specified as a real N-by-3 array, in rad.
Example: text.Rotation = [0 pi/2 pi/8]
Example: texts.Rotation = [pi/2 pi/4 pi/2; 0 pi/4 pi/2; pi pi/2
0]
Color
— Base color of actor
[1 0 0]
(default) | real N-by-3 array
Base color of actor, specified as real N-by-3 array of RGB triplet values. An RGB triplet is a three-element row vector whose elements specify the intensities of the red, green, and blue components of the color. The intensities must be in the range [0, 1].
Example: text.Color = [0 1 0]
Example: texts.Color = [1 0 0; 0 0 1; 1 1 0]
Data Types: double
String
— Text to display
" " (default) | string N-by-1 vector
Text to display in 3D environment, specified as string
N-by-1 vector. The default value is an empty string
""
.
Example: text.String = "Hello"
Example: texts.String = ["Hello"; "3D"; "World"]
Data Types: string
FontSize
— Horizontal and vertical scale of text
1
(default) | real positive N-by-1 vector
Horizontal and vertical scale of text, specified as real
positive N-by-1 vector. The default value 1
represents the
original size of the text. A value greater than or less than 1
increases or
decreases the size of the text, respectively.
Example: text.FontSize = 2
Example: texts.FontSize = [3; 3; 3]
Data Types: double
Hidden
— Option to hide actor
0
or false
(default) | 1
or true
| logical N-by-1 vector
Option to hide the actor from the 3D environment scene,
specified as 0
(false
) if the actor is visible in the
scene or 1
(true
) if the actor is hidden in the scene. For
N number of elements, specify as a logical N-by-1
vector.
Example: text.Hidden = 1
Example: texts.Hidden = [1; 0; 1]
Examples
Create Annotations Using MATLAB
Create arrows and text labels in the 3D environment. First, create a box actor. Then, create arrows and text label objects and attach them to the actor. Finally, view the annotated actor in the Simulation 3D Viewer window.
Create 3D Environment
Create a world object using sim3d.World
.
world = sim3d.World();
Create Actor
Create a box actor in the 3D environment using the sim3d.Actor
object and add the box
actor to the world.
box = sim3d.Actor(ActorName='Box'); createShape(box,'box',[0.5 0.5 0.5]); box.Color = [1 1 0]; add(world,box);
Create Arrows
Create three arrows using the sim3d.graphics.Arrow
object and set the ActorName
of the object. To position the arrows in the 3D environment, set the Translation
argument with a 3-by-3 array value. Set the Rotation
and Color
properties for each arrow and add the object to the world.
arrows = sim3d.graphics.Arrow( ... ActorName='Arrows', ... Translation=[0.25 0 0; 0 0.25 0; 0 0 0.25]); arrows.Rotation = [0 0 0; 0 0 pi/2; 0 pi/2 0]; arrows.Color = [1 0 0; 0 1 0; 0 0 1]; add(world,arrows,box);
Create Text
Create three text labels using the sim3d.graphics.Text
object and set the ActorName
of the object. To position the text labels in the 3D environment, set the Translation
argument with a 3-by-3 array value. Set the Color
property of each text label and the String
property with the display text. Add the object to the world.
texts = sim3d.graphics.Text( ... ActorName='Texts', ... Translation=[1.25 0 0; 0 1.25 0; 0 0 1.25]); texts.Color = [1 0 0; 0 1 0; 0 0 1]; texts.String = ["X";"Y";"Z"]; add(world,texts,box);
Run Simulation

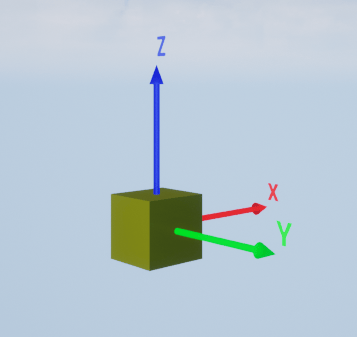

Set the Simulation 3D Viewer window point of view and run the simulation.
viewport = createViewport(world,Translation=[-3 4 1]); viewport.Rotation = [0 0 -pi/4]; sampletime = 0.01; stoptime = 5; run(world,sampletime,stoptime);
delete(world);
Version History
Introduced in R2024a
