Use Variant Control Variables in Variant Parameters

These examples show you how to use different types of variant control variables in variant parameters (Simulink.VariantVariable objects).

You must use the Simulink.VariantControl class to create variant control variables for variant parameters. You use these variant control variables to specify the boolean variant condition expression associated with each choice value of a variant parameter. During simulation, the value associated with the variant condition that evaluates to true becomes the active value of that parameter. The Simulink.VariantControl object allows you to specify an ActivationTime for the variant parameter. You can set the Value property of the object to an integer value, an enumerated value, a Simulink.Parameter object with integer value or enumerated value, or a user-defined type that inherits from Simulink.Parameter.

Consider the slexVariantParameters model.

The Gain parameter of the Gain blocks are variant parameters that are specified as Simulink.VariantVariable objects, K1 and K2. K1 and K2 have multiple values associated with variant condition expressions V == 1 and V == 2. Here, the variant control variable V that determines the active value of K1 and K2 is a Simulink.VariantControl object. You can change V to any of these types based on your requirement.

Note

Before you start with these examples, we recommend you complete Create a Simple Variant Parameter Model.

Numeric Variant Control Values for Rapid Prototyping of Variant Parameters

Numeric values allow you to rapidly prototype variant values when you are still building your model. Numeric values help you focus more on building your variant values than on developing the expressions that activate those choices.

You can define numeric control values in locations listed in Storage Locations for Variant Control Variables (Operands) in Variant Parameters.

Open the slexVariantParameters model.

open_system('slexVariantParameters')

In the MATLAB Editor, specify variant choices in their simplest form as numeric values in Simulink.VariantVariable objects K1 and K2.

K1 = Simulink.VariantVariable('Choices',{'V==1', 3.5, 'V==2', 8.5})

K1 =
VariantVariable with 2 choices:

Condition	Value
_________	_____
V == 1   	3.5000
V == 2   	8.5000

Specification: ''

Bank: ''

Use getChoice, setChoice, addChoice, removeChoice to access, modify, add or remove choices

K2 = Simulink.VariantVariable('Choices',{'V==1', 4.5, 'V==2', 9.5})

K2 =
VariantVariable with 2 choices:

Condition	Value
_________	_____
V == 1   	4.5000
V == 2   	9.5000

Specification: ''

Bank: ''

Use getChoice, setChoice, addChoice, removeChoice to access, modify, add or remove choices

Once you successfully create the Simulink.VariantVariable objects, you can modify them by using the methods described in Public Methods or from the VariantVariable dialog box.

Activate one of the variant values by defining a control variable, V, and setting its value to 1 in a Simulink.VariantControl object.

V = Simulink.VariantControl('Value', 1, 'ActivationTime', 'update diagram')

V =
  VariantControl with properties:

             Value: 1
    ActivationTime: 'update diagram'

When you simulate the model, the condition V == 1 evaluates to true. K1 is assigned a value of 3.5 and K2 is assigned a value of 8.5.

sim ('slexVariantParameters')

If you change the value of V to 2, Simulink® sets the value of K1 and K2 to 4.5 and 9.5 during simulation. You can change the value of V using this command or from Simulink.VariantControl dialog box.

V.Value = 2;
sim ('slexVariantParameters')

Simulink.Parameter Type of Variant Control Variables for Code Generation of Variant Parameters

If you intend to generate code for a model containing variant parameters, specify variant control variables as Simulink.Parameter objects. Simulink.Parameter objects allow you to specify other attributes, such as data type and storage class, and control the appearance and placement of variant control variables in generated code.

• You can define a variant control variable of type Simulink.Parameter only in the base workspace or in a data dictionary. Defining Simulink.Parameter type of variant control variables in the mask or model workspace is not supported. For more information on storage locations for variant control variables, see Storage Locations for Variant Control Variables (Operands) in Variant Parameters.

• Simulink.Parameter objects within structures and that have data types other than Simulink.Bus objects are not supported.

Open the slexVariantParameters model.

open_system('slexVariantParameters');

In the MATLAB Editor, define a Simulink.Parameter object.

VSS_MODE = Simulink.Parameter;
VSS_MODE.Value = 1;
VSS_MODE.DataType = 'int32';
VSS_MODE.CoderInfo.StorageClass = 'Custom';
VSS_MODE.CoderInfo.CustomStorageClass = 'Define';
VSS_MODE.CoderInfo.CustomAttributes.HeaderFile ='demo_macros.h';

Variant control variables defined as Simulink.Parameter objects can have any of the storage classes listed in Storage Classes for Different Variant Activation Times (Simulink Coder).

You can also convert a scalar variant control variable into a Simulink.Parameter object. For more information, see Convert Variant Control Variables into Simulink.Parameter Objects.

Specify the object as a variant control in Simulink.VariantVariable objects K1 and K2.

K1 = Simulink.VariantVariable('Choices',{'V == 1',3.5,'V == 2',8.5});
K2 = Simulink.VariantVariable('Choices',{'V == 1',4.5,'V == 2',9.5});

Once you successfully create the Simulink.VariantVariable objects, you can modify them by using the methods described in Public Methods or from the VariantVariable dialog box.

Activate one of the variant values by defining a Simulink.VariantControl object V and setting its Value property to VSS_MODE.

V = Simulink.VariantControl('Value',copy(VSS_MODE),'ActivationTime','code compile');

When you simulate the model, the condition V == 1 evaluates to true. K1 is assigned a value of 3.5, and K2 is assigned a value of 8.5.

sim('slexVariantParameters');

If you change the value of V to 2, Simulink® sets the value of K1 and K2 to 4.5 and 9.5 during simulation. You can change the value of V using this command or from the Simulink.VariantControl dialog box.

V.Value.Value=2;
sim('slexVariantParameters');

Generate code from the model. For information on how to generate code, see Generate Code Using Embedded Coder (Embedded Coder)

The generated code contains both Linear and Nonlinear choices in preprocessor conditionals #if and #elif because of the code compile activation time. The variant control variable V is defined using a macro — #define directive — in the header file demo_macros.h. You can control the appearance and placement of V in the generated code and prevent optimizations from eliminating storage for V using the storage class property. For more information, see Storage Classes for Different Variant Activation Times (Simulink Coder).

% demo_macros.h
% /* Exported data define */
%
% /* Definition for custom storage class: Define */
% #define V       2          /* Referenced by:
%                            * '<Root>/Gain'
%                            * '<Root>/Gain1'
%                            */
% #endif                    /* RTW_HEADER_demo_macros_h_ */
%
% /*

Enumerated Types to Improve Code Readability of Variant Control Variables of Variant Parameters

Use enumerated types to give meaningful names to integers used as variant control values. For more information on enumerated type data, see Use Enumerated Data in Simulink Models.

In the MATLAB® Editor, define the classes that map enumerated values to meaningful names.

Open the slexVariantParameters model.

open_system('slexVariantParameters')

Specify the variant condition expressions V == EngType.Small and V == EngType.Big in Simulink.VariantVariable objects K1 and K2.

K1 = Simulink.VariantVariable('Choices', {'V == EngType.Small',3.5,'V == EngType.Big',8.5})

K1 =
VariantVariable with 2 choices:

     Condition     	Value
__________________	_____
V == EngType.Big  	8.5000
V == EngType.Small	3.5000

Specification: ''

Bank: ''

Use getChoice, setChoice, addChoice, removeChoice to access, modify, add or remove choices

K2 = Simulink.VariantVariable('Choices', {'V == EngType.Small',4.5,'V == EngType.Big',9.5})

K2 =
VariantVariable with 2 choices:

     Condition     	Value
__________________	_____
V == EngType.Big  	9.5000
V == EngType.Small	4.5000

Specification: ''

Bank: ''

Use getChoice, setChoice, addChoice, removeChoice to access, modify, add or remove choices

Here, EngType is an integer-based enumeration class that is derived from the built-in data type, int32. The class has two enumeration values, Small and Big. These enumerated values have underlying integer values 1 and 2. In this example, the enumeration class is defined in the base workspace. You can choose to define the class in other storage locations as listed in Storage Locations for Variant Control Variables (Operands) in Variant Blocks.

type EngType.m

classdef EngType < Simulink.IntEnumType
  enumeration
    Small (1)
    Big (2)
  end
methods (Static)
  function retVal = addClassNameToEnumNames()
      % ADDCLASSNAMETOENUMNAMES Specifies whether to add the class name
      % as a prefix to enumeration member names in generated code.
      % Return true or false.
      % If you do not define this method, no prefix is added.
      retVal = true;
  end
end
end

Once you successfully create the Simulink.VariantVariable objects, you can modify them by using the methods described in Public Methods or from the VariantVariable dialog box.

Activate one of the variant values by defining the control variable V and setting its value to EngType.Small in Simulink.VariantControl object V.

V = Simulink.VariantControl('Value',EngType.Small,'ActivationTime','code compile')

V =
  VariantControl with properties:

             Value: Small
    ActivationTime: 'code compile'

When you simulate the model, the condition V == 1 evaluates to true. K1 is assigned a value of 3.5, and K2 is assigned a value of 8.5.

sim('slexVariantParameters')

If you change the value of V to 2, Simulink® sets the value of K1 and K2 to 4.5 and 9.5 during simulation. You can change the value of V using this command or from Simulink.VariantControl dialog box.

V.Value = 2

V =
  VariantControl with properties:

             Value: 2
    ActivationTime: 'code compile'

sim ('slexVariantParameters')

The code that you generate using enumerated types contains the names of the values rather than integers.

% slexVariantParameters_private.h
% #if V == EngType_Big || V == EngType_Small
%     /* Variable: K1 Referenced by: '<Root>/Gain' */
%     #if V == EngType_Big
%       #define rtCP_Gain_K1                   (8.5)
%     #elif V == EngType_Small
%       #define rtCP_Gain_K1                   (3.5)
%     #endif
% #endif
%
% #if V == EngType_Big || V == EngType_Small
%    /* Variable: K2 Referenced by: '<Root>/Gain1' */
%     #if V == EngType_Big
%       #define rtCP_Gain1_K2                  (9.5)
%     #elif V == EngType_Small
%       #define rtCP_Gain1_K2                  (4.5)
%     #endif
% #endif
% #endif                         /* RTW_HEADER_slexVariantParameters_private_h_ */

Note that for variant parameters with startup activation time, only enumerations that are defined using these techniques are supported:

• Using the function Simulink.defineIntEnumType

• By subclassing built-in integer data types int8, int16, int32, uint8, or uint16, or by subclassing Simulink.IntEnumType

These enumerations are also supported when permanently stored in a Simulink® data dictionary. See Enumerations in Data Dictionary.

Simulink.VariantExpression Objects for Variant Condition Reuse of Variant Parameters

After identifying the variant values that your model requires, you can construct complex variant conditions to control the activation of your variant parameter values by defining variant conditions as Simulink.VariantExpression objects. Simulink.VariantExpression objects enable you to reuse common variant conditions across models and help you encapsulate complex variant condition expressions.

• You can define a variant control variable of type Simulink.VariantExpression only in the base workspace or in a data dictionary. Defining Simulink.VariantExpression type of variant control variables in the mask or model workspace is not supported. For more information on storage locations for variant control variables, see Storage Locations for Variant Control Variables (Operands) in Variant Parameters.

• Simulink.VariantExpression within structures are not supported.

Open the slexVariantParameters model.

open_system('slexVariantParameters')

In the MATLAB® Editor, encapsulate variant control expressions as Simulink.VariantExpression objects.

LinearController=Simulink.VariantExpression('V==1');
NonLinearController=Simulink.VariantExpression('V==2');

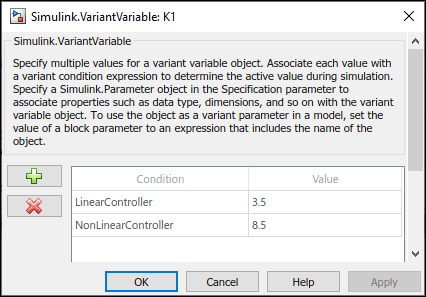

Specify the Simulink.VariantExpression objects as the variant controls in a Simulink.VariantVariable objects K1 and K2.

K1 = Simulink.VariantVariable('Choices',{'LinearController',3.5,'NonLinearController',8.5})

K1 =
VariantVariable with 2 choices:

     Condition     	Value
___________________	_____
LinearController   	3.5000
NonLinearController	8.5000

Specification: ''

Bank: ''

Use getChoice, setChoice, addChoice, removeChoice to access, modify, add or remove choices

K2 = Simulink.VariantVariable('Choices',{'LinearController',4.5,'NonLinearController',9.5})

K2 =
VariantVariable with 2 choices:

     Condition     	Value
___________________	_____
LinearController   	4.5000
NonLinearController	9.5000

Specification: ''

Bank: ''

Use getChoice, setChoice, addChoice, removeChoice to access, modify, add or remove choices

Once you successfully create the Simulink.VariantVariable objects, you can modify them by using the methods described in Public Methods or from the VariantVariable dialog box.

Activate one of the variant values by defining a Simulink.VariantControl object V and setting its value to 1.

V = Simulink.VariantControl('Value',1,'ActivationTime','update diagram')

V =
  VariantControl with properties:

             Value: 1
    ActivationTime: 'update diagram'

When you simulate the model, the condition V == 1 evaluates to true. K1 is assigned a value of 3.5, and K2 is assigned a value of 8.5.

sim('slexVariantParameters')

If you change the value of V to 2, Simulink® sets the value of K1 and K2 to 4.5 and 9.5 during simulation. You can change the value of V using this command or from Simulink.VariantControl dialog box.

V.Value = 2;
sim ('slexVariantParameters')

Using this approach, you can develop complex variant condition expressions that are reusable.

Custom Data Class Objects as Values of Simulink.VariantControl Objects

Set the value of a Simulink.VariantControl object to an object of a user-defined data class that derives from Simulink.Parameter. The user-defined class package that contains the class definition must be available on the MATLAB® search path. Data objects that you create from your package can use the storage classes that the package defines. For an example that shows how to create a data class in a package, see Define Data Classes.

Explore the Model

In this example, the +myPackage folder is a user-defined data class package folder that contains the class folder @myExParameter. The class folder contains the class definition file myExParameter.m and the class derives from Simulink.Parameter. The csc_registration.m file contains the custom storage class defined for this package using the Custom Storage Class Designer.

open_system("slexVariantParameters");

1. The slexVariantParameters model uses two variant parameters K1 and K2, and a Simulink.VariantControl object V, that are defined in the base workspace.

2. Double-click the variant control object V in the base workspace to open the Simulink.VariantControl dialog box.

3. Select the custom class myPackage.myExParameter from the Value type list.

4. In the Value box, enter 1 as the value of the variant control.

5. From the Data type list, select int32 and from the Activation time list, select startup.

6. In the Code Generation tab, select the custom storage class myPackage_ExportedGlobal defined in the package.

Generate code from the model. For information on how to generate code, see Generate Code Using Embedded Coder (Embedded Coder).

The generated header file myParams.h contains the extern declaration for the variable V and the generated file myParams.c contains the definition of the variable according to the settings in the custom storage class definition.

/* myParams.h */
/* Declaration for custom storage class: myPackage_ExportedGlobal */
extern int32_T V;

/* myParams.c */
/* Exported data definition */
/* Definition for custom storage class: myPackage_ExportedGlobal */
int32_T V = 1;
