Simulink.VariantControl Class

Namespace: Simulink

Create a variant control variable object

Since R2021a

Description

The Simulink.VariantControl class creates a variant control variable object to associate the value of a variant control variable with a variant activation time. Use the Simulink.VariantControl object to determine the active choices of variant blocks and variant parameters during simulation.

Creation

variantControlVariable = Simulink.VariantControl creates a variant control variable object with no value and 'ActivationTime' set to 'update diagram'.

variantControlVariable = Simulink.VariantControl(Name,Value) creates a variant control variable object as specified by Name,Value pair arguments. Using this syntax, you create an object and associate its value with a variant activation time.

Input Arguments

Name-Value Arguments

Specify optional pairs of arguments as Name1=Value1,...,NameN=ValueN, where Name is the argument name and Value is the corresponding value. Name-value arguments must appear after other arguments, but the order of the pairs does not matter.

Before R2021a, use commas to separate each name and value, and enclose Name in quotes.

Example: 'Value', 1, 'ActivationTime', 'update diagram'

Value — Value of variant control variable object

scalar variable | enumerated type | Simulink.Parameter | user-defined type that inherits from Simulink.Parameter

Value of variant control variable object, specified as a scalar variable, an enumerated type, a Simulink.Parameter object with value of type integer or enumeration, or a user-defined type that inherits from Simulink.Parameter.

When Value is set to a Simulink.Parameter object already used in the model or in another variant control object, use one of these syntaxes to avoid a compile-time error.

V = Simulink.VariantControl('Value',Simulink.Parameter(1));

P = Simulink.Parameter(1);
V = Simulink.VariantControl('Value',copy(P));

Example: 'Value',1

Example: V = Simulink.VariantControl('Value',Simulink.Parameter(1));

Example: P = Simulink.Parameter(1); V = Simulink.VariantControl('Value',copy(P));

ActivationTime — Activation time of active value

'update diagram' (default) | 'update diagram analyze all choices' | 'code compile' | 'startup'

Simulink^® can set active choice of the variant blocks or variant parameters at different stages of the simulation and code generation workflow. Based on the stage you specify using this property, Simulink determines if the generated code must contain only the active choice or both active and inactive choices. The property also determines whether to analyze all the choices for incompatibilities in signal attributes. For more information on variant activation time, see Activate Variant During Different Stages of Simulation and Code Generation Workflow.

When you specify the variant activation time as:

• 'update diagram' –– Simulink does not analyze the choices for incompatibilities in signal attributes. It generates code only for the active choice.

• 'update diagram analyze all choices' –– Simulink analyzes both active and inactive choices for incompatibilities in signal attributes, however it generates code only for the active choice.

• 'code compile' –– Simulink analyzes both active and inactive choices of variant blocks or variant parameters for incompatibilities in signal attributes and it also generates code for both active and inactive choices. The choices are enclosed in C preprocessor conditional statements #if and #endif that are conditionally compiled when you compile the generated code.

• 'startup' –– Simulink analyzes both active and inactive choices of variant blocks and variant parameters for incompatibilities in signal attributes and it also generates code for both active and inactive choices. The choices are enclosed in regular if conditions inside the model_initialize function of the generated code that are conditionally evaluated when you run the executable that is built from the code.

Example: 'ActivationTime', 'code compile'

Methods

Specialized Operators and Functions

These methods specialize standard MATLAB^® operators and functions for objects in this class.

ne	Compare if the inputs are not equal.
eq	Compares if the inputs are equal.
not	Returns logical NOT of input.

Examples

Simulink.VariantControl Variables for Coherent Switching of Choices in Variant Blocks

You can associate a variant control variable of type Simulink.VariantControl with a variant activation time. Simulink.VariantControl variant control variables help you switch variant elements such as blocks and parameters coherently.

Consider a group of blocks that represents a design choice, with each block having the same variant control variable of type Simulink.VariantControl. If you set the variant activation time of these blocks to inherit from Simulink.VariantControl, the blocks inherit the activation time from the variant control variable. As a result, all the blocks have the same activation time and are activated simultaneously to generate rational simulation results and valid code.

You can define Simulink.VariantControl type of control variables in storage locations as listed in Storage Locations for Variant Control Variables (Operands) in Variant Blocks.

Open the slexVariantSubsystems model.

open_system('slexVariantSubsystems');

In the block parameters dialog box of the Controller block:

1. Specify the variant controls, V == 1 and V == 2.

set_param('slexVariantSubsystems/Controller/Linear Controller', 'VariantControl', 'V==1')
set_param('slexVariantSubsystems/Controller/Nonlinear Controller', 'VariantControl', 'V==2')

2. Set Variant activation time to inherit from Simulink.VariantControl to inherit the activation time from V.

set_param('slexVariantSubsystems/Controller', 'VariantActivationTime', 'inherit from Simulink.VariantControl')

In the base workspace, define a Simulink.VariantControl object, V. Set its value to 1, variant activation time to update diagram, and then simulate the model.

V = Simulink.VariantControl('Value', 1, 'ActivationTime', 'update diagram')

V =
  VariantControl with properties:

             Value: 1
    ActivationTime: 'update diagram'

During simulation, the Controller block inherits the update diagram activation time from V and the Linear Controller block becomes active.

Double-click the Controller block to see the active choice.

sim ('slexVariantSubsystems');

If you change the value of V to 2, the Nonlinear Controller block becomes active during simulation. You can change the value of V using this command or from Simulink.VariantControl dialog box.

V.Value = 2;
sim ('slexVariantSubsystems');

If you change the variant activation time of V to update diagram analyze all choices, the Controller block inherits the update diagram analyze all choices activation time from V. You can observe the inherited activation time using CompiledVariantActivationTime.

V.ActivationTime = 'update diagram analyze all choices';
sim ('slexVariantSubsystems');
get_param('slexVariantSubsystems/Controller', 'CompiledVariantActivationTime')

ans =
'update diagram analyze all choices'

Numeric Variant Control Values for Rapid Prototyping of Variant Parameters

Numeric values allow you to rapidly prototype variant values when you are still building your model. Numeric values help you focus more on building your variant values than on developing the expressions that activate those choices.

You can define numeric control values in locations listed in Storage Locations for Variant Control Variables (Operands) in Variant Parameters.

Open the slexVariantParameters model.

open_system('slexVariantParameters')

In the MATLAB Editor, specify variant choices in their simplest form as numeric values in Simulink.VariantVariable objects K1 and K2.

K1 = Simulink.VariantVariable('Choices',{'V==1', 3.5, 'V==2', 8.5})

K1 =
VariantVariable with 2 choices:

Condition	Value
_________	_____
V == 1   	3.5000
V == 2   	8.5000

Specification: ''

Bank: ''

Use getChoice, setChoice, addChoice, removeChoice to access, modify, add or remove choices

K2 = Simulink.VariantVariable('Choices',{'V==1', 4.5, 'V==2', 9.5})

K2 =
VariantVariable with 2 choices:

Condition	Value
_________	_____
V == 1   	4.5000
V == 2   	9.5000

Specification: ''

Bank: ''

Use getChoice, setChoice, addChoice, removeChoice to access, modify, add or remove choices

Once you successfully create the Simulink.VariantVariable objects, you can modify them by using the methods described in Public Methods or from the VariantVariable dialog box.

Activate one of the variant values by defining a control variable, V, and setting its value to 1 in a Simulink.VariantControl object.

V = Simulink.VariantControl('Value', 1, 'ActivationTime', 'update diagram')

V =
  VariantControl with properties:

             Value: 1
    ActivationTime: 'update diagram'

When you simulate the model, the condition V == 1 evaluates to true. K1 is assigned a value of 3.5 and K2 is assigned a value of 8.5.

sim ('slexVariantParameters')

If you change the value of V to 2, Simulink® sets the value of K1 and K2 to 4.5 and 9.5 during simulation. You can change the value of V using this command or from Simulink.VariantControl dialog box.

V.Value = 2;
sim ('slexVariantParameters')

Enumerated Types to Improve Code Readability of Variant Control Variables of Variant Parameters

Use enumerated types to give meaningful names to integers used as variant control values. For more information on enumerated type data, see Use Enumerated Data in Simulink Models.

In the MATLAB® Editor, define the classes that map enumerated values to meaningful names.

Open the slexVariantParameters model.

open_system('slexVariantParameters')

Specify the variant condition expressions V == EngType.Small and V == EngType.Big in Simulink.VariantVariable objects K1 and K2.

K1 = Simulink.VariantVariable('Choices', {'V == EngType.Small',3.5,'V == EngType.Big',8.5})

K1 =
VariantVariable with 2 choices:

     Condition     	Value
__________________	_____
V == EngType.Big  	8.5000
V == EngType.Small	3.5000

Specification: ''

Bank: ''

Use getChoice, setChoice, addChoice, removeChoice to access, modify, add or remove choices

K2 = Simulink.VariantVariable('Choices', {'V == EngType.Small',4.5,'V == EngType.Big',9.5})

K2 =
VariantVariable with 2 choices:

     Condition     	Value
__________________	_____
V == EngType.Big  	9.5000
V == EngType.Small	4.5000

Specification: ''

Bank: ''

Use getChoice, setChoice, addChoice, removeChoice to access, modify, add or remove choices

Here, EngType is an integer-based enumeration class that is derived from the built-in data type, int32. The class has two enumeration values, Small and Big. These enumerated values have underlying integer values 1 and 2. In this example, the enumeration class is defined in the base workspace. You can choose to define the class in other storage locations as listed in Storage Locations for Variant Control Variables (Operands) in Variant Blocks.

type EngType.m

classdef EngType < Simulink.IntEnumType
  enumeration
    Small (1)
    Big (2)
  end
methods (Static)
  function retVal = addClassNameToEnumNames()
      % ADDCLASSNAMETOENUMNAMES Specifies whether to add the class name
      % as a prefix to enumeration member names in generated code.
      % Return true or false.
      % If you do not define this method, no prefix is added.
      retVal = true;
  end
end
end

Once you successfully create the Simulink.VariantVariable objects, you can modify them by using the methods described in Public Methods or from the VariantVariable dialog box.

Activate one of the variant values by defining the control variable V and setting its value to EngType.Small in Simulink.VariantControl object V.

V = Simulink.VariantControl('Value',EngType.Small,'ActivationTime','code compile')

V =
  VariantControl with properties:

             Value: Small
    ActivationTime: 'code compile'

When you simulate the model, the condition V == 1 evaluates to true. K1 is assigned a value of 3.5, and K2 is assigned a value of 8.5.

sim('slexVariantParameters')

If you change the value of V to 2, Simulink® sets the value of K1 and K2 to 4.5 and 9.5 during simulation. You can change the value of V using this command or from Simulink.VariantControl dialog box.

V.Value = 2

V =
  VariantControl with properties:

             Value: 2
    ActivationTime: 'code compile'

sim ('slexVariantParameters')

The code that you generate using enumerated types contains the names of the values rather than integers.

% slexVariantParameters_private.h
% #if V == EngType_Big || V == EngType_Small
%     /* Variable: K1 Referenced by: '<Root>/Gain' */
%     #if V == EngType_Big
%       #define rtCP_Gain_K1                   (8.5)
%     #elif V == EngType_Small
%       #define rtCP_Gain_K1                   (3.5)
%     #endif
% #endif
%
% #if V == EngType_Big || V == EngType_Small
%    /* Variable: K2 Referenced by: '<Root>/Gain1' */
%     #if V == EngType_Big
%       #define rtCP_Gain1_K2                  (9.5)
%     #elif V == EngType_Small
%       #define rtCP_Gain1_K2                  (4.5)
%     #endif
% #endif
% #endif                         /* RTW_HEADER_slexVariantParameters_private_h_ */

Note that for variant parameters with startup activation time, only enumerations that are defined using these techniques are supported:

• Using the function Simulink.defineIntEnumType

• By subclassing built-in integer data types int8, int16, int32, uint8, or uint16, or by subclassing Simulink.IntEnumType

These enumerations are also supported when permanently stored in a Simulink® data dictionary. See Enumerations in Data Dictionary.

Simulink.Parameter Type of Variant Control Variables for Code Generation of Variant Parameters

If you intend to generate code for a model containing variant parameters, specify variant control variables as Simulink.Parameter objects. Simulink.Parameter objects allow you to specify other attributes, such as data type and storage class, and control the appearance and placement of variant control variables in generated code.

• You can define a variant control variable of type Simulink.Parameter only in the base workspace or in a data dictionary. Defining Simulink.Parameter type of variant control variables in the mask or model workspace is not supported. For more information on storage locations for variant control variables, see Storage Locations for Variant Control Variables (Operands) in Variant Parameters.

• Simulink.Parameter objects within structures and that have data types other than Simulink.Bus objects are not supported.

Open the slexVariantParameters model.

open_system('slexVariantParameters');

In the MATLAB Editor, define a Simulink.Parameter object.

VSS_MODE = Simulink.Parameter;
VSS_MODE.Value = 1;
VSS_MODE.DataType = 'int32';
VSS_MODE.CoderInfo.StorageClass = 'Custom';
VSS_MODE.CoderInfo.CustomStorageClass = 'Define';
VSS_MODE.CoderInfo.CustomAttributes.HeaderFile ='demo_macros.h';

Variant control variables defined as Simulink.Parameter objects can have any of the storage classes listed in Storage Classes for Different Variant Activation Times (Simulink Coder).

You can also convert a scalar variant control variable into a Simulink.Parameter object. For more information, see Convert Variant Control Variables into Simulink.Parameter Objects.

Specify the object as a variant control in Simulink.VariantVariable objects K1 and K2.

K1 = Simulink.VariantVariable('Choices',{'V == 1',3.5,'V == 2',8.5});
K2 = Simulink.VariantVariable('Choices',{'V == 1',4.5,'V == 2',9.5});

Once you successfully create the Simulink.VariantVariable objects, you can modify them by using the methods described in Public Methods or from the VariantVariable dialog box.

Activate one of the variant values by defining a Simulink.VariantControl object V and setting its Value property to VSS_MODE.

V = Simulink.VariantControl('Value',copy(VSS_MODE),'ActivationTime','code compile');

When you simulate the model, the condition V == 1 evaluates to true. K1 is assigned a value of 3.5, and K2 is assigned a value of 8.5.

sim('slexVariantParameters');

If you change the value of V to 2, Simulink® sets the value of K1 and K2 to 4.5 and 9.5 during simulation. You can change the value of V using this command or from the Simulink.VariantControl dialog box.

V.Value.Value=2;
sim('slexVariantParameters');

Generate code from the model. For information on how to generate code, see Generate Code Using Embedded Coder (Embedded Coder)

The generated code contains both Linear and Nonlinear choices in preprocessor conditionals #if and #elif because of the code compile activation time. The variant control variable V is defined using a macro — #define directive — in the header file demo_macros.h. You can control the appearance and placement of V in the generated code and prevent optimizations from eliminating storage for V using the storage class property. For more information, see Storage Classes for Different Variant Activation Times (Simulink Coder).

% demo_macros.h
% /* Exported data define */
%
% /* Definition for custom storage class: Define */
% #define V       2          /* Referenced by:
%                            * '<Root>/Gain'
%                            * '<Root>/Gain1'
%                            */
% #endif                    /* RTW_HEADER_demo_macros_h_ */
%
% /*

Custom Data Class Objects as Values of Simulink.VariantControl Objects

Set the value of a Simulink.VariantControl object to an object of a user-defined data class that derives from Simulink.Parameter. The user-defined class package that contains the class definition must be available on the MATLAB® search path. Data objects that you create from your package can use the storage classes that the package defines. For an example that shows how to create a data class in a package, see Define Data Classes.

Explore the Model

In this example, the +myPackage folder is a user-defined data class package folder that contains the class folder @myExParameter. The class folder contains the class definition file myExParameter.m and the class derives from Simulink.Parameter. The csc_registration.m file contains the custom storage class defined for this package using the Custom Storage Class Designer.

open_system("slexVariantParameters");

1. The slexVariantParameters model uses two variant parameters K1 and K2, and a Simulink.VariantControl object V, that are defined in the base workspace.

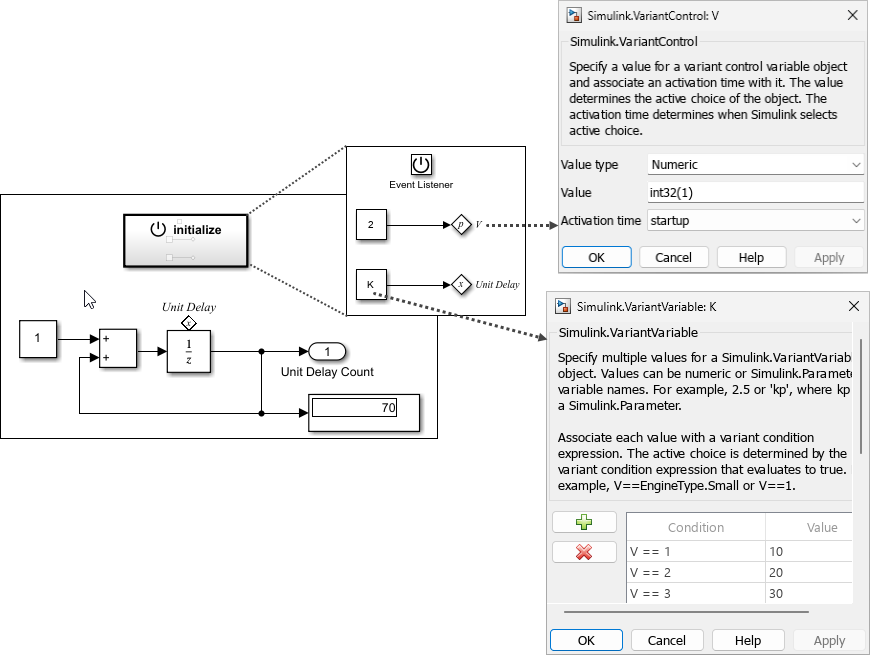

2. Double-click the variant control object V in the base workspace to open the Simulink.VariantControl dialog box.

3. Select the custom class myPackage.myExParameter from the Value type list.

4. In the Value box, enter 1 as the value of the variant control.

5. From the Data type list, select int32 and from the Activation time list, select startup.

6. In the Code Generation tab, select the custom storage class myPackage_ExportedGlobal defined in the package.

Generate code from the model. For information on how to generate code, see Generate Code Using Embedded Coder (Embedded Coder).

The generated header file myParams.h contains the extern declaration for the variable V and the generated file myParams.c contains the definition of the variable according to the settings in the custom storage class definition.

/* myParams.h */
/* Declaration for custom storage class: myPackage_ExportedGlobal */
extern int32_T V;

/* myParams.c */
/* Exported data definition */
/* Definition for custom storage class: myPackage_ExportedGlobal */
int32_T V = 1;

Limitations

• Using a Simulink.VariantControl object directly as an S-Function parameter in a noninlined S-Function block is not supported for code generation.

• Simulink.VariantControl value must be an integer, an enumeration, a Simulink.Parameter with value of type integer or enumeration, or a user-defined type that inherits from Simulink.Parameter.

Extended Capabilities

C/C++ Code Generation

Generate C and C++ code using MATLAB® Coder™.

For more information on code generation with variant parameters, see Options to Represent Variant Parameters in Generated Code (Embedded Coder).

Version History

Introduced in R2021a

R2024b: Error reported when Simulink.VariantControl uses Simulink.Parameter object already used in model or in another variant control object

Simulink reports a compile-time error when you try to set the value of a Simulink.VariantControl object to a Simulink.Parameter object that is already used in the model or in another variant control object.

To avoid the error, set the value of a Simulink.VariantControl object by creating a separate Simulink.Parameter object or by creating a copy of an existing Simulink.Parameter object using the copy method. For example:

P = Simulink.Parameter(1);
V = Simulink.VariantControl('Value',copy(P));

or

V = Simulink.VariantControl('Value',Simulink.Parameter(1));

R2024a: Simulink.VariantControl object does not support Simulink.Parameter object with slexpr or nonscalar values

The Simulink.VariantControl object does not support setting its Value property to a Simulink.Parameter object with Value set to the slexpr function or a nonscalar value.
