# Align Signals Using Cross-Correlation

Many measurements involve data collected asynchronously by multiple sensors. If you want to integrate the signals and study them in tandem, you have to synchronize them. Use `xcorr` for that purpose.

For example, consider a car crossing a bridge. The vibrations it produces are measured by three identical sensors located at different spots. The signals have different arrival times.

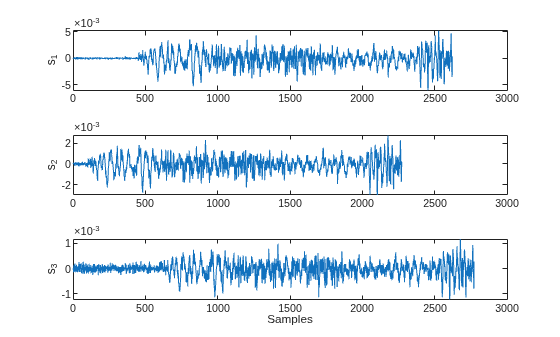

Load the signals into the MATLAB® workspace and plot them.

```load relatedsig tiledlayout(3,1) ax(1) = nexttile; plot(s1) ylabel("s_1") ax(2) = nexttile; plot(s2) ylabel("s_2") ax(3) = nexttile; plot(s3) ylabel("s_3") xlabel("Samples") linkaxes(ax,"x")```

Compute the cross-correlations between the three pairs of signals. Normalize them so their maximum value is 1.

```[C21,lag21] = xcorr(s2,s1); C21 = C21/max(C21); [C31,lag31] = xcorr(s3,s1); C31 = C31/max(C31); [C32,lag32] = xcorr(s3,s2); C32 = C32/max(C32);```

The locations of the maximum values of the cross-correlations indicate time leads or lags.

```[M21,I21] = max(C21); t21 = lag21(I21); [M31,I31] = max(C31); t31 = lag31(I31); [M32,I32] = max(C32); t32 = lag32(I32);```

Plot the cross-correlations. In each plot display the location of the maximum.

```tiledlayout(3,1) nexttile plot(lag21,C21) xline(t21,"-","Lag: "+t21,LabelOrientation="horizontal") ylabel("C_{21}") title('Cross-Correlations') nexttile plot(lag31,C31) xline(t31,"-","Lag: "+t31,LabelOrientation="horizontal") ylabel("C_{31}") nexttile plot(lag32,C32) xline(t32,"-","Lag: "+t32,LabelOrientation="horizontal") ylabel("C_{32}") xlabel("Samples")```

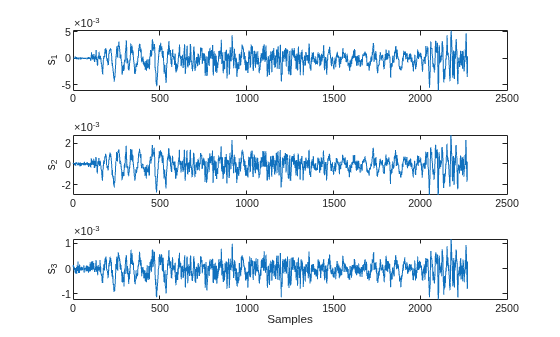

`s2` leads `s1` by 350 samples; `s3` lags `s1` by 150 samples. Thus `s2` leads `s3` by 500 samples. Line up the signals by clipping the vectors with longer delays. The signals are now synchronized and ready for further processing.

```s1 = s1(-t21:end); s3 = s3(t32:end); tiledlayout(3,1) ax(1) = nexttile; plot(s1) ylabel("s_1") ax(2) = nexttile; plot(s2) ylabel("s_2") ax(3) = nexttile; plot(s3) ylabel("s_3") xlabel("Samples") linkaxes(ax,"x")```
