alignsignals
Align two signals by delaying earliest signal
Syntax
Description
[
estimates the
delay xa
,ya
]
= alignsignals(x
,y
)D
between the two input signals x
and y
, and returns the aligned signals xa
and ya
. The function estimates the delay using
cross-correlation.
If
y
is delayed with respect tox
, thenD
is positive andx
is delayed byD
samples.If
y
is advanced with respect tox
, thenD
is negative andy
is delayed by –D
samples.
The input signals need not be exact delayed copies of each other. However, the signals can be accurately aligned only if there is sufficient correlation between them. For more information on estimating covariance and correlation, see [1].
Examples
Align Two Signals Where First Signal Lags by Three Samples
Create two signals, X
and Y
. X
is exactly the same as Y
, except X
has three leading zeros and one additional following zero. Align the two signals.
X = [0 0 0 1 2 3 0 0]; Y = [1 2 3 0]; [Xa,Ya] = alignsignals(X,Y)
Xa = 1×8
0 0 0 1 2 3 0 0
Ya = 1×7
0 0 0 1 2 3 0
Align Two Signals Where Second Signal Lags by Two Samples
Create two signals, X
and Y
. Y
is exactly the same as X
, except Y
is delayed by two samples. Align the two signals.
X = [1 2 3]; Y = [0 0 1 2 3]; [Xa,Ya,D] = alignsignals(X,Y)
Xa = 1×5
0 0 1 2 3
Ya = 1×5
0 0 1 2 3
D = 2
Align the signals using a maximum window size of 1.
maxlag = 1;
[Xa,Ya,D] = alignsignals(X,Y,Method="xcorr",MaxLag=maxlag)
Xa = 1×4
0 1 2 3
Ya = 1×5
0 0 1 2 3
D = 1
Align Two Bilevel Waveforms Based on Rising Edges
Generate two signals that represent bilevel waveforms. The signals are sampled at 50 Hz for 20 seconds. For the first signal, the transition occurs 13 seconds after the start of the measurement. For the second signal, the transition occurs 5 seconds after the start of the measurement. The signals have different amplitudes and are embedded in white Gaussian noise of different variances. Plot the signals.
t = linspace(0,20,1001)'; e1 = 1.4*tanh(t-13)+randn(size(t))/3; e2 = tanh(3*(t-5))+randn(size(t))/5; plot(t,e1,t,e2) xlabel("Seconds") ylabel("Amplitude")

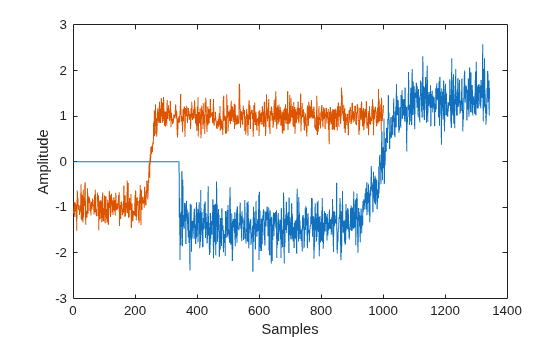

Align the signals so their transition times coincide. Correlation-based methods cannot align this type of signal adequately.
[y1,y2] = alignsignals(e1,e2); plot(y1) xlabel("Samples") ylabel("Amplitude") hold on plot(y2) hold off

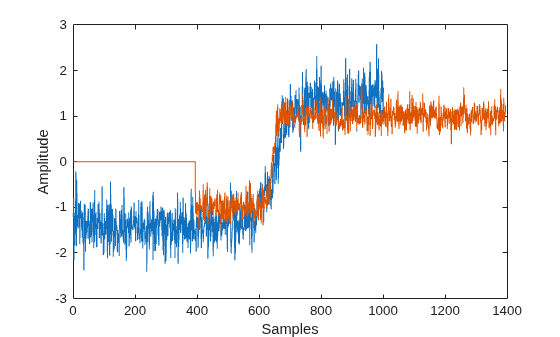

Align the signals using the risetime
method.
[y1,y2] = alignsignals(e1,e2,Method="risetime"); plot(y1) xlabel("Samples") ylabel("Amplitude") hold on plot(y2) hold off
Align Two Signals Using Truncate Option
Create two signals, X
and Y
. Y
is exactly the same as X
, except Y
has two leading zeros. Align the two signals and set the truncate option to true
. This option preserves the length of X
.
X = [1 2 3]; Y = [0 0 1 2 3]; [Xa,Ya,D] = alignsignals(X,Y,Truncate=true)
Xa = 1×3
0 0 1
Ya = 1×5
0 0 1 2 3
D = 2
When the truncate option truncates all the original data of X
, the function issues a warning.
Y = [0 0 0 0 1 2 3]; [Xa,Ya,D] = alignsignals(X,Y,Truncate=true)
Warning: All original data in the first input X has been truncated because the length of X is smaller than the estimated delay D. To avoid truncating this data do not use the "truncate" option.
Xa = 1×3
0 0 0
Ya = 1×7
0 0 0 0 1 2 3
D = 4
Input Arguments
x
— First input signal
vector
First input signal, specified as a numeric vector of length Lx.
Example: [1 2 3]
Data Types: single
| double
| int8
| int16
| int32
| int64
| uint8
| uint16
| uint32
| uint64
Complex Number Support: Yes
y
— Second input signal
vector
Second input signal, specified as a numeric vector of length Ly.
Example: [0 0 1 2 3]
Data Types: single
| double
| int8
| int16
| int32
| int64
| uint8
| uint16
| uint32
| uint64
Complex Number Support: Yes
Name-Value Arguments
Specify optional pairs of arguments as
Name1=Value1,...,NameN=ValueN
, where Name
is
the argument name and Value
is the corresponding value.
Name-value arguments must appear after other arguments, but the order of the
pairs does not matter.
Example: alignsignals(X,Y,Method="npeak",PeakNum=4)
aligns
X
and Y
based on the location of the
fourth peak in each signal.
Method
— Method to estimate the delay between signals
"xcorr"
(default) | "maxpeak"
| "npeak"
| "risetime"
Method to estimate the delay between signals, specified as
"xcorr"
, "maxpeak"
,
"npeak"
, or "risetime"
. You
can specify additional name-value arguments based on the specified
Method
.
"xcorr"
— Estimate the delay using cross-correlation. If you specifyMethod
as"xcorr"
, you can also specifyMaxLag
."maxpeak"
— Estimate the delay using the location of the highest peak in each signal. If you specifyMethod
as"maxpeak"
, you can optionally specifyMinPeakProminence
andMinPeakHeight
."npeak"
— Estimate the delay using the location of the nth peak in each signal. If you specifyMethod
as"npeak"
, you can optionally specifyPeakNum
,MinPeakProminence
, andMinPeakHeight
."risetime"
— Estimate the delay using the location of the rising edges in each signal. The function uses the specified values forStateLevels
to find the rising edges.
Example: Method="npeak",PeakNum=3
MaxLag
— Maximum window size
integer scalar
Maximum window size used to estimate the delay between signals,
specified as an integer scalar. By default, MaxLag
is equal to max(Lx,Ly)–1, where Lx is
the length of x
and
Ly is the length of
y
. If MaxLag
is negative,
the function uses the absolute value.
This argument applies only when Method
is set to
"xcorr"
.
Data Types: single
| double
| int8
| int16
| int32
| int64
| uint8
| uint16
| uint32
| uint64
PeakNum
— Peak number
1
(default) | positive integer
Peak number used to align the signals, specified as a positive
integer. This argument applies only when you specify
Method
as "npeak"
.
Data Types: single
| double
| int8
| int16
| int32
| int64
| uint8
| uint16
| uint32
| uint64
MinPeakProminence
— Minimum peak prominence
0
(default) | real nonnegative scalar
Minimum peak prominence used to identify peaks in the signals,
specified as a real nonnegative scalar. When you specify
MinPeakProminence
, the function finds those
peaks that have a relative importance of at least the value specified.
For more information, see findpeaks
and Prominence.
This argument applies only when you specify
Method
as "npeak"
or
"maxpeak"
.
Data Types: single
| double
| int8
| int16
| int32
| int64
| uint8
| uint16
| uint32
| uint64
MinPeakHeight
— Minimum peak height
–Inf
(default) | real scalar
Minimum peak height used to identify peaks in the signals, specified
as a real scalar. When you specify MinPeakHeight
,
the function finds those peaks with height greater than the specified
value. For more information, see findpeaks
.
This argument applies only when you specify
Method
as "npeak"
or
"maxpeak"
.
Data Types: single
| double
| int8
| int16
| int32
| int64
| uint8
| uint16
| uint32
| uint64
StateLevels
— State levels
two-element row vector
State levels, specified as a real-valued two-element row vector. The
first element corresponds to the lower state levels of the input
signals, and the second element corresponds to the upper state levels of
the input signals. If you do not specify
StateLevels
, the function estimates the state
levels of the input waveform by a histogram method. For more
information, see risetime
.
This argument applies only when you specify
Method
as "risetime"
.
Example: Method="risetime",StateLevels=[0.5
2]
Data Types: double
Truncate
— Option to truncate the input signals
false
or
0
(default) | true
or 1
Option to truncate the input signals, specified as a numeric or
logical 1
(true
) or
0
(false
). When you specify
Truncate
as true
, the
lengths of xa
and ya
are equal
to the lengths of x
and y
, respectively.
If the estimated delay
D
is positive, the function prependsD
zeros tox
and truncates the lastD
samples ofx
.If
D
is negative, the function prepends –D
zeros toy
and truncates the lastD
samples ofy
.If
D
≥ Lx, thenxa
consists of Lx zeros and all samples ofx
are lost. If –D
is ≥ Ly, thenya
consists of Ly zeros and all samples ofy
are lost.
Output Arguments
xa
— Aligned first signal
vector
Aligned first signal, returned as a numeric vector that is aligned with
the second output argument ya
.
If input argument
x
is a row vector, thenxa
is also a row vector.If input argument
x
is a column vector, thenxa
is also a column vector.
If you specify the Truncate
as
true
and the estimated delay D
is positive, then xa
is equivalent to the input signal
x
with D
zeros prepended to it
and its last D
samples truncated.
ya
— Aligned second signal
vector
Aligned second signal, returned as a numeric vector that is aligned with
the first output argument Xa
.
If input argument
y
is a row vector, thenya
is also a row vector.If input argument
y
is a column vector, thenya
is also a column vector.
If you specify the Truncate
as
true
and the estimated delay D
is negative, then ya
is equivalent to the input signal
y
with –D
zeros prepended to
it and its last –D
samples truncated.
D
— Estimated delay between input signals
integer
Estimated delay between input signals, returned as an integer. This
integer represents the number of samples by which the two input signals
x
and y
are offset.
If
y
is delayed with respect tox
, thenD
is positive andx
is delayed byD
samples.If
y
is advanced with respect tox
, thenD
is negative andy
is delayed by –D
samples.If
x
andy
are already aligned, thenD
is zero and neitherx
nory
are delayed.
If you specify a value for input argument MaxLag
,
then D
is less than or equal to
MaxLag
.
References
[1] Orfanidis, Sophocles J. Optimum Signal Processing. An Introduction. 2nd Ed. Englewood Cliffs, NJ: Prentice-Hall, 1996.
Extended Capabilities
C/C++ Code Generation
Generate C and C++ code using MATLAB® Coder™.
Version History
Introduced in R2007aR2022b: Syntaxes to be removed
These syntaxes will be removed in a future release.
Syntax | Result | Use Instead |
---|---|---|
alignsignals(x,y,maxlag) | Runs | alignsignals(x,y,Method="xcorr",MaxLag=maxlag) |
alignsignals(x,y,maxlag,'truncate') | Runs | alignsignals(x,y,Method="xcorr",MaxLag=maxlag,Truncate=true) |
R2015b: Moved to Signal Processing Toolbox from Communications Toolbox
Previously, alignsignals
required Communications Toolbox™.
