fitmagfrd
Fit frequency response magnitude data with minimum-phase state-space model using log-Chebyshev magnitude design
Syntax
B = fitmagfrd(A,N) B = fitmagfrd(A,N,RD) B = fitmagfrd(A,N,RD,WT) B = fitmagfrd(A,N,RD,WT,C)
Description
B = fitmagfrd(A,N)
is a stable,
minimum-phase ss
object, with state-dimension
N
, whose frequency response magnitude
closely matches the magnitude data in A
.
A
is a 1-by-1 frd
object, and N
is a nonnegative integer.
B = fitmagfrd(A,N,RD)
forces
the relative degree of B
to be
RD
. RD
must be a
nonnegative integer whose default value is 0
.
You can specify the default value for RD
by
setting RD
to an empty matrix.
B = fitmagfrd(A,N,RD,WT)
uses
the magnitude of WT
to weight the optimization
fit criteria. WT
can be a
double
, ss
or
frd
. If WT
is a
scalar, then it is used to weight all entries of the error criteria
(A-B)
. If WT
is a
vector, it must be the same size as A
, and each
individual entry of WT
acts as a weighting
function on the corresponding entry of (A-B
).
The default value for WT
is 1, and you can
specify it by setting WT
to an empty
matrix.
B = fitmagfrd(A,N,RD,WT,C)
enforces additional magnitude constraints on B
,
specified by the values of C.LowerBound
and
C.UpperBound
. These can be empty,
double
or frd
(with C.Frequency
equal to
A.Frequency
). If
C.LowerBound
is non-empty, then the
magnitude of B
is constrained to lie above
C.LowerBound
. No lower bound is
enforced at frequencies where C.LowerBound
is
equal to -inf. Similarly, the UpperBound
field
can be used to specify an upper bound on the magnitude of
B
. If C
is a
double
or frd
(with C.Frequency
equal to
A.Frequency
), then the upper and
lower bound constraints on B
are taken directly
from A
as:
if C(w) == –1, then enforce abs(B(w)) <= abs(A(w))
if C(w) == 1, then enforce abs(B(w)) >= abs(A(w))
if C(w) == 0, then no additional constraint
where w
denotes the frequency.

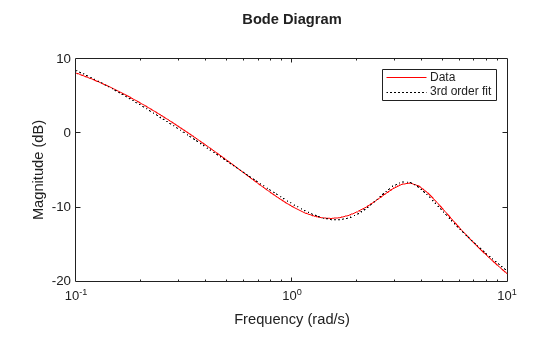

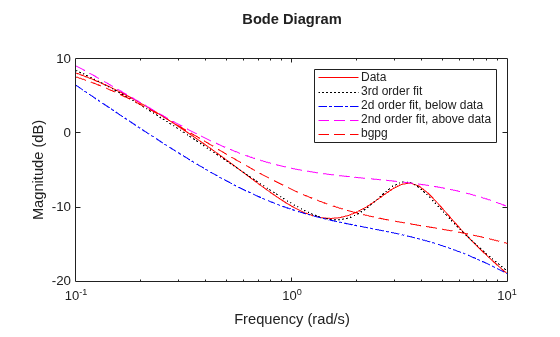

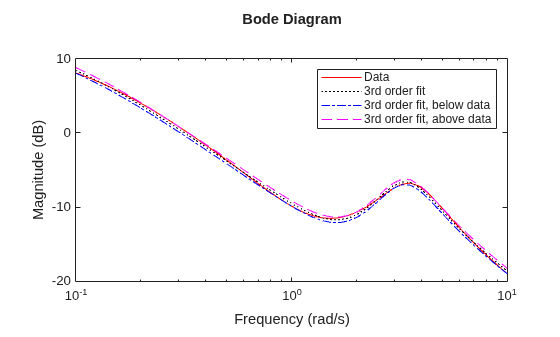

Examples
Limitations
This input frd
object must be either a scalar 1-by-1
object or, a row, or column vector.
Algorithms
fitmagfrd
uses a version of log-Chebyshev magnitude
design, solving
min f subject to (at every frequency point in A): |d|^2 /(1+ f/WT) < |n|^2/A^2 < |d|^2*(1 + f/WT)
plus additional constraints imposed with C
.
n, d
denote the numerator and
denominator, respectively, and B = n/d
.
n
and d
have
orders (N-RD
) and N
,
respectively. The problem is solved using linear programming for
fixed f and
bisection to minimize
f
. An alternate approximate method,
which cannot enforce the constraints defined by
C
, is B =
fitfrd(genphase(A),N,RD,WT)
.
References
Oppenheim, A.V., and R.W. Schaffer, Digital Signal Processing, Prentice Hall, New Jersey, 1975, p. 513.
Boyd, S. and Vandenberghe, L., Convex Optimization, Cambridge University Press, 2004.
Version History
Introduced before R2006a
