# Minimum Snap Polynomial Trajectory

Generate minimum snap polynomial trajectories through multiple waypoints

*Since R2022a*

**Libraries:**

UAV Toolbox /
Algorithms

Robotics System Toolbox /
Utilities

## Description

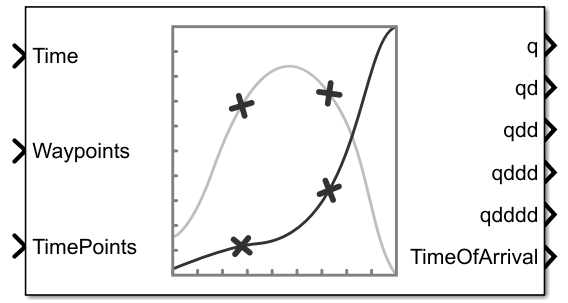

The Minimum Snap Polynomial Trajectory block generates minimum snap
polynomial trajectories that pass through the waypoints at the times specified in time points.
The block outputs positions, velocities, accelerations, jerks, snap, and time of arrival for
achieving this trajectory based on the `Time`

input.

The block also accepts boundary conditions for waypoints. The block also outputs the coefficients for the polynomials and status of the trajectory generation.

The initial and final values of positions, velocities, accelerations, jerks, and snap of
the trajectory are held constant outside the time period defined in `TimePoints`

input.

## Examples

## Ports

### Input

**Time** — Time point along trajectory

scalar | vector

Time point along the trajectory, specified as a scalar or vector.

When the time is specified as a scalar, this value is synced with simulation time and is used to specify the time point for sampling the trajectory. The block outputs a vector of the trajectory variables at that instance in time.

If the time is specified as a vector, the block outputs a matrix with each column corresponding to each element of the vector.

**Data Types: **`single`

| `double`

**Waypoints** — Waypoints positions along trajectory

*n*-by-*p* matrix

Positions of waypoints of the trajectory at given time points, specified as an
*n*-by-*p* matrix. *n* is the
dimension of the trajectory and *p* is the number of
waypoints.

**Data Types: **`single`

| `double`

**TimePoints** — Time points for waypoints of trajectory

*p*-element row vector

Time points for the waypoints of the trajectory, specified as a
*p*-element row vector. *p* is the number of
waypoints.

**Data Types: **`single`

| `double`

**VelBC** — Velocity boundary conditions for waypoints

*n*-by-*p* matrix

Velocity boundary conditions for waypoints, specified as an
*n*-by-*p* matrix. Each row sets the velocity
boundary for the corresponding dimension of the trajectory *n* at
each of *p* waypoints.

By default, the block uses a value of `0`

at the boundary
waypoints and `NaN`

at the intermediate waypoints.

#### Dependencies

To enable this input port, select `Show boundary conditions input ports`

.

**Data Types: **`single`

| `double`

**AccelBC** — Acceleration boundary conditions for waypoints

*n*-by-*p* matrix

Acceleration boundary conditions for waypoints, specified as an
*n*-by-*p* matrix. Each row sets the acceleration
boundary for the corresponding dimension of the trajectory *n* at
each of *p* waypoints.

By default, the block uses a value of `0`

at the boundary
waypoints and `NaN`

at the intermediate waypoints.

#### Dependencies

To enable this input port, select `Show boundary conditions input ports`

.

**Data Types: **`single`

| `double`

**JerkBC** — Jerk boundary conditions for waypoints

*n*-by-*p* matrix

Jerk boundary conditions for waypoints, specified as an
*n*-by-*p* matrix. Each row sets the jerk boundary
for the corresponding dimension of the trajectory *n* at each of
*p* waypoints.

By default, the block uses a value of `0`

at the boundary
waypoints and `NaN`

at the intermediate waypoints.

#### Dependencies

To enable this input port, select `Show boundary conditions input ports`

.

**Data Types: **`single`

| `double`

**SnapBC** — Snap boundary conditions for waypoints

*n*-by-*p* matrix

Snap boundary conditions for waypoints, specified as an
*n*-by-*p* matrix. Each row sets the snap boundary
for the corresponding dimension of the trajectory *n* at each of
*p* waypoints.

`0`

at the boundary
waypoints and `NaN`

at the intermediate waypoints.

#### Dependencies

To enable this input port, select `Show boundary conditions input ports`

.

**Data Types: **`single`

| `double`

### Output

**q** — Positions of trajectory

*n*-element vector | *n*-by-*m* matrix

Positions of the trajectory, returned as an *n*-element vector or
*n*-by-*m* matrix.

**Data Types: **`single`

| `double`

**qd** — Velocities of trajectory

*n*-element vector | *n*-by-*m* matrix

Velocities of the trajectory, returned as an *n*-element vector
or *n*-by-*m* matrix.

**Data Types: **`single`

| `double`

**qdd** — Accelerations of trajectory

*n*-element vector | *n*-by-*m* matrix

Accelerations of the trajectory, returned as an *n*-element
vector or *n*-by-*m* matrix.

**Data Types: **`single`

| `double`

**qddd** — Jerks of trajectory

*n*-element vector | *n*-by-*m* matrix

Jerks of the trajectory, returned as an *n*-element vector or
*n*-by-*m* matrix.

**Data Types: **`single`

| `double`

**qdddd** — Snaps of trajectory

*n*-element vector | *n*-by-*m* matrix

Snaps of the trajectory, returned as an *n*-element vector or
*n*-by-*m* matrix.

**Data Types: **`single`

| `double`

**TimeOfArrival** — Time of arrival at each waypoint

*p*-element vector

Time of arrival at each waypoint, returned as a *p*-element
vector. *p* is the number of waypoints.

**Data Types: **`single`

| `double`

**PolynomialCoefs** — Polynomial coefficients

*n*(*p*`–`

`1`

)-by-`10`

matrix

Polynomial coefficients, returned as an
*n*(*p*`–`

`1`

)-by-`10`

matrix. *n* is the dimension of the trajectory and
*p* is the number of waypoints. Each set of *n*
rows defines the coefficients for the polynomial that described each variable
trajectory.

#### Dependencies

To enable this output port, select ```
Show polynomial coefficients output
port
```

.

**Data Types: **`single`

| `double`

**Status** — Status of trajectory generation

three-element vector of the form `[`*SingularityStatus*
*MaxIterStatus*
*MaxTimeStatus*]

*SingularityStatus*

*MaxIterStatus*

*MaxTimeStatus*]

Status of trajectory generation, returned as a three-element vector of the form
`[`

.*SingularityStatus*
*MaxIterStatus*
*MaxTimeStatus*]

*SingularityStatus* returned as `0`

or
`1`

indicates the occurrence of singularity. If singularity occurs
reduce the `Maximum segment time`

to `Minimum segment time`

ratio.

*MaxIterStatus* returned as `0`

or
`1`

indicates if the number of iterations for the solver has
exceeded `Maximum iterations`

.

*MaxTimeStatus* returned as `0`

or
`1`

indicates if the time limit for the solver has exceeded
`Maximum time`

.

#### Dependencies

To enable this output port, select `Show status output port`

.

**Data Types: **`uint8`

## Parameters

**Show polynomial coefficients output port** — Output polynomial coefficients

`off`

(default) | `on`

Select this parameter to output polynomial coefficients at the `PolynomialCoefs`

port.

**Tunable: **No

**Show status output port** — Output status

`off`

(default) | `on`

Select this parameter to output status at the `Status`

port.

**Tunable: **No

**Time allocation** — Enable time allocation

`off`

(default) | `on`

Enable to specify time allocation for the trajectory using the `Time weight`

, `Minimum segment time`

, `Maximum segment time`

, `Maximum iterations`

, and `Maximum time`

parameters.

**Tunable: **No

**Time weight** — Weight for time allocation

`100`

(default) | positive scalar

Weight for time allocation, specified as a positive scalar.

**Tunable: **No

#### Dependencies

To enable this parameter, select `Time allocation`

.

**Minimum segment time** — Minimum time segment length

`0.1`

(default) | positive scalar | (*p*`–`

`1`

)-element positive row
vector

Minimum time segment length, specified as a positive scalar or
(*p*`–`

`1`

)-element positive row
vector. *p* is the number of waypoints.

**Tunable: **No

#### Dependencies

To enable this parameter, select `Time allocation`

.

**Maximum segment time** — Maximum time segment length

`1`

(default) | positive scalar | (*p*`–`

`1`

)-element positive row
vector

Maximum time segment length, specified as a positive scalar or
(*p*`–`

`1`

)-element positive row
vector. *p* is the number of waypoints.

**Tunable: **No

#### Dependencies

To enable this parameter, select `Time allocation`

.

**Maximum iterations** — Maximum iterations for solver

`1500`

(default) | positive integer scalar

Maximum iterations for solver, specified as a positive integer scalar.

**Tunable: **No

#### Dependencies

To enable this parameter, select `Time allocation`

.

**Maximum time** — Maximum time for solver

`10`

(default) | positive scalar

Maximum time for solver, specified as a positive scalar.

**Tunable: **No

#### Dependencies

To enable this parameter, select `Time allocation`

.

**Simulate using** — Type of simulation to run

`Interpreted execution`

(default) | `Code generation`

Select the type of simulation to run from these options:

`Interpreted execution`

— Simulate model using the MATLAB^{®}interpreter. This option shortens startup time but has a slower simulation speed than`Code generation`

. In this mode, you can debug the source code of the block.`Code generation`

— Simulate model using generated C code. The first time you run a simulation, Simulink^{®}generates C code for the block. The C code is reused for subsequent simulations, as long as the model does not change. This option requires additional startup time but the speed of the subsequent simulations is comparable to`Interpreted execution`

.

**Tunable: **No

## Tips

For better performance, consider these options:

Minimize the number of waypoint or parameter changes.

Set the

`Simulate using`

parameter to`Code generation`

. For more information, see Simulation Modes (Simulink).

## References

[1] Bry, Adam, Charles Richter,
Abraham Bachrach, and Nicholas Roy. “Aggressive Flight of Fixed-Wing and Quadrotor Aircraft in
Dense Indoor Environments.” *The International Journal of Robotics
Research*, 34, no. 7 (June 2015): 969–1002.

[2] Richter, Charles, Adam Bry, and
Nicholas Roy. “Polynomial Trajectory Planning for Aggressive Quadrotor Flight in Dense Indoor
Environments." *Paper presented at the International Symposium of Robotics Research
(ISRR 2013)*, 2013.

## Extended Capabilities

### C/C++ Code Generation

Generate C and C++ code using Simulink® Coder™.

## Version History

**Introduced in R2022a**
