# claimsPlot

Plot claims for development triangle

Since R2021a

## Syntax

``claimsPlot(dT)``
``claimsPlot(dT,Name,Value)``
``h = claimsPlot(ax,___)``

## Description

example

````claimsPlot(dT)` plots one line for each origin period for all development periods.```

example

````claimsPlot(dT,Name,Value)` specifies options using one or more name-value pair arguments in addition to the input arguments in the previous syntax.```

example

````h = claimsPlot(ax,___)` additionally returns the figure handle `h`. Use this syntax with any of the input arguments in previous syntaxes.```

## Examples

collapse all

Generate a line plot of cumulative claims for each of the development periods using a `developmentTriangle` object containing simulated insurance claims data.

```load InsuranceClaimsData.mat; head(data)```
``` OriginYear DevelopmentYear ReportedClaims PaidClaims __________ _______________ ______________ __________ 2010 12 3995.7 1893.9 2010 24 4635 3371.2 2010 36 4866.8 4079.1 2010 48 4964.1 4487 2010 60 5013.7 4711.4 2010 72 5038.8 4805.6 2010 84 5059 4853.7 2010 96 5074.1 4877.9 ```

Use `developmentTriangle` to convert the data to a development triangle, which is the standard form for representing claims data.

`dT = developmentTriangle(data)`
```dT = developmentTriangle with properties: Origin: {10x1 cell} Development: {10x1 cell} Claims: [10x10 double] LatestDiagonal: [10x1 double] Description: "" TailFactor: 1 CumulativeDevelopmentFactors: [1.3069 1.1107 1.0516 1.0261 1.0152 1.0098 1.0060 1.0030 1.0010 1] SelectedLinkRatio: [1.1767 1.0563 1.0249 1.0107 1.0054 1.0038 1.0030 1.0020 1.0010] ```

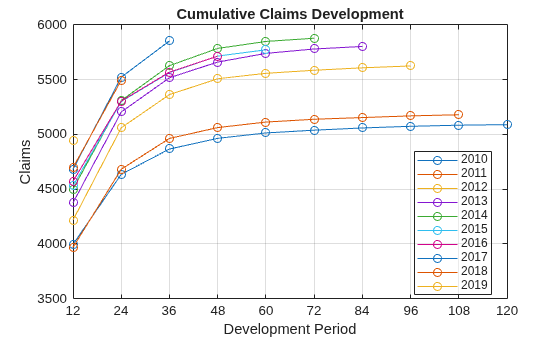

Use the `claimsPlot` function to generate a line plot of cumulative claims.

`claimsPlot(dT)`

## Input Arguments

collapse all

Development triangle, specified as a previously created `developmentTriangle` object.

Data Types: `object`

(Optional) Valid axis object, specified as an `ax` object created using `axes`. The function creates the plot on the axes specified by the optional `ax` argument instead of on the current axes (`gca`). The optional argument `ax` must precede any of the input argument combinations.

Data Types: `object`

### Name-Value Arguments

Specify optional pairs of arguments as `Name1=Value1,...,NameN=ValueN`, where `Name` is the argument name and `Value` is the corresponding value. Name-value arguments must appear after other arguments, but the order of the pairs does not matter.

Before R2021a, use commas to separate each name and value, and enclose `Name` in quotes.

Example: `claimsPlot(dT,'Cumulative',false)`

Cumulative claims, specified as the comma-separated pair consisting of `'Cumulative'` and a logical value.

Data Types: `logical`

## Output Arguments

collapse all

Figure handle for line objects, returned as a handle object.

## Version History

Introduced in R2021a
