design

Design hairpin filter around specified frequency

Since R2021b

Syntax

hpfilter = design(hpfilterobj,frequency)

hpfilter = design(___,Name=Value)

Description

hpfilter = design(hpfilterobj,frequency) designs a hairpin filter around the specified frequency.

hpfilter = design(___,Name=Value) designs a hairpin filter with additional options specified by name-value arguments.

Note

PCB components designed using the design function operate around the specified frequency with a 10-15% tolerance.

Examples

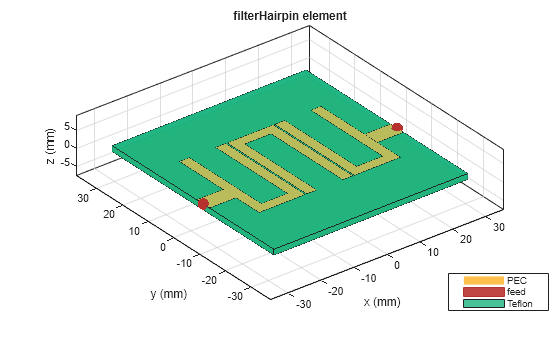

Design Chebyshev Hairpin Filter at 1.8 GHz

Design a Hairpin filter with a Chebyshev response at 1.8 GHz and a fractional bandwidth of 10 percent.

hpfilt = design(filterHairpin,1.8e9,FBW=10,FilterType='Chebyshev');
show(hpfilt);

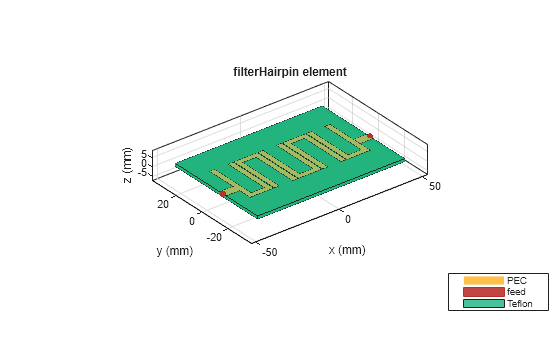

Design Fifth Order Hairpin Filter

Design a 5th order tapped input hairpin filter with a Chebyshev response at 1.8 GHz and a fractional bandwidth of 10 percent.

hpfilt = filterHairpin(FeedType='Tapped')

hpfilt =
  filterHairpin with properties:

           Resonator: [1×1 ubendRightAngle]
         FilterOrder: 3
     ResonatorOffset: [0 0 0]
             Spacing: [4.0000e-04 4.0000e-04]
      PortLineLength: 0.0080
       PortLineWidth: 0.0050
          FeedOffset: [-0.0055 -0.0055]
            FeedType: 'Tapped'
              Height: 0.0016
    GroundPlaneWidth: 0.0567
           Substrate: [1×1 dielectric]
           Conductor: [1×1 metal]
          IsShielded: 0

hpfilt.FilterOrder = 5;
hpfilt = design(hpfilt, 1.8e9,FBW=10,FilterType='Chebyshev');

View the filter.

show(hpfilt);

Input Arguments

hpfilterobj — Hairpin filter

filterHairpin object

Hairpin filter, specified as a filterHairpin object.

Example: hpfilterobj = filterHairpin; design(hpfilterobj,2e9) designs a hairpin filter around a frequency of 2 GHz.

frequency — Design frequency of hairpin filter

real positive scalar

Design frequency of the hairpin filter, specified as a real positive scalar in hertz.

Example: 5e9

Data Types: double

Name-Value Arguments

Specify optional pairs of arguments as Name1=Value1,...,NameN=ValueN, where Name is the argument name and Value is the corresponding value. Name-value arguments must appear after other arguments, but the order of the pairs does not matter.

Example: RippleFactor=0.02

FilterType — Type of filter

'Butterworth' (default) | positive scalar

Type of filter, specified as 'Butterworth', or 'Chebyshev'.

Data Types: char | string

RippleFactor — Passband factor of Chebyshev filter

0.01 (default) | positive scalar

Passband factor of the Chebyshev filter, specified as positive scalar in decibels. For Butterworth filter, the passband factor is not required.

Data Types: double

Output Arguments

hpfilter — Hairpin filter operating around specified frequency

filterHairpin object

Hairpin filter operating around the specified frequency, returned as a filterHairpin object.

Version History

Introduced in R2021b
