design

Design RF connector

Since R2024b

collapse all in page

    Syntax

    rfconnector = design(RFConnectorobj,pcbobj)
    rfconnector = design(RFConnectorobj,pcbobj,Z0)

    Description

    rfconnector = design(RFConnectorobj,pcbobj) returns an RF connector for an FEM-based PCB catalog object, or pcbComponent custom object, with default characteristic impedance of 50 ohms.

    example

    rfconnector = design(RFConnectorobj,pcbobj,Z0) returns an RF connector with specified characteristic impedance.

    Examples

    collapse all

    Open Live Script

    This example shows the use of the design rf connector function

    Create a micro stripline with shielding

    Set the shielding property to true

    m = microstripLine(IsShielded=true)
    m =
  microstripLine with properties:

              Length: 0.0200
               Width: 0.0050
              Height: 0.0016
    GroundPlaneWidth: 0.0300
           Substrate: [1×1 dielectric]
           Conductor: [1×1 metal]
          IsShielded: 1
           Connector: [1×1 RFConnector]
           Shielding: [1×1 shape.Box]

    Design the RF Connector

    Use the design function on the micro stripline object

    c = design(RFConnector,m)
    c =
  RFConnector with properties:

            Name: 'Connector'
     InnerRadius: 4.7800e-04
     OuterRadius: 0.0016
          Flange: [1×1 antenna.Rectangle]
        EpsilonR: 2.0971
    PinFootprint: 'Taper'
       PinLength: 0.0030
       Impedance: 50


    m.Connector = c;
show(m)

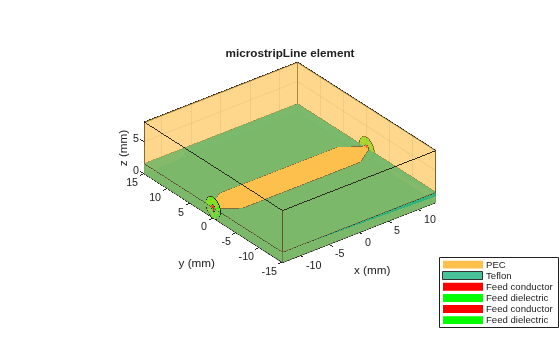

    Figure contains an axes object. The axes object with title microstripLine element, xlabel x (mm), ylabel y (mm) contains 14 objects of type patch. These objects represent PEC, Teflon, Feed conductor, Feed dielectric.

    Input Arguments

    collapse all

    Connector design specified using a connector object.

    Example: connector = RFConnector

    Data Types: string

    PCB object on which the connector is designed.

    Example: pcbobj = microstripLine(IsShielded=true)

    Data Types: string

    Note

    pcbobj must have these property settings :

    • IsShielded = True

    • SolverType = FEM

    Characteristic impedance of the RF connector.

    Example: connector = design(RFConnecterobj,pcbobj,Z0=75)

    Data Types: double

    Output Arguments

    collapse all

    Returns a RF connector design on the pcbobj.

    Version History

    Introduced in R2024b
