minus
Syntax
Description
Examples
Boolean Subtraction of Two RF PCB Shapes

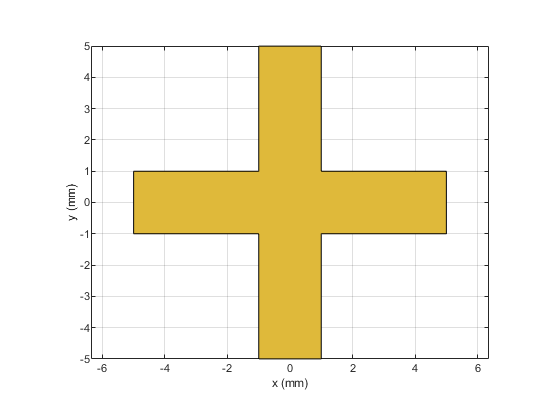

Create and display a cross trace shape.
trace = traceCross; show(trace)

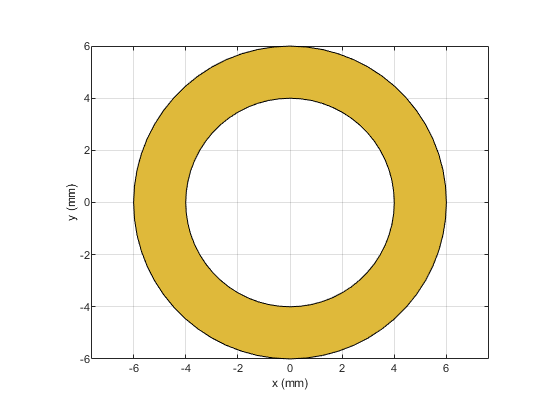

Create and display an annular ring shape with an inner radius of 4 mm.
ring = ringAnnular(InnerRadius=4e-3); show(ring)

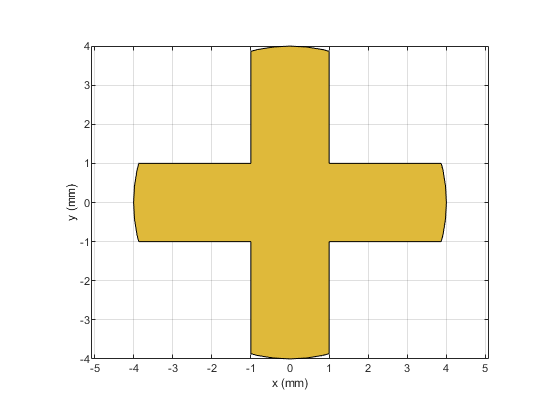

Subtract the annular ring from the cross trace and display the result.
shapeDiff = minus(trace,ring); show(shapeDiff)
Subtract Two RF PCB Shapes Using - Operator
Create and display a curved bend shape.
bend1 = bendCurved; show(bend1)
Create and display a curved bend shape with a spatial offset.
bend2 = bendCurved(ReferencePoint=[-1e-3 -1e-3]); show(bend2)
Subtract the offset bend from the default bend and display the result.
shapeDiff = bend1 - bend2; show(shapeDiff)
Input Arguments
shape1
— First shape
object
First shape created using custom elements and shape objects of RF PCB Toolbox™, specified as an object.
Example: shape1 = bendCurved;
specifies the first shape as a bendCurved
object.
shape2
— Second shape
object
Second shape created using custom elements and shape objects of RF PCB Toolbox, specified as an object.
Example: shape2 = ringAnnular;
specifies the second shape as a
ringAnnular
object.
Version History
Introduced in R2021b
