lcladder

Create LC ladder network

Description

Use an lcladder object to:

  • Create an LC ladder filter.

  • Convert an rffilter object to an LC ladder.

  • Build a circuit object with an LC ladder element.

  • Model an LC circuit in cascaded stages using an rfbudget object or the RF Budget Analyzer app.

LC ladder representation

Creation

Description

lcobj = lcladder(top,L,C) creates an LC ladder object lcobj and sets the Topology, Inductances, and Capacitances properties.

example

lcobj = lcladder(rffilterobj) creates a LC ladder object lcobj from an RF filter object rffilterobj.

lcobj = lcladder(___,lcname) creates an LC ladder object lcobj and sets the Name property. Specify lcname after all other input arguments.

Input Arguments

expand all

RF filter object, specified as an rffilter object.

Example: lcobj = lcladder(rffilterobj)

Properties

expand all

Topology type of the LC ladder, specified as one of the following:

  • 'lowpasspi' — Low-pass pi filter

  • 'lowpasstee' —Low-pass tee filter

  • 'highpasspi' — High-pass pi filter

  • 'highpasstee' — High-pass tee filter

  • 'bandpasspi' — Band-pass pi filter

  • 'bandpasstee' — Band-pass tee filter

  • 'bandstoppi' — Band-stop pi filter

  • 'bandstoptee' — Band-stop tee filter

Example: 'lowpasspi'

Inductor values in the LC ladder, specified as an inductor object or as a numeric scalar or two-element vector in henries.

Example: 1e-9

Capacitor values in the LC ladder, specified as a capacitor object or as a numeric scalar or two-element vector in farads.

Example: [2e-12 3e-12]

Name of the LC ladder object, specified as a character vector or string scalar.

Example: 'lcfilter'

This property is read-only.

Number of ports in LC ladder object. specified as a positive scalar.

This property is read-only.

Terminal names of LC ladder object, specified as the cell vector, {'p1+' 'p2+' 'p1-' 'p2-'}. An LC ladder object always has four terminals: two terminals associated with the first port ('p1+' and 'p1-') and two terminals associated with the second port ('p2+' and 'p2-').

Example: {'p1+' 'p2+' 'p1-' 'p2-'}

Parent circuit nodes connected to LC ladder object terminals, specified as a vector of integers. This property appears only after the LC ladder object is added to a circuit.

Note

ParentNodes are only displayed after the capacitor has been added into a circuit.

Full path of the circuit to which the LC ladder object belongs, specified as character vector. This path appears only after the inductor is added to the circuit.

Note

ParentPath is only displayed after the capacitor has been added into a circuit.

Object Functions

sparametersCalculate S-parameters for RF data, network, circuit, and matching network objects
groupdelayGroup delay of S-parameter object or RF filter object or RF Toolbox circuit object
cloneCreate copy of existing circuit element or circuit object
rfplotPlot S-parameter data

Examples

collapse all

Create a low-pass pi LC ladder object with an inductor value of 3.18e-8 H and a capacitor value of 6.37e-12 F. Calculate and plot the s-parameters.

L = 3.18e-8;
C = [6.37e-12 6.37e-12];
lpp = lcladder('lowpasspi',L,C)
lpp =
  lcladder: LC Ladder element

        Topology: 'lowpasspi'
     Inductances: 3.1800e-08
    Capacitances: [6.3700e-12 6.3700e-12]
            Name: 'lcfilt'

freq = 0:1e6:1e9;
S = sparameters(lpp,freq);
rfplot(S)

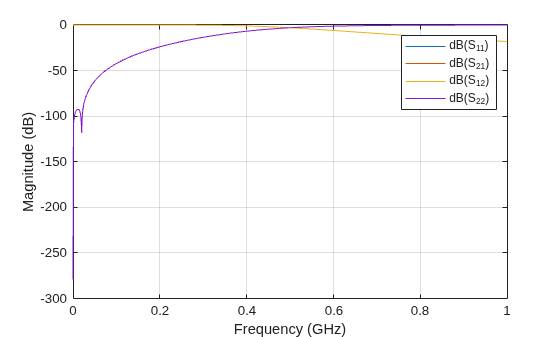

Figure contains an axes object. The axes object with xlabel Frequency (GHz), ylabel Magnitude (dB) contains 4 objects of type line. These objects represent dB(S_{11}), dB(S_{21}), dB(S_{12}), dB(S_{22}).

You can also add this LC ladder to a circuit.

c = circuit;
add(c,[1 2 0 0],lpp)
setports(c,[1 0],[2 0])

Design a low-pass pi LC ladder circuit.

L  = 1e-9;
C = [1e-12 1e-12];
lpp = lcladder('lowpasspi',L,C);

Design a default transmission line delay lossy and lossless objects.

tx1 = txlineDelayLossless;
tx2 = txlineDelayLossy;

Create an rfbudget object to design an RF chain.

b = rfbudget([tx1 lpp tx2 ],2.1e9,-30,100e6,'Solver','HarmonicBalance')
b =
  rfbudget with properties:

               Elements: [1x3 rf.internal.rfbudget.Element]
         InputFrequency: 2.1 GHz
    AvailableInputPower: -30 dBm
        SignalBandwidth: 100 MHz
                 Solver: HarmonicBalance
                WaitBar: true
             AutoUpdate: true

   Analysis Results
        OutputFrequency: (GHz) [       2.1        2.1        2.1]
            OutputPower: (dBm) [       -30     -30.87     -30.87]
         TransducerGain: (dB)  [-6.514e-10     -0.868    -0.8683]
                     NF: (dB)  [-2.132e-14 -2.132e-14  0.0003759]
                   IIP2: (dBm) [       Inf        Inf        Inf]
                   OIP2: (dBm) [       Inf        Inf        Inf]
                   IIP3: (dBm) [       Inf        Inf        Inf]
                   OIP3: (dBm) [       Inf        Inf        Inf]
                    SNR: (dB)  [     63.98      63.98      63.97]

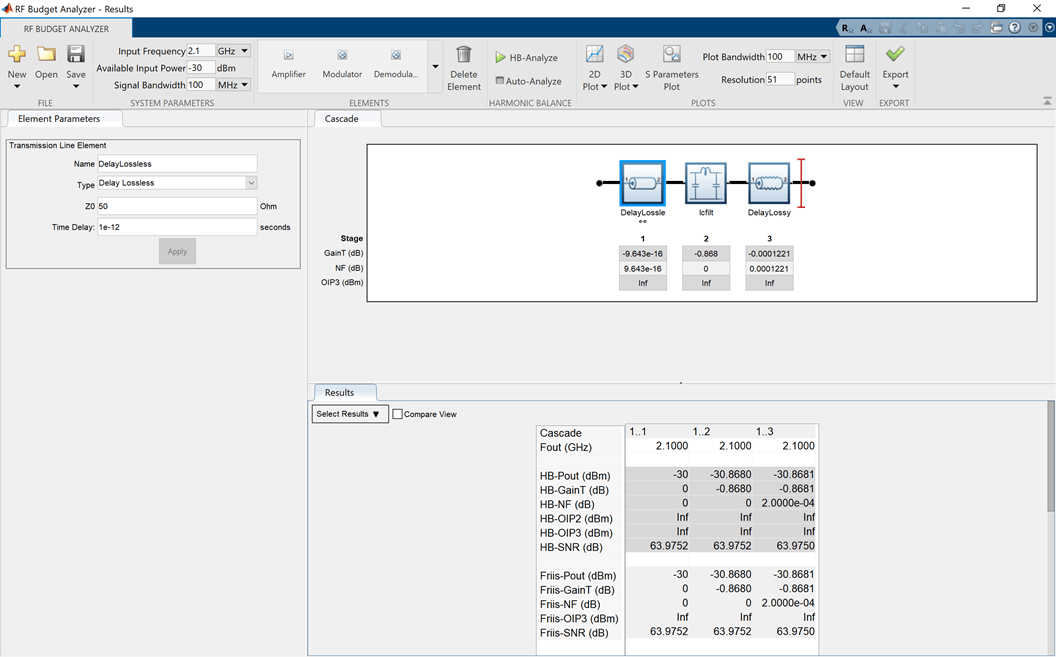

Use the show command at the command line to visualize the RF budget chain in the RF Budget Analyzer app. You can also do further analysis on this chain using the app. For more information, see RF Budget Analyzer.

show(b)
