predict
Predict next observation, next reward, or episode termination given observation and action input data
Since R2022a
Syntax
Description
evaluates the environment transition function approximator object
predNextObs
= predict(tsnFcnAppx
,obs
,act
)tsnFcnAppx
and returns the predicted next observation
nextObs
, given the current observation obs
and
the action act
.
evaluates the environment reward function approximator object
predReward
= predict(rwdFcnAppx
,obs
,act
,nextObs
)rwdFcnAppx
and returns the predicted reward
predReward
, given the current observation obs
,
the action act
, and the next observation
nextObs
.
evaluates the environment is-done function approximator object
predIsDone
= predict(idnFcnAppx
,obs
,act
)idnFcnAppx
and returns the predicted is-done status
predIsDone
, given the current observation obs
,
the action act
, and the next observation
nextObs
.
___ = predict(___,UseForward=
allows you to explicitly call a forward pass when computing gradients.useForward
)
Examples
Predict Next Observation Using Continuous Gaussian Transition Function Approximator
Create observation and action specification objects (or alternatively use getObservationInfo
and getActionInfo
to extract the specification objects from an environment). For this example, two observation channels carry vectors in a four- and two-dimensional space, respectively. The action is a continuous three-dimensional vector.
obsInfo = [ rlNumericSpec([4 1],UpperLimit=10*ones(4,1)); rlNumericSpec([1 2],UpperLimit=20*ones(1,2)) ]; actInfo = rlNumericSpec([3 1]);
Create a deep neural network to use as approximation model for the transition function approximator. For a continuous Gaussian transition function approximator, the network must have two output layers for each observation (one for the mean values the other for the standard deviation values).
Define each network path as an array of layer objects. Get the dimensions of the observation and action spaces from the environment specification objects, and specify a name for the input layers, so you can later explicitly associate them with the appropriate environment channel.
% Input path layers from first observation channel obs1Path = [ featureInputLayer( ... prod(obsInfo(1).Dimension), ... Name="obs1InLyr") fullyConnectedLayer(5,Name="obs1PathOutLyr") ]; % Input path layers from second observation channel obs2Path = [ featureInputLayer( ... prod(obsInfo(2).Dimension), ... Name="obs2InLyr") fullyConnectedLayer(5,Name="obs2PathOutLyr") ]; % Input path layers from action channel actPath = [ featureInputLayer( ... prod(actInfo(1).Dimension), ... Name="actInLyr") fullyConnectedLayer(5,Name="actPathOutLyr") ]; % Joint path layers, concatenate 3 inputs along first dimension jointPath = [ concatenationLayer(1,3,Name="concat") tanhLayer(Name="jntPathTahnLyr"); fullyConnectedLayer(10,Name="jntfc") ]; % Path layers for mean values of first predicted obs % Using tanh and scaling layers to scale range from (-1,1) to (-10,10) % Note that scale vector must be a column vector mean1Path = [ fullyConnectedLayer(prod(obsInfo(1).Dimension), ... Name="mean1PathInLyr"); tanhLayer(Name="mean1PathTahnLyr"); scalingLayer(Name="mean1OutLyr", ... Scale=obsInfo(1).UpperLimit) ]; % Path layers for standard deviations first predicted obs % Using softplus layer to make them non negative std1Path = [ fullyConnectedLayer(prod(obsInfo(1).Dimension), ... Name="std1PathInLyr"); softplusLayer(Name="std1OutLyr") ]; % Path layers for mean values of second predicted obs % Using tanh and scaling layers to scale range from (-1,1) to (-20,20) % Note that scale vector must be a column vector mean2Path = [ fullyConnectedLayer(prod(obsInfo(2).Dimension), ... Name="mean2PathInLyr"); tanhLayer(Name="mean2PathTahnLyr"); scalingLayer(Name="mean2OutLyr", ... Scale=obsInfo(2).UpperLimit(:)) ]; % Path layers for standard deviations second predicted obs % Using softplus layer to make them non negative std2Path = [ fullyConnectedLayer(prod(obsInfo(2).Dimension), ... Name="std2PathInLyr"); softplusLayer(Name="std2OutLyr") ]; % Assemble dlnetwork object. net = dlnetwork; net = addLayers(net,obs1Path); net = addLayers(net,obs2Path); net = addLayers(net,actPath); net = addLayers(net,jointPath); net = addLayers(net,mean1Path); net = addLayers(net,std1Path); net = addLayers(net,mean2Path); net = addLayers(net,std2Path); % Connect layers. net = connectLayers(net,"obs1PathOutLyr","concat/in1"); net = connectLayers(net,"obs2PathOutLyr","concat/in2"); net = connectLayers(net,"actPathOutLyr","concat/in3"); net = connectLayers(net,"jntfc","mean1PathInLyr/in"); net = connectLayers(net,"jntfc","std1PathInLyr/in"); net = connectLayers(net,"jntfc","mean2PathInLyr/in"); net = connectLayers(net,"jntfc","std2PathInLyr/in"); % Plot network. plot(net)
% Initialize network. net = initialize(net); % Display the number of weights. summary(net)
Initialized: true Number of learnables: 352 Inputs: 1 'obs1InLyr' 4 features 2 'obs2InLyr' 2 features 3 'actInLyr' 3 features
Create a continuous Gaussian transition function approximator object, specifying the names of all the input and output layers.
tsnFcnAppx = rlContinuousGaussianTransitionFunction(... net,obsInfo,actInfo,... ObservationInputNames=["obs1InLyr","obs2InLyr"], ... ActionInputNames="actInLyr", ... NextObservationMeanOutputNames= ... ["mean1OutLyr","mean2OutLyr"], ... NextObservationStandardDeviationOutputNames= ... ["std1OutLyr","std2OutLyr"] );
Predict the next observation for a random observation and action.
predObs = predict(tsnFcnAppx, ... {rand(obsInfo(1).Dimension),rand(obsInfo(2).Dimension)}, ... {rand(actInfo(1).Dimension)})
predObs=1×2 cell array
{4x1 single} {[-19.2685 -1.1779]}
Each element of the resulting cell array represents the prediction for the corresponding observation channel.

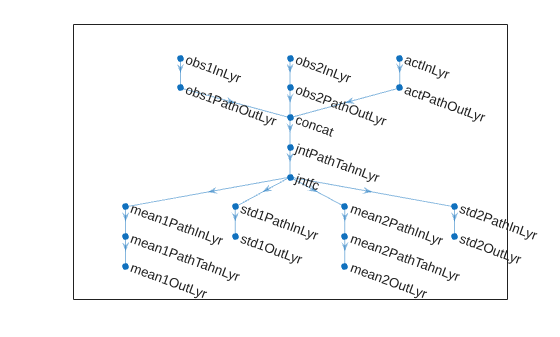

To display the mean values and standard deviations of the Gaussian probability distribution for the predicted observations, use evaluate
.
predDst = evaluate(tsnFcnAppx, ... {rand(obsInfo(1).Dimension), ... rand(obsInfo(2).Dimension), ... rand(actInfo(1).Dimension)})
predDst=1×4 cell array
{4x1 single} {[-16.6873 4.4006]} {4x1 single} {[0.7455 1.4318]}
The result is a cell array in which the first and second element represent the mean values for the predicted observations in the first and second channel, respectively. The third and fourth element represent the standard deviations for the predicted observations in the first and second channel, respectively.
Create Deterministic Reward Function and Predict Reward
Create an environment interface and extract observation and action specifications. Alternatively, you can create specifications using rlNumericSpec
and rlFiniteSetSpec
.
env = rlPredefinedEnv("CartPole-Continuous");
obsInfo = getObservationInfo(env);
actInfo = getActionInfo(env);
To approximate the reward function, create a deep neural network. For this example, the network has two input layers, one for the current action and one for the next observations. The single output layer contains a scalar, which represents the value of the predicted reward.
Define each network path as an array of layer objects. Get the dimensions of the observation and action spaces from the environment specifications, and specify a name for the input layers, so you can later explicitly associate them with the appropriate environment channel.
actionPath = featureInputLayer( ... actInfo.Dimension(1), ... Name="action"); nextStatePath = featureInputLayer( ... obsInfo.Dimension(1), ... Name="nextState"); commonPath = [concatenationLayer(1,2,Name="concat") fullyConnectedLayer(64) reluLayer fullyConnectedLayer(64) reluLayer fullyConnectedLayer(64) reluLayer fullyConnectedLayer(1)];
Assemble dlnetwork
object.
net = dlnetwork(); net = addLayers(net,nextStatePath); net = addLayers(net,actionPath); net = addLayers(net,commonPath);
Connect layers.
net = connectLayers(net,"nextState","concat/in1"); net = connectLayers(net,"action","concat/in2");
Plot network.
plot(net)
Initialize network and display the number of weights.
net = initialize(net); summary(net)
Initialized: true Number of learnables: 8.7k Inputs: 1 'nextState' 4 features 2 'action' 1 features
Create a deterministic transition function object.
rwdFcnAppx = rlContinuousDeterministicRewardFunction(... net,obsInfo,actInfo,... ActionInputNames="action", ... NextObservationInputNames="nextState");
Using this reward function object, you can predict the next reward value based on the current action and next observation. For example, predict the reward for a random action and next observation. Since, for this example, only the action and the next observation influence the reward, use an empty cell array for the current observation.
act = rand(actInfo.Dimension); nxtobs = rand(obsInfo.Dimension); reward = predict(rwdFcnAppx, {}, {act}, {nxtobs})
reward = single
0.1034
To predict the reward, you can also use evaluate
.
reward_ev = evaluate(rwdFcnAppx, {act,nxtobs} )
reward_ev = 1x1 cell array
{[0.1034]}
Create Is-Done Function and Predict Termination
Create an environment interface and extract observation and action specifications. Alternatively, you can create specifications using rlNumericSpec
and rlFiniteSetSpec
.
env = rlPredefinedEnv("CartPole-Continuous");
obsInfo = getObservationInfo(env);
actInfo = getActionInfo(env);
To approximate the is-done function, use a deep neural network. The network has one input channel for the next observations. The single output channel is for the predicted termination signal.
Create the neural network as a vector of layer objects.
net = [ featureInputLayer( ... obsInfo.Dimension(1), ... Name="nextState") fullyConnectedLayer(64) reluLayer fullyConnectedLayer(64) reluLayer fullyConnectedLayer(2) softmaxLayer(Name="isdone") ];
Convert to dlnetwork
object.
net = dlnetwork(net);
Plot network.
plot(net)
Initialize network and display the number of weights.
net = initialize(net); summary(net);
Initialized: true Number of learnables: 4.6k Inputs: 1 'nextState' 4 features
Create an is-done function approximator object.
isDoneFcnAppx = rlIsDoneFunction(... net,obsInfo,actInfo,... NextObservationInputNames="nextState");
Using this is-done function approximator object, you can predict the termination signal based on the next observation. For example, predict the termination signal for a random next observation. Since for this example the termination signal only depends on the next observation, use empty cell arrays for the current action and observation inputs.
nxtobs = rand(obsInfo.Dimension); predIsDone = predict(isDoneFcnAppx,{},{},{nxtobs})
predIsDone = 0
You can obtain the termination probability using evaluate
.
predIsDoneProb = evaluate(isDoneFcnAppx,{nxtobs})
predIsDoneProb = 1x1 cell array
{2x1 single}
predIsDoneProb{1}
ans = 2x1 single column vector
0.5405
0.4595
The first number is the probability of obtaining a 0
(no termination predicted), the second one is the probability of obtaining a 1
(termination predicted).
Input Arguments
tsnFcnAppx
— Environment transition function approximator object
rlContinuousDeterministicTransitionFunction
object | rlContinuousGaussianTransitionFunction
object
Environment transition function approximator object, specified as one of the following:
rwdFcnAppx
— Environment reward function
rlContinuousDeterministicRewardFunction
object | rlContinuousGaussianRewardFunction
object | function handle
Environment reward function approximator object, specified as one of the following:
Function handle object. For more information about function handle objects, see What Is a Function Handle?.
idnFcnAppx
— Environment is-done function approximator object
rlIsDoneFunction
object
Environment is-done function approximator object, specified as an rlIsDoneFunction
object.
obs
— Observations
cell array
Observations, specified as a cell array with as many elements as there are
observation input channels. Each element of obs
contains an array
of observations for a single observation input channel.
The dimensions of each element in obs
are
MO-by-LB,
where:
MO corresponds to the dimensions of the associated observation input channel.
LB is the batch size. To specify a single observation, set LB = 1. To specify a batch of observations, specify LB > 1. If
valueRep
orqValueRep
has multiple observation input channels, then LB must be the same for all elements ofobs
.
LB must be the same for both
act
and obs
.
For more information on input and output formats for recurrent neural networks, see
the Algorithms section of lstmLayer
.
act
— Action
single-element cell array
Action, specified as a single-element cell array that contains an array of action values.
The dimensions of this array are MA-by-LB, where:
MA corresponds to the dimensions of the associated action specification.
LB is the batch size. To specify a single observation, set LB = 1. To specify a batch of observations, specify LB > 1.
LB must be the same for both
act
and obs
.
For more information on input and output formats for recurrent neural networks, see
the Algorithms section of lstmLayer
.
useForward
— Option to use parallel training
false
(default) | true
Output Arguments
predNextObs
— Predicted next observation
cell array
Predicted next observation, that is the observation predicted by the transition
function approximator tsnFcnAppx
given the current observation
obs
and the action act
, returned as a cell
array of the same dimension as obs
.
predReward
— Predicted next observation
single
Predicted reward, that is the reward predicted by the reward function approximator
rwdFcnAppx
given the current observation
obs
, the action act
, and the following
observation nextObs
, returned as a
single
.
predIsDone
— Predicted next observation
double
Predicted is-done episode status, that is the episode termination status predicted
by the is-done function approximator rwdFcnAppx
given the current
observation obs
, the action act
, and the
following observation nextObs
, returned as a
double
.
Note
If fcnAppx
is an rlContinuousDeterministicRewardFunction
object, then
evaluate
behaves identically to predict
except that
it returns results inside a single-cell array. If fcnAppx
is an rlContinuousDeterministicTransitionFunction
object, then
evaluate
behaves identically to predict
. If
fcnAppx
is an rlContinuousGaussianTransitionFunction
object, then
evaluate
returns the mean value and standard deviation the
observation probability distribution, while predict
returns an
observation sampled from this distribution. Similarly, for an rlContinuousGaussianRewardFunction
object, evaluate
returns
the mean value and standard deviation the reward probability distribution, while predict
returns a
reward sampled from this distribution. Finally, if fcnAppx
is an
rlIsDoneFunction
object, then evaluate
returns the probabilities of the termination
status being false or true, respectively, while predict
returns a
predicted termination status sampled with these probabilities.
Tips
When the elements of the cell array in inData
are
dlarray
objects, the elements of the cell array returned in
outData
are also dlarray
objects. This allows
predict
to be used with automatic differentiation.
Specifically, you can write a custom loss function that directly uses
predict
and dlgradient
within
it, and then use dlfeval
and
dlaccelerate
with
your custom loss function. For an example, see Train Reinforcement Learning Policy Using Custom Training Loop and Custom Training Loop with Simulink Action Noise.
Version History
Introduced in R2022a
See Also
Functions
evaluate
|runEpisode
|update
|rlOptimizer
|syncParameters
|getValue
|getAction
|getMaxQValue
|getLearnableParameters
|setLearnableParameters
