plot

Plot pulse waveform

Since R2023a

Syntax

``plot(waveform)``
``plot(waveform,Name=Value)``
``plot(waveform,Name=Value,LineSpec)``
``hndl = plot(___)``

Description

example

````plot(waveform)` plots the real part of the `waveform`.```
````plot(waveform,Name=Value)` plots the waveform with additional options specified by one or more (`Name=Value`) pair arguments.```
````plot(waveform,Name=Value,LineSpec)` specifies the same line color, line style, or marker options as are available in the MATLAB® `plot` function.```
````hndl = plot(___)` returns the line handle in the figure.```

Examples

collapse all

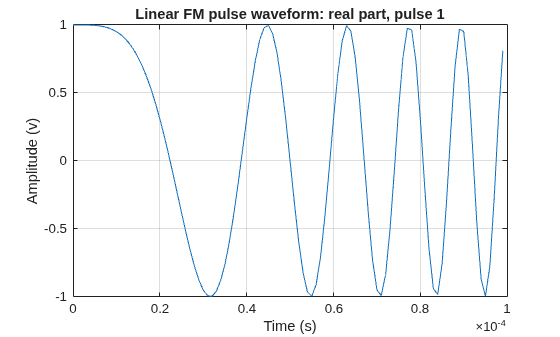

Create and plot an upsweep linear FM pulse waveform.

```waveform = phased.LinearFMWaveform('SweepBandwidth',1e5,'PulseWidth',1e-4); plot(waveform);```

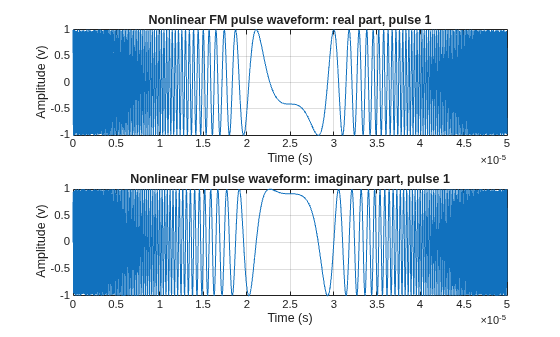

Create and plot a quadratic FM pulse waveform. The pulse has a 10 MHz bandwidth and 50 $\mu$sec duration. The pulse sample rate is 10 times the bandwidth.

```BW = 10e6; T = 50e-6; waveform = phased.NonlinearFMWaveform( ... 'SampleRate',10*BW,'SweepBandwidth',BW, ... 'PulseWidth',T); plot(waveform,PlotType='complex')```

Input Arguments

collapse all

Pulse waveform, specified as a System object.

Character vector to specifies the same line color, style, or marker options as are available in the MATLAB `plot` function. If you specify a `PlotType` value of `'complex'`, then `LineSpec` applies to both the real and imaginary subplots.

Name-Value Arguments

Specify optional pairs of arguments as `Name1=Value1,...,NameN=ValueN`, where `Name` is the argument name and `Value` is the corresponding value. Name-value arguments must appear after other arguments, but the order of the pairs does not matter.

Before R2021a, use commas to separate each name and value, and enclose `Name` in quotes.

Example: ` plot(waveform,PlotType='complex',pulseidx=4)`

Specifies whether the function plots the real part, imaginary part, or both parts of the waveform. Valid values are `'real'`, `'imag'`, and `'complex'`.

Example: `'complex'`

Data Types: `char` | `string`

Index of the pulse to plot. This value must be a scalar.

Example: 4

Data Types: `double`

Frequency offset, specified as a scalar. Units are in Hz.

Example: `-100`

Data Types: `double`

Frequency offset source, specified as a scalar. Units are in Hz.

Example: `'Input port'`

Data Types: `double`

Output Arguments

collapse all

Handle to the line or lines in the figure. For a `PlotType` value of `'complex'`, `hndl` is a column vector. The first and second elements of this vector are the handles to the lines in the real and imaginary subplots, respectively.

Version History

Introduced in R2023a
