# generateMaxwellStressTensor

Compute Maxwell stress tensor at nodal locations

Since R2024a

## Syntax

``results = generateMaxwellStressTensor(R)``

## Description

````results = generateMaxwellStressTensor(R)` generates the Maxwell stress tensor values at the mesh nodes and stores it in the `MaxwellStressTensor` property of the `results` object. Here, `results` is an `ElectrostaticResults` or `MagnetostaticResults` object.```

example

## Examples

collapse all

Add the Maxwell stress tensor to the electrostatic solution stored in an `ElectrostaticResults` object.

Create an `femodel` object for electrostatic analysis. Include a geometry of a frame.

```model = femodel(AnalysisType="electrostatic", ... Geometry="Frame.stl");```

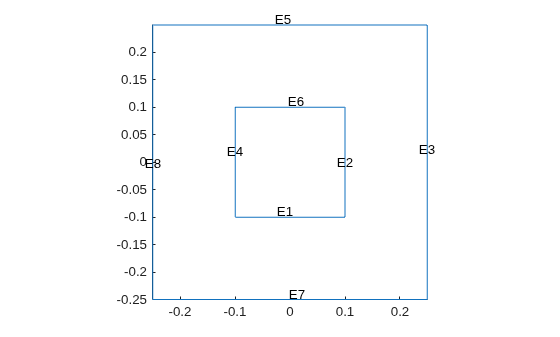

Plot the geometry of the frame with edge labels.

`pdegplot(model,EdgeLabels="on");`

Specify the vacuum permittivity in the SI system of units.

`model.VacuumPermittivity = 8.8541878128e-12;`

Specify the relative permittivity of the material.

```model.MaterialProperties = ... materialProperties(RelativePermittivity=1.00059);```

Specify the electrostatic potential at the inner boundary.

`model.EdgeBC([1 2 4 6]) = edgeBC(Voltage=1000);`

Specify the electrostatic potential at the outer boundary.

`model.EdgeBC([3 5 7 8]) = edgeBC(Voltage=0);`

Generate the mesh. This assignment updates the mesh stored in the `Geometry` property of the model.

`model = generateMesh(model);`

Solve the model.

`R = solve(model)`
```R = ElectrostaticResults with properties: ElectricPotential: [1276x1 double] ElectricField: [1x1 FEStruct] ElectricFluxDensity: [1x1 FEStruct] Mesh: [1x1 FEMesh] ```

Generate the Maxwell stress tensor.

`R = generateMaxwellStressTensor(R)`
```R = ElectrostaticResults with properties: ElectricPotential: [1276x1 double] ElectricField: [1x1 FEStruct] ElectricFluxDensity: [1x1 FEStruct] Mesh: [1x1 FEMesh] MaxwellStressTensor: [2x2x1276 double] ```

Add the Maxwell stress tensor to the magnetostatic solution stored in a `MagnetostaticResults` object.

Create an `femodel` object for magnetostatic analysis. Include a geometry representing a plate with a hole.

```model = femodel(AnalysisType="magnetostatic", ... Geometry="PlateHoleSolid.stl");```

Plot the geometry of the plate with face labels.

`pdegplot(model,FaceLabels="on",FaceAlpha=0.3);`

Specify the vacuum permeability in the SI system of units.

`model.VacuumPermeability = 1.2566370614e-6;`

Specify the relative permeability of the material.

```model.MaterialProperties = ... materialProperties(RelativePermeability=5000);```

Apply the magnetic potential boundary conditions on the side faces and the face bordering the hole.

```model.FaceBC(3:6) = faceBC(MagneticPotential=[0;0;0]); model.FaceBC(7) = faceBC(MagneticPotential=[0;0;0.01]);```

Specify the current density for the entire geometry.

`model.CellLoad = cellLoad(CurrentDensity=[0;0;0.5]);`

Generate the mesh. This assignment updates the mesh stored in the `Geometry` property of the model.

`model = generateMesh(model);`

Solve the model.

`R = solve(model)`
```R = MagnetostaticResults with properties: MagneticPotential: [1x1 FEStruct] MagneticField: [1x1 FEStruct] MagneticFluxDensity: [1x1 FEStruct] Mesh: [1x1 FEMesh] ```

Generate the Maxwell stress tensor.

`R = generateMaxwellStressTensor(R)`
```R = MagnetostaticResults with properties: MagneticPotential: [1x1 FEStruct] MagneticField: [1x1 FEStruct] MagneticFluxDensity: [1x1 FEStruct] Mesh: [1x1 FEMesh] MaxwellStressTensor: [3x3x813 double] ```

## Input Arguments

collapse all

Electrostatic or magnetostatic solution, specified as an `ElectrostaticResults` or `MagnetostaticResults` object. Create `R` using the `solve` function.

## Version History

Introduced in R2024a
