# initmesh

Create initial 2-D mesh

**This page describes the legacy workflow. New features might not be compatible with the
legacy workflow. For the corresponding step in the recommended workflow, see generateMesh.**

## Description

## Examples

### Initial Mesh for L-shaped Membrane

Generate a triangular mesh of the L-shaped membrane.

`[p,e,t] = initmesh("lshapeg");`

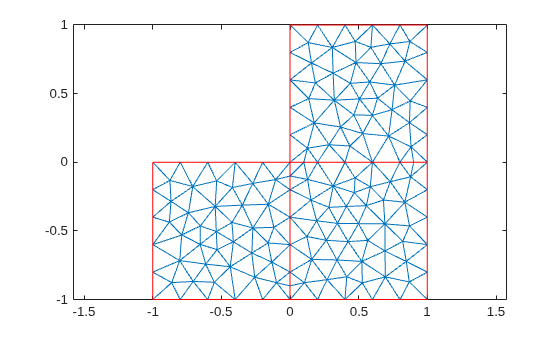

Plot the mesh.

pdemesh(p,e,t)

### Maximum Mesh Edge Length

Generate a triangular mesh of the L-shaped membrane with the target maximum mesh edge length of 0.1.

[p,e,t] = initmesh("lshapeg","Hmax",0.1);

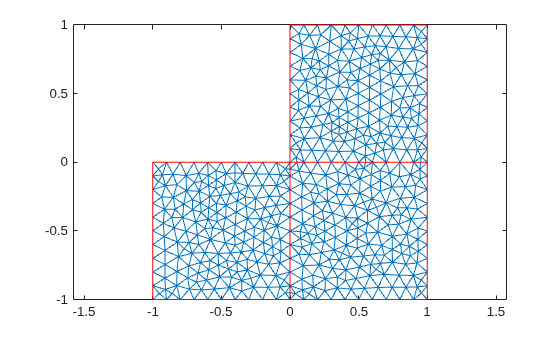

Plot the mesh.

pdemesh(p,e,t)

## Input Arguments

`g`

— Geometry description

decomposed geometry matrix | geometry function | handle to geometry function

Geometry description, specified as a decomposed geometry matrix, a geometry
function, or a handle to the geometry function. For details about a decomposed geometry
matrix, see `decsg`

. For details about a geometry function,
see Parametrized Function for 2-D Geometry Creation.

A geometry function must return the same result for the same input arguments in every function call. Thus, it must not contain functions and expressions designed to return a variety of results, such as random number generators.

**Data Types: **`double`

| `char`

| `string`

| `function_handle`

### Name-Value Arguments

Specify optional pairs of arguments as
`Name1=Value1,...,NameN=ValueN`

, where `Name`

is
the argument name and `Value`

is the corresponding value.
Name-value arguments must appear after other arguments, but the order of the
pairs does not matter.

*
Before R2021a, use commas to separate each name and value, and enclose*
`Name`

*in quotes.*

**Example: **`[p,e,t] = initmesh("lshapeg","Hmax",0.1);`

`Hmax`

— Target maximum mesh edge length

positive real number

Target maximum mesh edge length, specified as the comma-separated pair consisting
of `"Hmax"`

and a positive real number.

`Hmax`

is an approximate upper bound on the mesh edge lengths.
`initmesh`

estimates the default value of `Hmax`

from overall dimensions of the geometry.

Small `Hmax`

values let you create finer meshes, but mesh
generation can take a very long time in this case. You can interrupt mesh generation
by using **Ctrl+C**. Note that `initmesh`

can take
additional time to respond to the interrupt.

**Example: **`[p,e,t] = initmesh(g,"Hmax",0.25);`

**Data Types: **`double`

`Hgrad`

— Mesh growth rate

`1.3`

(default) | number strictly greater than 1 and less than 2

Mesh growth rate, specified as the comma-separated pair consisting of
`"Hgrad"`

and a number strictly greater than 1 and less than
2.

**Example: **`[p,e,t] = initmesh(g,"Hgrad",1.5);`

**Data Types: **`double`

`Box`

— Toggle to preserve bounding box

`"off"`

(default) | `"on"`

Toggle to preserve bounding box, specified as the comma-separated pair consisting
of `"Box"`

and `"on"`

or `"off"`

.
By turning on `"Box"`

you can get a good idea of how the mesh
generation algorithm works within the bounding box.

**Example: **`[p,e,t] = initmesh(g,"Box","on");`

**Data Types: **`char`

| `string`

`Init`

— Toggle to use edge triangulation

`"off"`

(default) | `"on"`

Toggle to use edge triangulation, specified as the comma-separated pair consisting
of `"Init"`

and `"on"`

or `"off"`

.
By turning on `Init`

you can see the initial triangulation of the
boundaries. For example, use these commands to determine the subdomain number
`n`

of the point `xy`

.

[p,e,t] = initmesh(g,"Hmax",Inf,"Init","on"); [uxy,tn,a2,a3] = tri2grid(p,t,zeros(size(p,2)),x,y); n = t(4,tn);

If the point is outside the geometry, `tn`

is
`NaN`

, and the command `n = t(4,tn)`

results in a
failure.

**Data Types: **`char`

| `string`

`Jiggle`

— Toggle to call `jigglemesh`

after creating the mesh

`"mean"`

(default) | `"minimum"`

| `"on"`

| `"off"`

Toggle to call `jigglemesh`

after creating the mesh, specified
as the comma-separated pair consisting of `"Jiggle"`

and
`"mean"`

, `"minimum"`

`"on"`

, or
`"off"`

.

`"mean"`

— call`jigglemesh`

with the argument`"Opt"`

set to`"mean"`

.`"minimum"`

— call`jigglemesh`

with the argument`"Opt"`

set to`"minimum"`

.`"on"`

— call`jigglemesh`

with the argument`"Opt"`

set to`"off"`

.`"off"`

— do not call`jigglemesh`

.

**Example: **```
[p,e,t] =
initmesh(g,"Jiggle","minimum");
```

**Data Types: **`char`

| `string`

`JiggleIter`

— Maximum number of iterations for `jigglemesh`

`10`

(default) | positive integer

Maximum number of iterations for `jigglemesh`

, specified as the
comma-separated pair consisting of `"JiggleIter"`

and a positive
integer.

**Example: **```
[p,e,t] =
initmesh(g,"Jiggle","on","JiggleIter",50);
```

**Data Types: **`double`

`MesherVersion`

— Algorithm for generating initial mesh

`"preR2013a"`

(default) | `"R2013a"`

Algorithm for generating initial mesh, specified as the comma-separated pair
consisting of `"MesherVersion"`

and either
`"R2013a"`

or `"preR2013a"`

. The
`"R2013a"`

algorithm runs faster, and can triangulate more
geometries than the `"preR2013a"`

algorithm. Both algorithms use
Delaunay triangulation.

**Data Types: **`char`

| `string`

## Output Arguments

`p`

— Mesh points

2-by-`Np`

matrix

Mesh points, returned as a 2-by-`Np`

matrix. `Np`

is the number of points (nodes) in the mesh. Column `k`

of
`p`

consists of the *x*-coordinate of point
`k`

in `p(1,k)`

and the
*y*-coordinate of point `k`

in
`p(2,k)`

. For details, see Mesh Data as [p,e,t] Triples.

`e`

— Mesh edges

7-by-`Ne`

matrix

Mesh edges, returned as a 7-by-`Ne`

matrix, where
`Ne`

is the number of boundary edges in the mesh. An edge is a pair
of points in `p`

containing a boundary between subdomains, or
containing an outer boundary. For details, see Mesh Data as [p,e,t] Triples.

`t`

— Mesh elements

4-by-`Nt`

matrix

Mesh elements, returned as a 4-by-`Nt`

matrix.
`Nt`

is the number of triangles in the mesh.

The `t(i,k)`

, with `i`

ranging from 1 through
`end - 1`

, contain indices to the corner points of element
`k`

. For details, see Mesh Data as [p,e,t] Triples. The last row,
`t(end,k)`

, contains the subdomain number of the element.

## References

[1] George, P. L. *Automatic
Mesh Generation — Application to Finite Element Methods*. Wiley,
1991.

## Version History

**Introduced before R2006a**

### R2013a: Performance and robustness enhancements in meshing algorithm

`initmesh`

provides an enhancement option for increased meshing speed
and robustness. Choose the enhanced algorithm by setting the
`MesherVersion`

name-value pair to `'R2013a'`

. The
default `MesherVersion`

value of `'preR2013a'`

gives the
same mesh as previous toolbox versions.

The enhancement is available in`pdeModeler`

from the **Mesh
> Parameters > Mesher version** menu.
